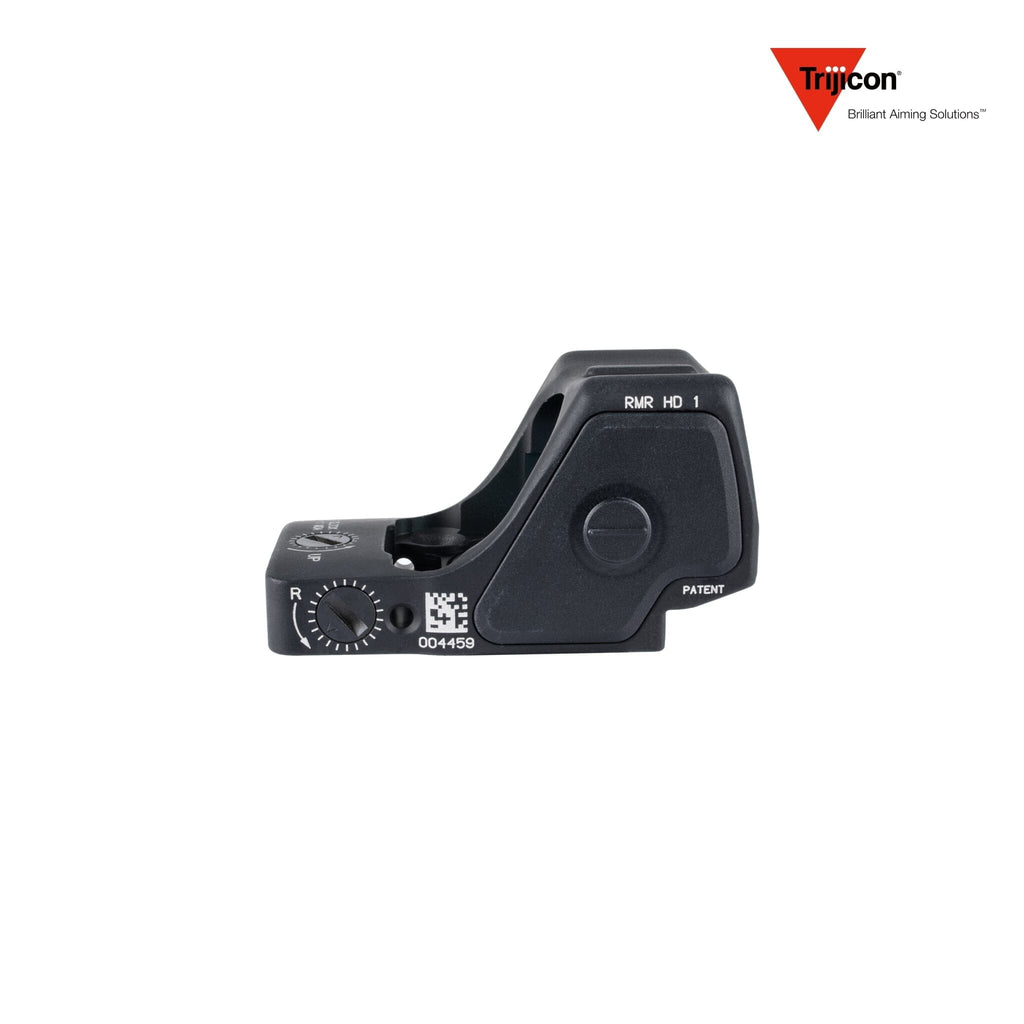

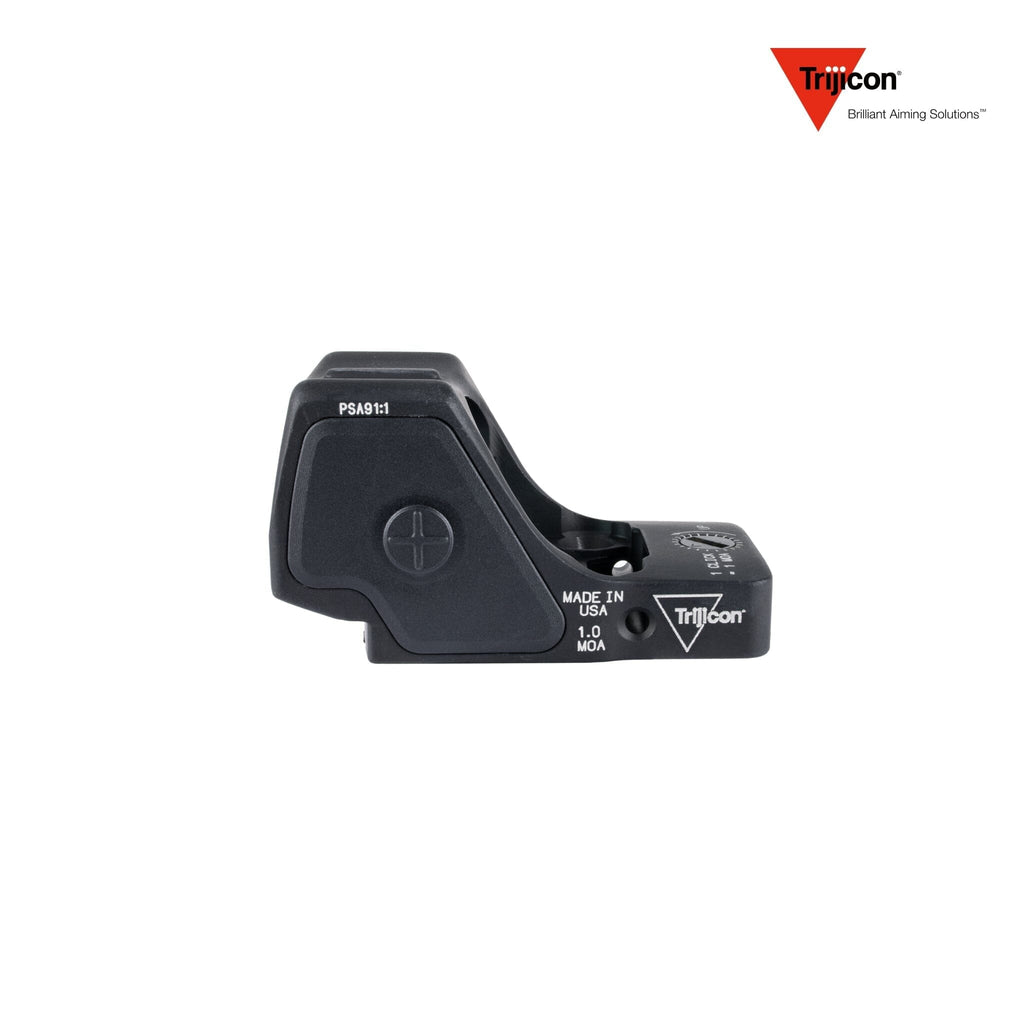

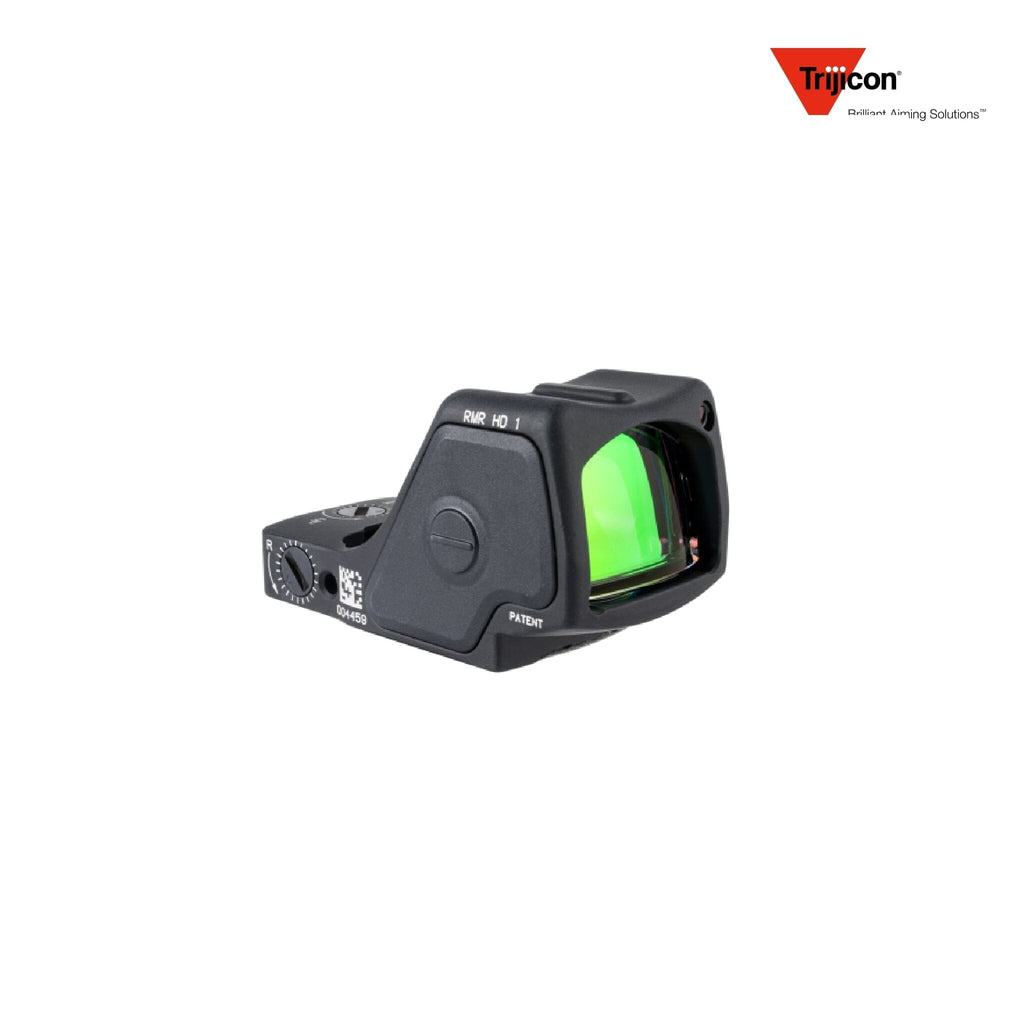

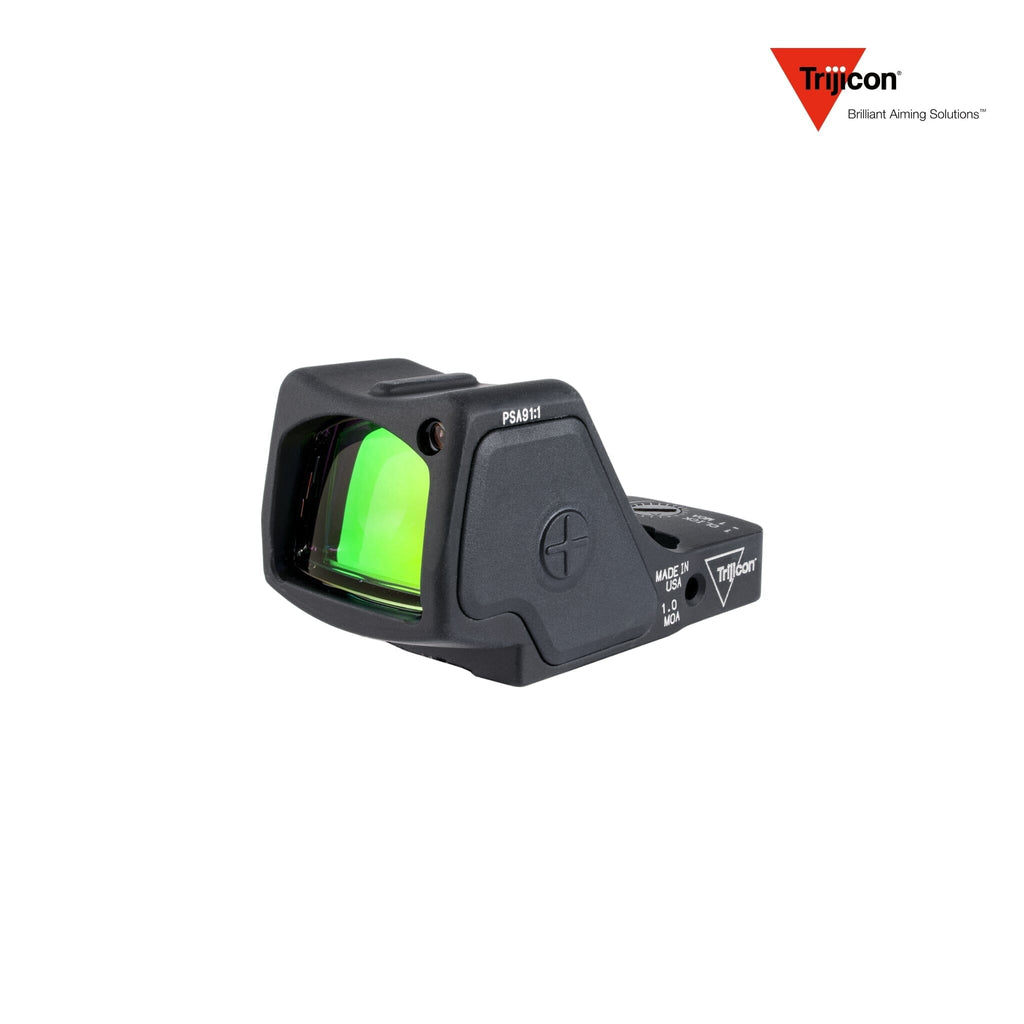

Trijicon RMR HD Adjustable LED Red Dot Sight - 1 MOA Dot with 55 MOA Ring
Features
-

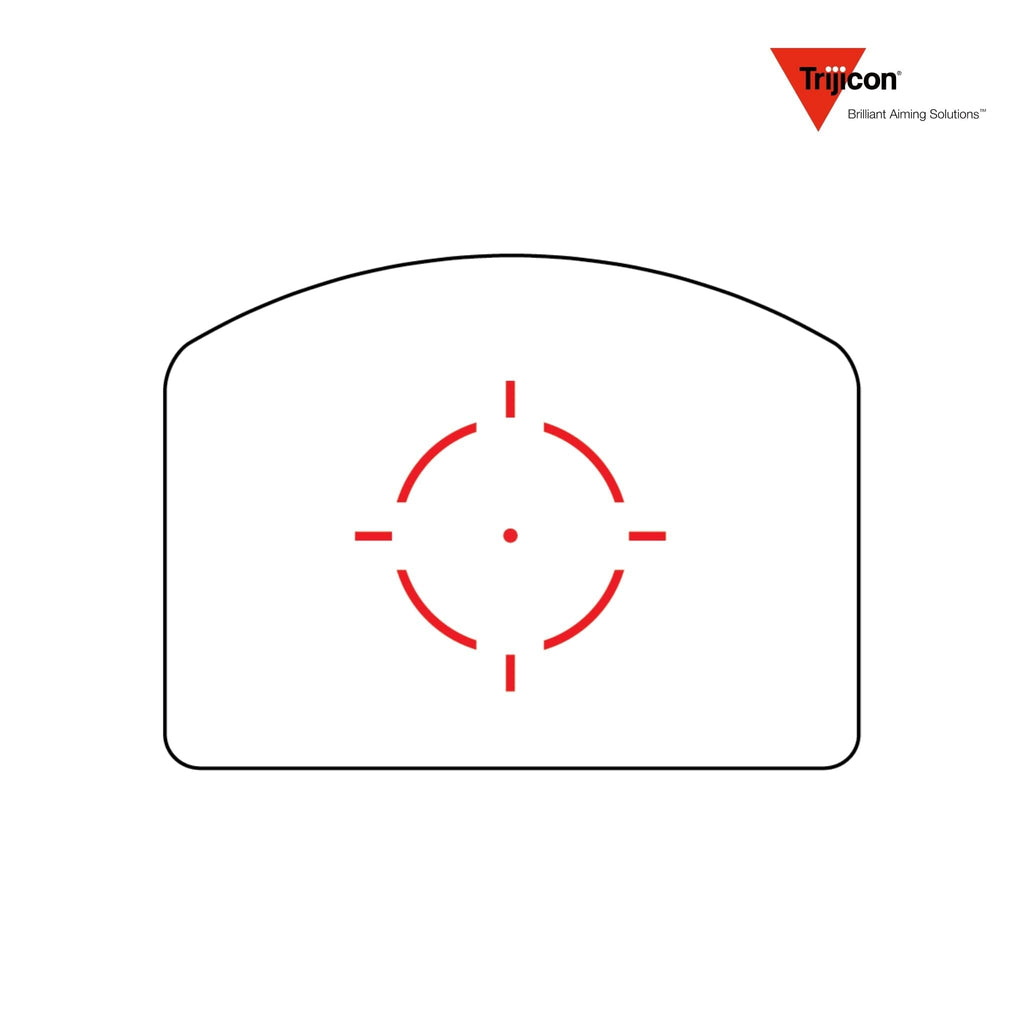

1 MOA Dot with 55 MOA Ring Reticle – Dual reticle configuration provides precision for long-range aiming with the dot and quick target acquisition with the large circle.
-
Forward-Mounted Light Sensor – Measures target-facing light conditions to dynamically adjust reticle brightness, helping prevent reticle washout in high-contrast environments.
-
Manual & Automatic Brightness Settings – Offers 9 brightness levels, including 3 night-vision compatible and 1 super-bright setting, plus a lock-out mode to retain preferred brightness.
-
Top-Loading CR2032 Battery – Battery compartment allows for convenient battery changes without removing the optic; delivers over 3 years of runtime at mid-setting.
-
7075‑T6 Forged Aluminum Housing – Rugged, impact-resistant design featuring Trijicon’s signature shape to deflect shock and protect internal components.
-
True-Color Multi-Coated Lens – Provides a clear and undistorted sight picture with excellent light transmission and minimal color shift.
-
Open‑Emitter LED Design – Compact and lightweight with the same footprint as the Trijicon RMR for cross-compatibility with existing mounts and slide cuts.
-
Waterproof & Fog‑Proof – Submersible up to 66 feet (20 meters) and nitrogen-purged to prevent fogging under extreme temperature changes.
-
Made in the USA – Built to military and law enforcement standards for maximum reliability and performance in critical situations.
Technical Specifications for Trijicon RMR HD Adjustable LED Red Dot Sight – 1 MOA Dot with 55 MOA Ring
|
Specification
|
Details
|
|
Manufacturer
|
Trijicon
|
|
Model / MPN
|
RMHD1‑C‑3200001
|
|
SKU
|
RMHD1‑C‑3200001
|
|
UPC
|
719307619210
|
|
Magnification
|
1×
|
|
Objective Lens Diameter
|
22.6 × 17.2 mm
|
|
Reticle
|
1 MOA Red Dot with 55 MOA Ring
|
|
Brightness Settings
|
9 (3 night-vision compatible, 1 super-bright)
|
|
Adjustment Click Value
|
1 MOA per click; 135 MOA total travel
|
|
Battery Type
|
CR2032 (top-loading)
|
|
Battery Life
|
Over 3 years at mid-brightness
|
|
Emitter Type
|
Open‑Emitter LED
|
|
Eye Relief
|
Unlimited
|
|
Length
|
2.15″ (54.6 mm)
|
|
Width
|
1.27″ (32.3 mm)
|
|
Height
|
1.19″ (30.2 mm)
|
|
Weight
|
1.69 oz (48 g) including battery
|
|
Housing Material
|
Forged 7075‑T6 Aluminum
|
|
Finish
|
Matte Black
|
|
Mount Type
|
Standard RMR footprint; mount not included
|
|
Waterproof / Fog‑Proof
|
Submersible to 66 ft (20 m); nitrogen-purged
|
|
Warranty
|
Electronics: 5 years; Housing: Limited Lifetime
|
|
Country of Origin
|
USA
|
Included Accessories
-
Trijicon RMR HD 1 MOA Dot with 55 MOA Ring Sight (Matte Black)
-
CR2032 Battery (installed)
-
T10 Torx Key
-
Two #6‑32 × ½″ Torx Head Screws
-
Two #6‑32 × 0.380″ Torx Head Screws
-
User Manual
-
Warranty Card
-
Trijicon Logo Sticker
