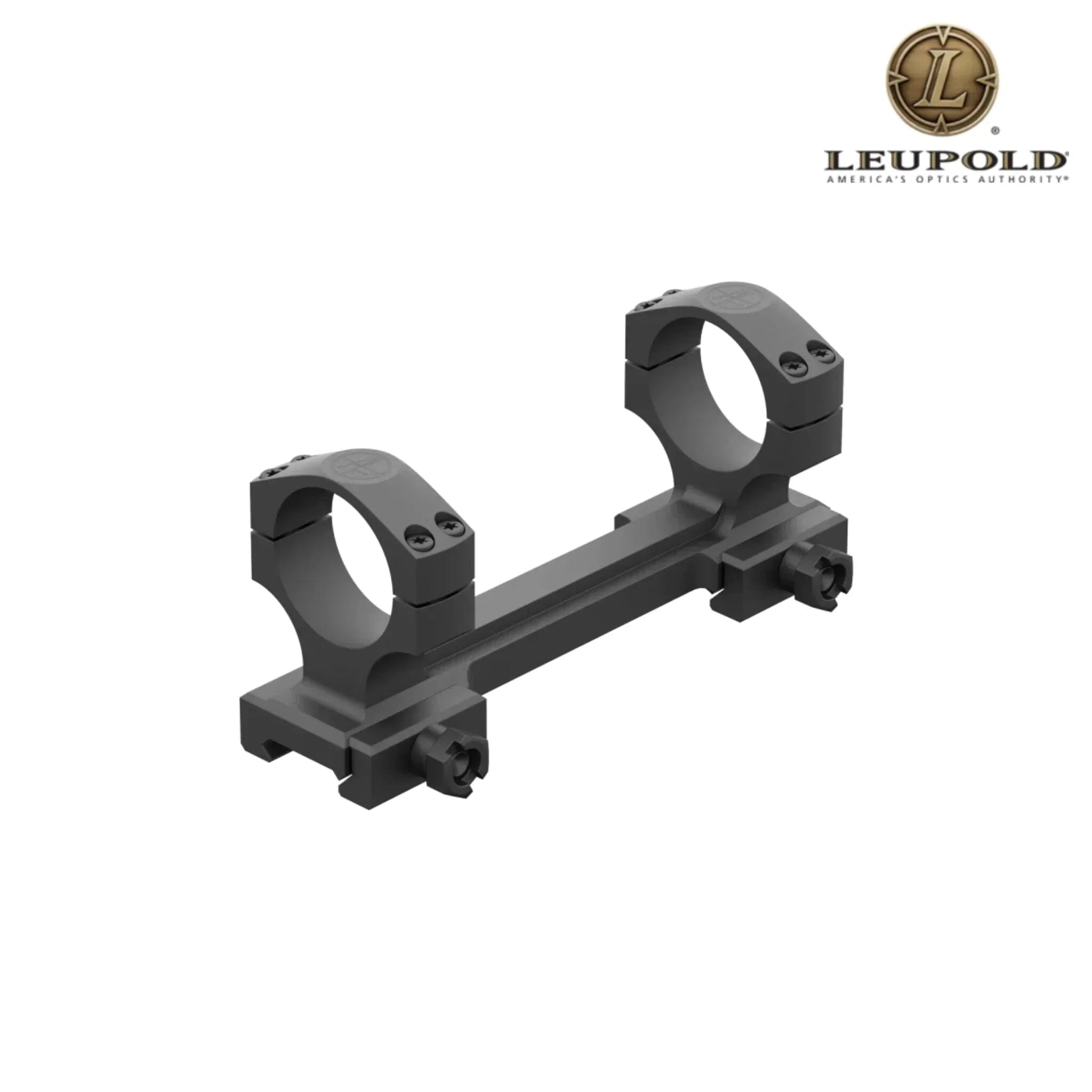

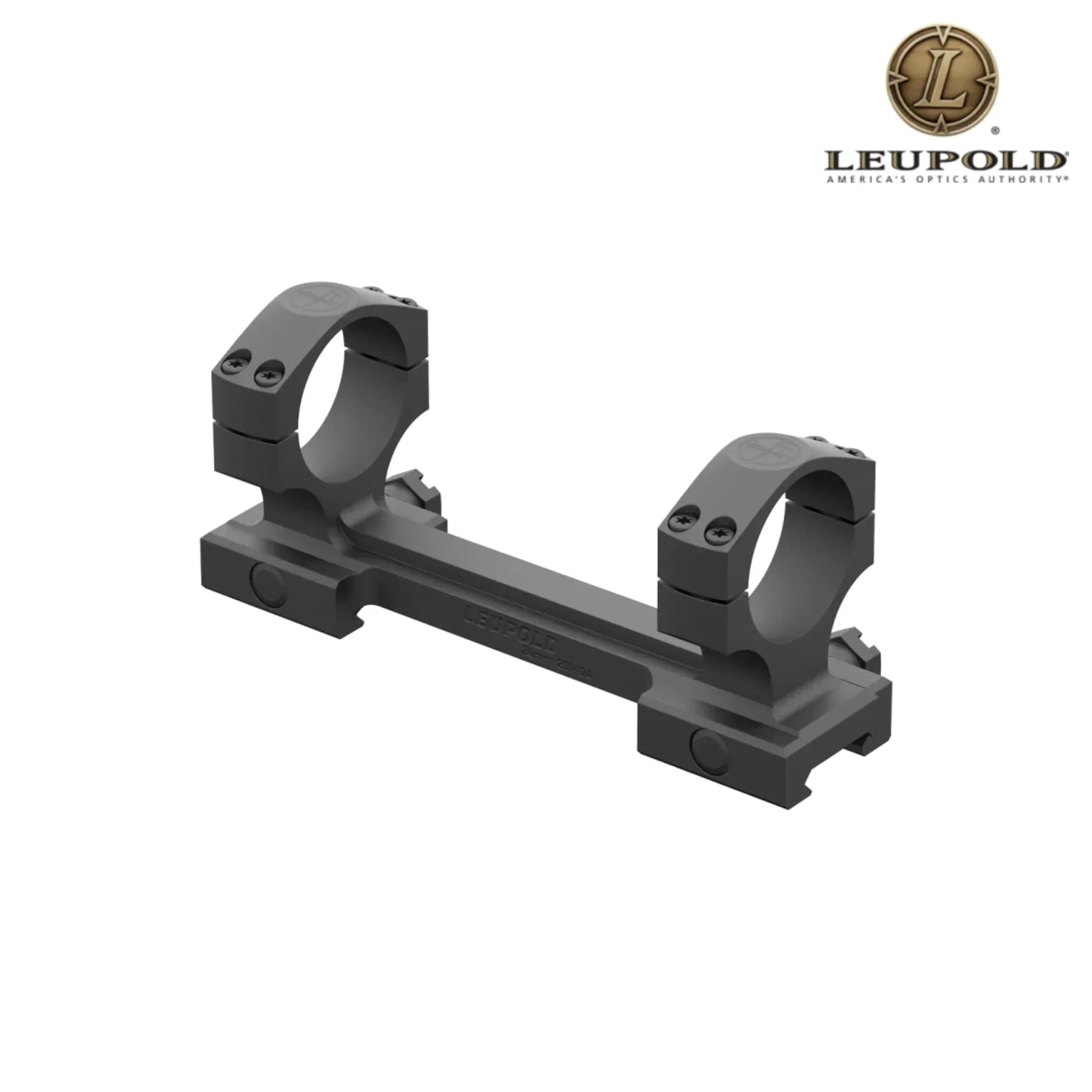

Leupold MARK IMS Bolt‐Action Rifle Scope Mount 35mm
(Model 176888)
Features
-
One-Piece Machined Construction: CNC-machined from a single billet of 6061-T6 aluminum for maximum rigidity and perfect bore-to-optic alignment.
-
Bolt-Action Specific Design: Direct-mount style—no forward cantilever—ideal for standard iron-sight co-witness on most bolt-action rifles.
-
Heavy-Duty Two-Bolt Retention: Dual large cross-bolts clamp the mount firmly to MIL-STD-1913 rails; three under-lug recoil lugs prevent any movement under heavy recoil.
-
Optimized Ring Height: 1.50 in (38.1 mm) centerline height positions a 35 mm maintube for a comfortable, repeatable cheek weld.
-
Low-Profile Matte Finish: Hard-coat anodize in matte black minimizes glare and matches all Leupold optics.
-
Made in USA & Lifetime Guarantee
Technical Specifications for Leupold MARK IMS Bolt‐Action Rifle Scope Mount 35mm
|
Specification
|
Details
|
|
Model / MPN
|
176888
|
|
SKU
|
LEU-176888
|
|
UPC
|
030317021832
|
|
Material
|
6061-T6 aluminum
|
|
Finish / Color
|
Matte-black hard-coat anodize
|
|
Tube Size
|
35 mm maintube
|
|
Ring Height
|
1.50 in (38.1 mm)
|
|
Built-In Cant
|
0 MOA
|
|
Interface
|
Picatinny / Weaver (MIL-STD-1913)
|
|
Recoil Lugs
|
3 under-lug design
|
|
Retention Bolts
|
2 large cross-bolts
|
|
Overall Length
|
5.74 in (145.8 mm)
|
|
Weight
|
5.9 oz (167 g)
|
Included Accessories
-
Two large cross-bolts & under-lug recoil hardware
-
Torx wrench for proper torque
-
User installation guide
