Trijicon ACOG 4x32 LED Riflescope .223/5.56 BDC Red Chevron Reticle

Trijicon ACOG 4x32 LED Riflescope .223/5.56 BDC Red Chevron Reticle

$1,249.99
Shipping calculated at checkout.
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
14 left

Trijicon ACOG 4×32 LED Riflescope .223/5.56 BDC Red Chevron Reticle

Features

  • User‑Selectable LED Illumination (AA Powered): Six brightness levels with “off” detents between each for fast, repeatable intensity control; uses a single AA battery (alkaline or lithium).
  • Long Runtime: Delivers 12,000+ continuous hours on the mid (#4) setting at ~21 °C; lithium cells extend life and improve cold‑weather performance.
  • NV‑Compatible Low Levels: Dim settings work with night‑vision devices while minimizing bloom.
  • 4× Fixed ACOG Optical System: Rugged prism design gives a bright, flat image and rapid target acquisition from CQB distances out to the effective range of 5.56 carbines.

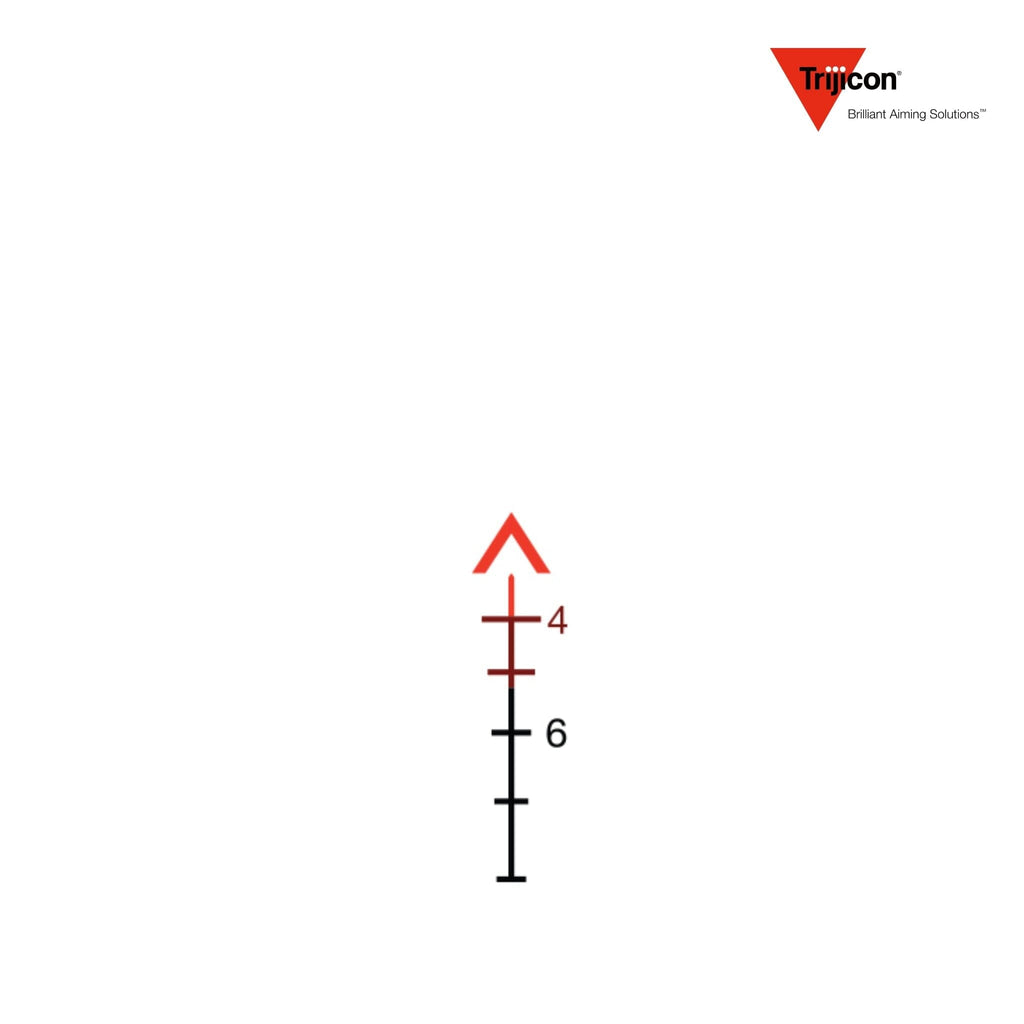

  • .223/5.56 BDC Red Chevron Reticle: Zero the chevron tip at 100 m; descending stadia provide calibrated bullet‑drop references for common 5.56 loads—fast center chevron up close, precise holds at distance.
  • LED Battery Saddle Housing: Side battery compartment improves ergonomics and leaves clearance to add a piggyback reflex optic (RMR® compatible) if desired.
  • Forged 7075‑T6 Aluminum Construction: Shock, recoil, and duty‑abuse resistant; built to survive service calibers.
  • ½ MOA External Adjusters: Positive tactile clicks (≈2 clicks/inch @100 yd) simplify zeroing and in‑field corrections.
  • Weather / Duty Ready: Waterproof, nitrogen‑purged fog‑proof, temperature‑tested for harsh environments.
  • TA51 Flattop Picatinny Mount Included: Ready to install on MIL‑STD‑1913 / AR‑15 flattop receivers.
  • Made in USA & Backed by Trijicon Warranty.

Technical Specifications for Trijicon ACOG 4×32 LED Riflescope .223/5.56 BDC Red Chevron Reticle

Specification

Details

Manufacturer

Trijicon

Model / MPN

TA02‑D‑100393 / 100393

SKU

TA02‑D‑100393

UPC

719307308213

Country of Origin

USA

Magnification

4× fixed

Objective Lens Diameter

32 mm

Optical Design

Fixed‑power prism (integral ACOG housing)

Reticle

Red Chevron .223/5.56 BDC (LED illuminated)

Illumination Settings

6 user‑selectable LED brightness levels w/ “off” between each; NV‑friendly lows; AA powered

Battery Life

12,000+ hrs continuous on setting #4 @ ~21 °C (alkaline); longer w/ lithium

Eye Relief

1.5″ (38 mm)

Field of View @ 100 yd

36.8 ft (7°)

Exit Pupil

8.1 mm

Adjustment Click Value

½ MOA (≈2 clicks/inch @100 yd)

Total Adjustment Range

~40 MOA windage & elevation

Parallax Focus

Fixed at 100 m (≈109 yd)

Overall Length

6.0″ (152 mm) battery‑saddle housing

Weight

18.1 oz (513 g) optic w/ battery; ~21 oz class w/ TA51 mount installed (approx.)

Housing Material / Finish

Forged 7075‑T6 aluminum; matte black hard anodize

Optical Coatings

Fully multi‑coated

Waterproof / Fog‑Proof

Sealed; nitrogen‑purged; duty waterproof

Shock Resistance

Rated from .22 LR through .50 BMG recoil; field‑hard construction

Mount Interface

TA51 flattop Picatinny thumbscrew adapter (included)

Included Accessories

  • TA51 flattop Picatinny thumbscrew mount
  • AA battery (factory supplied; lithium recommended for extreme conditions)
  • Battery cap lanyard assembly
  • Adjuster cap lanyard assembly
  • Lens cleaning tool (LensPen® style)
  • Trijicon logo sticker
  • Owner’s manual
  • Warranty card / registration info
