Trijicon ACOG 4x32 LED Riflescope .223/5.56 BDC Green Horseshoe/Dot Reticle Rifle Scope Trijicon
1/4
  • Trijicon ACOG 4x32 LED Riflescope .223/5.56 BDC Green Horseshoe/Dot Reticle Rifle Scope Trijicon
  • Trijicon ACOG 4x32 LED Riflescope .223/5.56 BDC Green Horseshoe/Dot Reticle Rifle Scope Trijicon
  • Trijicon ACOG 4x32 LED Riflescope .223/5.56 BDC Green Horseshoe/Dot Reticle Rifle Scope Trijicon
  • Trijicon ACOG 4x32 LED Riflescope .223/5.56 BDC Green Horseshoe/Dot Reticle Rifle Scope Trijicon
Trijicon ACOG 4x32 LED Riflescope .223/5.56 BDC Green Horseshoe/Dot Reticle

Trijicon ACOG 4x32 LED Riflescope .223/5.56 BDC Green Horseshoe/Dot Reticle

$1,249.99
Shipping calculated at checkout.
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
14 left

Trijicon ACOG 4×32 LED Riflescope .223/5.56 BDC Green Horseshoe/Dot Reticle

Features

  • User‑Selectable LED Illumination (AA Powered): Six brightness levels with “off” detents between each for instant return to preferred setting; runs on a widely available AA battery (alkaline or lithium).
  • Extended Battery Life: 12,000+ continuous hours on mid (#4) setting at ~21 °C; choose lithium cells for colder climates and maximum runtime.
  • NV‑Compatible Low Settings: Dim levels work with image‑intensified night‑vision gear while minimizing bloom.
  • 4× Fixed ACOG Optical System: Rugged prism delivers bright, flat, repeatable 4× magnification for rapid carbine work from CQB to extended 5.56 distances.

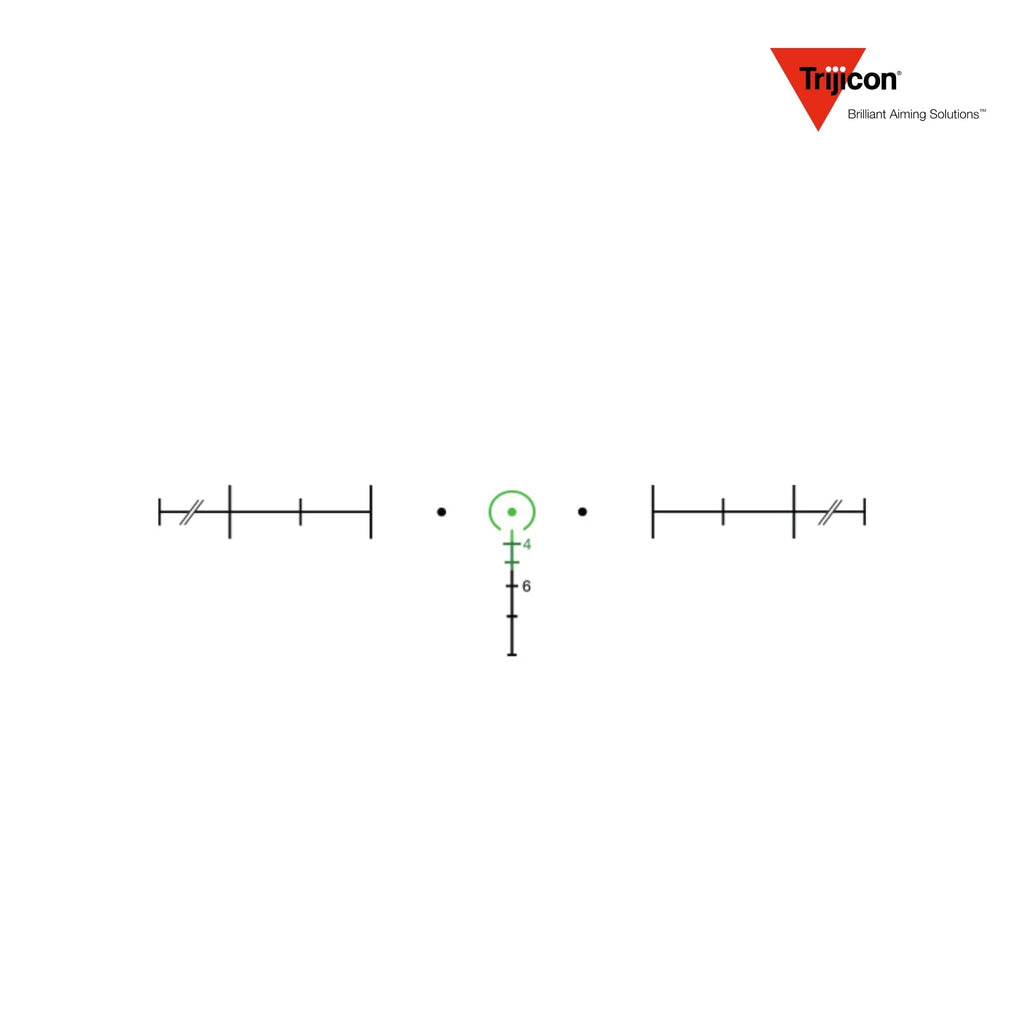

  • .223/5.56 BDC Green Horseshoe/Dot Reticle: Fast illuminated horseshoe encircles a fine dot; descending ballistic stadia calibrated for common 5.56 NATO loads (100 m zero) enable rapid hold‑overs without dialing.
  • LED Battery Saddle Housing: Side battery compartment improves ergonomics and leaves clearance for optional piggyback reflex optics (e.g., RMR).
  • Forged 7075‑T6 Aluminum Construction: Near‑indestructible duty body—shock, recoil, and harsh‑environment resistant.
  • ½ MOA External Adjusters: Positive tactile clicks (≈2 clicks/inch @100 yd) simplify zeroing and in‑field corrections.
  • Weather & Duty Ready: Waterproof, fog‑proof (nitrogen‑purged), and temperature‑tested for service use.
  • TA51 Flattop Picatinny Mount Included: Ready for MIL‑STD‑1913 / AR‑15 flattops out of the box.
  • Made in USA & Backed by Trijicon Warranty.

Technical Specifications for Trijicon ACOG 4×32 LED Riflescope .223/5.56 BDC Green Horseshoe/Dot Reticle

Specification

Details

Manufacturer

Trijicon

Model / MPN

TA02‑D‑100392 / 100392

SKU

TA02‑D‑100392

UPC

719307308206

Country of Origin

USA

Magnification

4× fixed

Objective Lens Diameter

32 mm

Optical Design

Fixed‑power prism (integral ACOG housing)

Reticle

Green Horseshoe/Dot .223/5.56 BDC (LED illuminated)

Illumination Settings

6 user‑selectable LED brightness levels w/ “off” between each; NV‑friendly lows; AA powered

Battery Life

12,000+ hrs continuous on setting #4 (~21 °C) w/ quality cell; longer w/ lithium

Eye Relief

1.5″ (38 mm)

Field of View @ 100 yd

36.8 ft (7°)

Exit Pupil

8.1 mm

Adjustment Click Value

½ MOA (≈2 clicks/inch @100 yd)

Total Adjustment Range

~40 MOA windage & elevation

Parallax Focus

Fixed at 100 m (≈109 yd)

Overall Length

6.0″ (152 mm) battery‑saddle housing

Weight

18.1 oz (513 g) optic w/ battery; ~21 oz class w/ TA51 mount installed (approx.)

Housing Material / Finish

Forged 7075‑T6 aluminum; matte black hard anodize

Optical Coatings

Fully multi‑coated, broadband treated

Waterproof / Fog‑Proof

Sealed; nitrogen‑purged; duty waterproof

Shock Resistance

Rated from .22 LR through .50 BMG recoil; field‑hard

Mount Interface

TA51 flattop Picatinny thumbscrew adapter (included)

Included Accessories

  • TA51 flattop Picatinny thumbscrew mount
  • AA battery (factory supplied; lithium recommended for extreme conditions)
  • Lanyard assembly for adjuster caps
  • Lanyard assembly for battery cap
  • Lens cleaning tool (LensPen® style)
  • Trijicon logo sticker
  • Owner’s manual
  • Warranty card / registration info

SEO Keywords
Trijicon ACOG TA02‑D‑100392, 4×32 LED ACOG Green Horseshoe Dot 5.56, AA‑powered illuminated ACOG, .223 BDC LED combat optic, Trijicon TA02 LED riflescope.
