Trijicon ACOG 4x32 LED Riflescope .223/5.56 BDC Green Crosshair Reticle

Trijicon ACOG 4x32 LED Riflescope .223/5.56 BDC Green Crosshair Reticle

$1,249.99
Shipping calculated at checkout.
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
14 left

Trijicon ACOG 4×32 LED Riflescope .223/5.56 BDC Green Crosshair Reticle

Features

  • User‑Selectable LED Illumination (AA Powered): Six brightness settings with “off” detents between each let you set exactly the reticle intensity you need; runs on a widely available AA battery (alkaline or lithium).
  • Long Runtime: 12,000+ continuous hours on a mid (#4) brightness at ~21 °C with quality cells; lithium recommended for extreme temperatures and maximum endurance.
  • Night‑Vision Friendly Lows: Lower settings are compatible with image‑intensified NV devices, reducing bloom when passively aiming.
  • 4× Fixed ACOG Optical System: Rugged prism design gives a bright, flat, parallax‑stable image for rapid carbine work from CQB to the far edge of typical 5.56 engagement ranges.

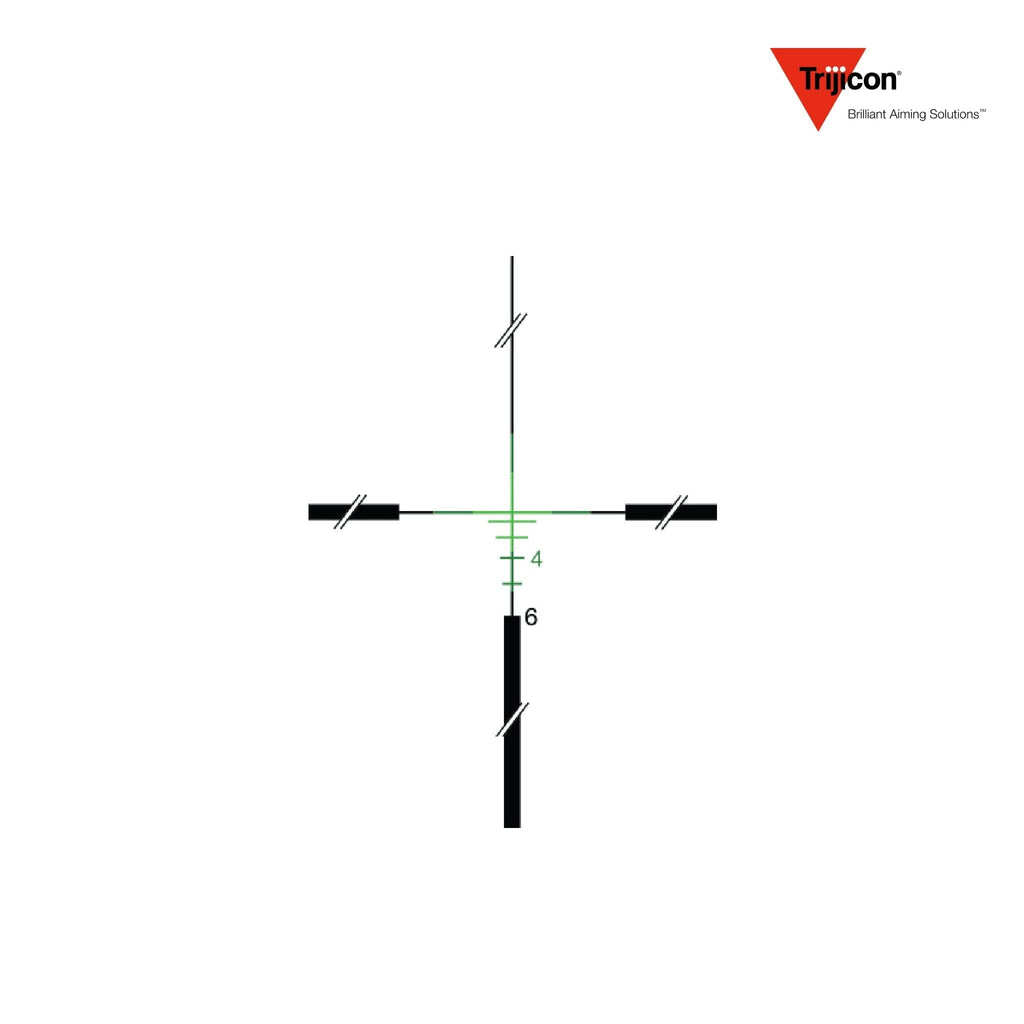

  • .223/5.56 BDC Green Crosshair Reticle: Fine illuminated crosshair with vertical ballistic stadia scaled for common 5.56 NATO loads when primary intersection is zeroed at 100 m; green illumination remains visible in bright or mixed backgrounds.
  • LED Battery Saddle Housing: Enlarged side battery compartment improves ergonomics and leaves room to add a piggyback reflex optic (e.g., RMR) if desired.
  • Forged 7075‑T6 Aluminum Construction: Legendary ACOG durability—shock and recoil rated from .22 LR through .50 BMG; sealed against the elements.
  • ½ MOA External Adjusters: Positive tactile clicks (≈2 clicks/inch @100 yd) simplify zero and in‑field corrections.
  • Duty Weather Performance: Waterproof, fog‑proof (nitrogen‑purged), and temperature‑tested for harsh environments.
  • TA51 Flattop Picatinny Mount Included: Ready to install on MIL‑STD‑1913 / AR‑15 flattop receivers out of the box.
  • Made in USA & Backed by Trijicon Warranty.

Technical Specifications for Trijicon ACOG 4×32 LED Riflescope .223/5.56 BDC Green Crosshair Reticle

Specification

Details

Manufacturer

Trijicon

Model / MPN

TA02‑C‑100390 / 100390

SKU

TA02‑C‑100390

UPC

719307308183

Country of Origin

USA

Magnification

4× fixed

Objective Lens Diameter

32 mm

Optical Design

Fixed‑power prism (integral ACOG housing)

Reticle

Green Crosshair .223/5.56 BDC (LED illuminated)

Illumination Settings

6 user‑selectable LED brightness levels, “off” between each; NV‑compatible lows; AA powered

Battery Life

12,000+ hrs continuous on setting #4 @ ~21 °C (alkaline); extended w/ lithium

Eye Relief

1.5″ (38 mm)

Field of View @ 100 yd

36.8 ft (7°)

Exit Pupil

8.1 mm

Adjustment Click Value

½ MOA (≈2 clicks/inch @100 yd)

Total Adjustment Range

~40 MOA windage & elevation

Parallax Focus

Fixed at 100 m (≈109 yd)

Overall Length

6.0″ (152 mm) battery‑saddle housing

Weight

18.1 oz (513 g) optic w/ battery; ~21 oz class w/ TA51 mount (approx.)

Housing Material / Finish

Forged 7075‑T6 aluminum; matte black hard anodize

Optical Coatings

Fully multi‑coated

Waterproof / Fog‑Proof

Sealed; nitrogen‑purged; duty waterproof

Shock Resistance

Rated from .22 LR through .50 BMG recoil; MIL drop‑tested

Mount Interface

TA51 flattop Picatinny thumbscrew adapter (included)

Included Accessories

  • TA51 flattop Picatinny thumbscrew mount
  • AA battery (factory supplied; lithium recommended for extreme conditions)
  • Battery cap & adjuster cap tether assemblies
  • Lens cleaning tool (LensPen® style)
  • Trijicon logo sticker
  • Owner’s manual & warranty documentation
