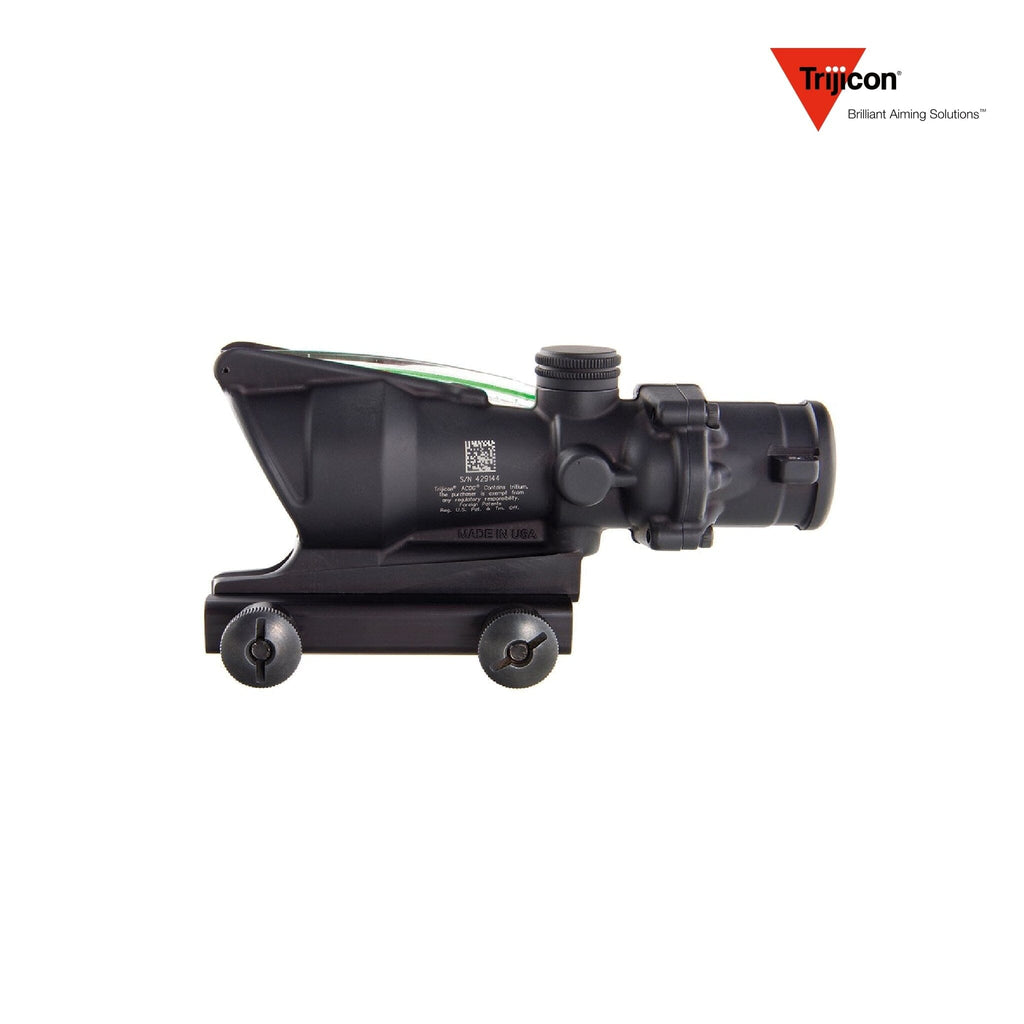

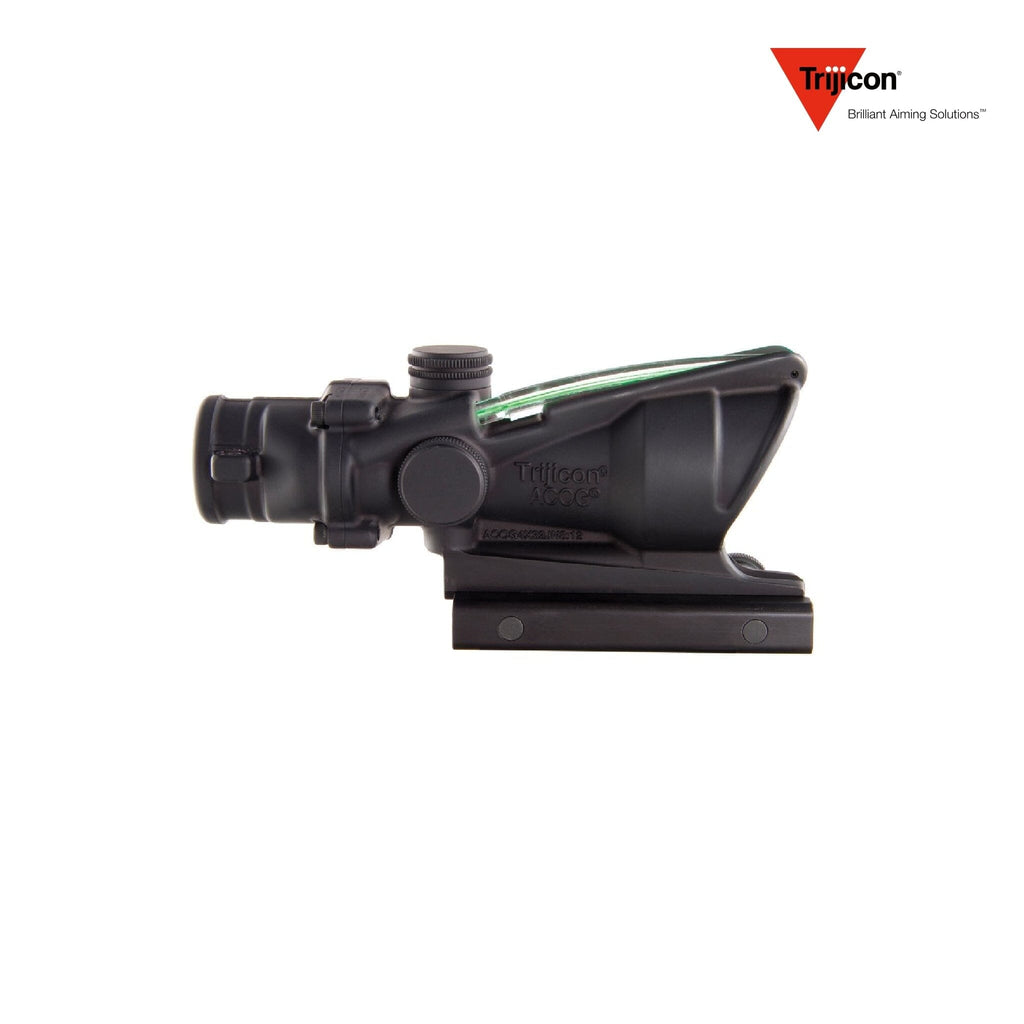

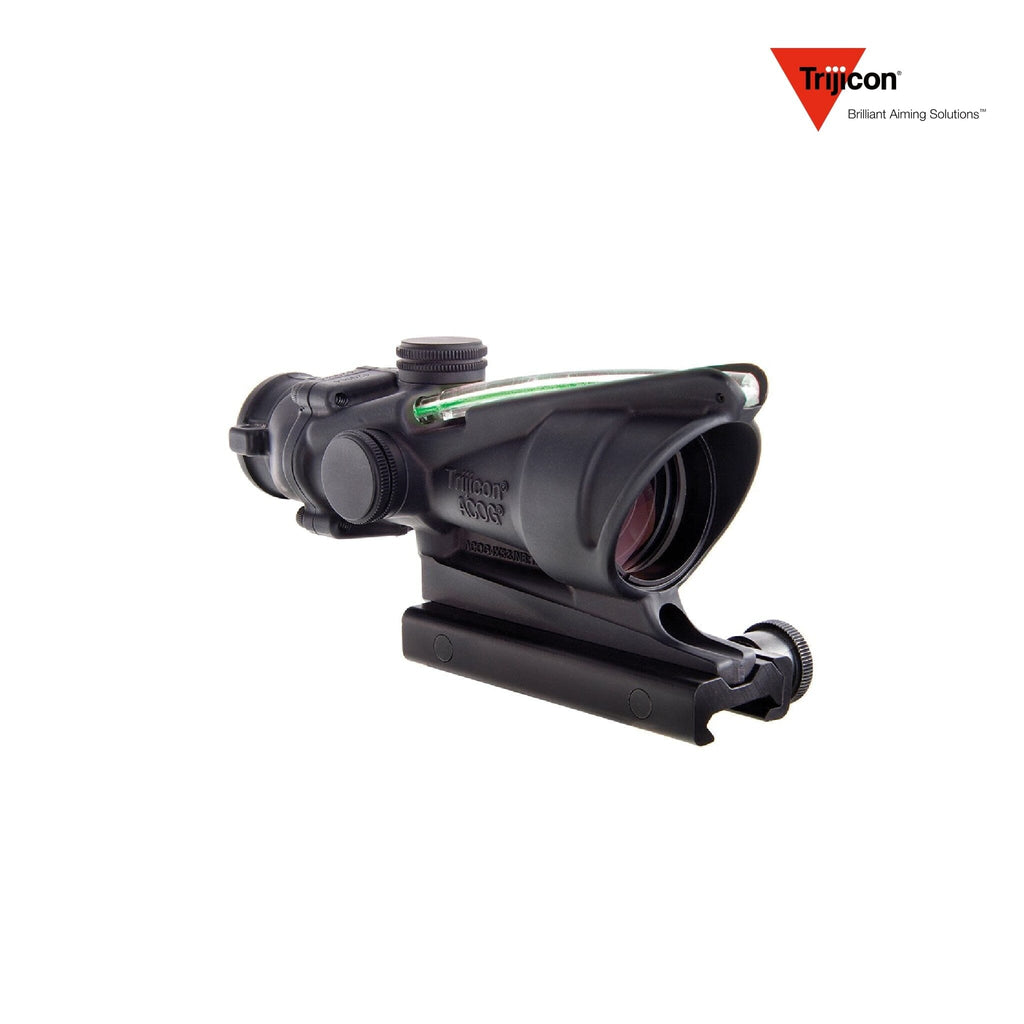

Trijicon ACOG 4x32 BAC Riflescope .223/5.56 BDC Green Crosshair Reticle Rifle Scope Trijicon
1/5
  • Trijicon ACOG 4x32 BAC Riflescope .223/5.56 BDC Green Crosshair Reticle Rifle Scope Trijicon
  • Trijicon ACOG 4x32 BAC Riflescope .223/5.56 BDC Green Crosshair Reticle Rifle Scope Trijicon
  • Trijicon ACOG 4x32 BAC Riflescope .223/5.56 BDC Green Crosshair Reticle Rifle Scope Trijicon
  • Trijicon ACOG 4x32 BAC Riflescope .223/5.56 BDC Green Crosshair Reticle Rifle Scope Trijicon
  • Trijicon ACOG 4x32 BAC Riflescope .223/5.56 BDC Green Crosshair Reticle Rifle Scope Trijicon
Trijicon ACOG 4x32 BAC Riflescope .223/5.56 BDC Green Crosshair Reticle

Trijicon ACOG 4x32 BAC Riflescope .223/5.56 BDC Green Crosshair Reticle

$1,229.99
Shipping calculated at checkout.
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
8 left

Trijicon ACOG 4×32 BAC Riflescope .223/5.56 BDC Green Crosshair Reticle

Features

  • Dual‑Illuminated, Battery‑Free ACOG: Fiber optics automatically regulate reticle brightness in daylight; tritium provides a continuous glow in low/no light—no batteries required.
  • 4× Fixed BAC Combat Optic: Bindon Aiming Concept™ supports both‑eyes‑open speed for close work while preserving precise 4× aiming at distance on 5.56/.223 carbines.

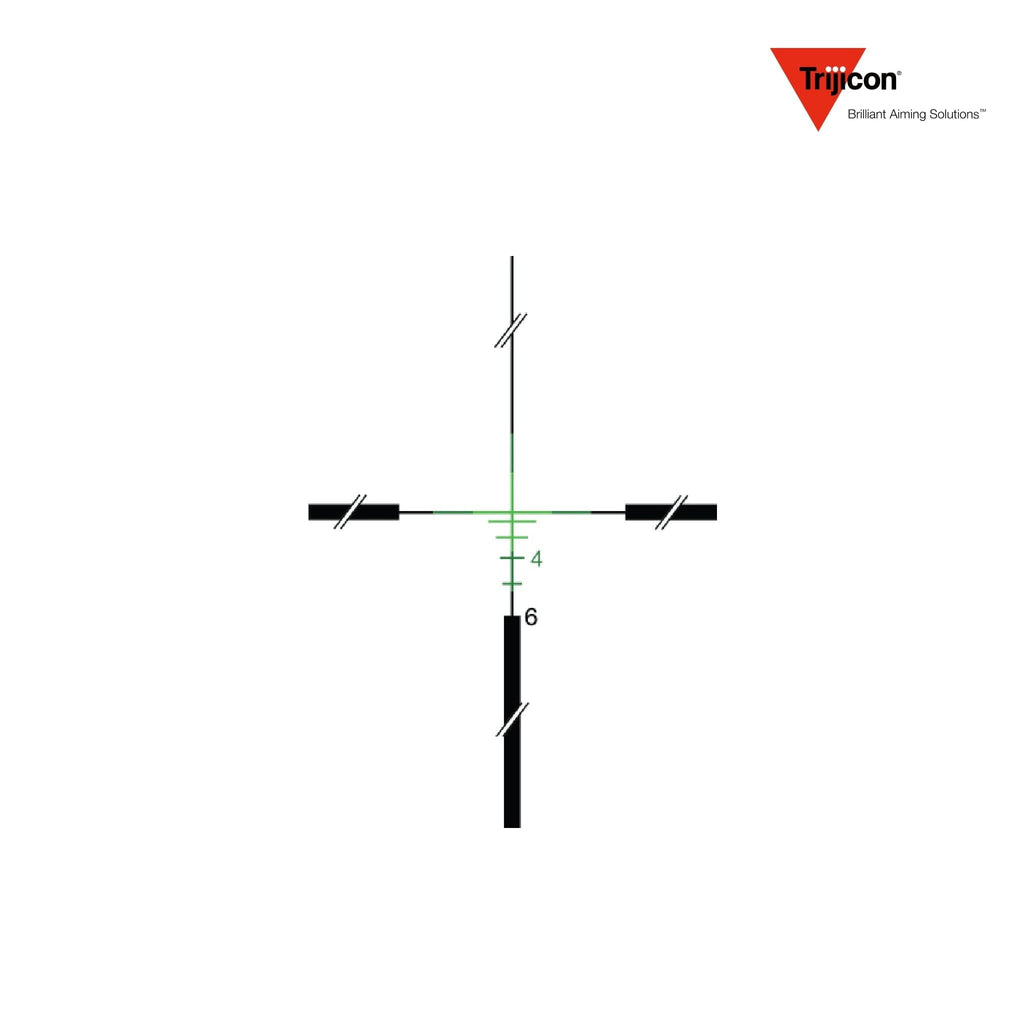

  • .223/5.56 BDC Green Crosshair Reticle: Fine illuminated crosshair with ballistic stadia scaled for common 5.56 loads when zeroed at 100 m; green illumination is highly visible in bright, high‑contrast field conditions.
  • Rugged Forged 7075‑T6 Aluminum Housing: Combat‑proven durability—shock, recoil, and hard‑use environmental resistance; fully sealed and fog‑proof.
  • Waterproof to 100 m (factory rated): Exceeds typical duty requirements; nitrogen‑purged to prevent internal fogging.
  • External Tool‑Less Adjusters: Positive ½ MOA windage & elevation clicks (2 clicks/inch @ 100 yd) for fast zeroing without loose turret caps.
  • Wide Situational FOV: 7° / 36.8 ft @ 100 yd helps track movers and maintain awareness.
  • Compact & Lightweight: Short 5.8″ body keeps weight forward‑neutral on AR‑pattern rifles; ships with TA51 flattop Picatinny mount.
  • Made in USA & Backed by Trijicon Warranty.

Technical Specifications for Trijicon ACOG 4×32 BAC Riflescope .223/5.56 BDC Green Crosshair Reticle

Specification

Details

Manufacturer

Trijicon

Model / MPN

TA31‑CH‑G / 100209

SKU

TA31‑CH‑G

UPC

719307304352

Country of Origin

USA

Magnification

4× fixed

Objective Lens Diameter

32 mm

Optical Design

Fixed‑power prism (integral ACOG housing)

Reticle

Green Crosshair .223/5.56 BDC (dual‑illum fiber optic / tritium)

Illumination

Automatic fiber (day) / self‑luminous tritium (night); battery‑free

Eye Relief

1.5″ (38 mm)

Field of View @ 100 yd

36.8 ft (7°)

Exit Pupil

8.1 mm

Adjustment Click Value

½ MOA (2 clicks/inch @ 100 yd)

Total Adjustment Range

~40 MOA windage & elevation (typical TA31 spec)

Parallax Focus

Fixed at 100 m (≈109 yd)

Overall Length

5.8″ optic body (approx. 7″+ installed w/ mount & caps)

Weight

9.9 oz optic‑only; approx. 15 oz class w/ TA51 mount & accessories (varies by kit)

Housing Material / Finish

Forged aluminum; matte black hard anodize

Waterproof / Fog‑Proof

Sealed; waterproof to 100 m; nitrogen‑purged

Shock Resistance

Combat‑rated (5.56 duty calibers and beyond)

Mount Interface

TA51 flattop Picatinny thumbscrew adapter (included)

Included Accessories

  • TA51 flattop Picatinny thumbscrew mount
  • 4×32 Scopecoat (TA64)
  • LensPen® (TA56)
  • Adjuster cap lanyard assembly (TA71E)
  • Trijicon logo sticker (PR15)
  • ACOG BAC operator’s manual
  • Warranty card / registration info

SEO Keywords
Trijicon ACOG TA31‑CH‑G, 4×32 Green Crosshair 5.56 BDC, BAC dual‑illum ACOG, .223 combat optic, fiber‑optic tritium riflescope.
