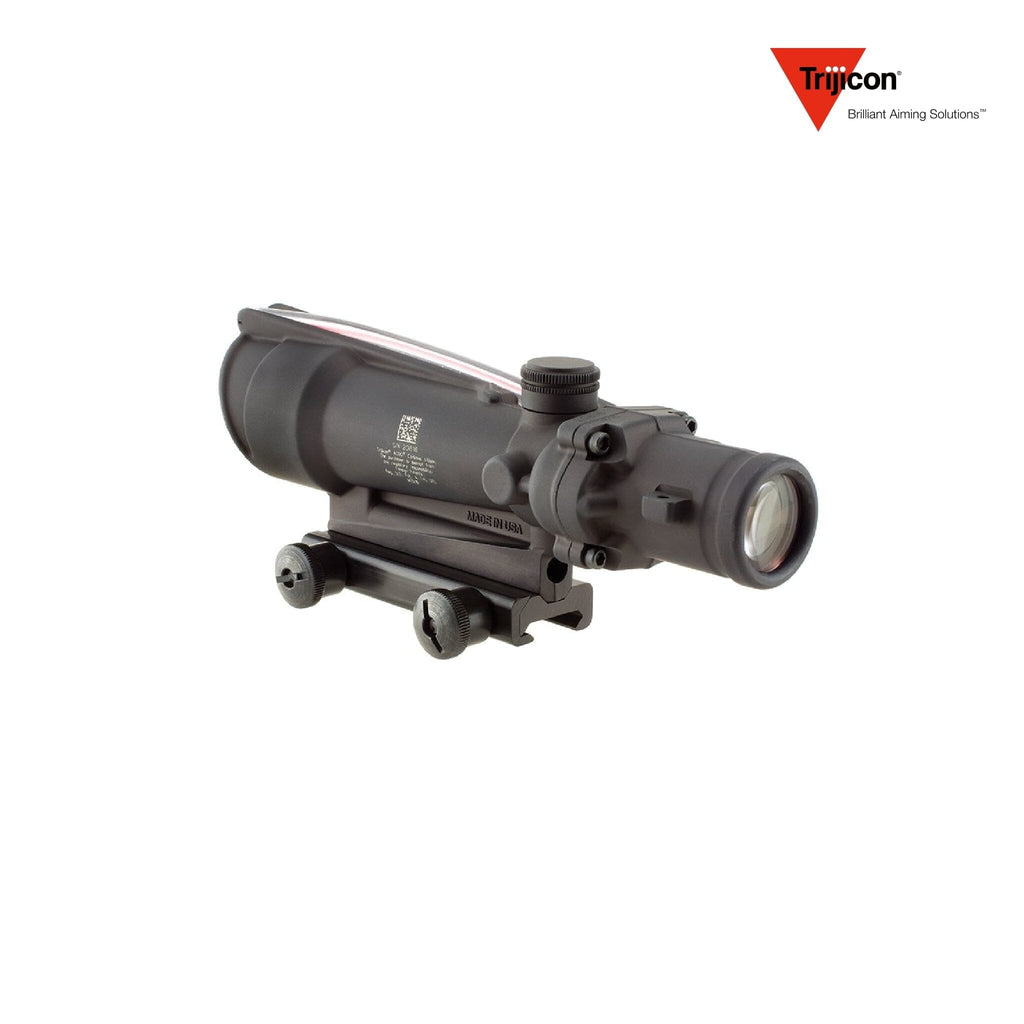

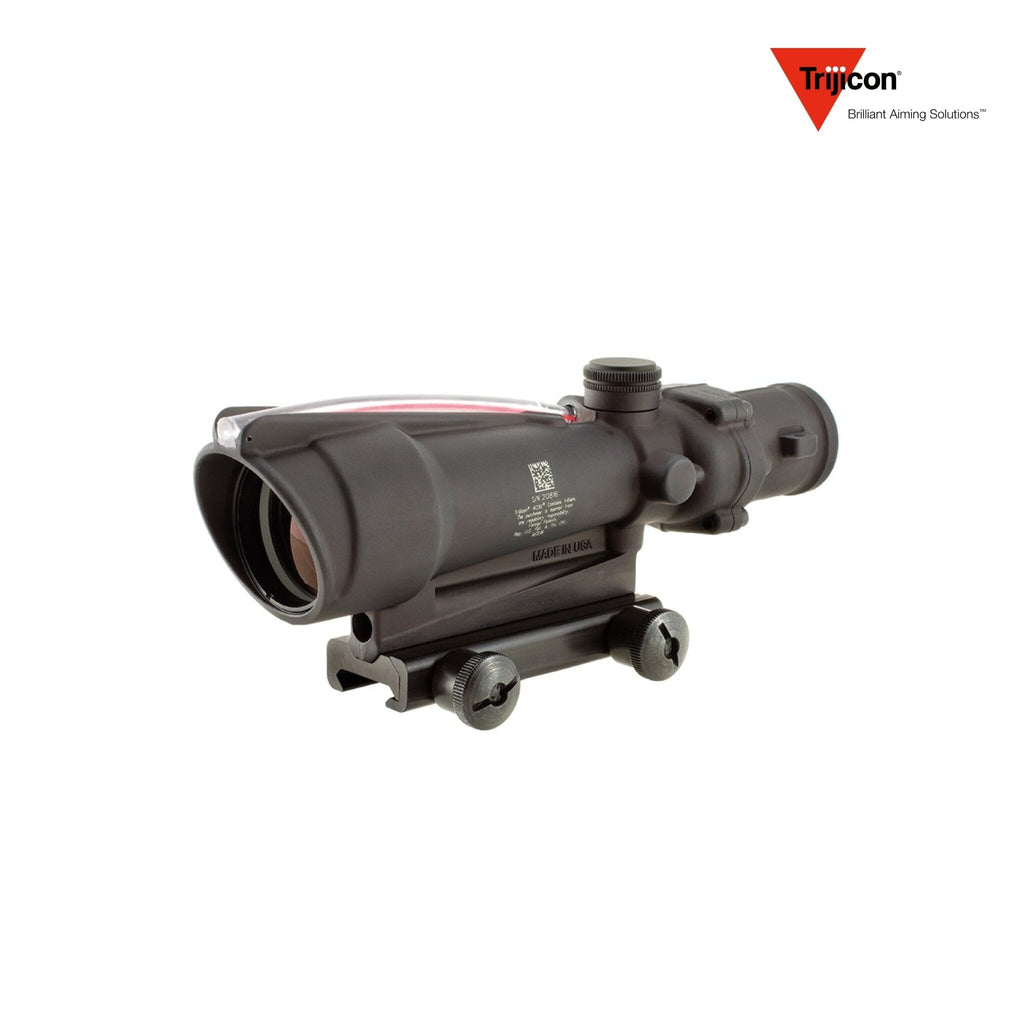

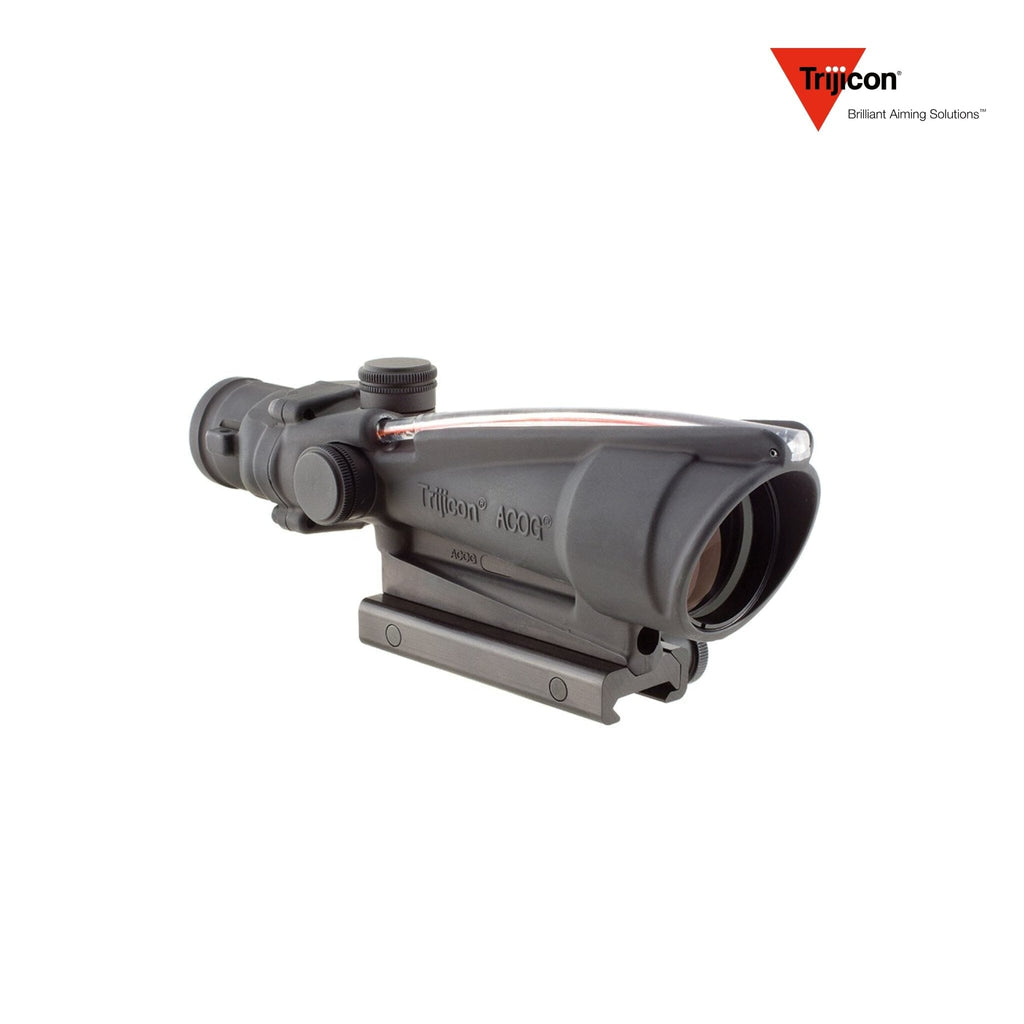

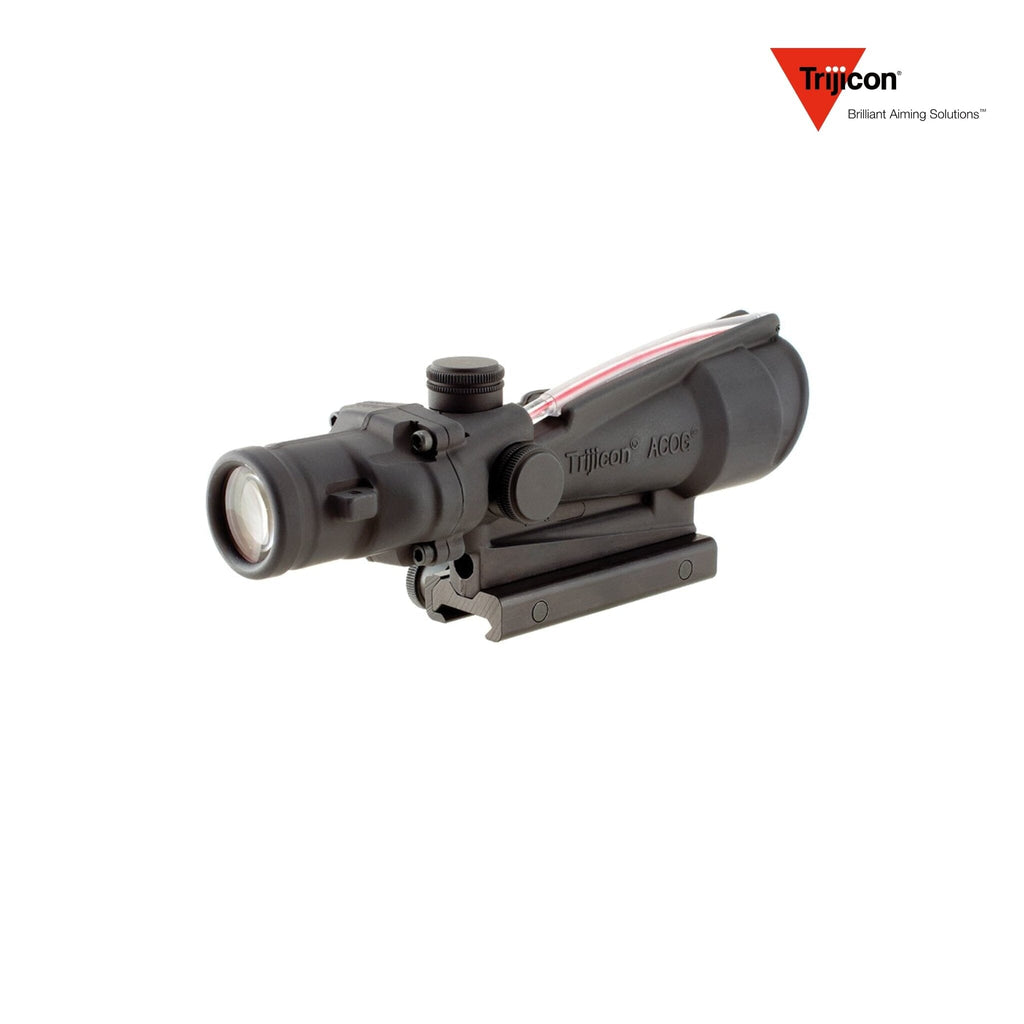

Trijicon ACOG 3.5×35 BAC Riflescope .308/7.62 BDC Red Horseshoe Reticle
Features
-
Dual‑Source Illumination: Fiber‑optic gathers ambient light for automatic daytime brightness; tritium provides constant low‑light glow—battery‑free, always‑on, optimized for both‑eyes‑open Bindon Aiming Concept™ acquisition.
-
Fixed 3.5× Magnification: Balances rapid close‑quarters target acquisition with mid‑range precision.
-

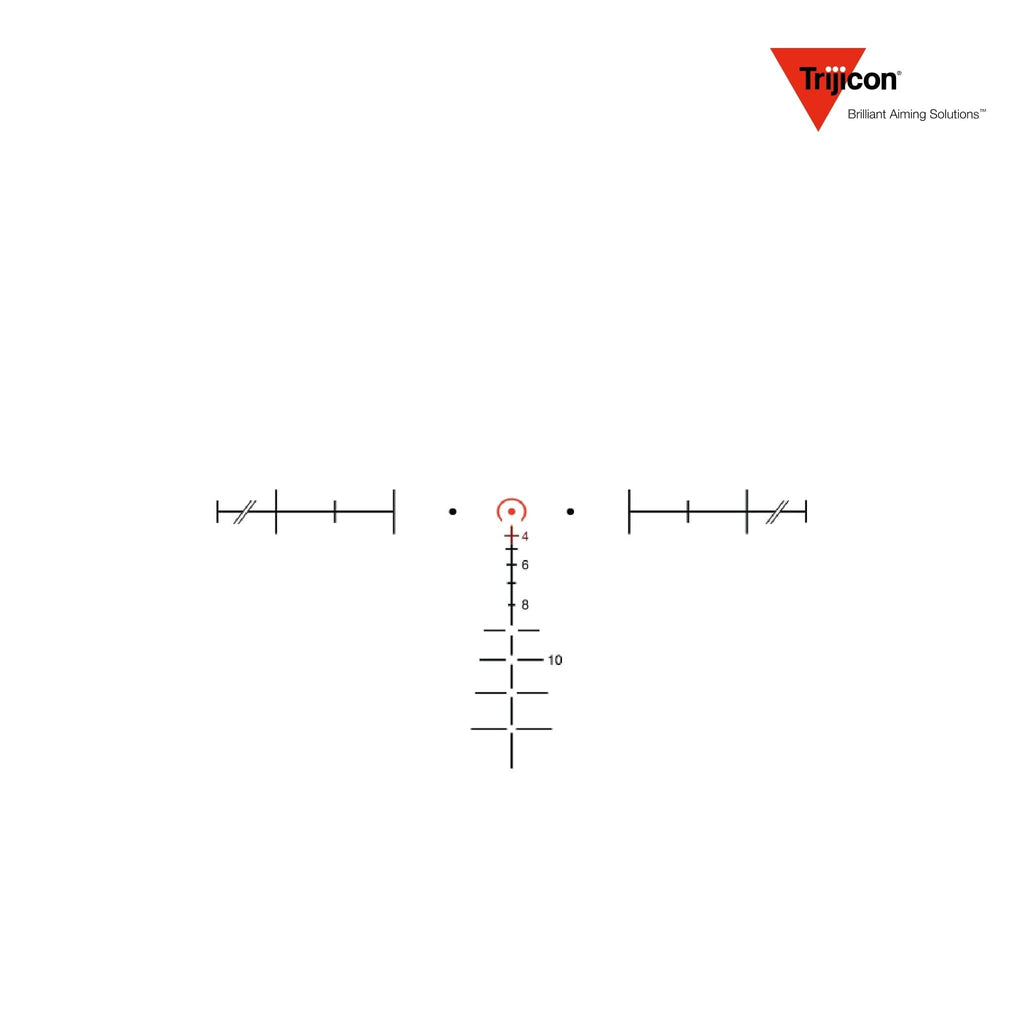

.308/7.62 NATO BDC Red Horseshoe Reticle: Illuminated horseshoe calibrated for hold‑over out to 1,200 m; zero the horseshoe at 100 m for intuitive range estimation.
-
TA51™ Flat‑Top Quick‑Detach Mount: “Rock‑touch” lever for rapid attachment/removal with repeatable zero on MIL‑STD‑1913 rails.
-
Rugged Construction: CNC‑machined 30 mm main tube of 6061‑T6 aluminum; matte‑black hard‑coat anodize; nitrogen‑purged; waterproof/fog‑proof; shock‑rated for .22 LR through .50 BMG.
-
Fixed Parallax: Optimized at 100 m—no external adjustment required.
-
Compact & Lightweight: 8.0″ overall length; 14 oz weight for minimal bulk on AR‑pattern rifles.
-
Made in USA & No‑Fault® Lifetime Warranty
Technical Specifications for Trijicon ACOG 3.5×35 BAC Riflescope .308/7.62 BDC Red Horseshoe Reticle
Specification
|
Details
|
Manufacturer
|
Trijicon
|
Model / MPN
|
TA11H‑308 / 100154
|
SKU
|
TA11H‑308
|
UPC
|
719307302570
|
Country of Origin
|
USA
|
Magnification
|
3.5×
|
Objective Lens Diameter
|
35 mm
|
Main Tube Diameter
|
30 mm
|
Reticle
|
.308/7.62 BDC red horseshoe (FFP)
|
Illumination Source
|
Fiber‑optic (day) + tritium (night)
|
Parallax Focus
|
Fixed @ 100 m
|
Eye Relief
|
2.39″ (61 mm)
|
Field of View
|
28.9 ft @ 100 yd
|
Exit Pupil
|
10 mm
|
Turret Adjustment
|
3 clicks/inch @ 100 yd
|
Length
|
8.0″ (203 mm)
|
Weight
|
14 oz (397 g)
|
Finish
|
Matte‑black hard‑coat anodize
|
Waterproof / Fog‑Proof
|
Yes (IPX7 to 10 ft)
|
Shock‑Proof
|
Yes (tested .22 LR–.50 BMG)
|
Included Accessories
-
TA51™ flat‑top quick‑detach mount
-
Flip‑up objective & ocular lens covers
-
LensPen® cleaning tool
-
Trijicon logo sticker
-
User manual & warranty card
