Trijicon ACOG 3.5x35 BAC Riflescope .223/5.56 BDC Red Horseshoe Reticle Rifle Scope Trijicon
1/5

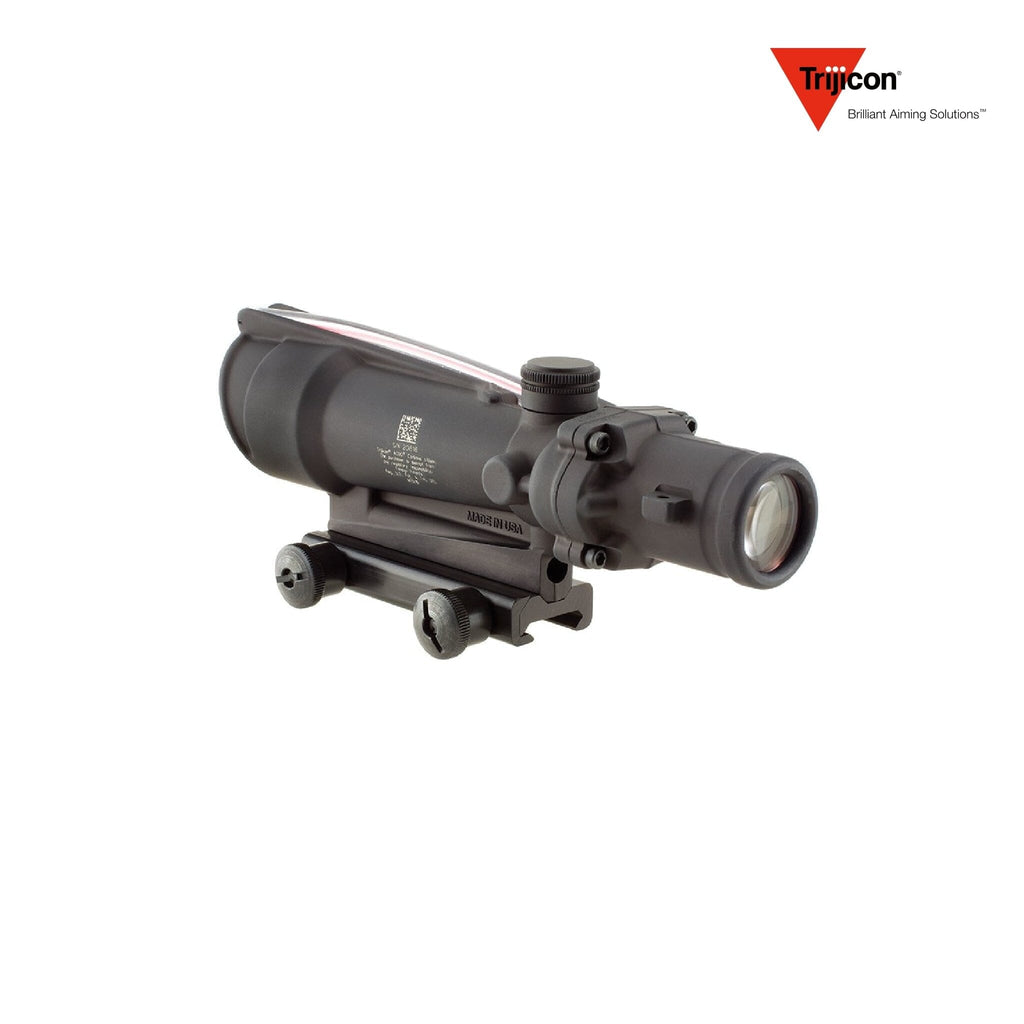

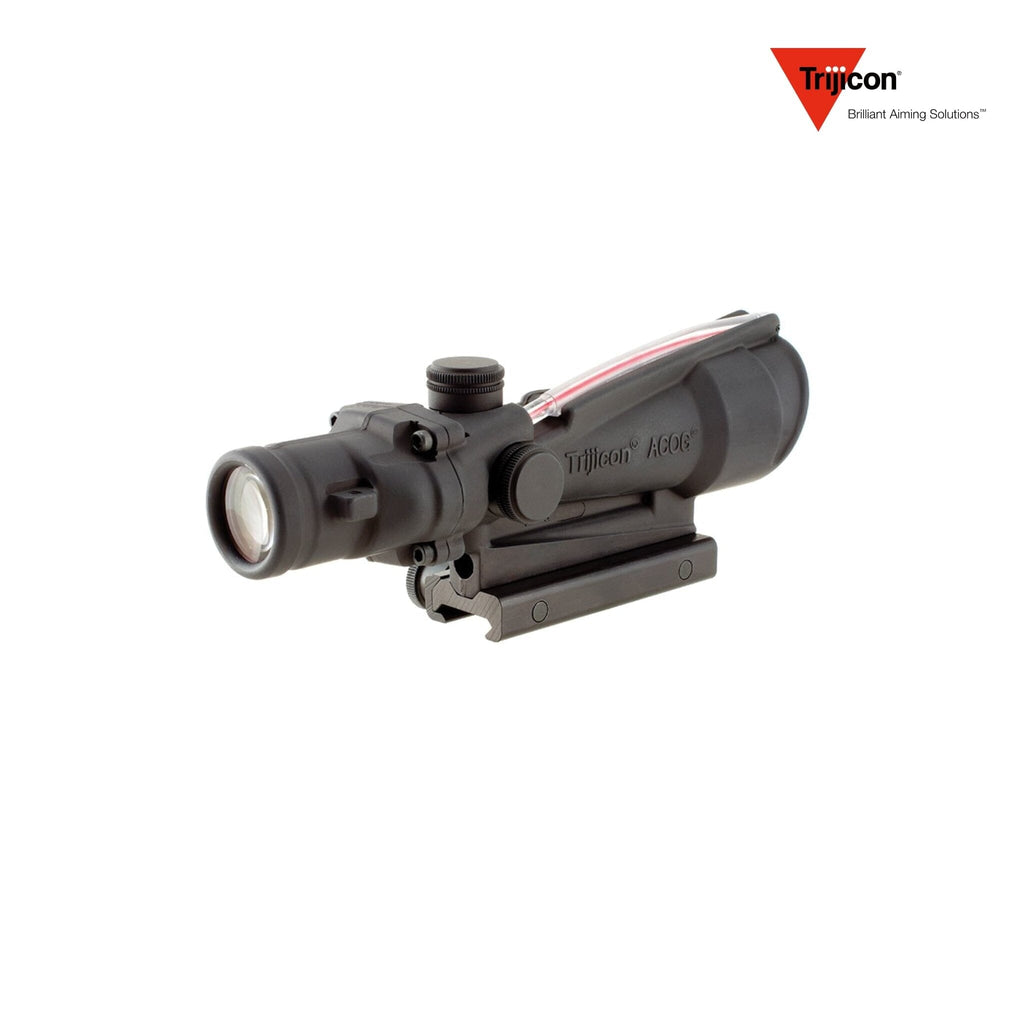

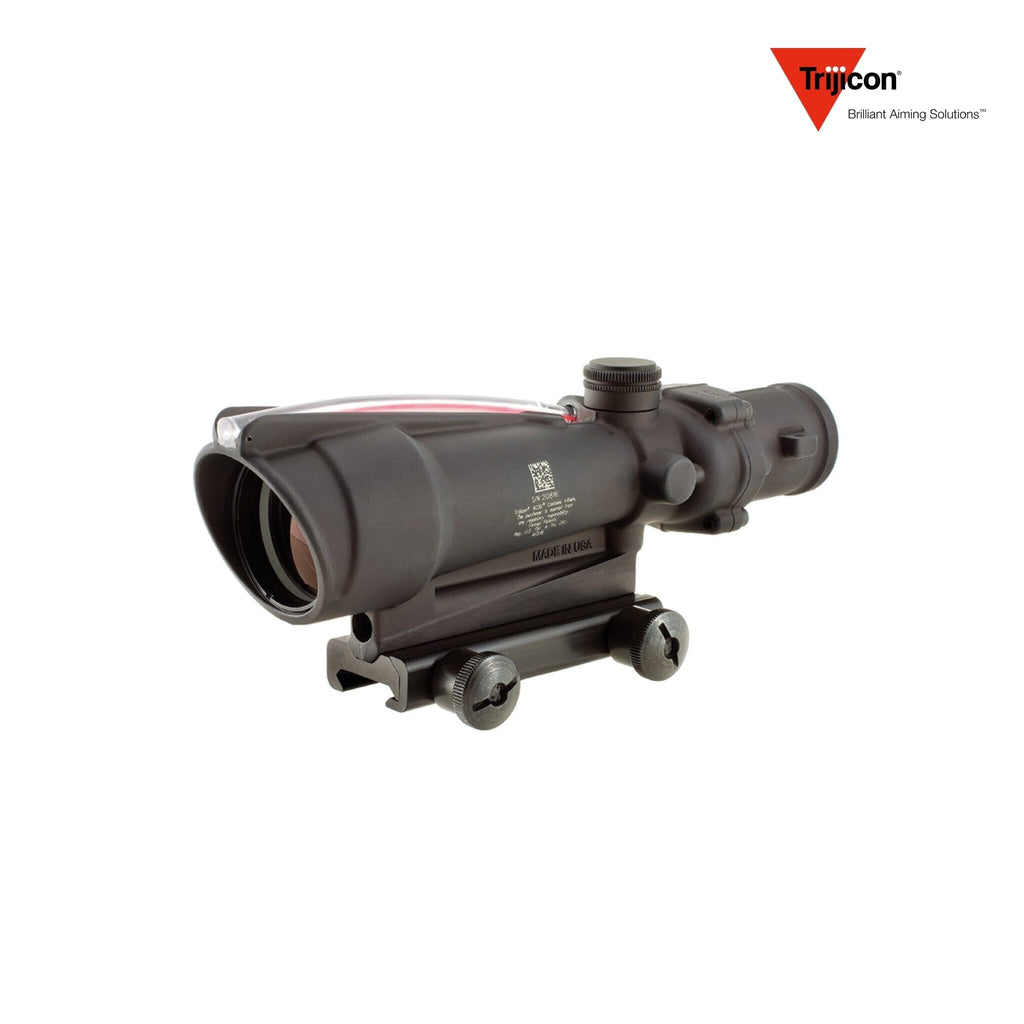

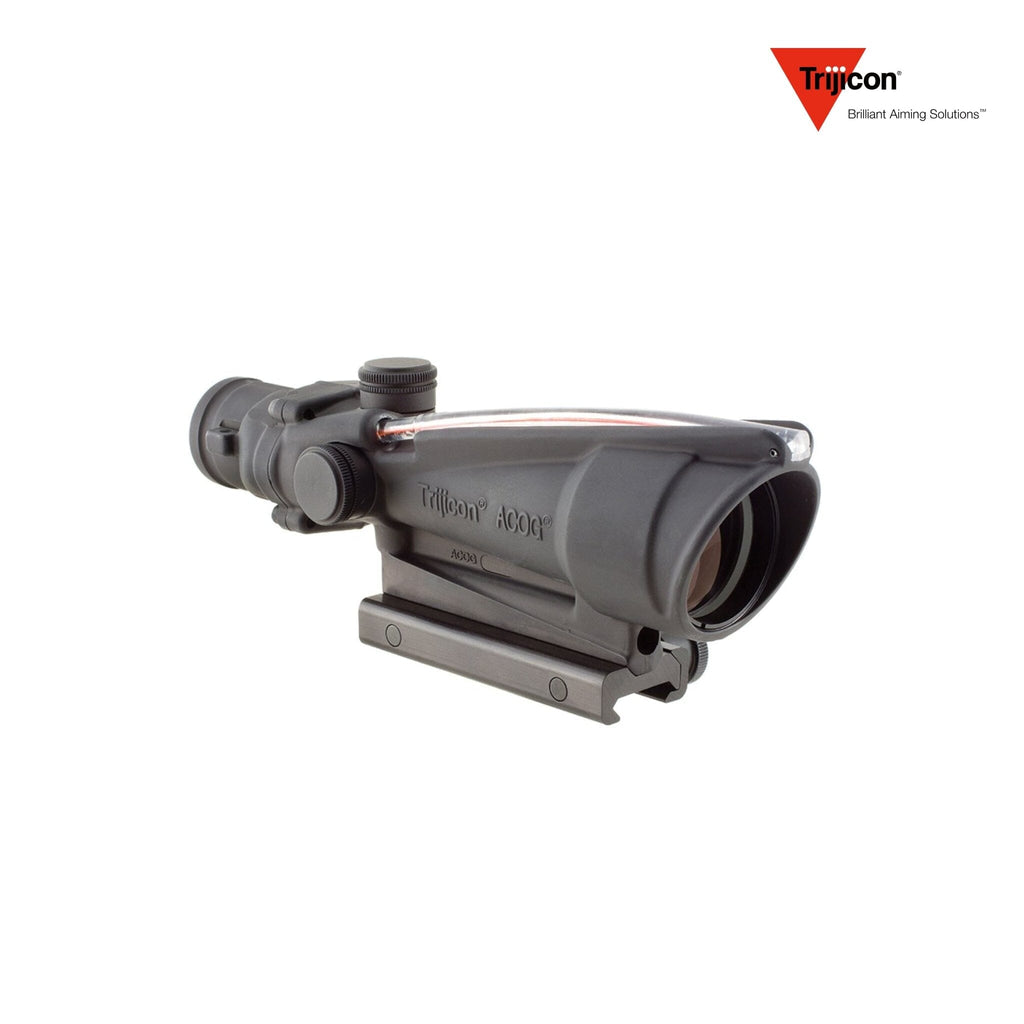

Trijicon ACOG 3.5x35 BAC Riflescope .223/5.56 BDC Red Horseshoe Reticle

$1,239.99
Shipping calculated at checkout.
Payment methods
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
12 left

Trijicon ACOG 3.5×35 BAC Riflescope .223/5.56 BDC Red Horseshoe Reticle

Features

  • Dual-Source Illumination: Fiber‑optic for automatic daytime brightness; tritium for constant low‑light glow—battery‑free, always‑on, optimized for “both‑eyes‑open” Bindon Aiming Concept™ shooting.
  • Fixed 3.5× Magnification: Ideal balance of rapid close‑quarters target acquisition and mid‑range precision.

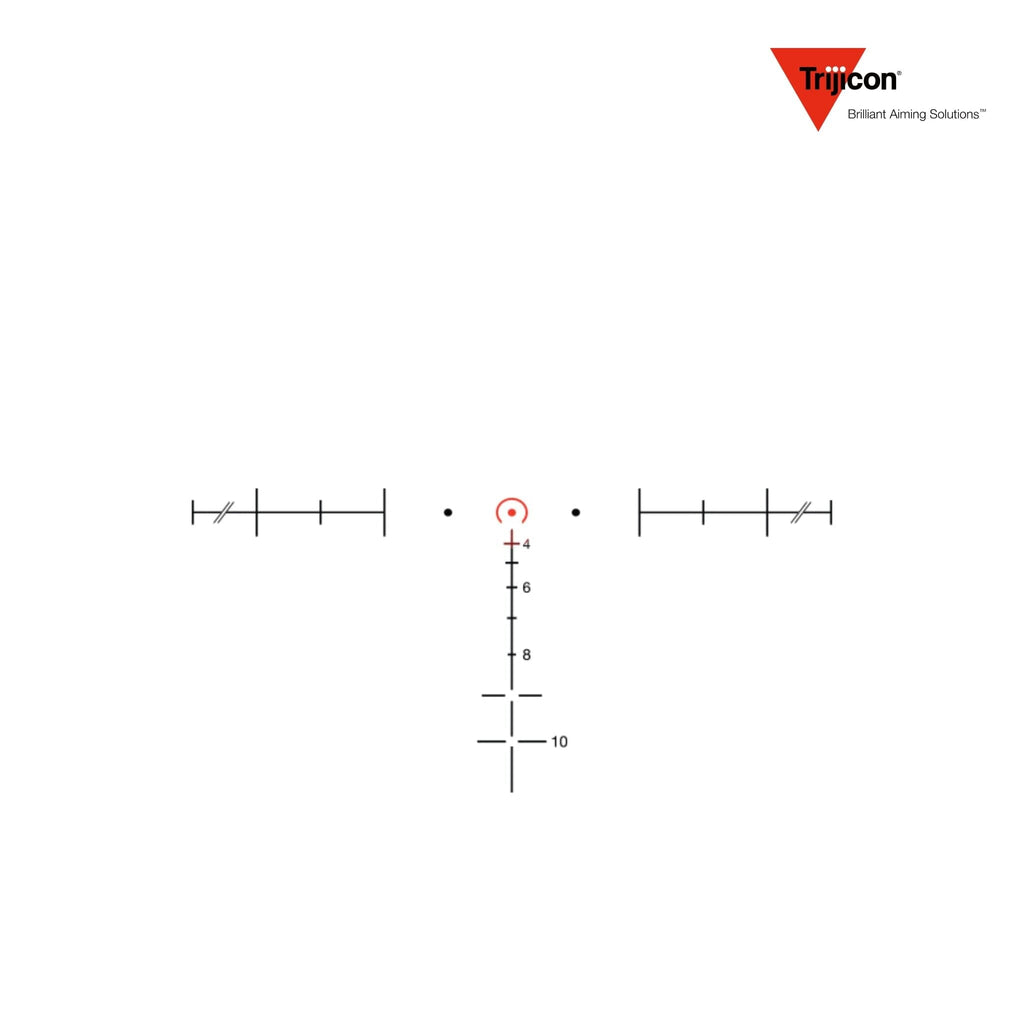

  • .223/5.56 BDC Red Horseshoe Reticle: Illuminated horseshoe circle guiding your eye to hold‑over points calibrated for .223/5.56 BDC out to 800 m; zero the horseshoe at 100 m.
  • Ergonomic Flat‑Top Mount: Includes TA51™ “Rock‑touch” quick‑detach adapter for repeatable zero on MIL‑STD‑1913 rails.
  • Rugged Construction: CNC‑machined 30 mm main tube of 6061‑T6 aluminum; matte‑black hard‑coat anodize; nitrogen‑purged; waterproof to 10 ft; fog‑proof; recoil‑rated for calibers from .22 LR through .50 BMG.
  • Fixed Parallax: Optimized at 100 m—no side‑focus adjustment needed.
  • Compact & Lightweight: 8″ overall length; 14 oz weight—minimal bulk on AR‑style rifles.
  • Made in USA & No‑Fault® Lifetime Warranty

Technical Specifications for Trijicon ACOG 3.5×35 BAC Riflescope .223/5.56 BDC Red Horseshoe Reticle

Specification

Details

Manufacturer

Trijicon

Model / MPN

TA11H / 100153

SKU

TA11H

UPC

719307302938

Country of Origin

USA

Magnification

3.5×

Objective Lens Diameter

35 mm

Main Tube Diameter

30 mm

Reticle

.223/5.56 BDC red horseshoe (FFP)

Illumination Source

Fiber‑optic + tritium (automatic)

Eye Relief

2.4″ (61 mm)

Field of View

28.9 ft @ 100 yd

Exit Pupil

10 mm

Parallax

Fixed @ 100 m

Turret Adjustment

3 clicks/inch @ 100 yd

Length

8.0″ (203 mm)

Weight

14 oz (397 g)

Finish

Matte‑black hard‑coat anodize

Waterproof / Fog‑Proof

Yes (to 10 ft)

Shock‑Proof

Yes (.22 LR–.50 BMG)

Included Accessories

  • TA51™ flat‑top quick‑detach mount
  • Flip‑up objective & ocular lens covers
  • LensPen® cleaning tool
  • Trijicon logo sticker
  • User manual & warranty card

SEO Keywords
Trijicon ACOG TA11H, 3.5×35 red horseshoe BDC scope, .223/5.56 ACOG, fiber‑optic tritium illuminated riflescope.
