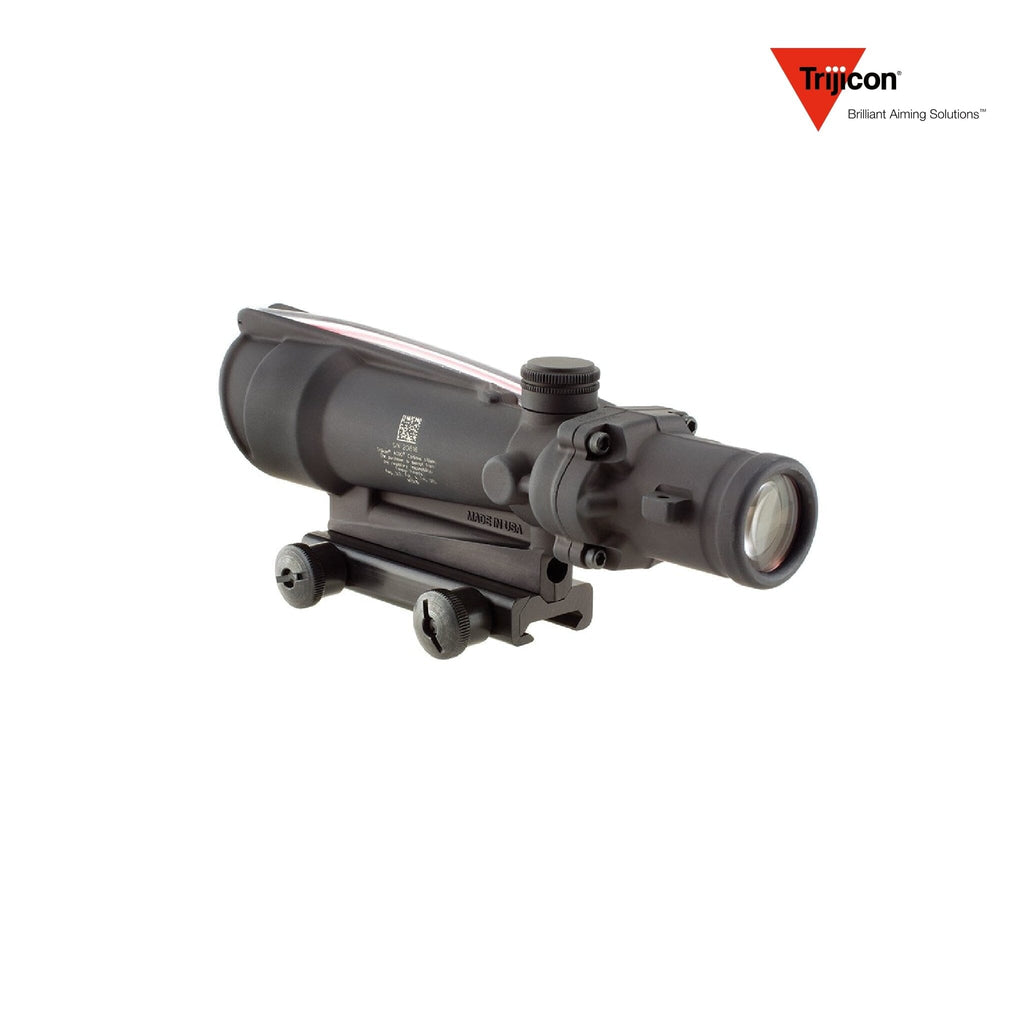

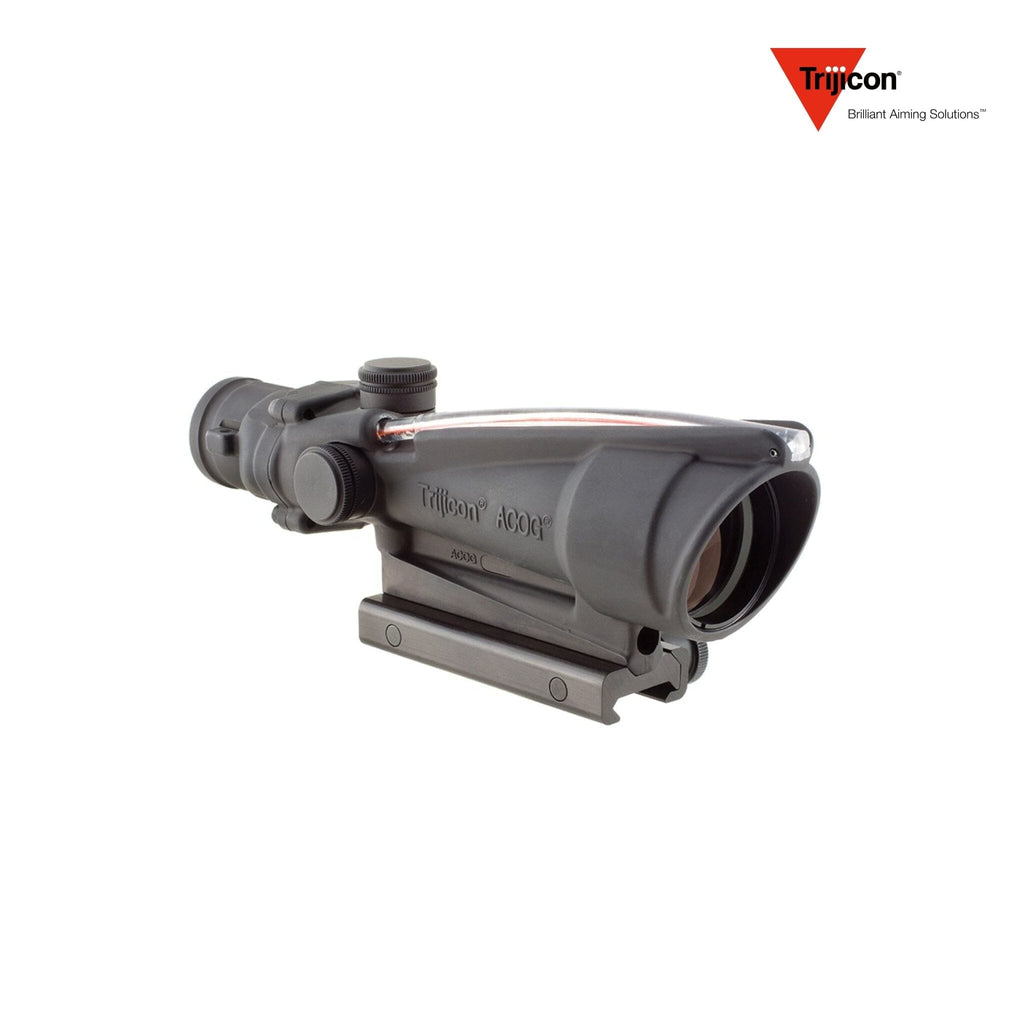

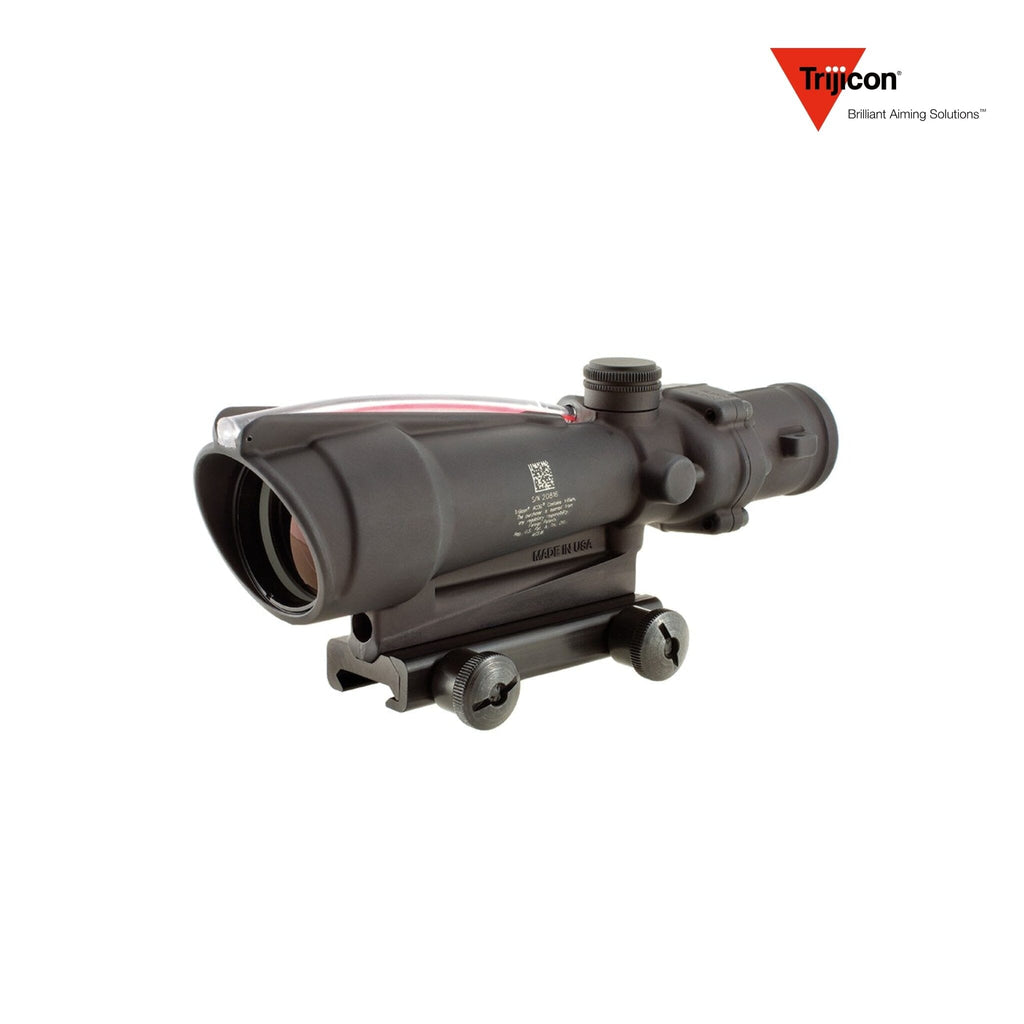

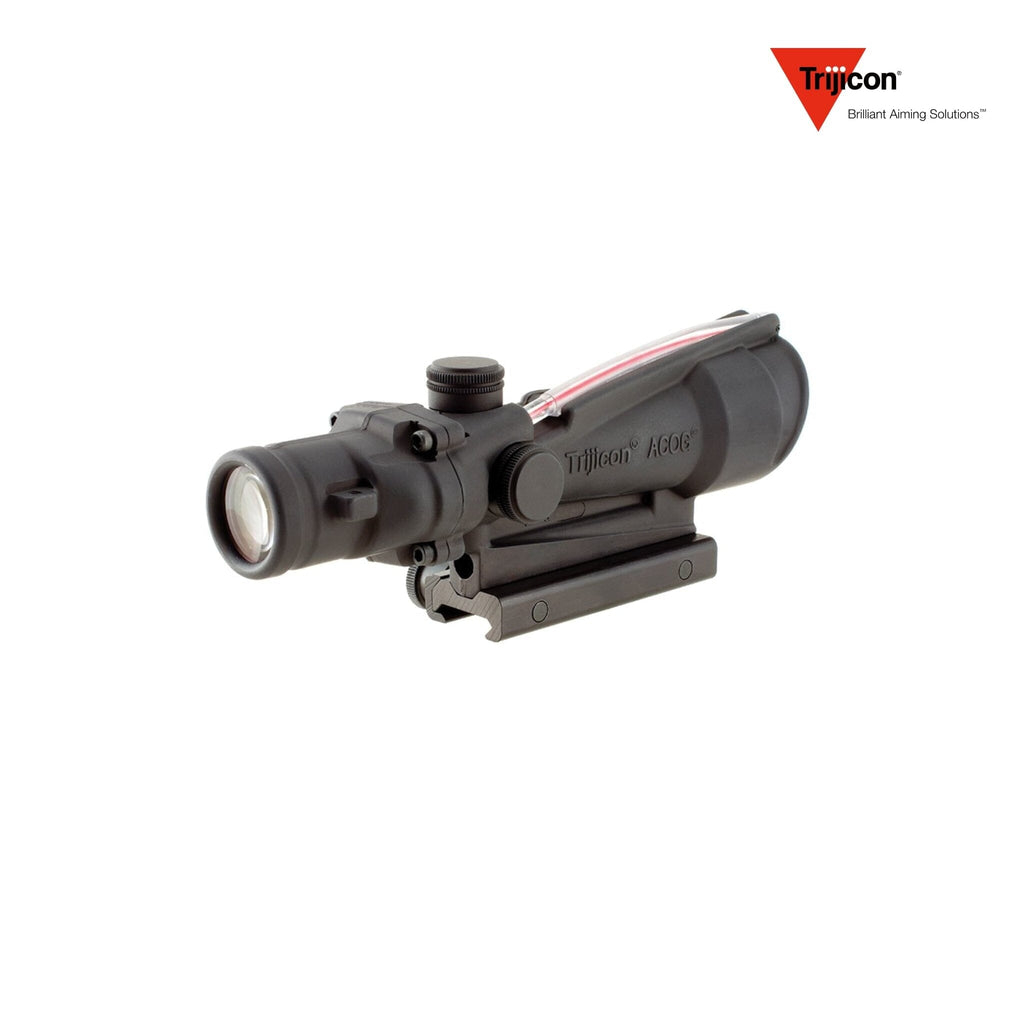

Trijicon ACOG 3.5x35 BAC Riflescope .223/5.56 BDC Red Chevron Reticle

$1,239.99
Shipping calculated at checkout.
Payment methods
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
12 left

Trijicon ACOG 3.5×35 BAC Riflescope .223/5.56 BDC Red Chevron Reticle

Features

  • Dual-Source Illumination: Fiber-optic for automatic daytime brightness paired with tritium for constant low-light glow—battery-free, always-on, optimized for Bindon Aiming Concept™ target acquisition.
  • Fixed 3.5× Magnification: Strikes the ideal balance between rapid close-quarters engagement and mid-range precision.

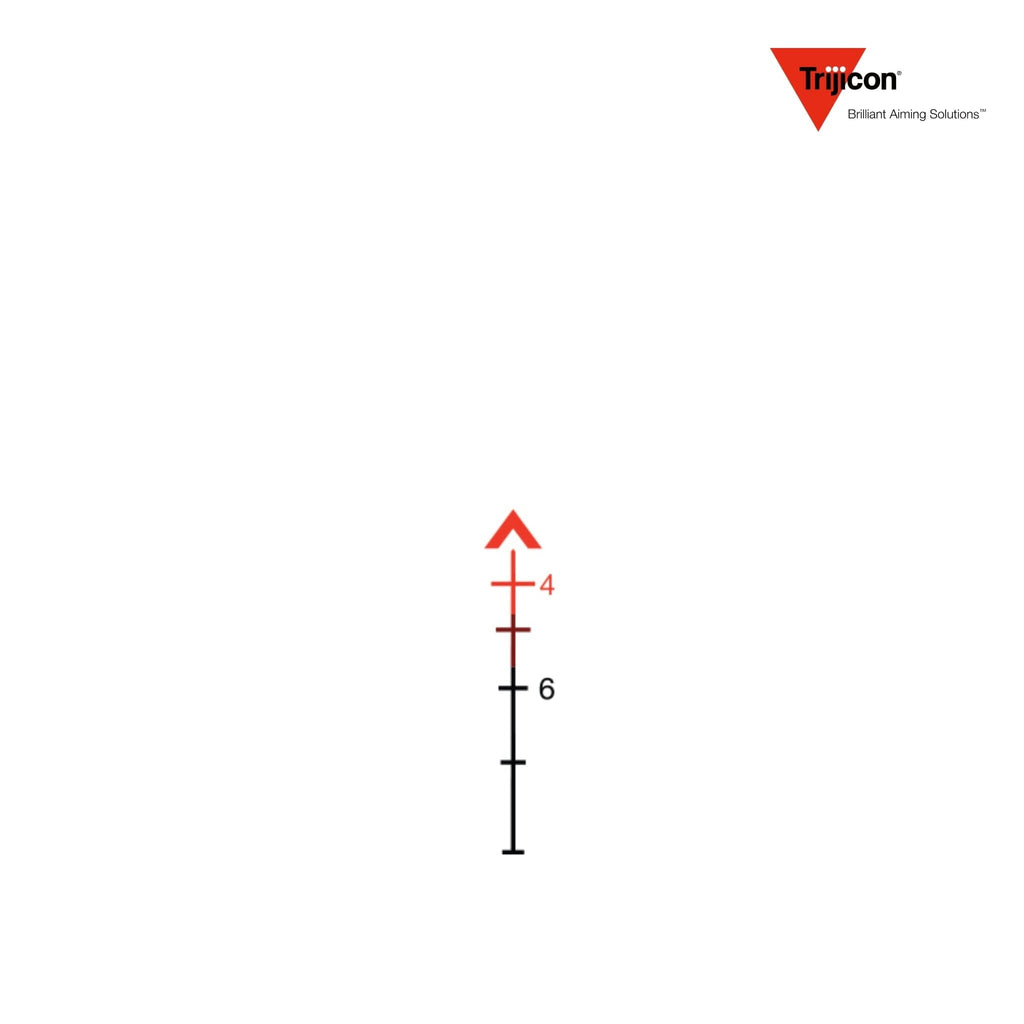

  • .223/5.56 BDC Red Chevron Reticle: Calibrated to hold-over out to 800 m on flat-top .223/5.56 platforms; zero the chevron tip at 100 m for intuitive range estimation.
  • Ergonomic Flat-Top Mount: Includes the TA51™ “Rock-touch” quick-detach adapter for rapid on/off attachment with repeatable zero.
  • 30 mm Main Tube: CNC-machined 6061-T6 aluminum with matte-black hard-coat anodize; nitrogen-purged; waterproof and fog-proof to 10 ft.
  • Fixed Parallax: Optimized at 100 m—no external parallax adjustment required.
  • Combat-Proven Durability: Shock-tested for calibers from .22 LR through .50 BMG.
  • Compact & Lightweight: 8″ overall length and 14 oz weight for minimal added bulk on AR-pattern rifles.
  • Made in USA & No-Fault® Lifetime Warranty

Technical Specifications for Trijicon ACOG 3.5×35 BAC Riflescope .223/5.56 BDC Red Chevron Reticle

Specification

Details

Manufacturer

Trijicon

Model / MPN

TA11F / 100145

SKU

TA11F

UPC

719307301306

Country of Origin

USA

Magnification

3.5×

Objective Lens Diameter

35 mm

Main Tube Diameter

30 mm

Reticle

.223/5.56 BDC Red Chevron (FFP)

Illumination

Fiber-optic + tritium (automatic)

Eye Relief

2.4″ (61 mm)

Field of View

28.9 ft @ 100 yd

Exit Pupil

10 mm

Parallax

Fixed @ 100 m

Turret Adjustment

3 clicks/inch @ 100 yd

Length

8.0″ (203 mm)

Weight

14 oz (397 g)

Finish

Matte-black hard-coat anodize

Waterproof / Fog-Proof

Yes (to 10 ft)

Shock-Proof

Yes (.22 LR–.50 BMG)

Included Accessories

  • TA51™ flat-top quick-detach mount
  • Flip-up objective & ocular lens covers
  • LensPen® cleaning tool
  • Trijicon logo sticker
  • User manual & warranty card
