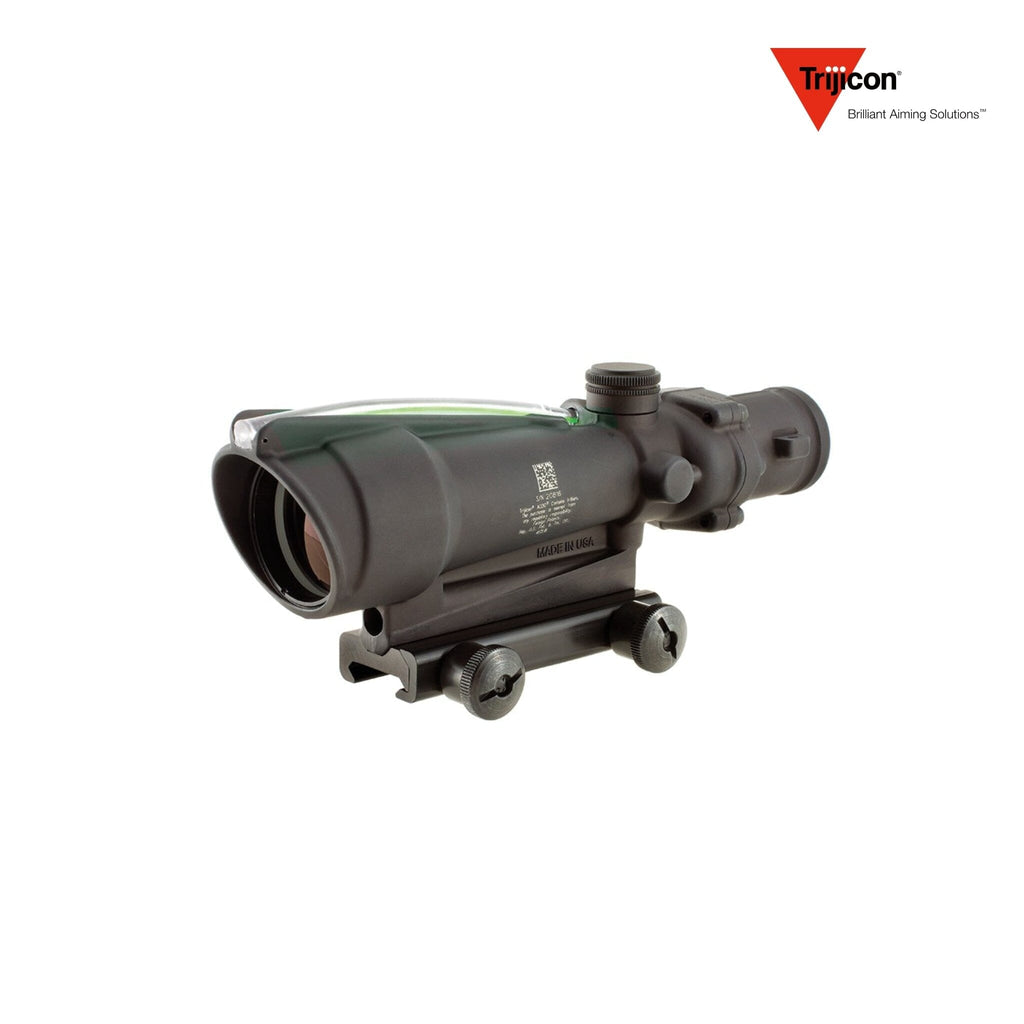

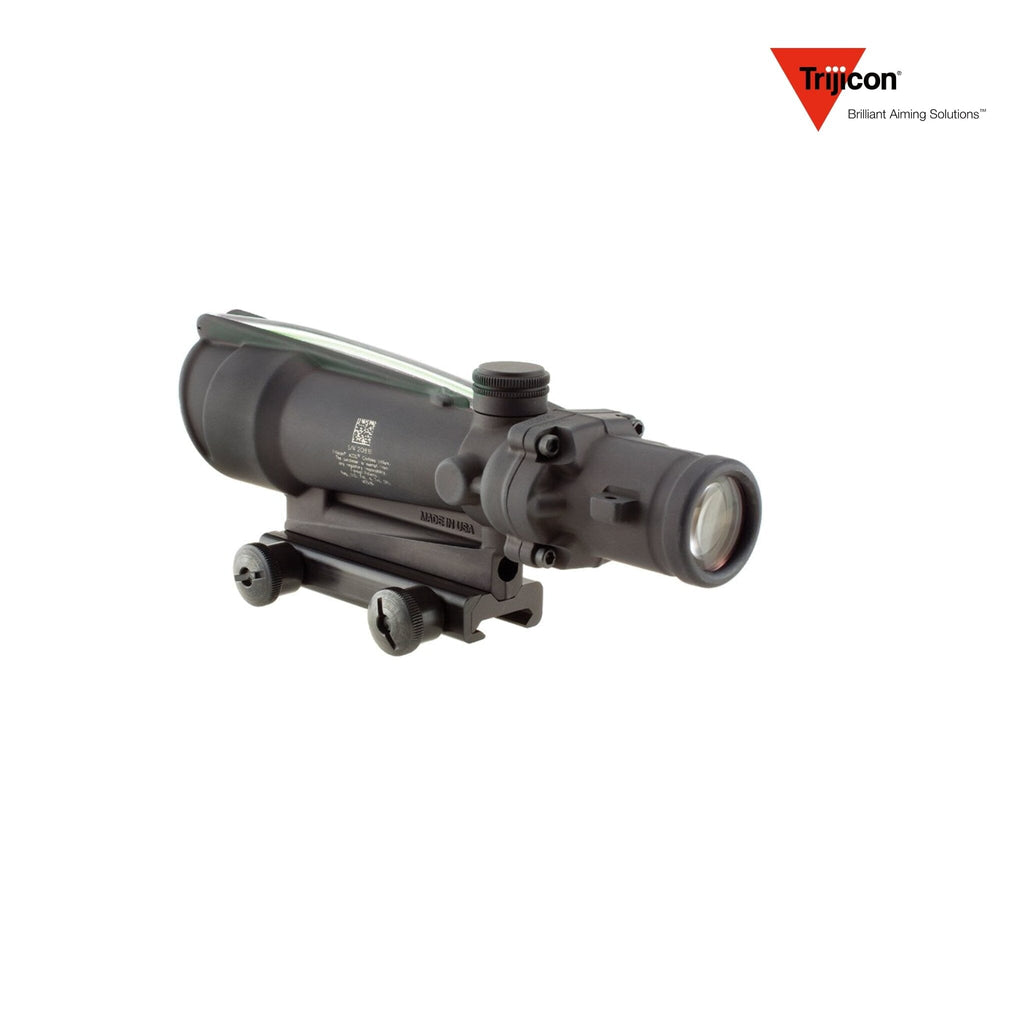

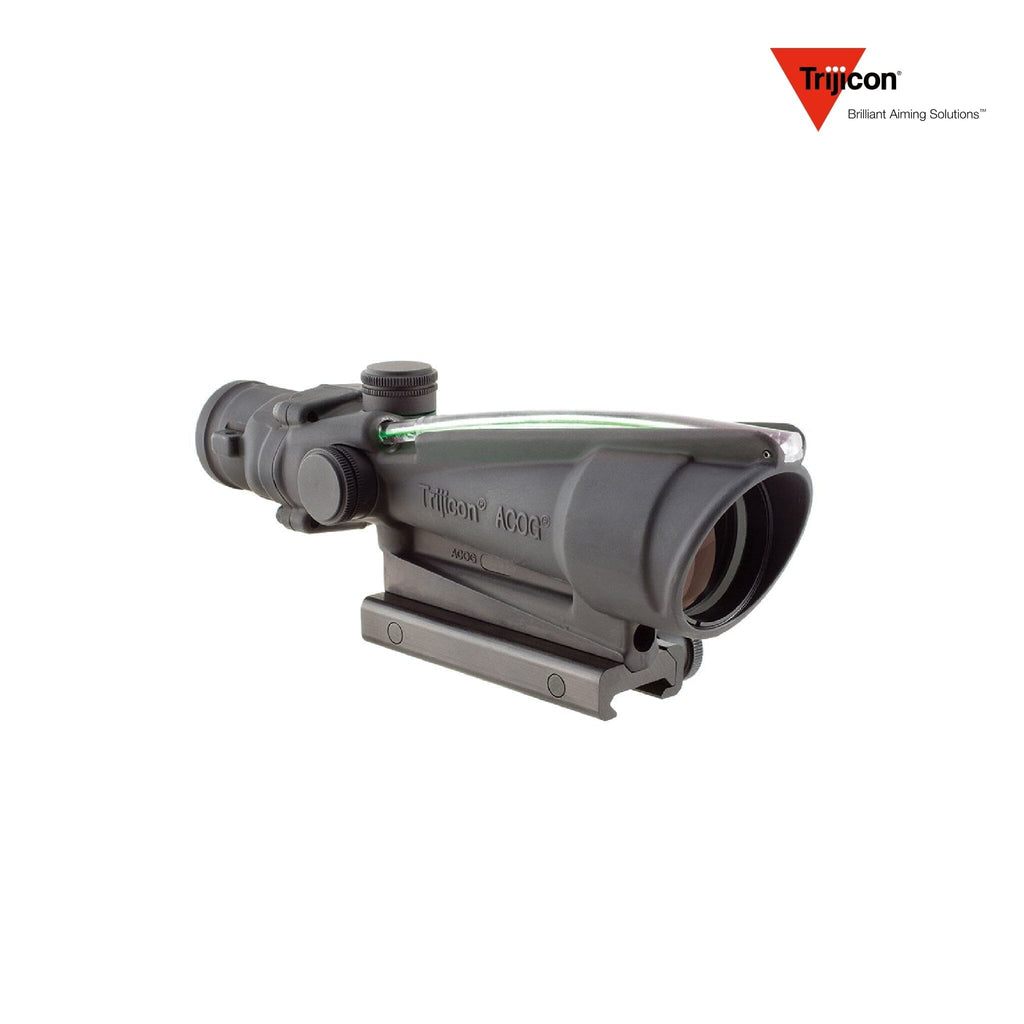

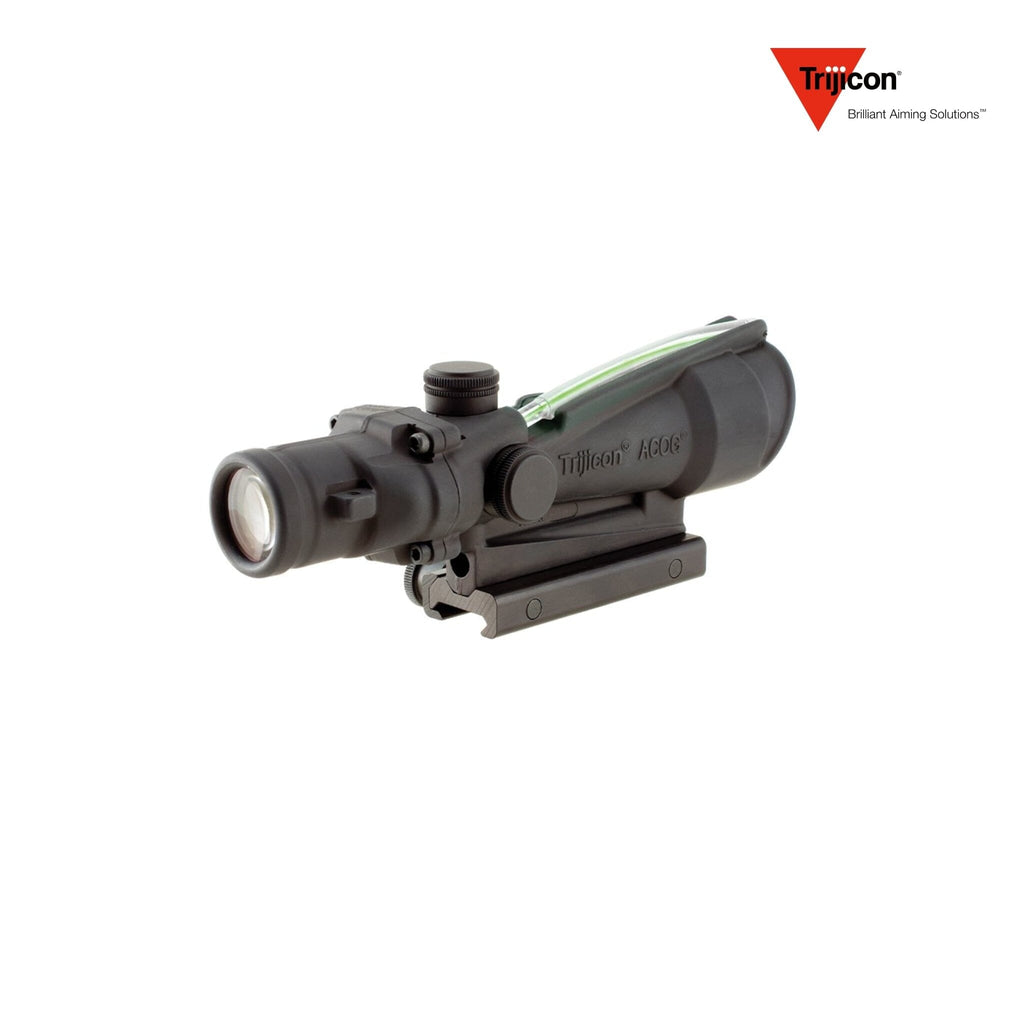

Trijicon ACOG 3.5×35 BAC Riflescope .223/5.56 BDC Green Horseshoe Reticle
Features
-
Dual-Source Illumination: Fiber-optic for automatic daytime brightness; tritium for constant low-light glow—battery-free, always-on, optimized for both-eyes-open Bindon Aiming Concept™ acquisition.
-
Fixed 3.5× Magnification: Balances rapid close-quarters target acquisition with mid-range precision.
-

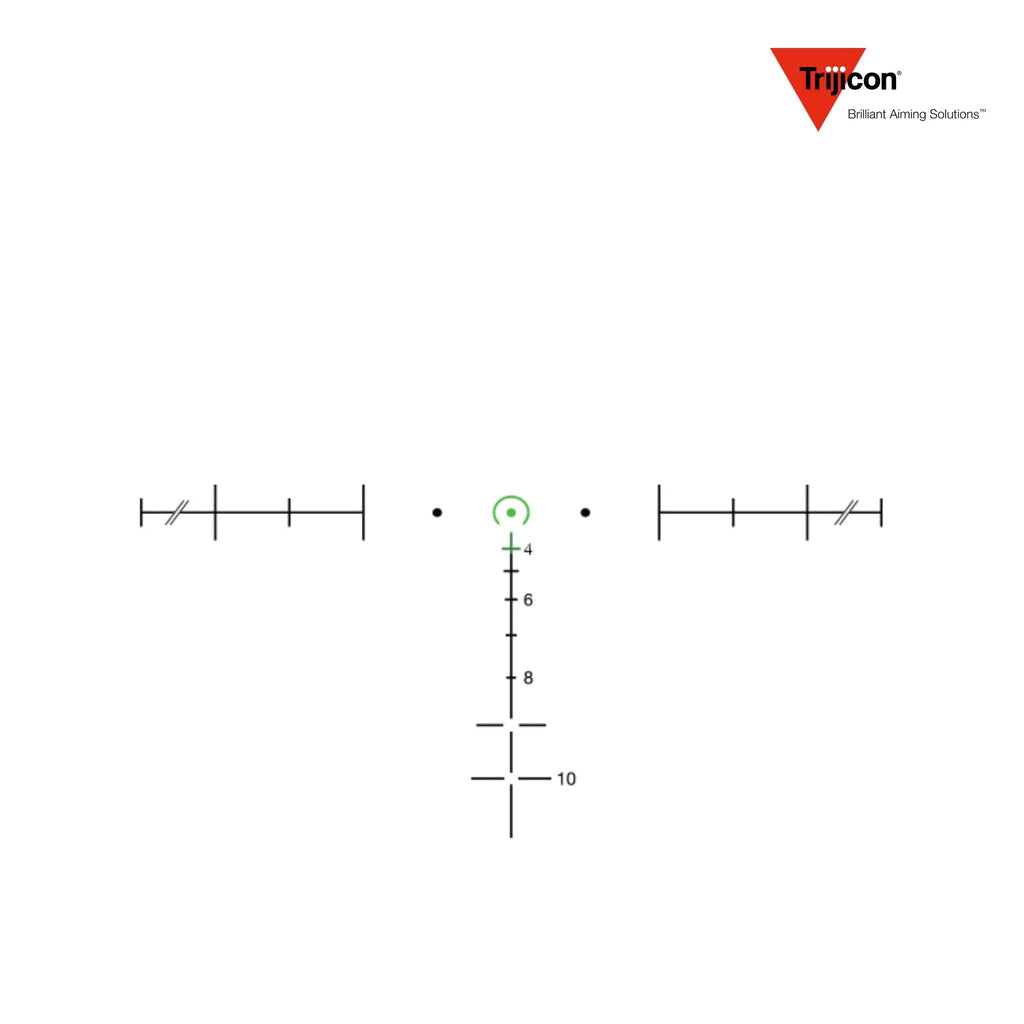

.223/5.56 BDC Green Horseshoe Reticle: Illuminated horseshoe circle surrounding the aiming point, calibrated for .223/5.56 BDC hold-over out to 800 m; zero the horseshoe at 100 m.
-
Ergonomic Flat-Top Mount: Includes TA51™ “Rock-touch” quick-detach adapter for repeatable zero on MIL-STD-1913 rails.
-
30 mm Main Tube: CNC-machined 6061-T6 aluminum; matte-black hard-coat anodize; nitrogen-purged; waterproof and fog-proof.
-
Fixed Parallax: Optimized at 100 m—no external parallax adjustment required.
-
Combat-Proven Durability: Shock-tested for calibers from .22 LR through .50 BMG; waterproof to 10 ft.
-
Compact & Lightweight: Only 8.0″ long and under 15 oz, ideal for AR-platform rifles.
-
Made in USA & No-Fault® Lifetime Warranty
Technical Specifications for Trijicon ACOG 3.5×35 BAC Riflescope .223/5.56 BDC Green Horseshoe Reticle
Specification
|
Details
|
Manufacturer
|
Trijicon
|
Model / MPN
|
TA11H-G
|
SKU
|
TA11H-G
|
UPC
|
719307302287
|
Country of Origin
|
USA
|
Magnification
|
3.5×
|
Objective Lens Diameter
|
35 mm
|
Main Tube Diameter
|
30 mm
|
Reticle
|
.223/5.56 BDC Green Horseshoe (FFP)
|
Illumination Source
|
Fiber-optic + tritium (automatic)
|
Eye Relief
|
2.4″ (61 mm)
|
Field of View
|
28.9 ft @ 100 yd
|
Exit Pupil
|
10 mm
|
Parallax
|
Fixed @ 100 m
|
Turret Adjustment
|
3 clicks/inch @ 100 yd
|
Length
|
8.0″ (203 mm)
|
Weight
|
14 oz (397 g)
|
Finish
|
Matte-black hard-coat anodize
|
Waterproof / Fog-Proof
|
Yes (to 10 ft)
|
Shock-Proof
|
Yes (.22 LR–.50 BMG)
|
Included Accessories
-
TA51™ flat-top quick-detach mount
-
Flip-up lens covers (objective & ocular)
-
LensPen® cleaning tool
-
Trijicon logo sticker
-
User manual & warranty card
