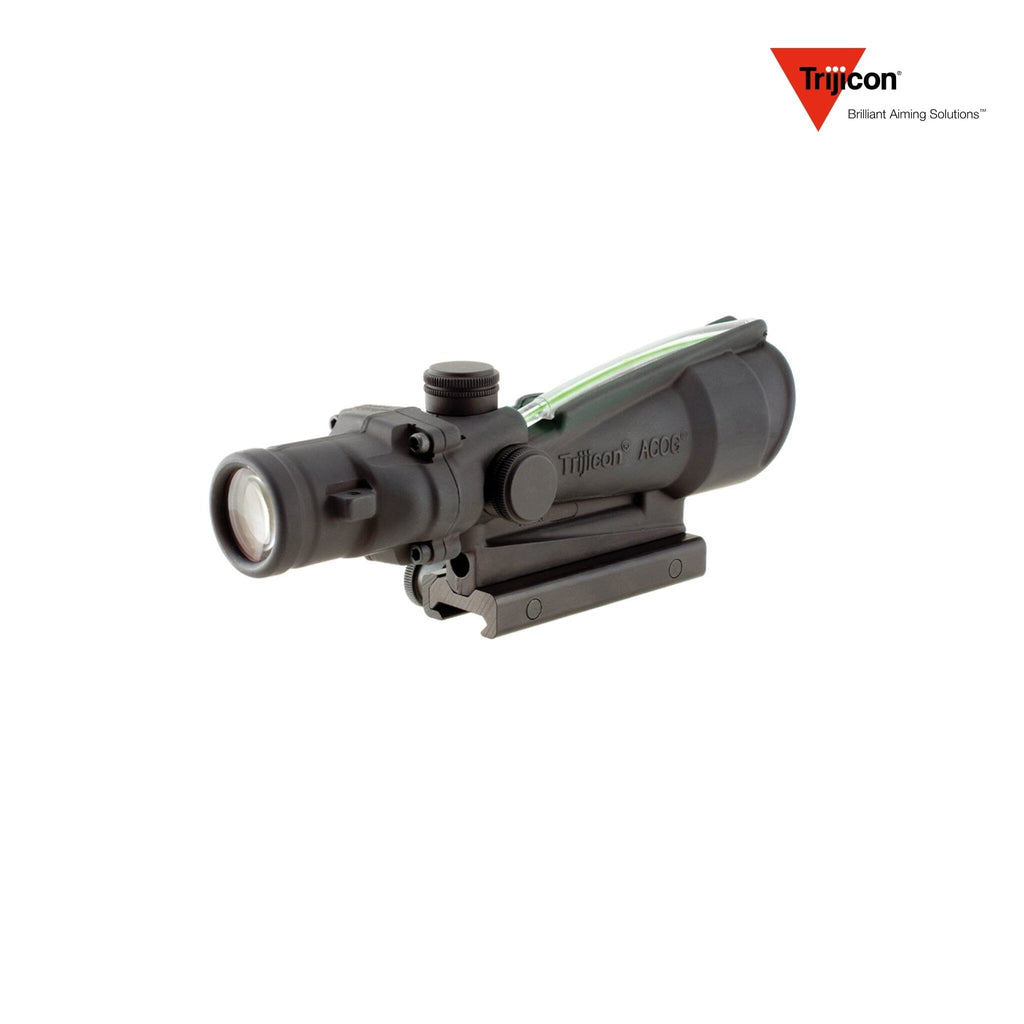

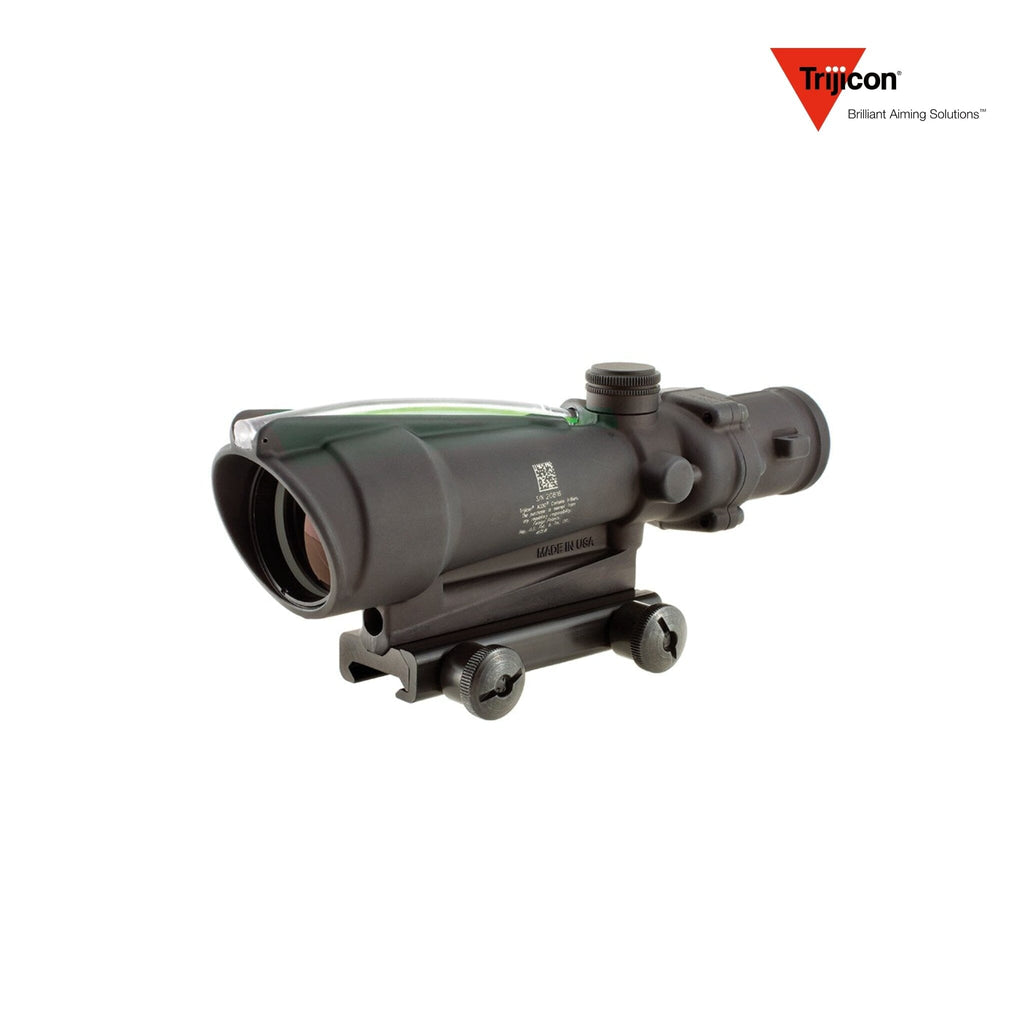

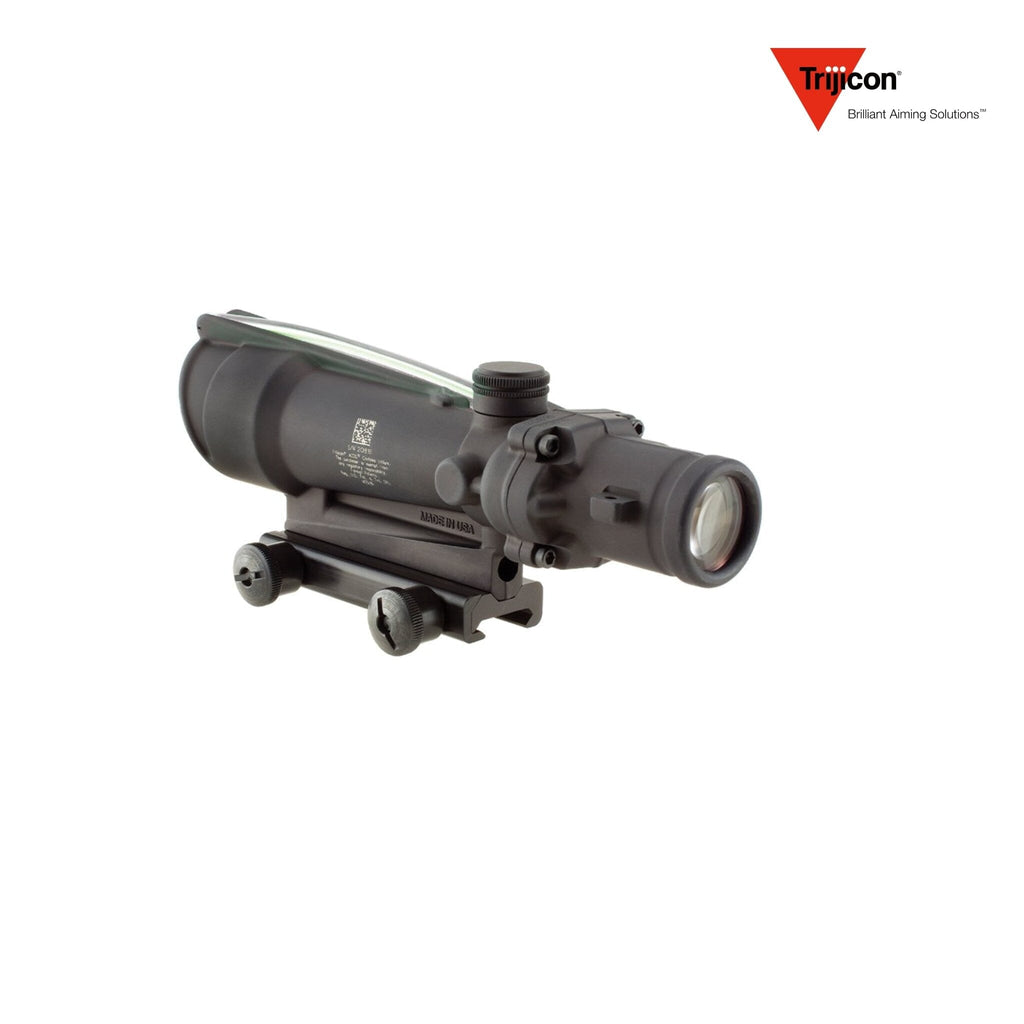

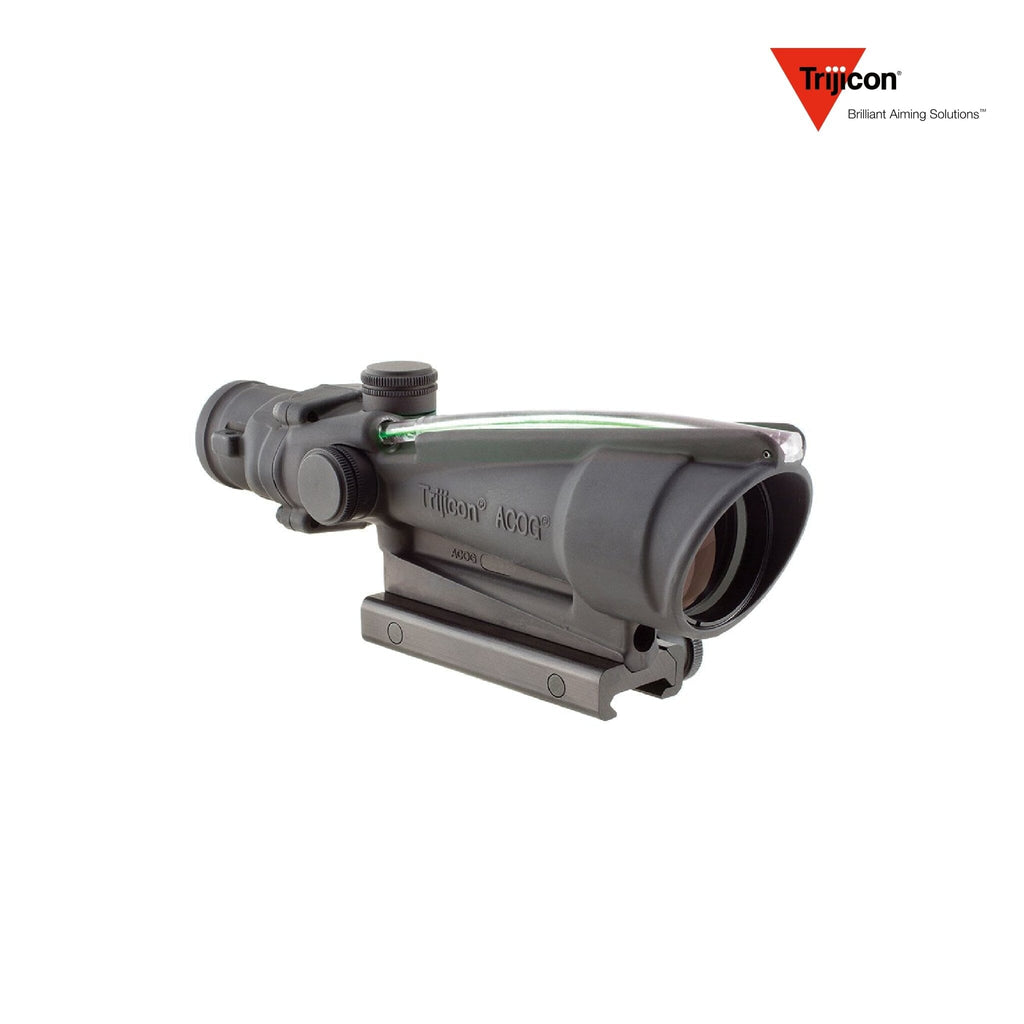

Trijicon ACOG 3.5×35 BAC Riflescope .223/5.56 BDC Green Chevron Reticle
Features
-
Dual-Source Illumination: Fiber-optic for automatic daytime brightness paired with tritium for constant low-light glow—battery-free, always-on, optimized for both-eyes-open Bindon Aiming Concept™ acquisition.
-
3.5× Fixed Magnification: Balances close-quarters speed with mid-range precision.
-

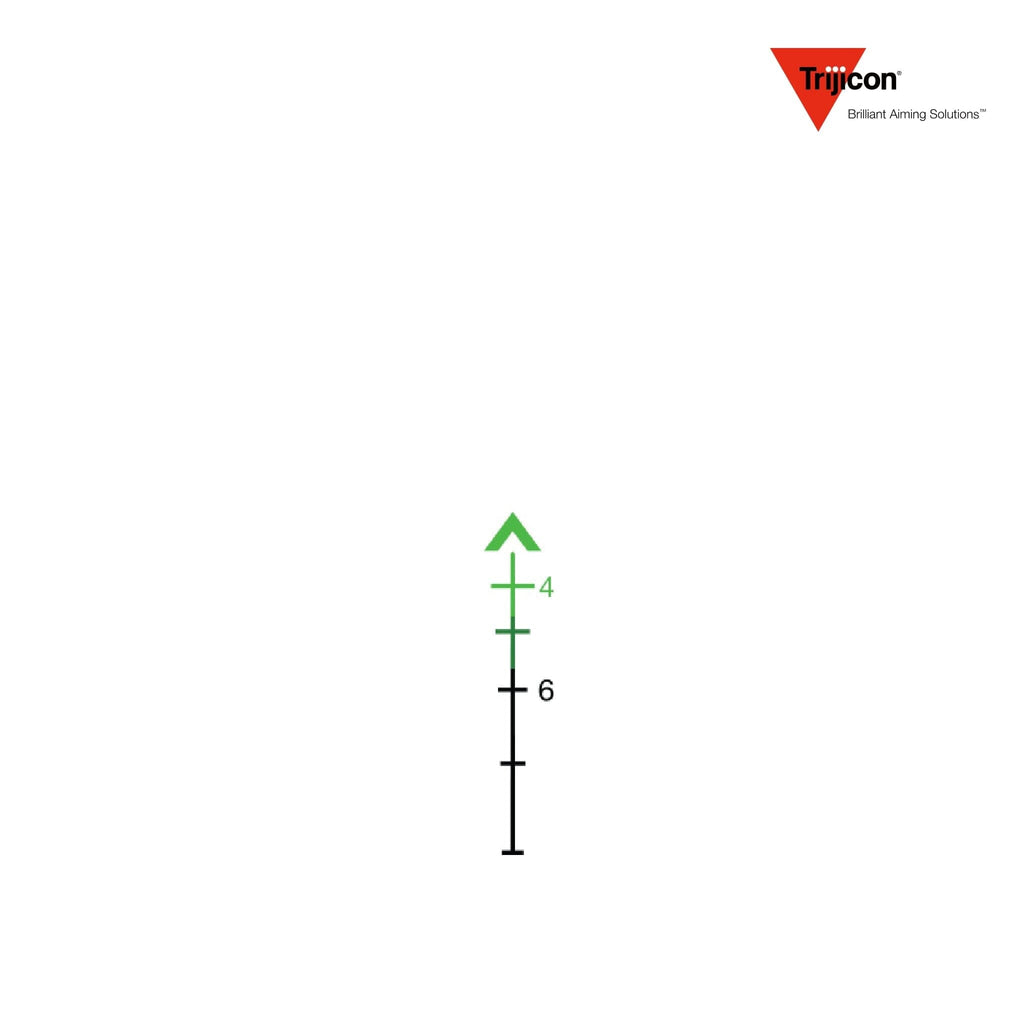

.223/5.56 BDC Green Chevron Reticle: Calibrated out to 800 m on flat-top .223/5.56 platforms, zero the chevron tip at 100 m for intuitive hold-over and range estimation.
-
30 mm Main Tube: CNC-machined 6061-T6 aluminum with matte-black hard-coat anodize; nitrogen-purged; waterproof/fog-proof.
-
Fixed Parallax: Optimized at 100 m—no side-focus adjustment.
-
Ergonomic Flat-Top Mount: Includes TA51™ “Rock-touch” quick-detach flattop adapter for rapid on/off attachment with repeatable zero.
-
Combat-Proven Ruggedness: Shock-tested for calibers from .22 LR through .50 BMG; waterproof to 10 ft.
-
Made in USA & No-Fault® Lifetime Warranty
Technical Specifications for Trijicon ACOG 3.5×35 BAC Riflescope .223/5.56 BDC Green Chevron Reticle
Specification
|
Details
|
Manufacturer
|
Trijicon
|
Model / MPN
|
TA11F-G
|
SKU
|
TA11F-G
|
UPC
|
071930730461
|
Country of Origin
|
USA
|
Magnification
|
3.5×
|
Objective Lens Diameter
|
35 mm
|
Main Tube Diameter
|
30 mm
|
Eye Relief
|
2.4″ (61 mm)
|
Field of View
|
1.5° (≈28.9 ft @ 100 yd)
|
Exit Pupil
|
10 mm
|
Parallax
|
Fixed @ 100 m
|
Reticle
|
Green Chevron BDC .223/5.56 (SFP)
|
Illumination Source
|
Fiber-optic + tritium (automatic)
|
Mount
|
TA51 flattop quick-detach adapter
|
Length
|
8.0″ (203 mm)
|
Weight
|
14 oz (397 g)
|
Finish
|
Matte-black hard-coat anodize
|
Waterproof / Fog-Proof
|
Yes (IPX7)
|
Shock-Proof
|
Yes (.22 LR–.50 BMG)
|
Included Accessories
-
TA51™ flattop quick-detach mount
-
Lens covers (flip-up)
-
Cleaning cloth & LensPen® tool
-
Trijicon logo sticker
-
User manual & warranty card
