Athlon Helos BTR GEN2 4–20×50 Rifle Scope APRS6 FFP IR MIL Reticle
Features
-
4–20× Magnification Range – Provides a wide zoom range for mid- to long-range precision shooting.
-

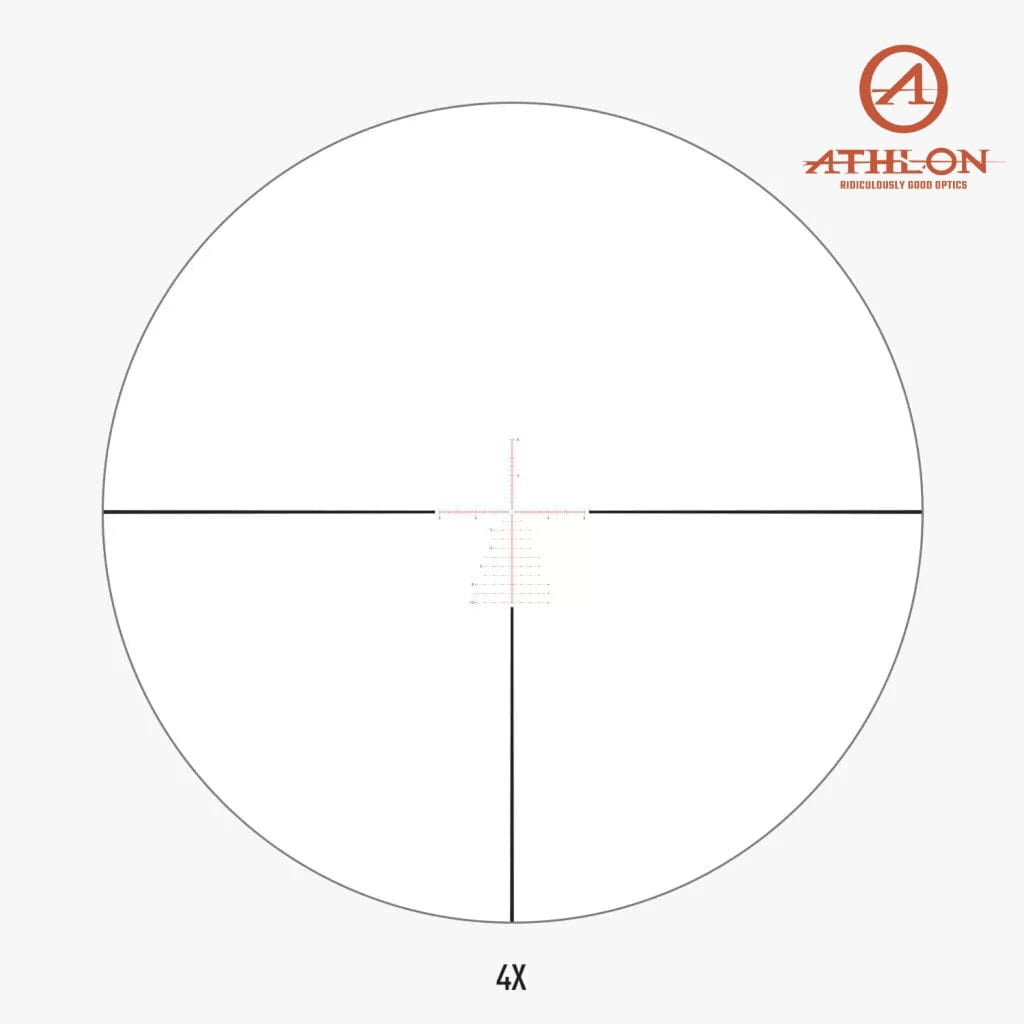

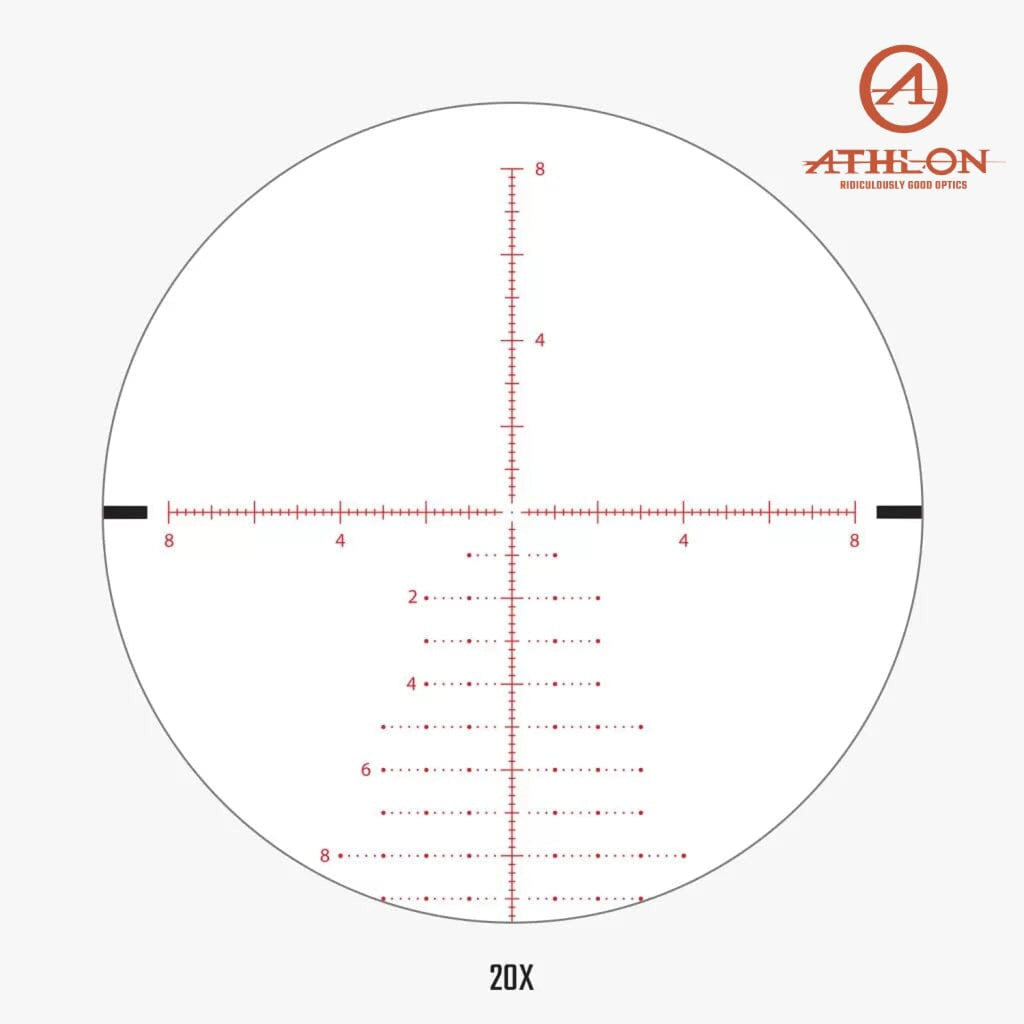

First Focal Plane (FFP) Reticle – APRS6 MIL illuminated reticle maintains consistent subtensions across all magnification levels, ideal for ranging and holdovers.
-
Red LED Illumination – Offers 10 brightness settings with intermittent off positions for fast and repeatable control.
-
Locking, Push/Pull Turrets with Zero Stop – Secure turret design with a reliable zero stop for quick return-to-zero after dialing.
-
0.1 MIL Click Value – Delivers precise adjustments for both elevation and windage.
-
Fully Multi-Coated Lenses with XPL Coating – Enhances clarity while protecting exterior glass from dirt, oil, and scratches.
-
Side Parallax Adjustment – Adjustable from 10 yards to infinity for a sharp, parallax-free image.
-
Durable Construction – Argon-purged, aircraft-grade aluminum housing provides waterproof, fogproof, and shockproof performance.
-
Matte Black Finish – Non-reflective finish for tactical and field applications.
Technical Specifications for Athlon Helos BTR GEN2 4–20×50 Rifle Scope APRS6 FFP IR MIL Reticle
Specification
|
Details
|
Manufacturer
|
Athlon Optics
|
Model / MPN
|
214109
|
SKU
|
214109-Athlon
|
UPC
|
813869022195
|
Magnification Range
|
4–20×
|
Objective Lens Diameter
|
50 mm
|
Tube Diameter
|
30 mm
|
Reticle
|
APRS6 MIL, First Focal Plane, Illuminated
|
Illumination Levels
|
10
|
Click Value
|
0.1 MIL per click
|
Elevation Travel
|
29 MIL total
|
Windage Travel
|
25 MIL total
|
Parallax Adjustment
|
Side focus – 10 yards to infinity
|
Field of View @ 100 yds
|
27.9 ft (4×) – 5.6 ft (20×)
|
Eye Relief
|
3.6″ (91 mm)
|
Length
|
13.3″ (338 mm)
|
Weight
|
27.6 oz (782 g)
|
Lens Coatings
|
Fully Multi-Coated + XPL Protective
|
Construction
|
Argon-purged, aircraft-grade aluminum
|
Finish
|
Matte Black
|
Waterproof / Fogproof
|
Yes
|
Warranty
|
Limited Lifetime
|
Country of Origin
|
China
|
Included Accessories
-
Throw Lever
-
Flip-Up Lens Caps
-
CR2032 Battery (Installed)
-
User Manual
-
Warranty Documentation
