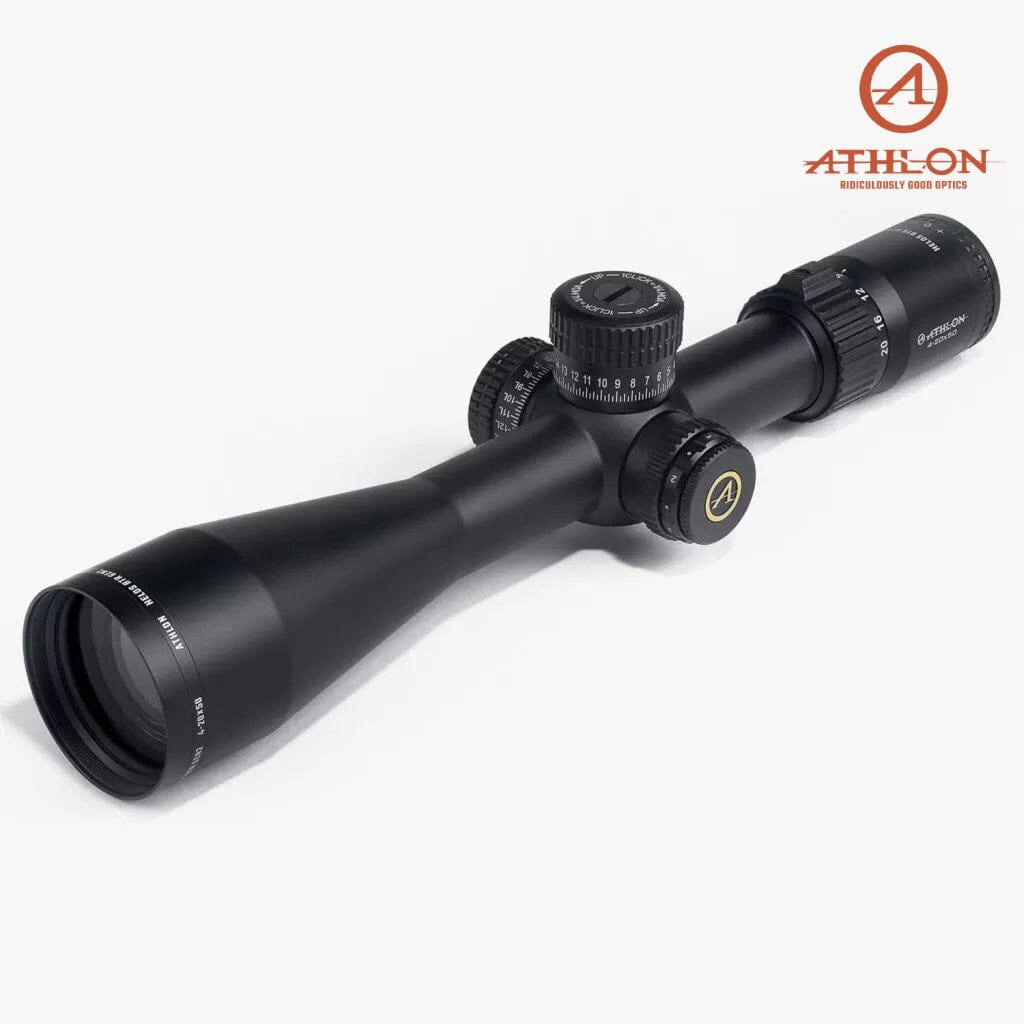

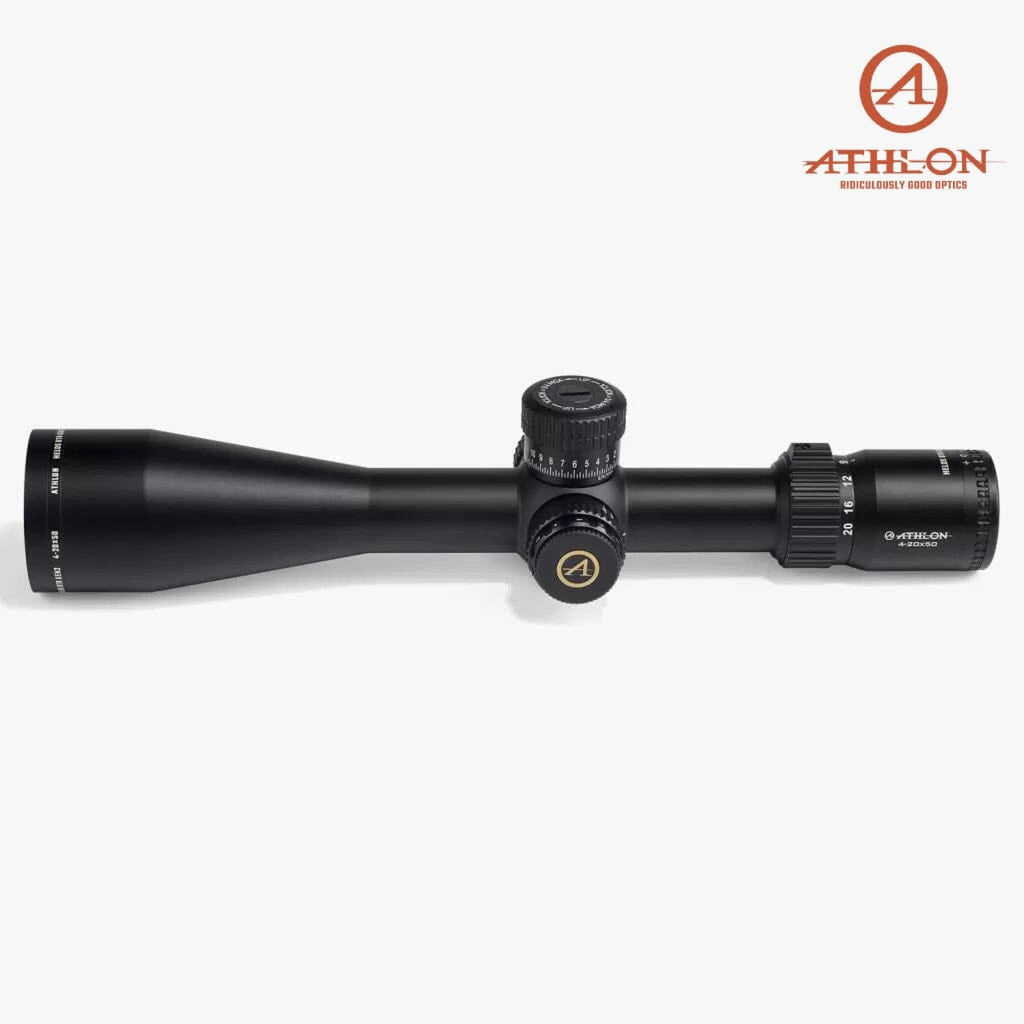

Athlon Helos BTR GEN2 4–20×50 Rifle Scope APLR6 FFP IR MOA Reticle
Features
-
4–20× Magnification Range – Ideal for mid- to long-range shooting, offering precise target engagement and versatility.
-

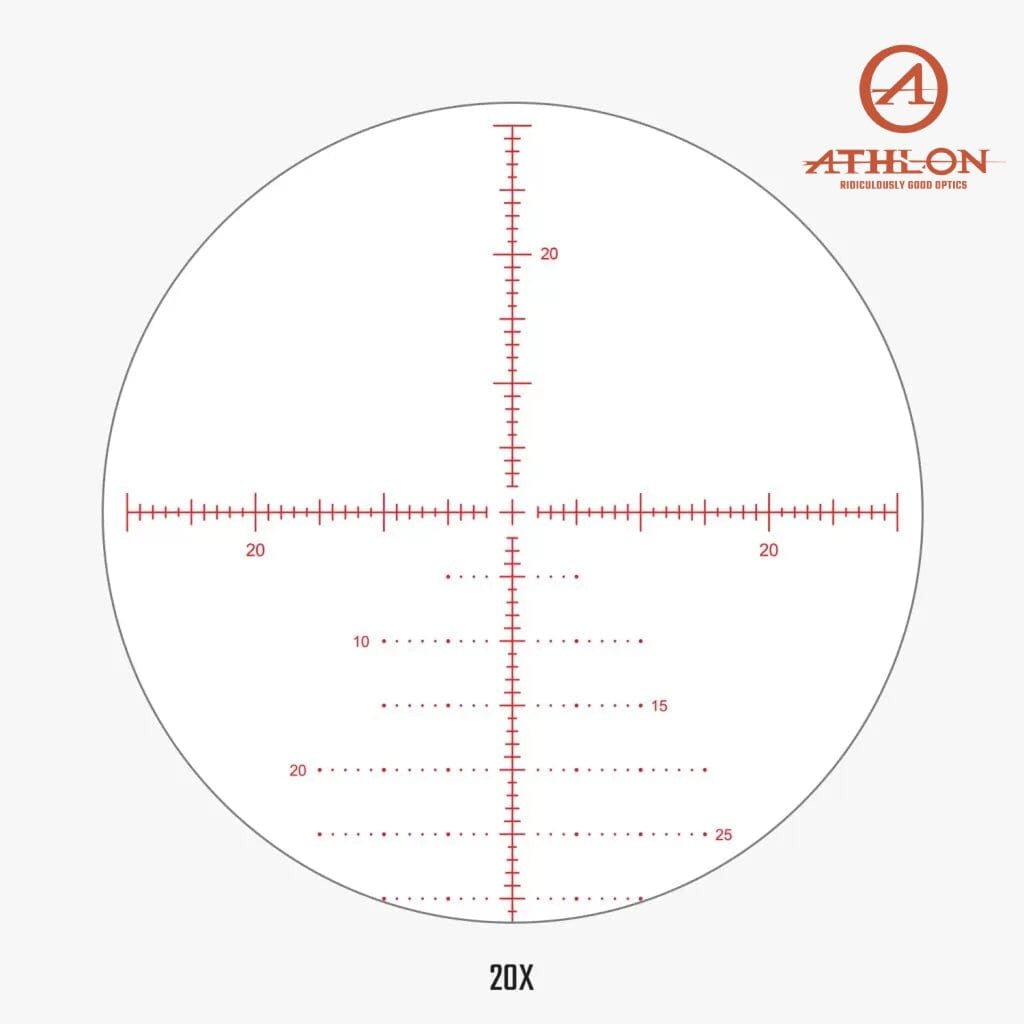

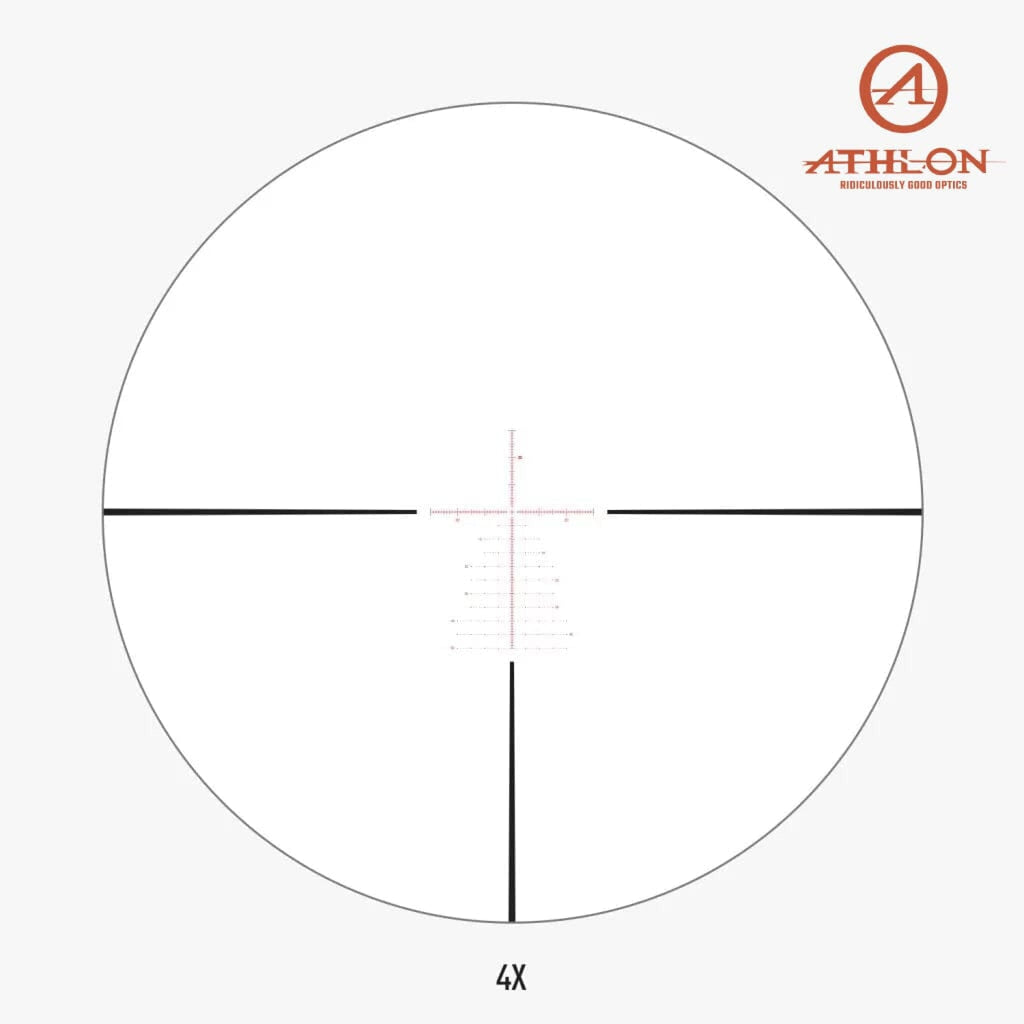

First Focal Plane (FFP) Reticle – APLR6 MOA illuminated reticle maintains correct proportions across all magnification levels, enabling accurate ranging and holdovers.
-
Red LED Illumination – 10 brightness settings with off positions between each level for fast, intuitive control.
-
Locking Turrets with Zero Stop – Prevents unintentional adjustments and allows rapid return to original zero after dialing elevation.
-
0.25 MOA Click Value – Precise, tactile turret adjustments with ample internal adjustment range.
-
Advanced Fully Multi-Coated Lenses with XPL Coating – Maximizes light transmission and protects against scratches, oil, and dirt.
-
Side Parallax Adjustment – Adjustable from 10 yards to infinity, ensuring a clear image and precise focus at any range.
-
30 mm Aircraft-Grade Aluminum Tube – Durable, one-piece construction that is argon-purged for waterproof and fogproof performance.
-
Matte Black Finish – Non-reflective and corrosion-resistant coating for tactical use.
Technical Specifications for Athlon Helos BTR GEN2 4–20×50 Rifle Scope APLR6 FFP IR MOA Reticle
Specification
|
Details
|
Manufacturer
|
Athlon Optics
|
Model / MPN
|
214108
|
SKU
|
214108-Athlon
|
UPC
|
813869022188
|
Magnification Range
|
4–20×
|
Objective Lens Diameter
|
50 mm
|
Tube Diameter
|
30 mm
|
Reticle
|
APLR6 MOA, First Focal Plane, Illuminated
|
Illumination Levels
|
10
|
Click Value
|
0.25 MOA per click
|
Elevation Travel
|
110 MOA total
|
Windage Travel
|
80 MOA total
|
Parallax Adjustment
|
Side focus – 10 yds to infinity
|
Field of View @ 100 yds
|
27.9 ft (4×) – 5.6 ft (20×)
|
Eye Relief
|
3.6″ (91 mm)
|
Length
|
13.3″ (338 mm)
|
Weight
|
27.6 oz (782 g)
|
Lens Coatings
|
Fully Multi-Coated + XPL Protective
|
Construction
|
Argon-purged, aircraft-grade aluminum
|
Finish
|
Matte Black
|
Waterproof / Fogproof
|
Yes
|
Warranty
|
Limited Lifetime
|
Country of Origin
|
China
|
Included Accessories
-
Throw Lever
-
Flip-Up Lens Caps
-
CR2032 Battery (Installed)
-
User Manual
-
Warranty Documentation
