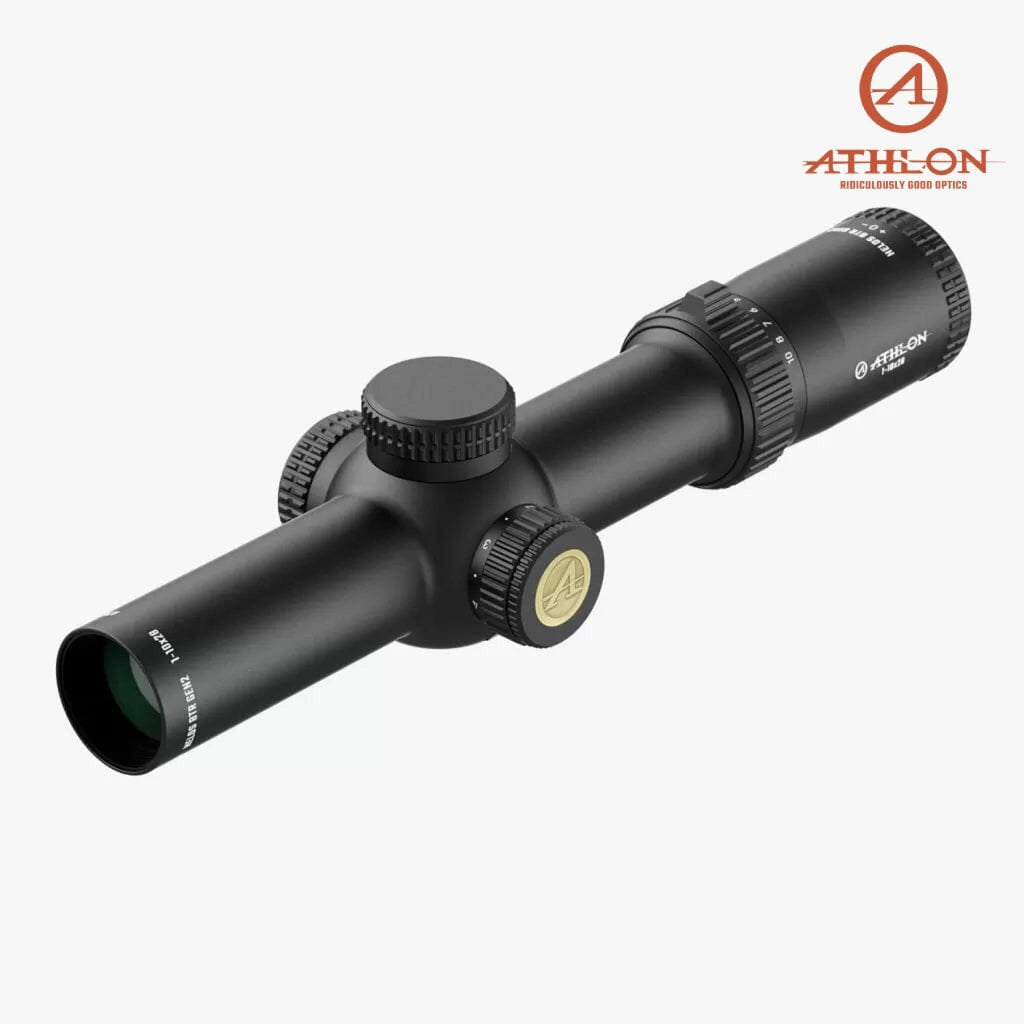

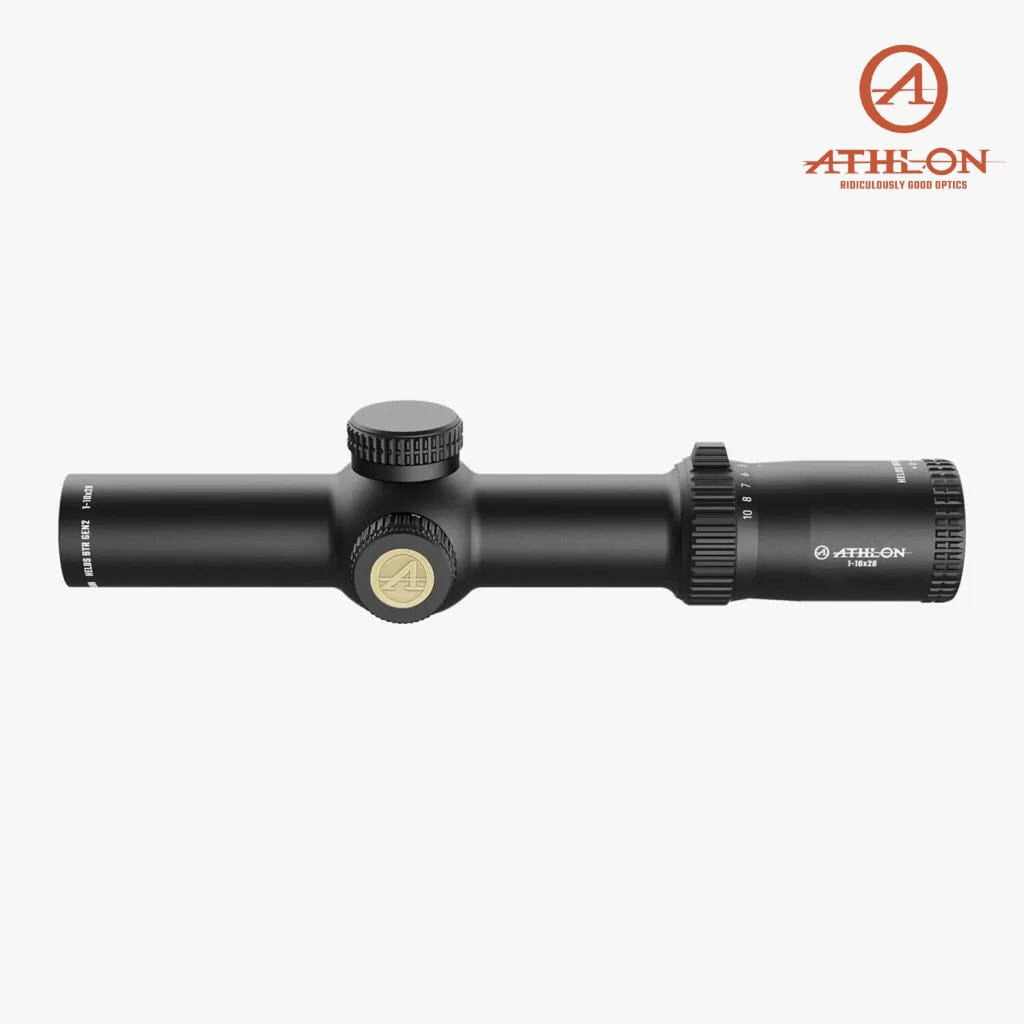

Athlon Helos BTR GEN2 1-10x28 Rifle Scope ATMR4 SFP IR MOA Reticle
Features
-
1–10× Magnification Range – Versatile low-power variable optic ideal for both close-quarters and mid-range engagements.
-

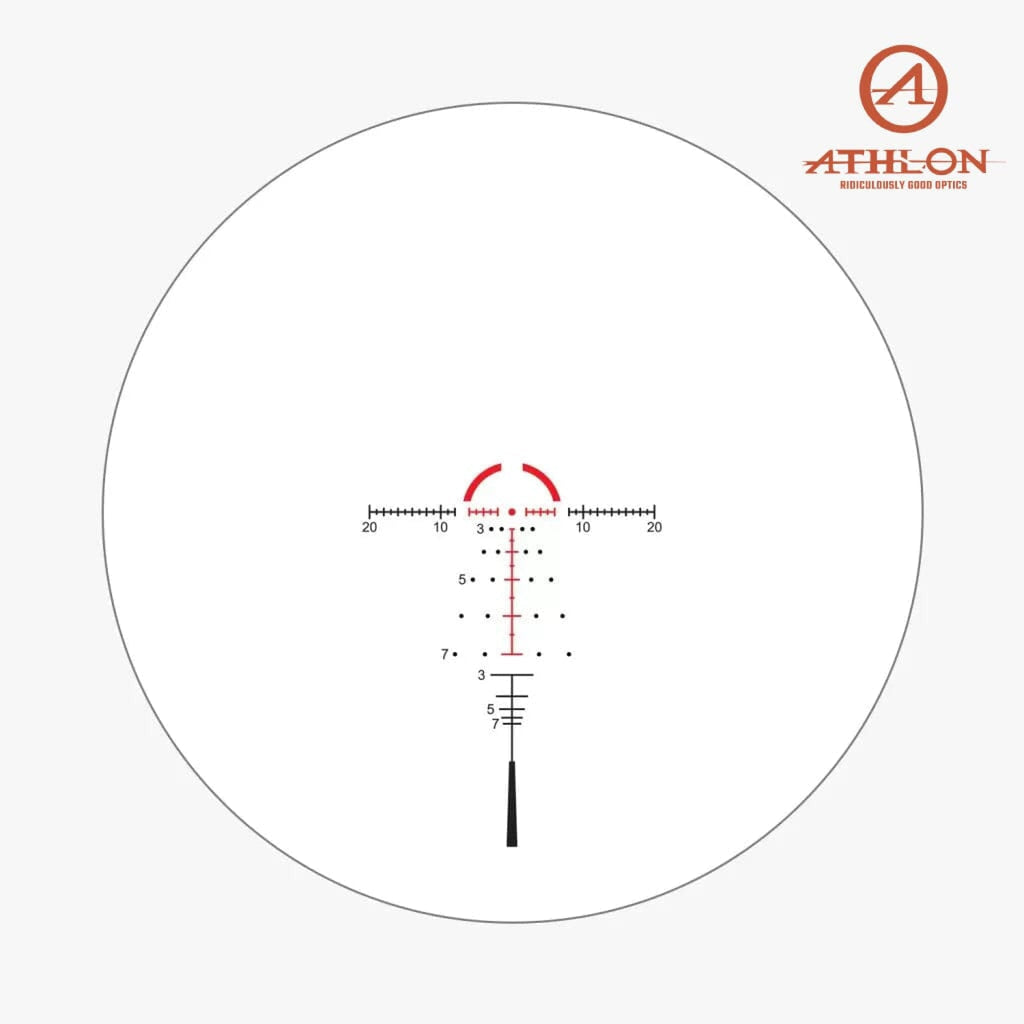

Second Focal Plane (SFP) Reticle – ATMR4 MOA illuminated reticle stays the same size throughout the zoom range and is optimized for accurate holdovers at 10× magnification.
-
Red LED Illumination – Ten brightness settings with off positions between each level for quick return-to-zero lighting control.
-
Capped Turrets with 0.5 MOA Clicks – Easy and precise adjustments; turret design prevents accidental movement in the field.
-
Fully Multi‑Coated Lenses + XPL Coating – Delivers enhanced light transmission and protection against dirt, oil, and scratches.
-
Argon Purged – Improved thermal stability and fogproof performance in all weather conditions.
-
Shockproof and Waterproof – Rugged construction designed to withstand heavy recoil and harsh environments.
-
Aircraft-Grade Aluminum Housing – Lightweight yet durable tube construction with matte black finish.
Technical Specifications for Athlon Helos BTR GEN2 1-10x28 Rifle Scope ATMR4 SFP IR MOA Reticle
Specification
|
Details
|
Manufacturer
|
Athlon Optics
|
Model / MPN
|
214103
|
SKU
|
214103-Athlon
|
UPC
|
813869022171
|
Magnification Range
|
1–10×
|
Objective Lens Diameter
|
28 mm
|
Tube Diameter
|
34 mm
|
Reticle
|
ATMR4 IR MOA (Second Focal Plane)
|
Illumination
|
Red LED – 10 settings
|
Click Value
|
0.5 MOA per click
|
Total Elevation Travel
|
100 MOA
|
Total Windage Travel
|
100 MOA
|
Parallax
|
Fixed at 100 yards
|
Field of View @ 100 yds
|
110 ft (1x) – 10 ft (10x)
|
Eye Relief
|
3.2″ (81 mm)
|
Length
|
10.3″ (262 mm)
|
Weight
|
18.3 oz (519 g)
|
Lens Coating
|
Fully Multi-Coated + XPL Protection
|
Finish
|
Matte Black
|
Waterproof / Fogproof
|
Yes – Argon Purged
|
Warranty
|
Limited Lifetime
|
Country of Origin
|
China
|
Included Accessories
-
Throw lever
-
Flip-up lens caps
-
CR2032 battery (pre-installed)
-
User manual
-
Warranty documentation
