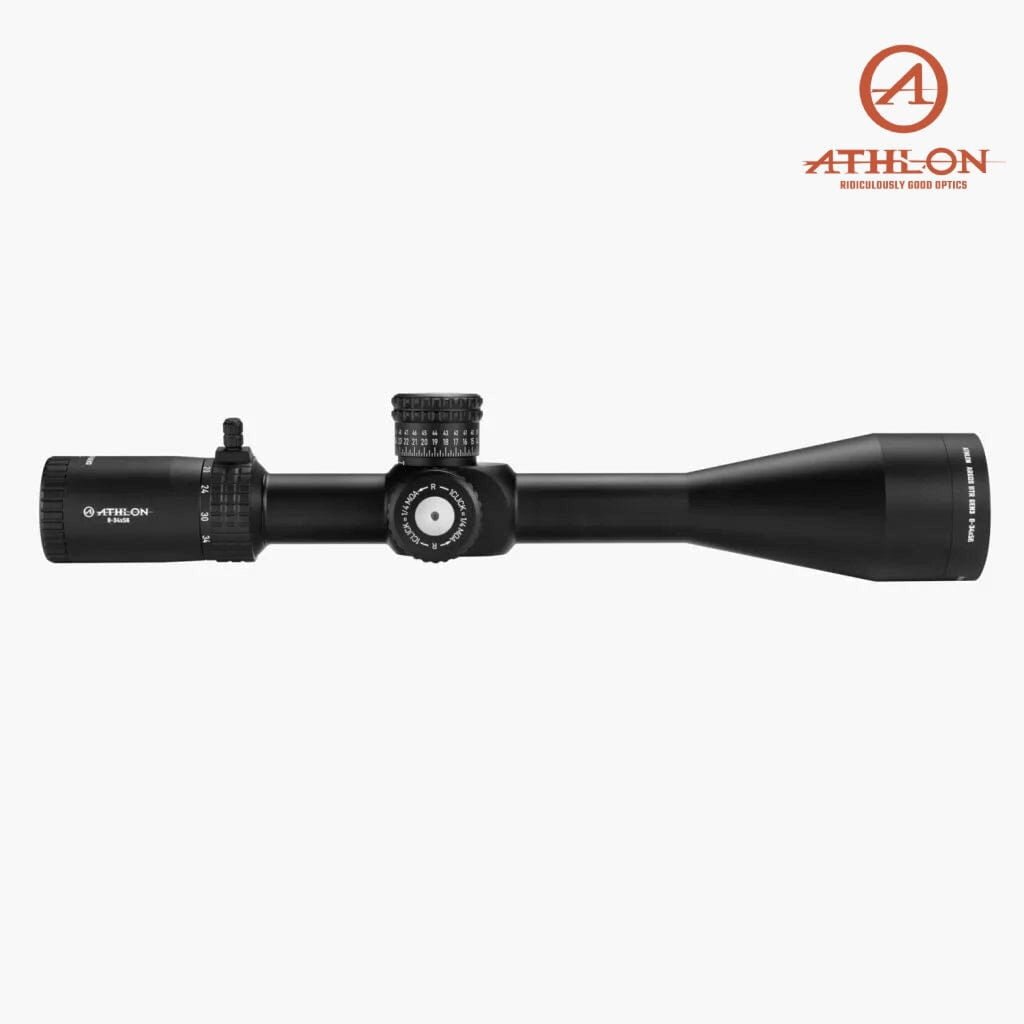

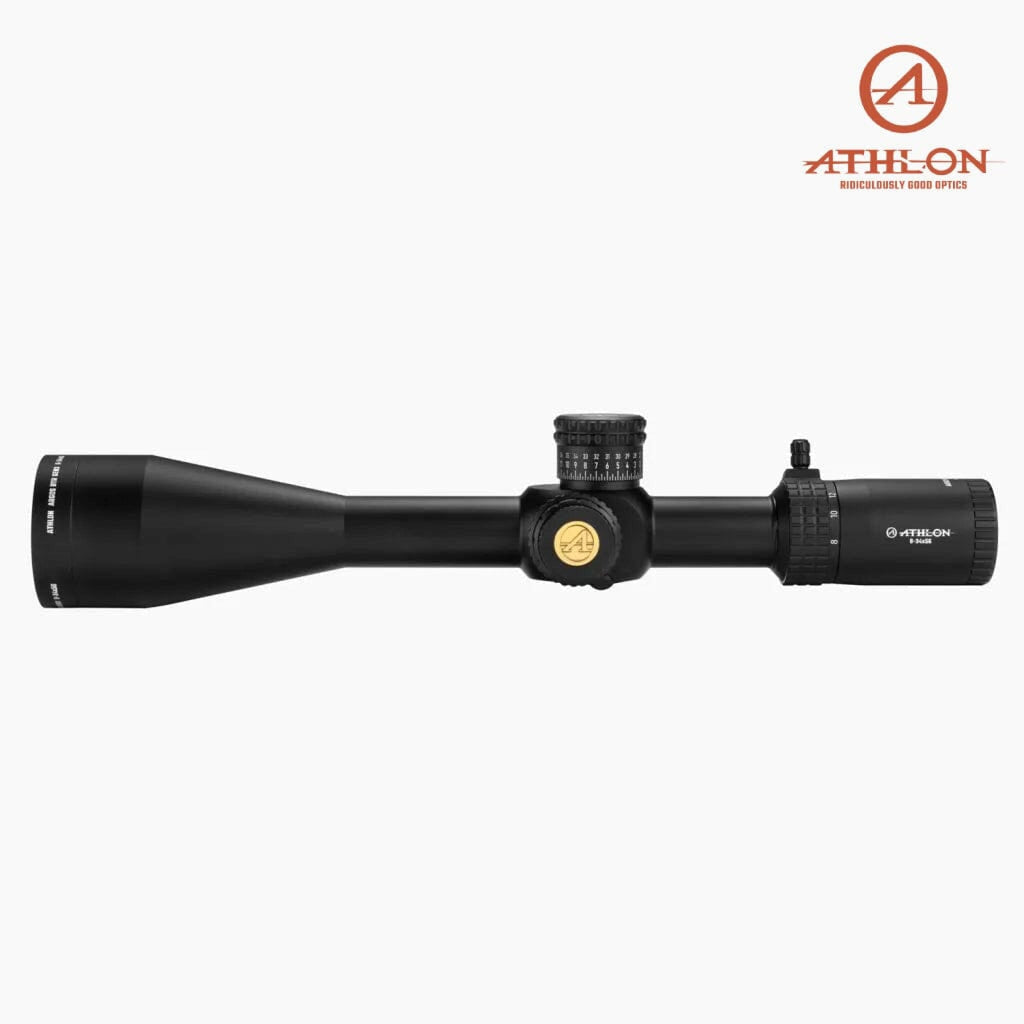

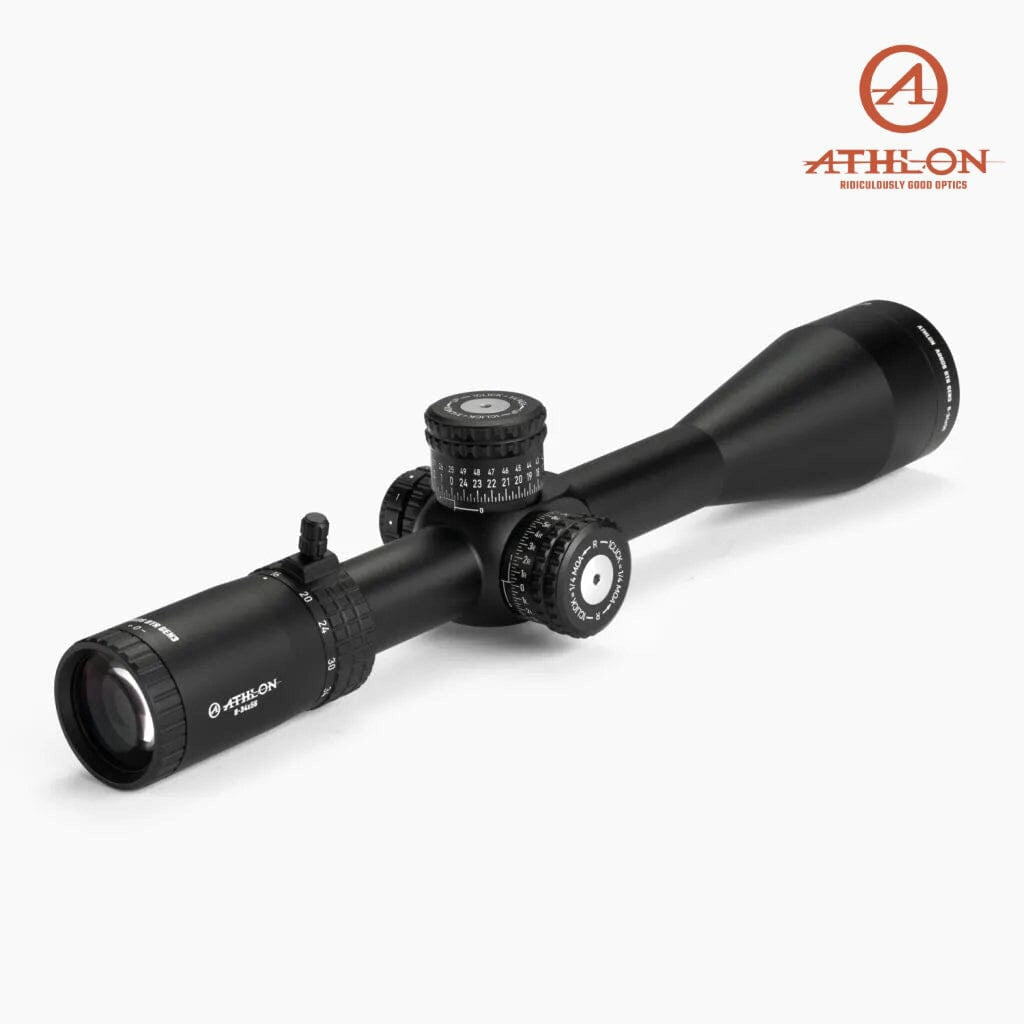

Athlon ARGOS BTR GEN3 8-34×56 Rifle Scope APLR11 FFP IR MOA Reticle
Features
-
8–34× Variable Magnification – Offers a wide zoom range ideal for long-range target engagement, from benchrest shooting to extended field applications.
-

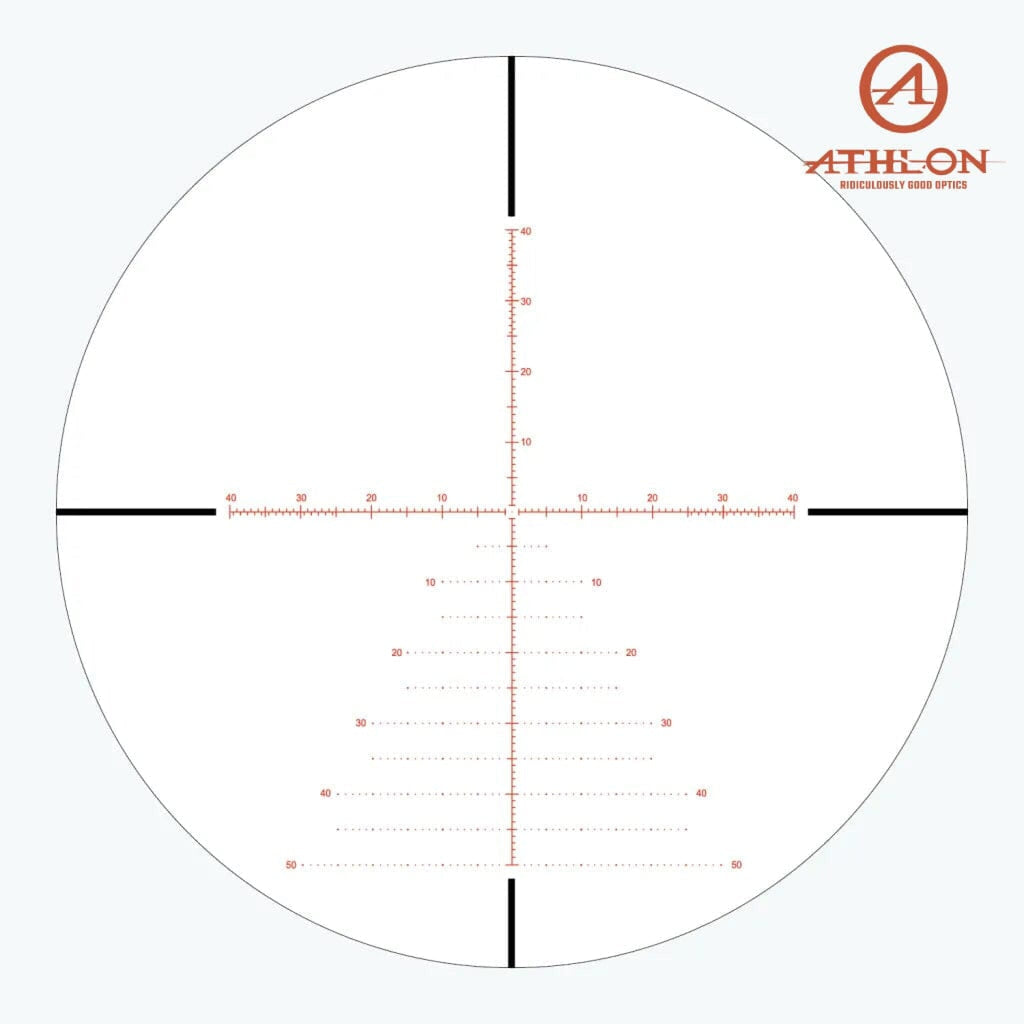

APLR11 MOA Reticle (First Focal Plane) – Illuminated, tree-style MOA reticle maintains accurate subtensions across the entire magnification range for holdover and windage corrections.
-
IR Reticle Illumination – 10 brightness levels with off positions between each setting for quick, repeatable control in varying light conditions.
-
Zero‑Stop Elevation System – Ensures fast and reliable return to your zero point after making elevation adjustments.
-
Tactical-Style Turrets – 0.25 MOA per click adjustment with a total travel range of 45 MOA for both windage and elevation.
-
Fully Multi‑Coated Optics with XPL™ Coating – Delivers maximum light transmission and protects external lenses from oil, dust, and scratches.
-
Side Parallax Adjustment – Adjustable from 15 yards to infinity for precise reticle focus and target clarity.
-
30 mm One‑Piece Tube – Constructed from aircraft-grade aluminum and argon purged for strength, waterproofing, and fog resistance.
-
Long-Range Capable Design – Rugged build optimized for precision shooting disciplines and heavy-recoiling rifles.
Technical Specifications for Athlon ARGOS BTR GEN3 8-34×56 Rifle Scope APLR11 FFP IR MOA Reticle
Specification
|
Details
|
Manufacturer
|
Athlon Optics
|
Model / MPN
|
214076
|
SKU
|
214076-Athlon
|
UPC
|
813869024663
|
Magnification Range
|
8–34×
|
Objective Lens Diameter
|
56 mm
|
Tube Diameter
|
30 mm
|
Reticle
|
APLR11 MOA (First Focal Plane), IR‑illuminated
|
Illumination Levels
|
10 (with off positions between settings)
|
Battery Type
|
CR2032
|
Click Value
|
0.25 MOA per click
|
Elevation Adjustment Range
|
45 MOA total
|
Windage Adjustment Range
|
45 MOA total
|
Parallax Adjustment
|
Side focus; 15 yds to infinity
|
Field of View @ 100 yds
|
12.5 ft (8×) to 3.0 ft (34×)
|
Eye Relief
|
3.3″ (84 mm)
|
Length
|
15.5″ (394 mm)
|
Weight
|
32 oz (907 g)
|
Lens Coatings
|
Fully Multi‑Coated + XPL Protective Coating
|
Tube Construction
|
One-piece aircraft-grade aluminum, argon-purged
|
Finish
|
Matte Black
|
Waterproof / Fog‑Proof
|
Yes; sealed and gas-purged
|
Warranty
|
Limited lifetime warranty
|
Country of Origin
|
China
|
Included Accessories
-
Throw lever for magnification adjustment
-
Sunshade
-
Flip-up lens caps
-
CR2032 battery (installed)
