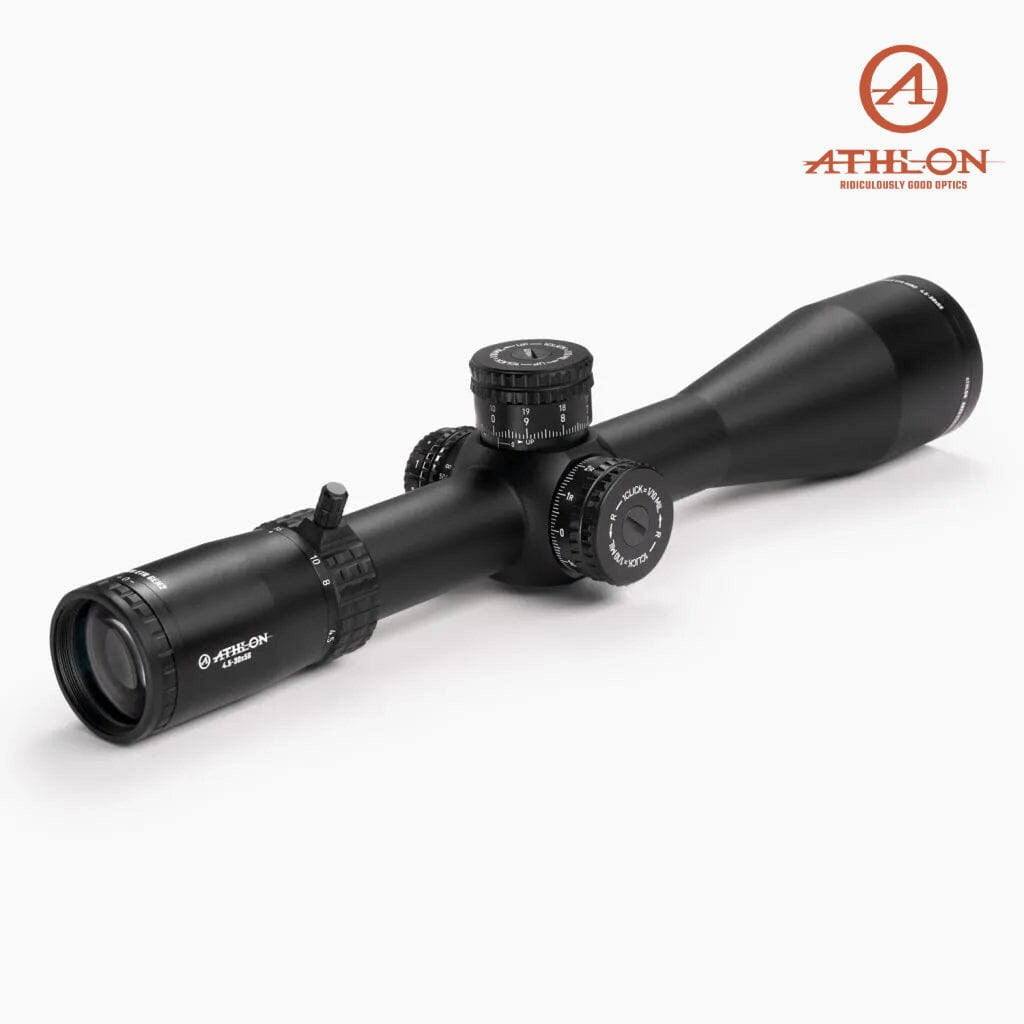

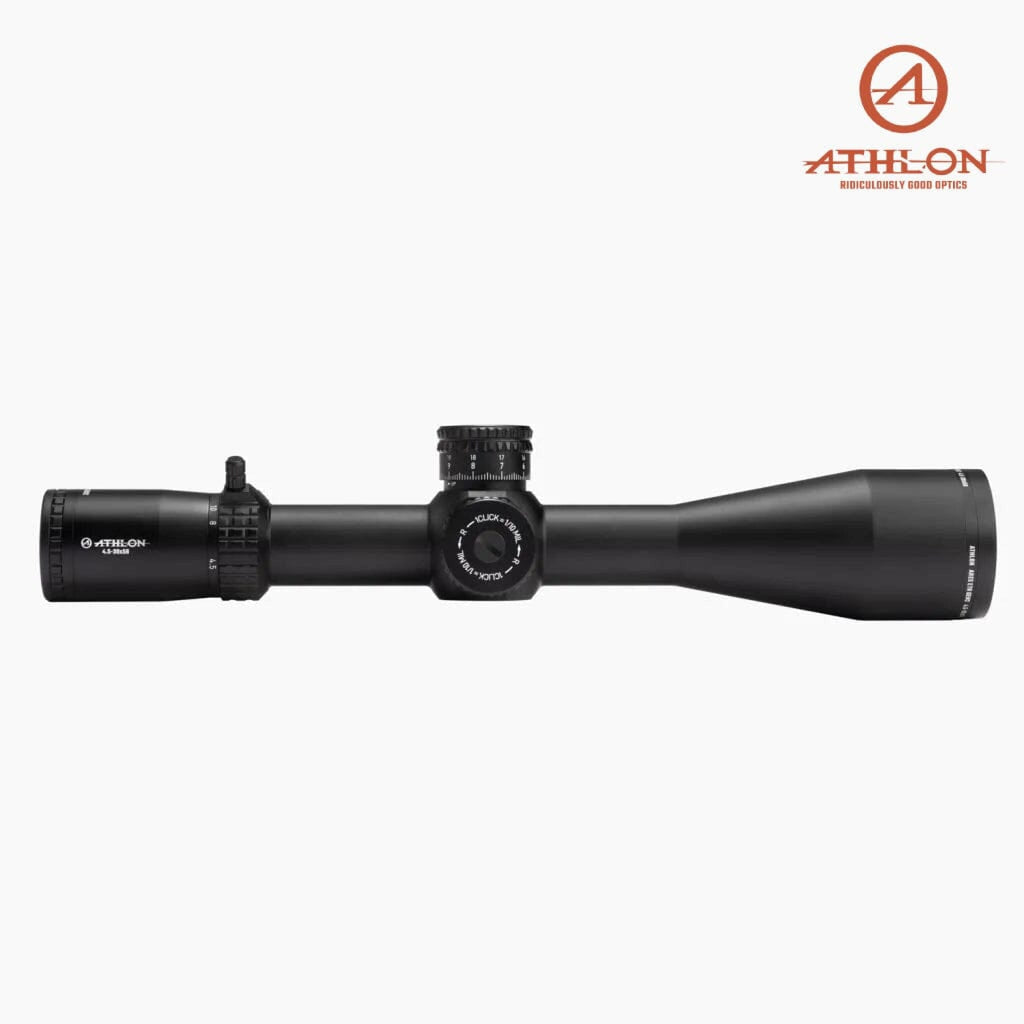

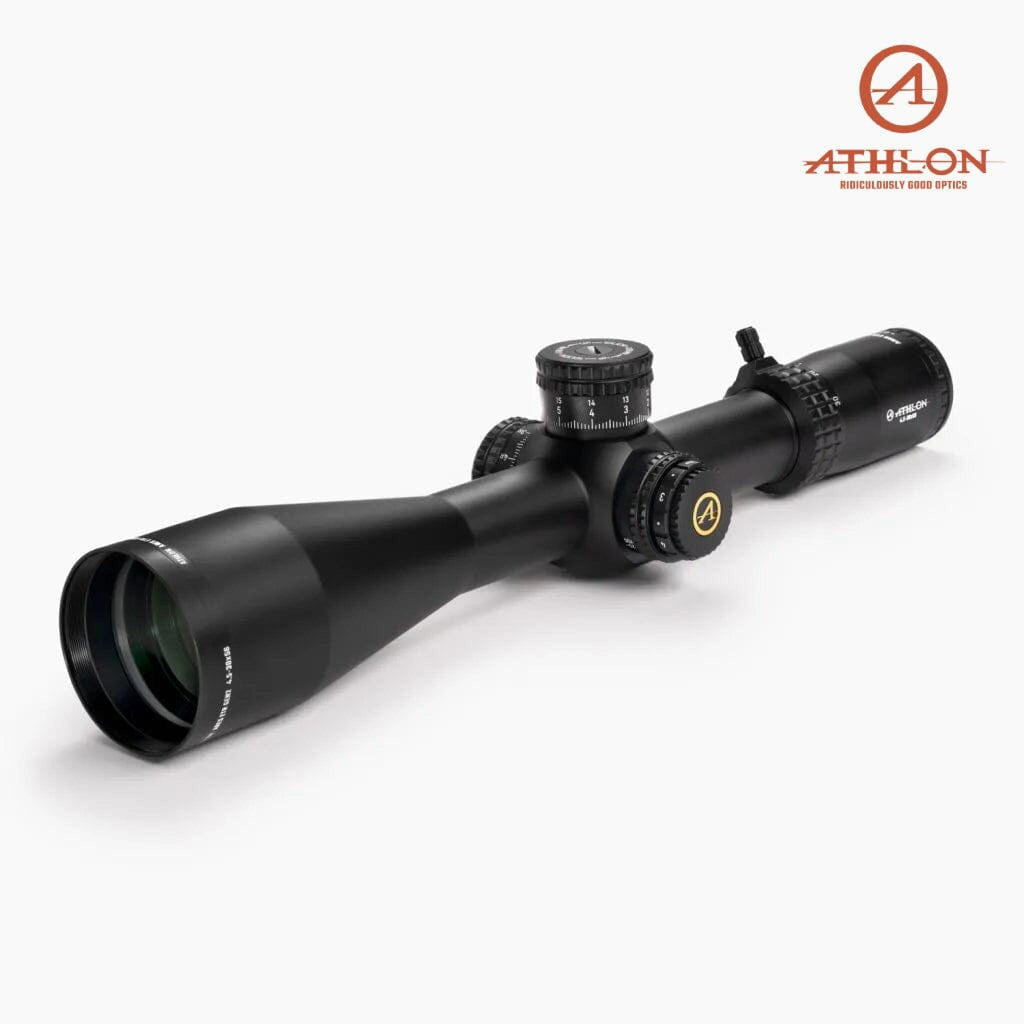

Athlon Ares ETR GEN 2 UHD 4.5–30×56 Rifle Scope APRS12 FFP IR Mil-Reticle
Features
-
Magnification Range: True 4.5–30× zoom with low-profile throw lever for rapid transitions between mid-range and extreme-range engagements.
-

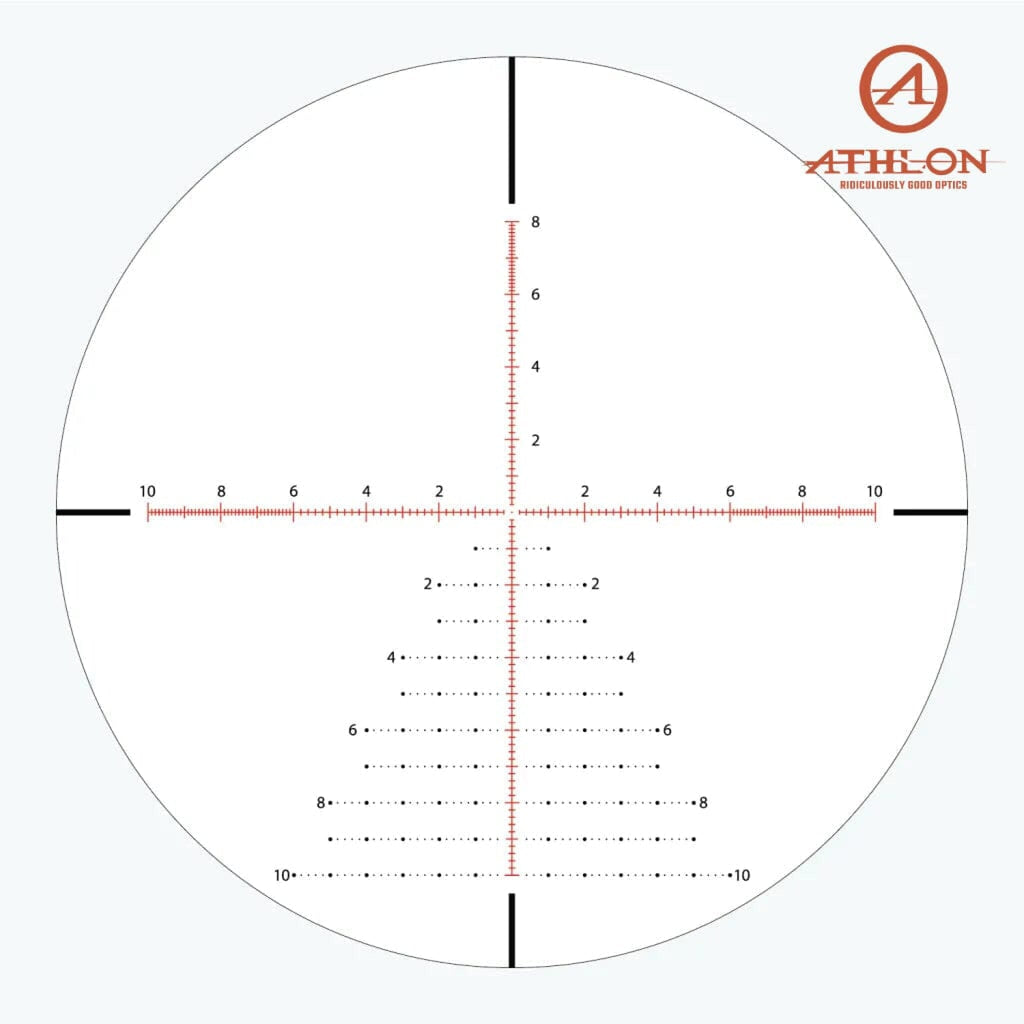

APRS12 FFP IR Mil-Reticle: First-focal-plane etched-glass mil-based reticle; true subtensions at all magnifications, illuminated by a red-LED EL system with 10 brightness levels for day/night use.
-
UHD Glass & Fully Multi-Coated Optics: Extra-low dispersion elements paired with broadband, anti-reflective coatings on every air-to-glass surface for maximum light transmission, contrast, and edge-to-edge clarity.
-
Precision Exposed Turrets with Zero-Stop: 0.1 mil per click; 20 mil per revolution on elevation with positive Zero-Stop™; 10 mil per revolution on windage—protected by low-profile caps.
-
Side-Focus Parallax: Adjustable from 10 yd to ∞ for tack-sharp reticle alignment at any range.
-
Extended Eye Relief & Fast-Focus Eyepiece: 3.9″ (99 mm) → 3.4″ (86 mm) across the zoom range for comfortable, repeatable cheek welds.
-
Wide Field of View: 24.5 ft @ 4.5× → 3.75 ft @ 30× (at 100 yd) for superior situational awareness.
-
Rugged Construction: 34 mm one-piece tube of 6061-T6 aluminum; hard-coat anodized matte finish; nitrogen-purged; IPX7 waterproof to 1 m; fog-proof; recoil-rated for all standard calibers.
-
Made in USA & Lifetime Warranty: Fully transferable, no-fault coverage.
Technical Specifications for Athlon Ares ETR GEN 2 UHD 4.5–30×56 Rifle Scope APRS12 FFP IR Mil-Reticle
|
Specification
|
Details
|
|
Manufacturer
|
Athlon Optics
|
|
Model / MPN
|
212114
|
|
SKU
|
212114
|
|
UPC
|
813869023581
|
|
Magnification Range
|
4.5 × ⇄ 30 ×
|
|
Objective Lens Diameter
|
56 mm
|
|
Tube Diameter
|
34 mm
|
|
Reticle
|
APRS12 (FFP, IR-illuminated Mil)
|
|
Illumination Settings
|
10-level red-LED EL
|
|
Elevation Click Value
|
0.1 mil per click
|
|
Elevation Travel
|
20 mil per rev; positive Zero-Stop™
|
|
Windage Click Value
|
0.1 mil per click
|
|
Windage Travel
|
10 mil per rev
|
|
Parallax Focus
|
Side-focus, 10 yd → ∞
|
|
Eye Relief
|
3.9″ → 3.4″ (99 mm → 86 mm)
|
|
Field of View @ 100 yd
|
24.5 ft @ 4.5× ⇄ 3.75 ft @ 30×
|
|
Exit Pupil
|
12.4 mm → 1.9 mm
|
|
Length
|
15.3″ (388 mm)
|
|
Weight
|
26.8 oz (760 g)
|
|
Finish
|
Matte-black hard-coat anodize
|
|
Waterproof / Fog-Proof
|
Yes (IPX7 to 1 m)
|
|
Shock-Proof
|
Yes (tested .22 LR – .50 BMG)
|
Included Accessories
-
Low-profile throw lever
-
Flip-cap objective & ocular lens covers
-
Fast-focus eyepiece tool
-
Allen wrenches (turret & lever)
-
LensPen® cleaning cloth
-
User manual & lifetime warranty card
