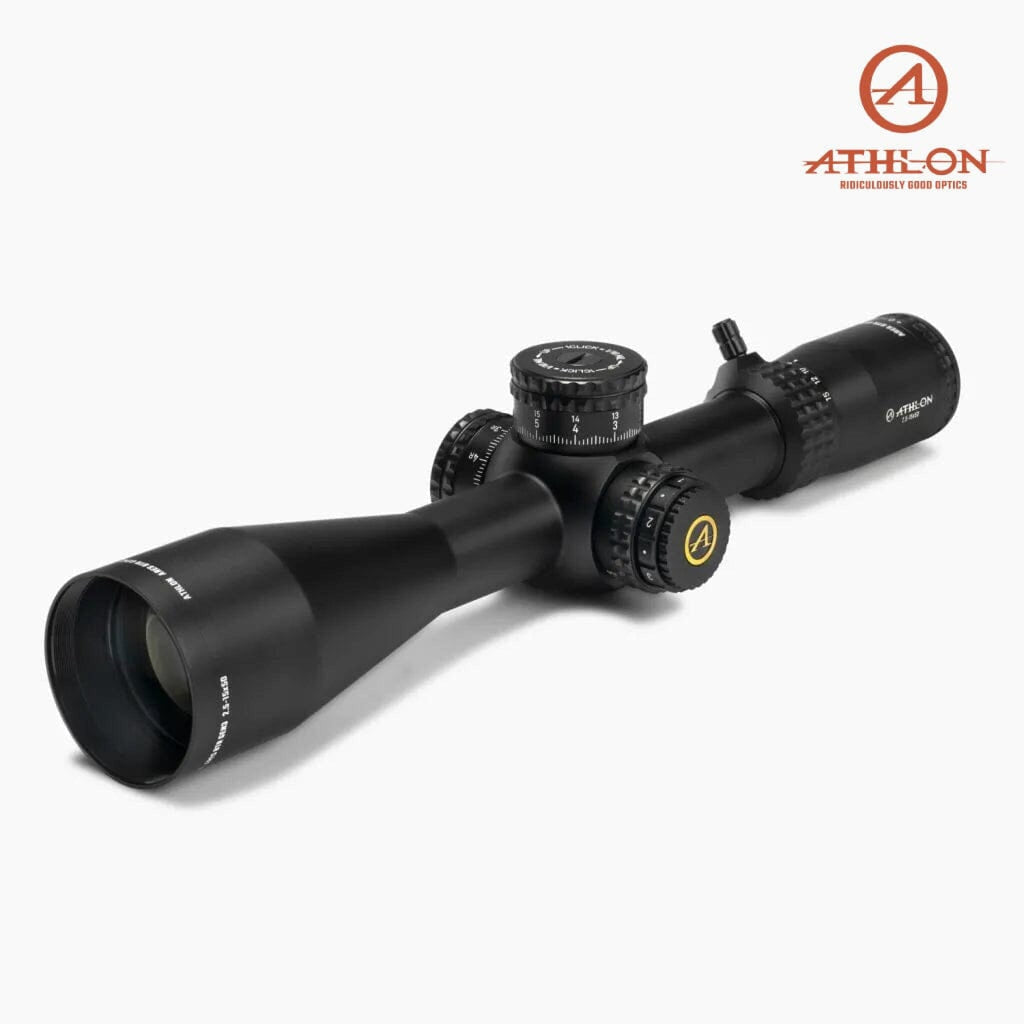

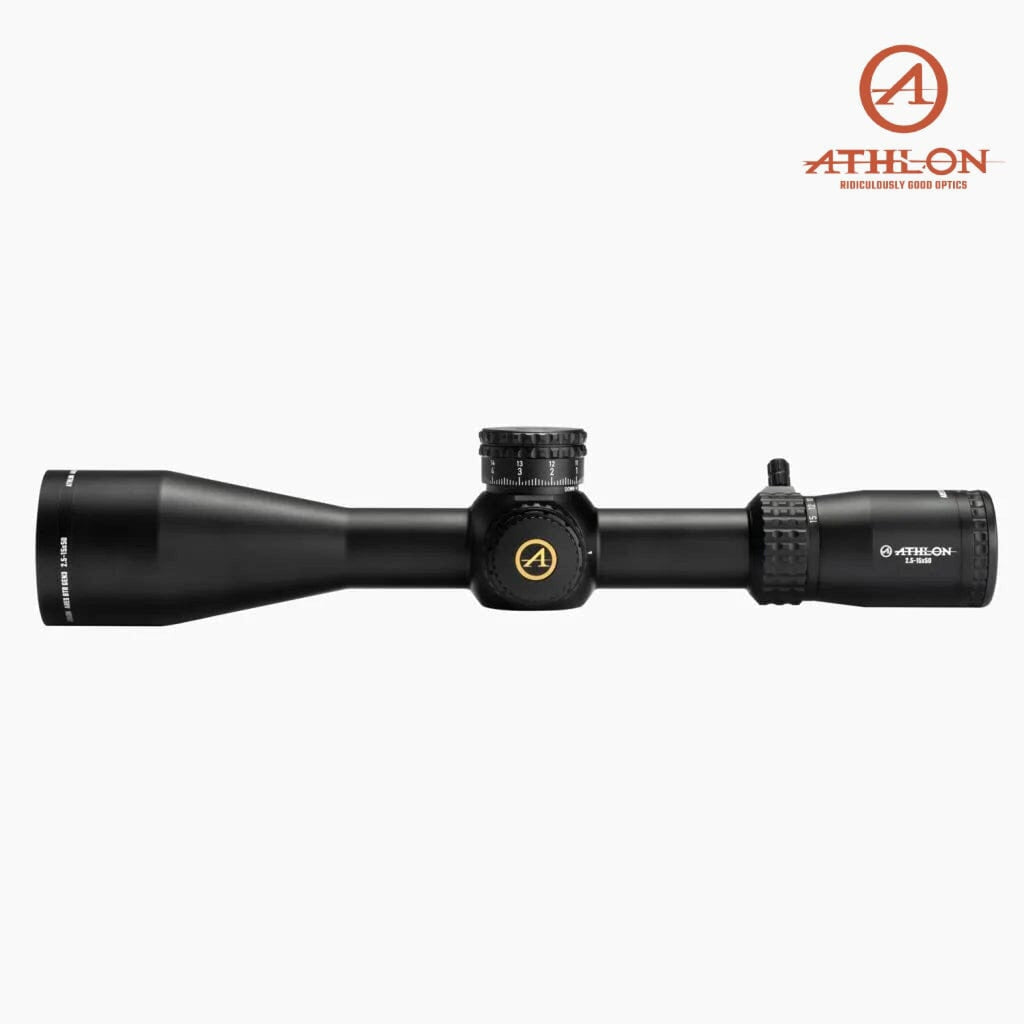

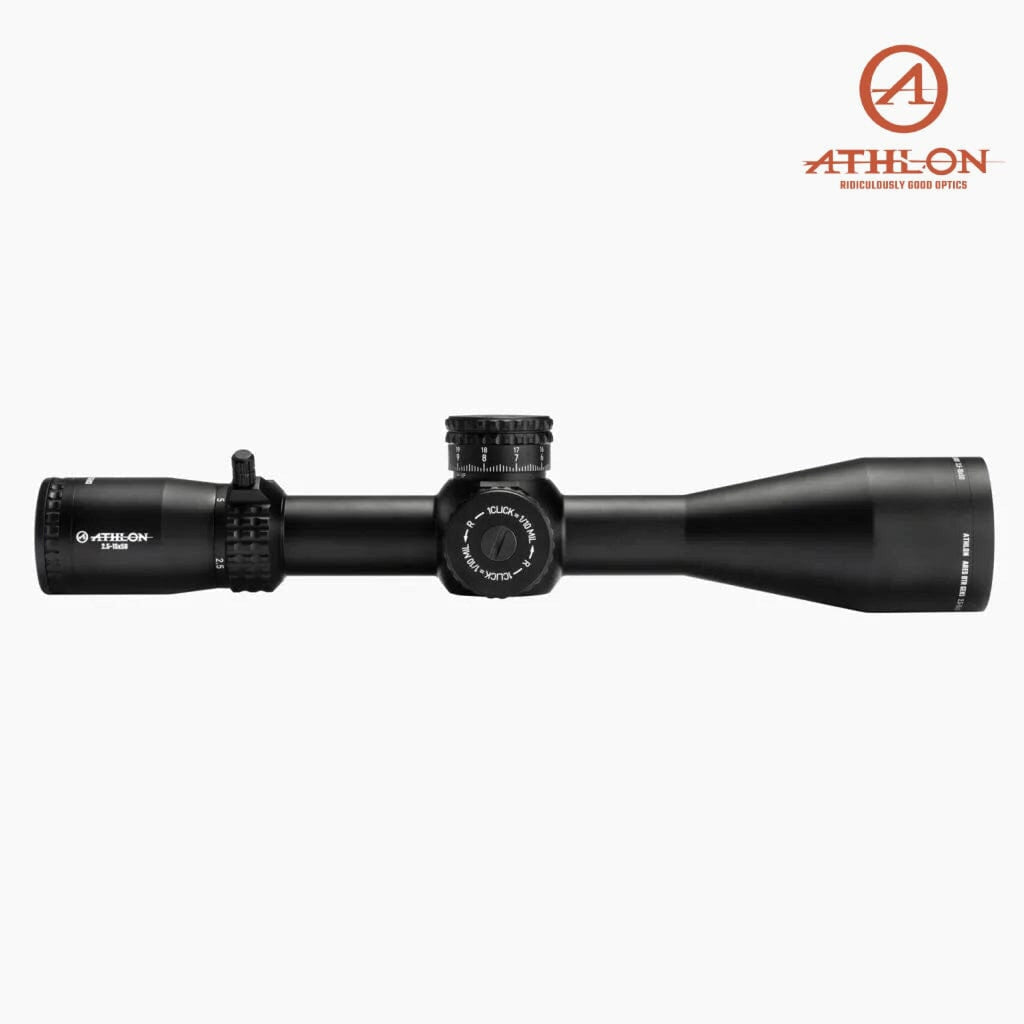

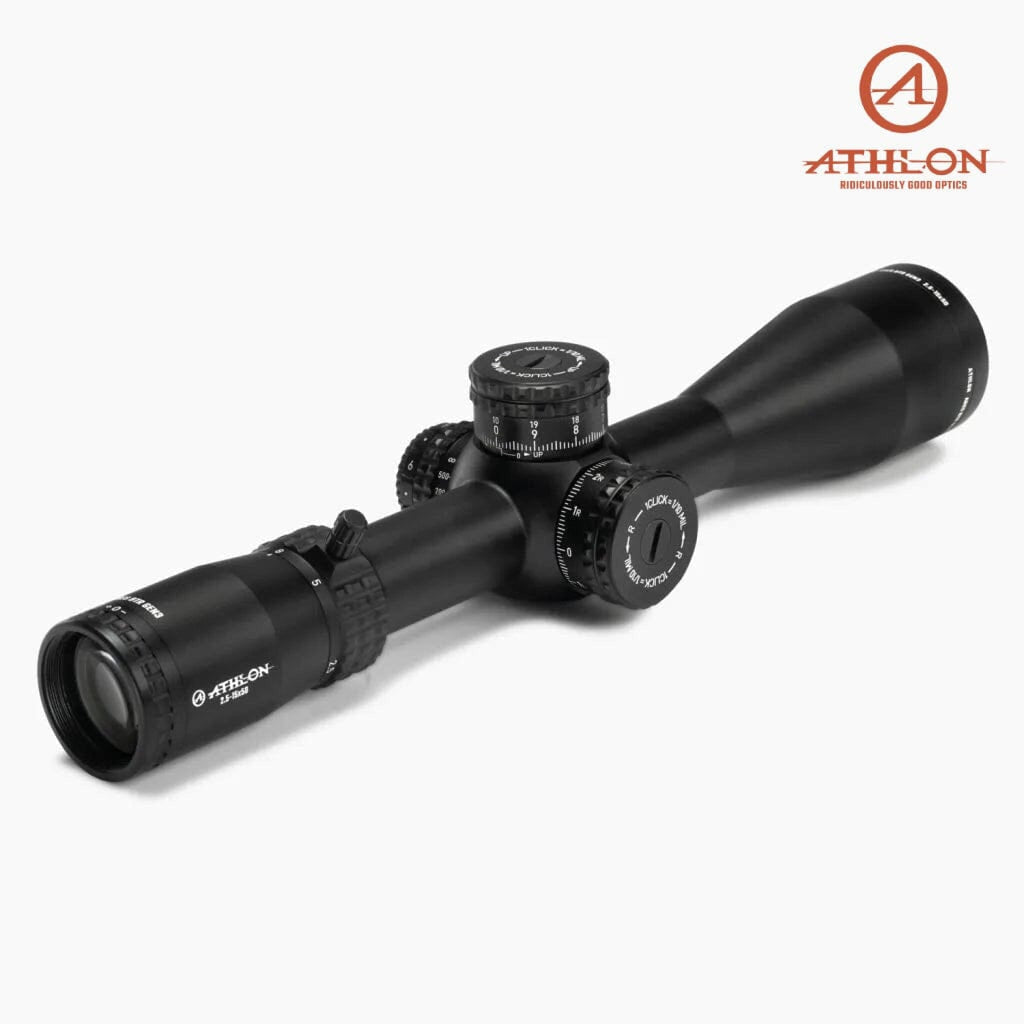

Athlon Ares BTR GEN 3 HD 2.5–15×50 Rifle Scope APRS13 FFP IR Mil-Reticle
Features
-
2.5–15× Variable Magnification: Versatile zoom range, from true 2.5× for close‐quarters to 15× for long‐range precision, with low‐profile throw lever for rapid adjustment.
-

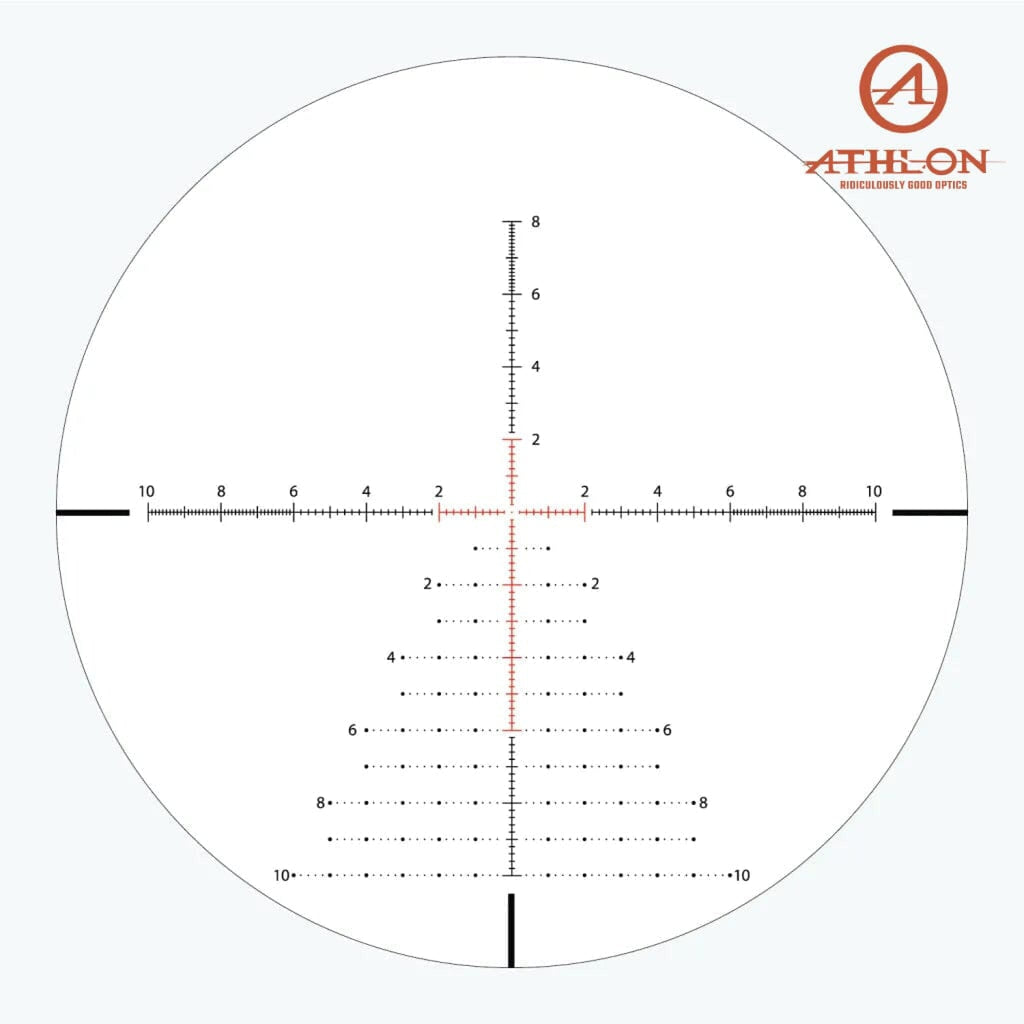

First Focal Plane APRS13 IR Mil-Reticle: Illuminated mil-based reticle calibrated in 0.1 mils; true subtensions at every magnification. Red-LED EL illumination with 10 brightness levels for day/night use.
-
HD Optical System: Extra‐low dispersion glass and broadband, fully multi-coated lenses for maximum light transmission, edge-to-edge clarity, and true color fidelity.
-
Precision Exposed Turrets with Zero-Stop: 0.1 mil per click; 20 mils per revolution on elevation (positive Zero-Stop™); 10 mils per revolution on windage.
-
Side Focus Parallax: Adjustable from 10 yd to ∞ for a tack-sharp reticle at any distance.
-
Extended Eye Relief & Fast-Focus Eyepiece: 3.5″–3.8″ constant eye relief across zoom; fast-focus ocular for rapid reticle sharpening.
-
Rugged, Weather-Resistant Construction: 30 mm one-piece 6061-T6 aluminum tube; matte-black hard-coat anodize; nitrogen-purged; IPX7 waterproof to 1 m; fog-proof; recoil-rated for all standard rifle calibers.
-
Made in USA & Lifetime Warranty: Fully transferable, no-fault coverage.
Technical Specifications for Athlon Ares BTR GEN 3 HD 2.5–15×50 Rifle Scope APRS13 FFP IR Mil-Reticle
Specification
|
Details
|
Manufacturer
|
Athlon Optics
|
Model / MPN
|
212015
|
SKU
|
212015
|
UPC
|
813869024717
|
Magnification Range
|
2.5 × ⇄ 15 ×
|
Objective Lens Diameter
|
50 mm
|
Main Tube Diameter
|
30 mm
|
Reticle
|
APRS13 (FFP, IR-illuminated Mil-reticle)
|
Illumination Settings
|
10-level red-LED EL
|
Elevation Click Value
|
0.1 mil per click
|
Elevation Travel
|
20 mils per revolution; positive Zero-Stop™
|
Windage Click Value
|
0.1 mil per click
|
Windage Travel
|
10 mils per revolution
|
Parallax Focus
|
Side focus, 10 yd → ∞
|
Eye Relief
|
3.5″ → 3.8″ (89 → 97 mm)
|
Field of View @ 100 yd
|
41.8 ft (low) → 6.8 ft (high)
|
Exit Pupil
|
20 mm → 3.3 mm
|
Overall Length
|
13.8″ (350 mm)
|
Weight
|
27.3 oz (774 g)
|
Finish
|
Matte-black hard-coat anodize
|
Waterproof / Fog-Proof
|
Yes (IPX7)
|
Shock-Proof
|
Yes (tested .22 LR – .50 BMG)
|
Included Accessories
-
Low-profile throw lever
-
Flip-cap lens covers (objective & ocular)
-
Scope sunshade
-
Lens cleaning cloth & LensPen® tool
-
Allen wrenches (turret & lever)
-
User manual & lifetime warranty card
