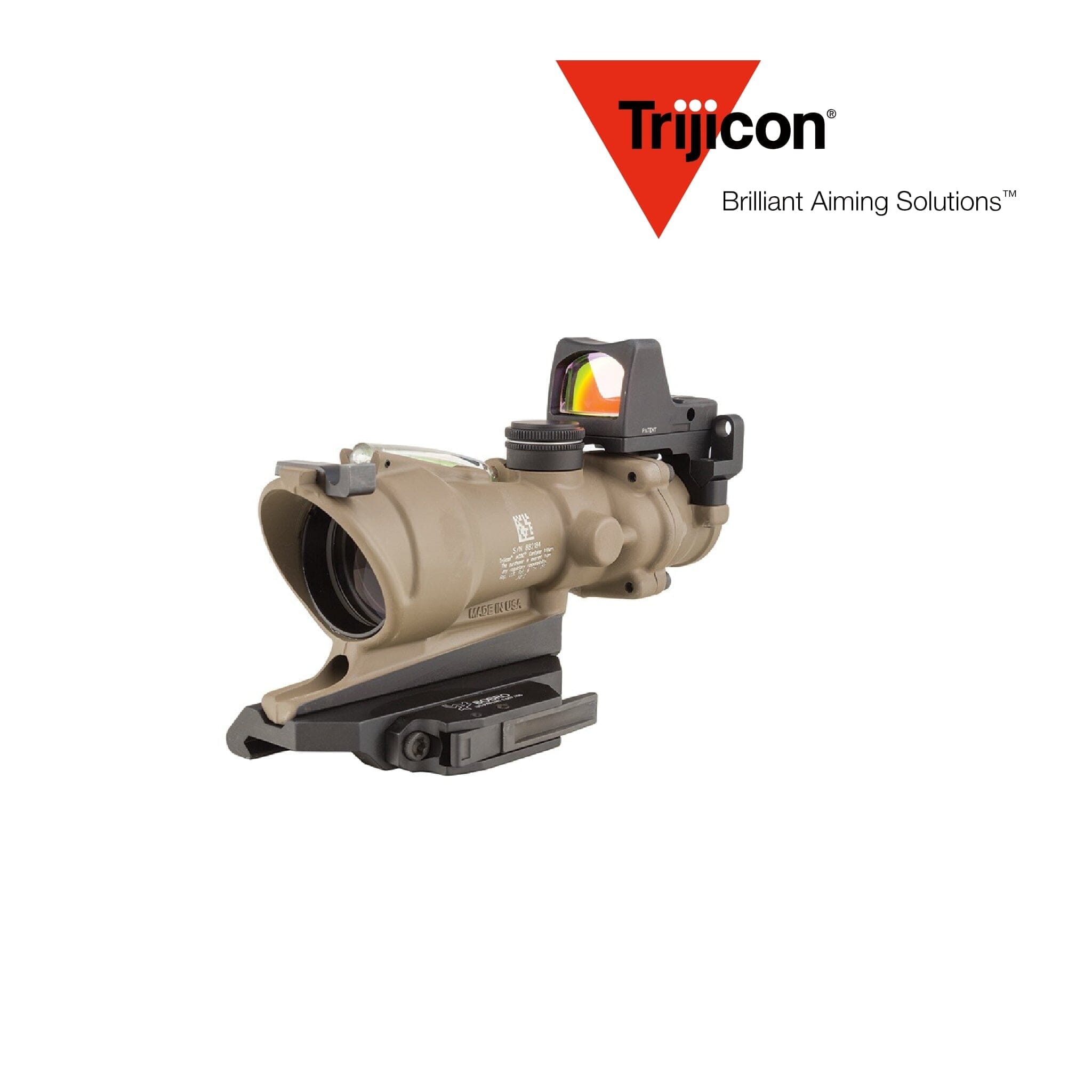

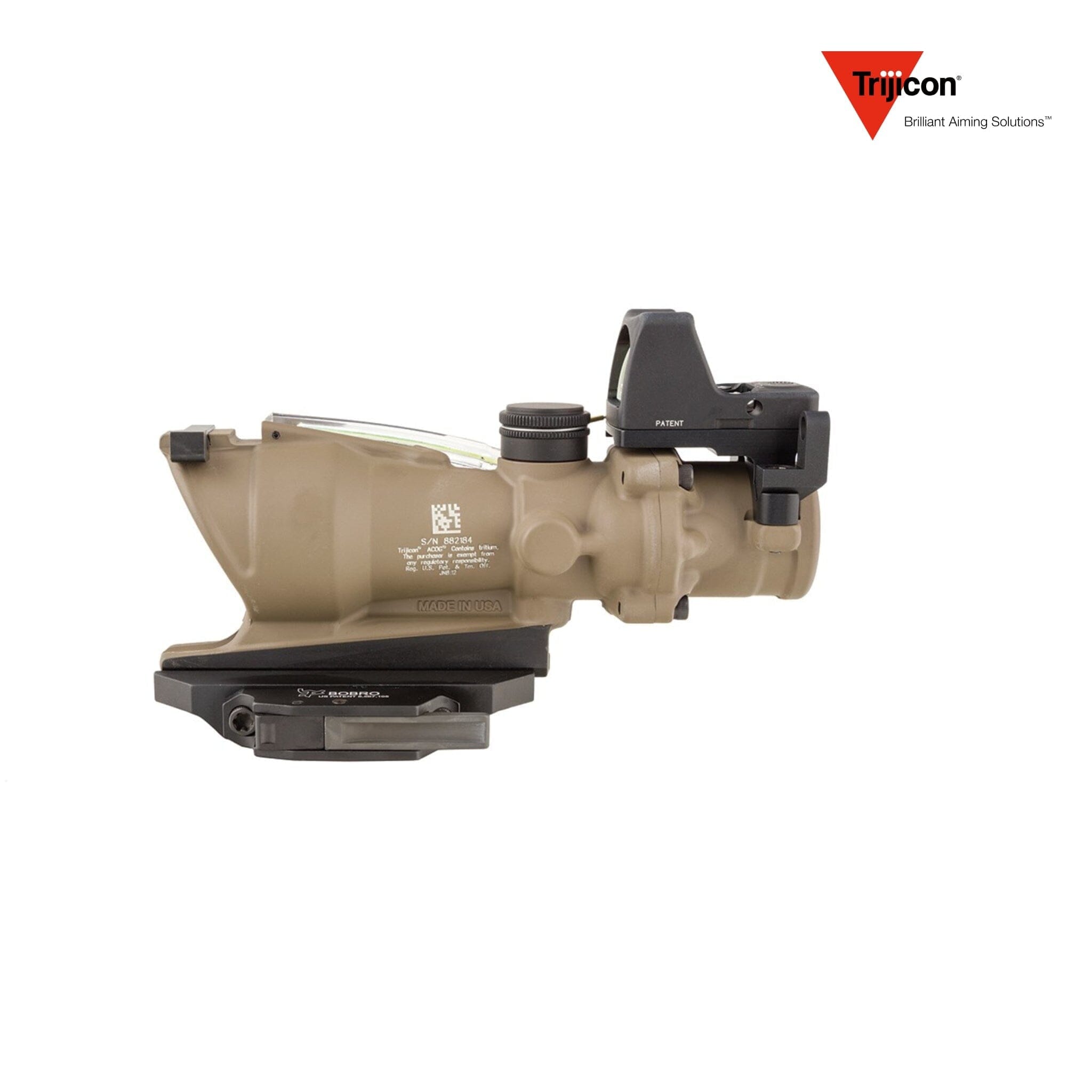

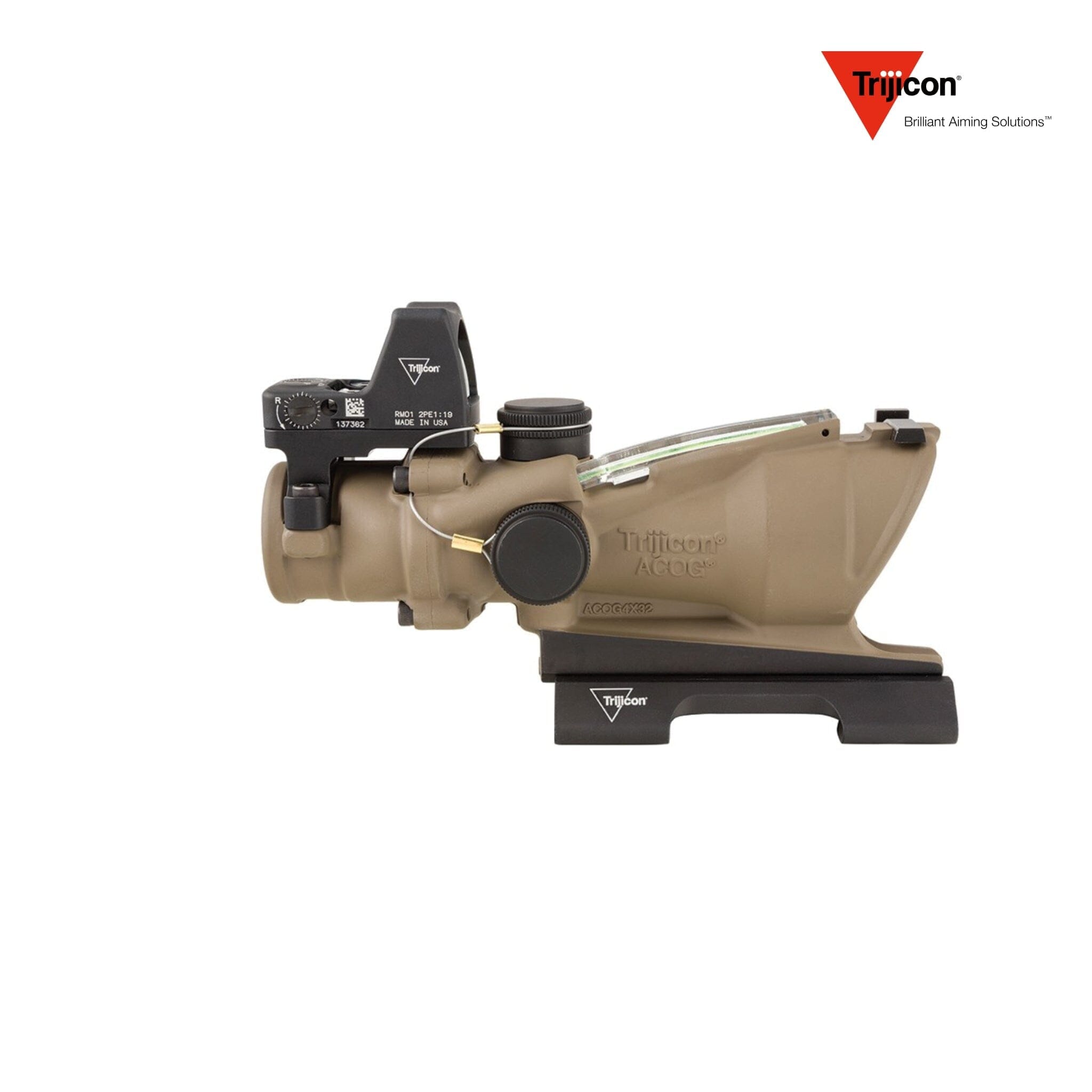

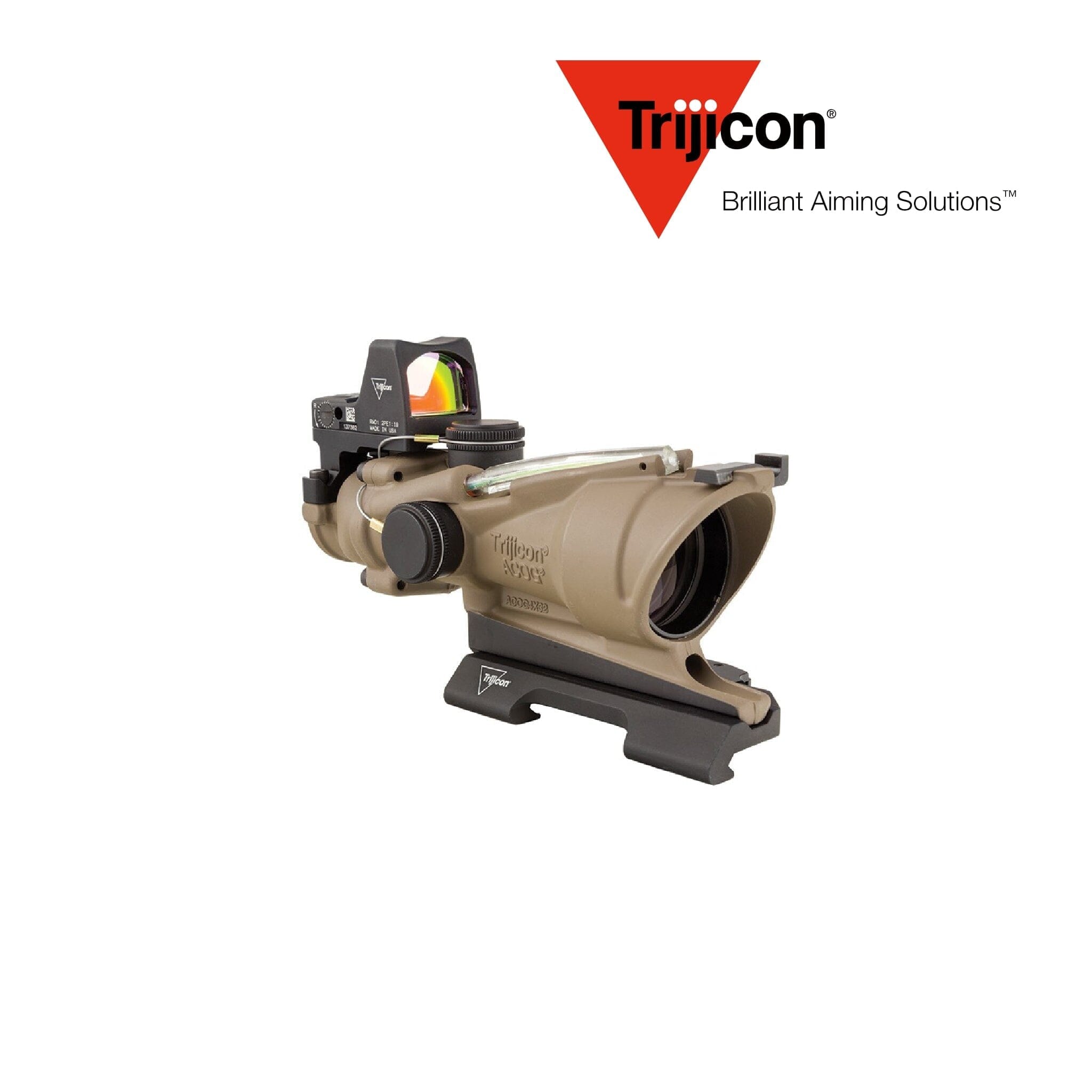

Trijicon ACOG 4×32 BAC ECOS Riflescope 5.56 BDC Green Crosshair Reticle
Features
-
Dual‑Illuminated, Battery‑Free ACOG: Fiber optics automatically regulate reticle brightness in daylight; tritium lamp provides a glow in low/no light—no batteries required in the ACOG body.
-
ECOS Dual‑Sighting System: Factory‑mated Trijicon RMR® Type 2 LED Red Dot (3.25 MOA) mounted atop the ACOG for instant, heads‑up CQB transitions without changing cheek weld.
-

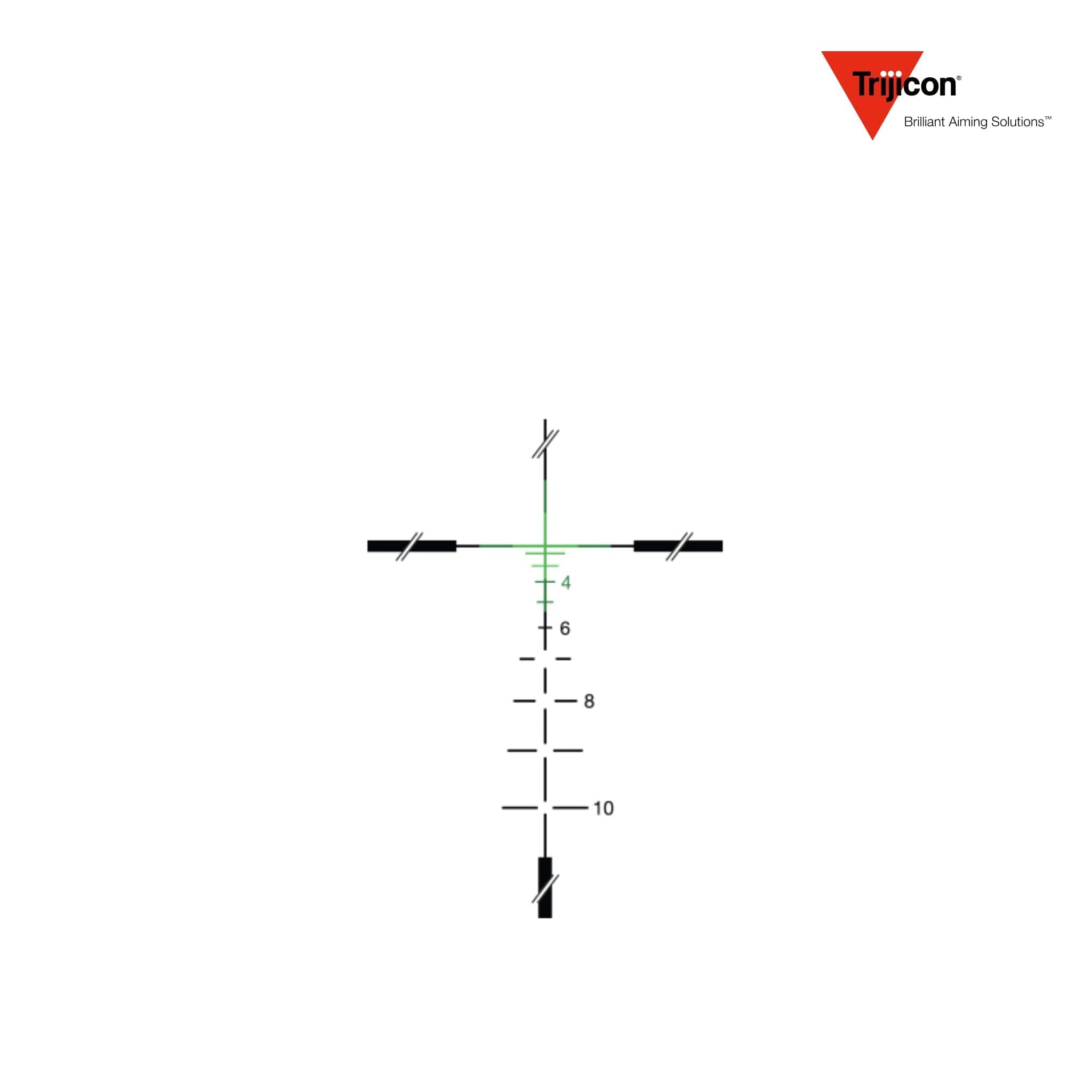

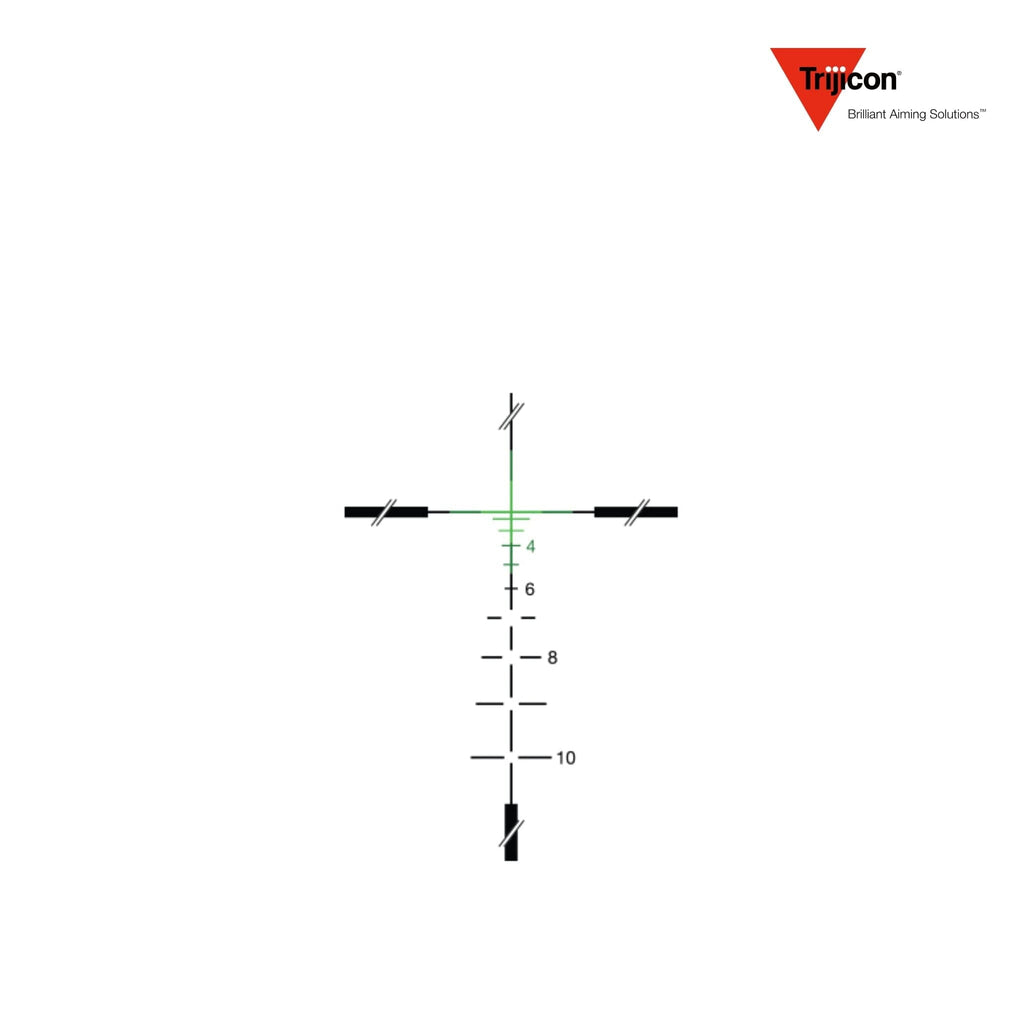

5.56 BDC Green Crosshair Reticle: Highly visible green crosshair with ballistic drop stadia scaled for 5.56 NATO / .223 trajectories (100 m zero) for rapid holds to extended distance.
-
Backup Iron Sights & Quick‑Release Mount: Integrated mini iron sights on the included Trijicon QD Picatinny mount provide a tertiary aiming option; fast on/off with repeatable zero.
-
Bindon Aiming Concept™ Speed: True both‑eyes‑open shooting at 4× magnification—maintain situational awareness while driving the crosshair on target.
-
Battle‑Proven Durability: Forged aluminum housing, Cerakote® Flat Dark Earth finish, shock‑resistant, waterproof, fog‑proof—built for combat environments.
-
External Tool‑Less Adjusters: 1/2 MOA windage & elevation clicks; no turret caps needed.
-
Compact, Lightweight Deployment Kit: Designed for carbines where height, balance, and weight matter.
-
Made in USA & Backed by Trijicon Warranty.
Technical Specifications for Trijicon ACOG 4×32 BAC ECOS Riflescope 5.56 BDC Green Crosshair Reticle
Specification
|
Details
|
Manufacturer
|
Trijicon
|
Model / MPN
|
TA31‑D‑100554 / 100554
|
SKU
|
TA31‑D‑100554
|
UPC
|
719307311824
|
Country of Origin
|
USA
|
Magnification
|
4× fixed
|
Objective Lens Diameter
|
32 mm
|
Optical Design
|
Fixed‑power prism sight (no maintube)
|
Reticle
|
Green Crosshair 5.56 BDC (dual‑illuminated fiber optic / tritium)
|
Illumination (ACOG)
|
Auto fiber (day) / tritium (night); battery‑free
|
Piggyback Optic
|
Trijicon RMR® Type 2 LED Red Dot, 3.25 MOA (battery powered, CR2032)
|
Eye Relief
|
1.5″ (38 mm)
|
Field of View @ 100 yd
|
36.8 ft (7°)
|
Exit Pupil
|
8.1 mm
|
Adjustment Click Value
|
1/2 MOA per click
|
Total Adjustment Range
|
~40 MOA windage & elevation
|
Parallax Focus
|
Fixed at 100 m (≈109 yd)
|
Overall Length
|
~7.3″ assembled ECOS kit (approx. 5.8–6.2″ ACOG optic body)
|
Weight
|
~15.1 oz ACOG optic; ~20 oz class complete ECOS kit (ACOG + RMR + mount/irons)
|
Finish / Color
|
Cerakote® Flat Dark Earth (FDE)
|
Waterproof / Fog‑Proof
|
Sealed; nitrogen‑purged; service‑rated waterproof
|
Shock Resistance
|
Combat‑rated (duty calibers)
|
Mount Interface
|
Trijicon Quick‑Release Picatinny mount w/ integrated backup iron sights (included)
|
Included Accessories (ECOS Kit Contents)
-
4×32 ACOG (dual‑illum Green Crosshair 5.56 BDC)
-
Trijicon RMR® Type 2 3.25 MOA Red LED (factory mounted)
-
Trijicon QD Picatinny mount w/ integrated backup iron sights
-
Lens cleaning tool
-
Adjustment / hardware kit
-
Trijicon logo sticker
-
Owner’s manual & warranty documentation
