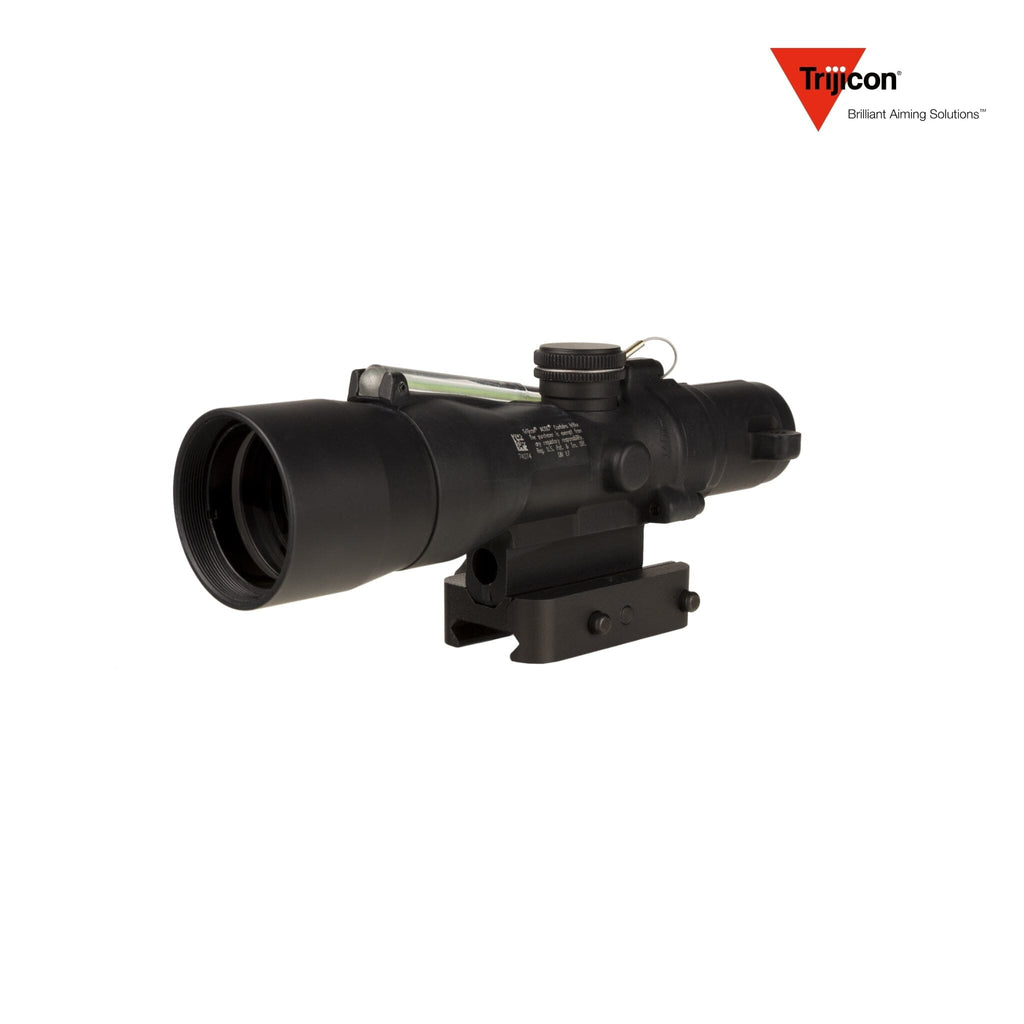

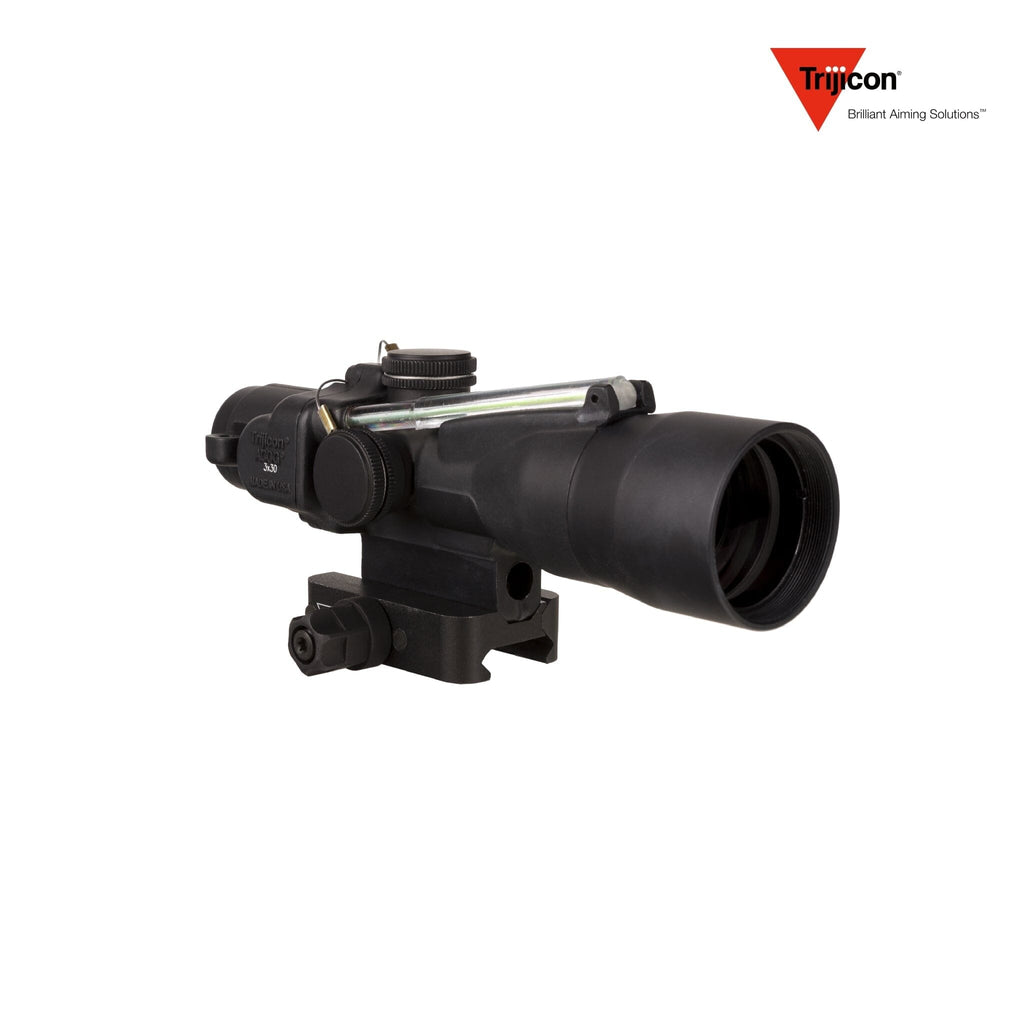

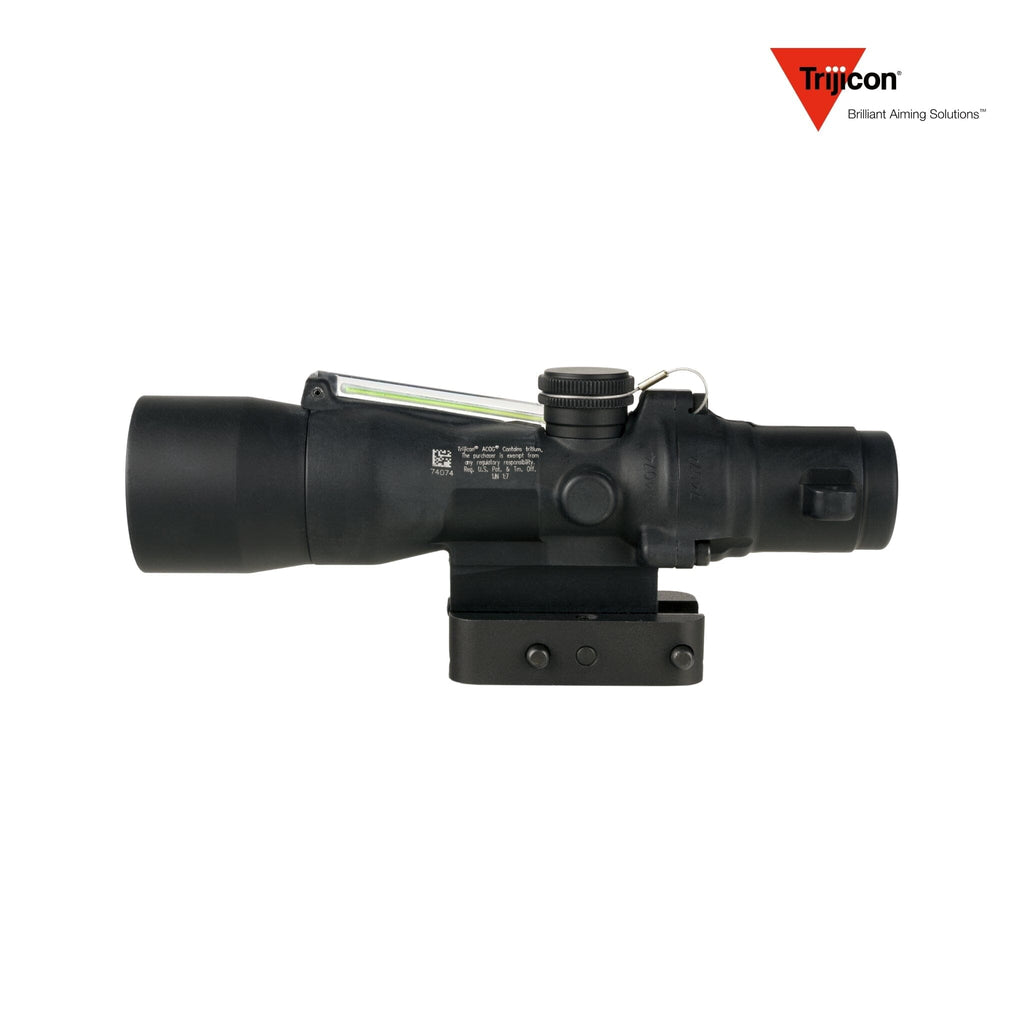

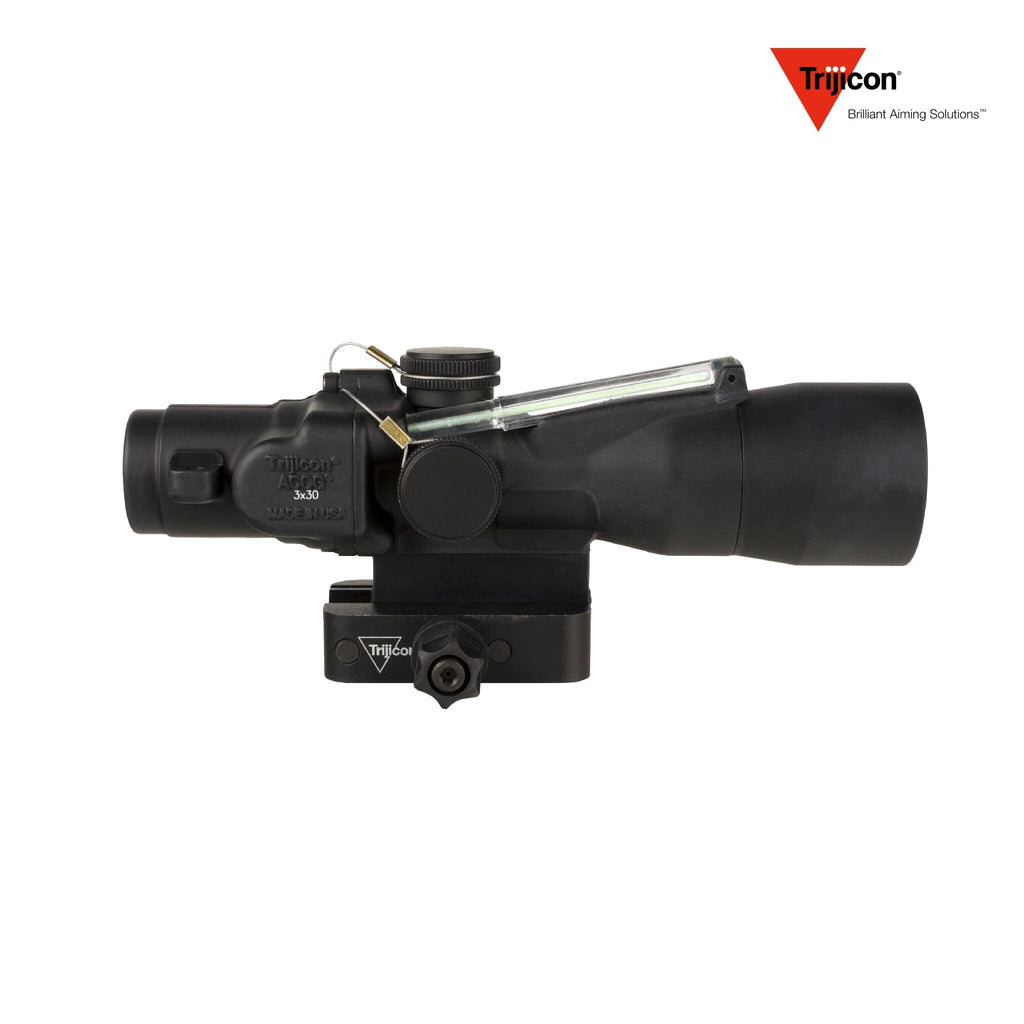

Trijicon 3×30 Compact ACOG Riflescope Green Horseshoe & Dot 7.62×39/123gr. Reticle
(Model TA33-C-400370)
Features
-
Dual-Source Illumination: Fiber-optic gathers ambient light for automatic daytime brightness; tritium provides constant low-light glow—battery-free and optimized for both-eyes-open Bindon Aiming Concept™ target acquisition.
-
Fixed 3× Magnification: Versatile mid-range power with a wide field of view (19.3 ft @ 100 yd) for rapid target acquisition.
-

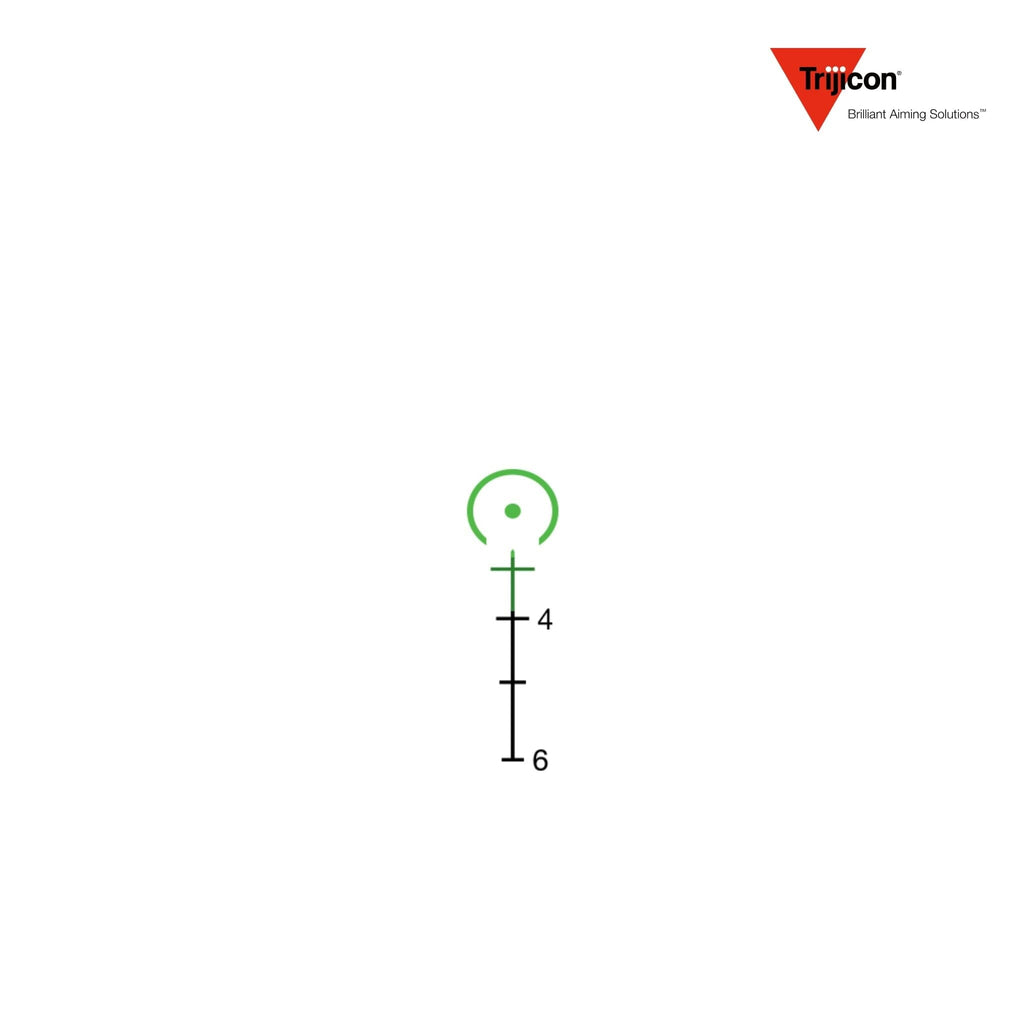

Green Horseshoe & Dot Reticle (Second Focal Plane): Illuminated horseshoe calibrated for 7.62×39 / 123 gr ballistics; holds and subtensions are true at 3× for rapid aiming and range holds.
-
Trijicon Q-LOC™ Mounting System: One-hand, tool-free rock-touch lever for ultra-fast attachment/removal and guaranteed repeatable zero.
-
Extended Eye Relief: 1.9″ (48.3 mm) constant across the zoom for comfortable, repeatable cheek welds
-
Rugged Construction: CNC-machined 30 mm main tube of 6061-T6 aluminum; matte-black hard-coat anodize; nitrogen-purged; waterproof to 10 ft; fog-proof; shock-rated to withstand .22 LR through .50 BMG recoil.
Technical Specifications for Trijicon 3×30 Compact ACOG Riflescope Green Horseshoe & Dot 7.62×39/123gr. Reticle
Specification
|
Details
|
Manufacturer
|
Trijicon
|
Model / MPN
|
TA33-C-400370
|
UPC
|
719307313767
|
Country of Origin
|
USA
|
Magnification
|
3×
|
Objective Lens Diameter
|
30 mm
|
Main Tube Diameter
|
30 mm
|
Reticle
|
Green Horseshoe & Dot .223 / 62 gr (SFP, illuminated)
|
Illumination
|
Fiber-optic (day) + tritium (night)
|
Eye Relief
|
1.9″ (48.3 mm) constant
|
Field of View @ 100 yd
|
19.3 ft (5.9 m)
|
Exit Pupil
|
8.4 mm
|
Parallax
|
Fixed at 100 yd
|
Adjustment Click Value
|
¼ MOA per click
|
Total Adjustment (Elevation & Windage)
|
110 MOA total travel
|
Length
|
6.2″ (157.5 mm)
|
Weight
|
9.8 oz (278 g)
|
Finish
|
Matte-black hard-coat anodize
|
Waterproof / Fog-Proof
|
Yes (IPX7 to 10 ft; nitrogen-purged)
|
Shock-Proof
|
Yes (tested .22 LR – .50 BMG)
|
Included Accessories
-
Trijicon Q-LOC™ mount
-
Scopecoat® lens cover
-
LensPen® cleaning tool & brush
-
Trijicon logo sticker
-
Limited Lifetime Warranty & user manual
