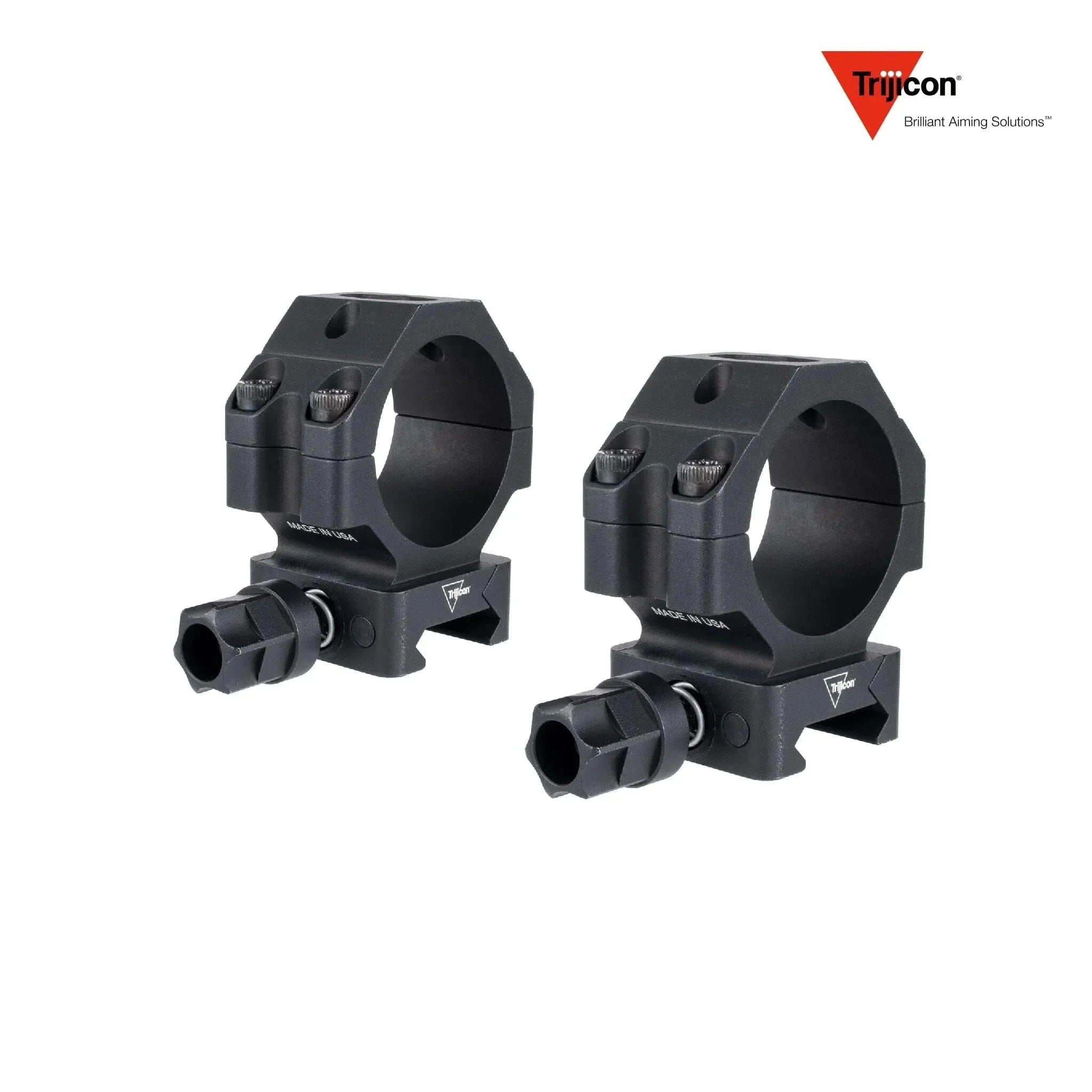

Trijicon 30mm Medium Scope Rings with Q-LOC Technology
$219.99
Shipping calculated at checkout.
Trijicon 30mm Medium Scope Rings with Q-LOC Technology (Model AC22065)
Features
- One-Hand, Tool-Free Mounting: Spring-loaded dovetail clamps engage MIL-STD-1913 (Picatinny) rails with 12–16 in·lb of spring tension—secure retention and repeatable zero even if knobs aren’t tightened.
- Quick-Detach Q-LOC™ System: Rock-touch lever allows ultra-fast attachment/removal and repeatable zero without tools.
- Medium-Height Configuration: Positions a 30 mm scope tube to clear objective lenses up to 44 mm while keeping the optic as low as possible for optimal cheek weld and sight alignment.
- Rugged Construction: CNC-machined from 6061-T6 aluminum with matte-black hard-coat anodize; MIL-SPEC drop-test rated for combat environments.
Technical Specifications for Trijicon 30mm Medium Scope Rings with Q-LOC Technology
|
Specification |
Details |
|
Manufacturer |
Trijicon |
|
Model / MPN |
AC22065 |
|
SKU |
AC22065 |
|
UPC |
719307618930 |
|
Material |
6061-T6 aluminum |
|
Finish |
Matte-black hard-coat anodize |
|
Scope Tube Diameter |
30 mm |
|
Maximum Objective Lens Diameter |
44 mm |
|
Height Above Rail (to Optical Axis) |
1.10″ (28 mm) |
|
Center-to-Center Ring Spacing |
1.25″ (31.8 mm) |
|
Clamp Spring Tension |
12–16 in·lb |
|
Maximum Knob Torque (optional tightening) |
30–38 in·lb |
|
Rail Compatibility |
MIL-STD-1913 Picatinny / NATO STANAG 4694 |
|
Weight (pair) |
3.0 oz (85 g) |
|
Made in USA |
Yes |
Included Accessories
- Two Q-LOC™ medium scope rings (30 mm)
- Four ring caps
- Eight mounting screws & one hex key
- User manual
