Tangent Theta TT525P 5‑25×56 Riflescope - MOA‑ER Reticle - Black
Features
-

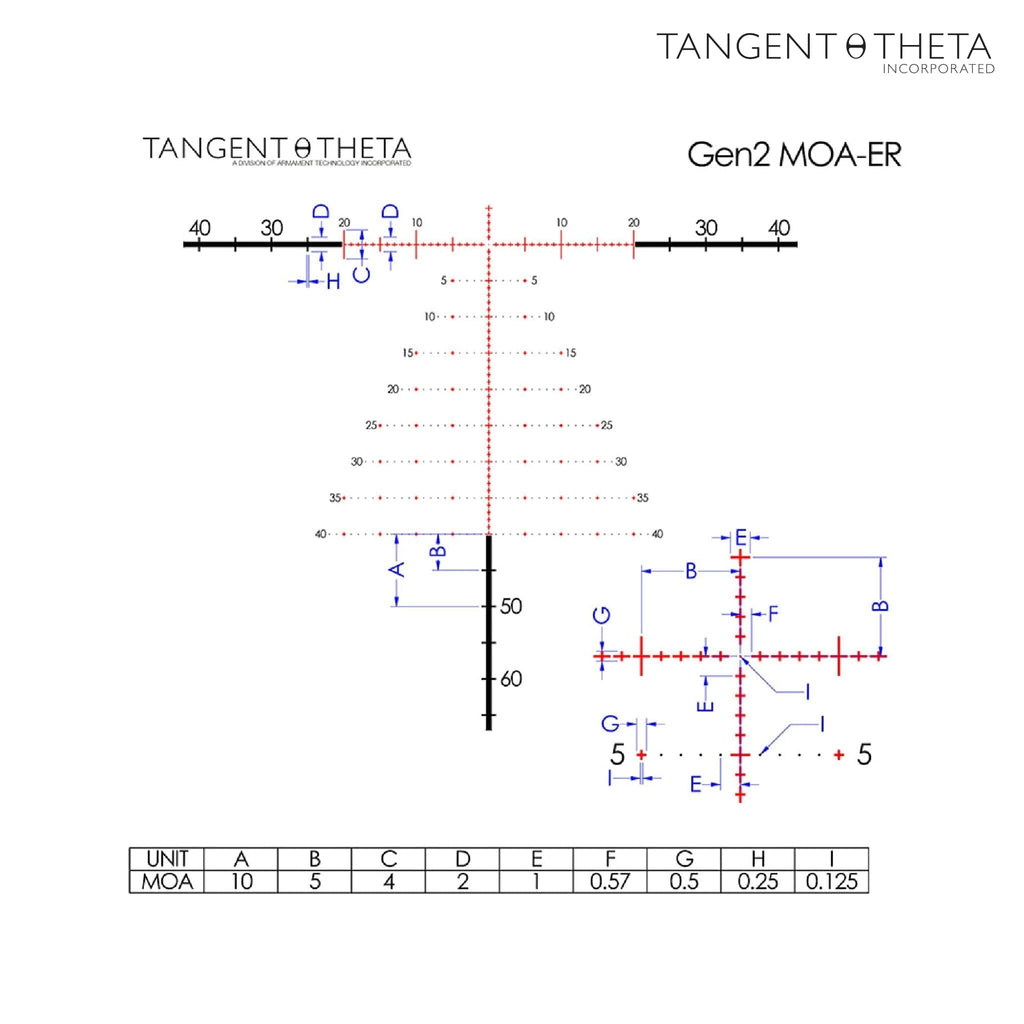

Precision MOA‑ER First‑Focal‑Plane Reticle – True‑subtension MOA‑ER hashmark reticle remains accurate at every magnification for rapid ranging and hold‑over corrections; illuminated center with 11 brightness levels and 6 h auto‑off.
-
Premium Low‑Light Optics – Fully multi‑coated, high‑definition glass and a 56 mm objective deliver outstanding light transmission, contrast, and edge‑to‑edge clarity in low‑light conditions.
-

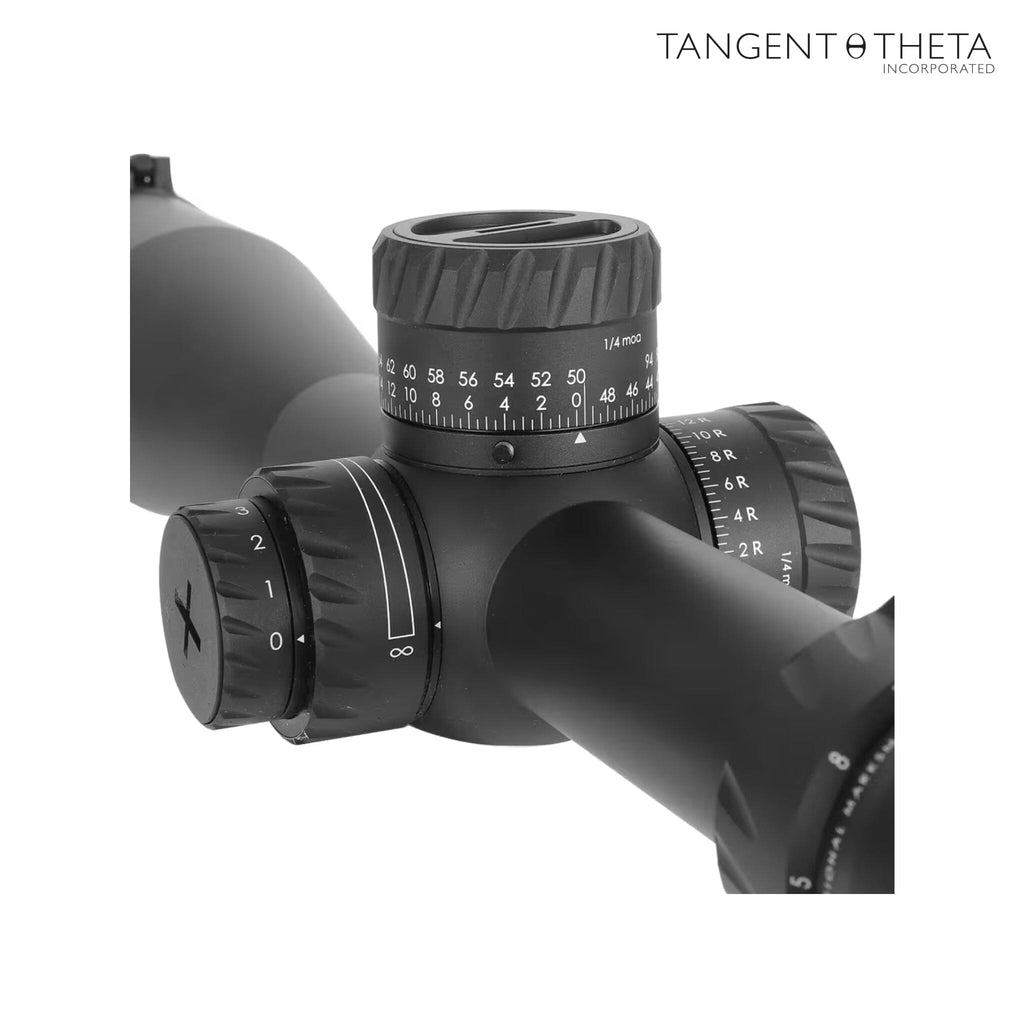

Exposed Locking Turrets with Zero‑Stop – Machined elevation and windage turrets lock securely to prevent accidental drift; mechanical zero‑stop allows instant return to zero, and turrets are fully re‑indexable without tools.
-
Tool‑Less Re‑Indexing – After sight‑in, lift and rotate the elevation turret to re‑zero without disassembly or tools, preserving your exact point‑of‑aim.
-
Side Parallax Focus – Side‑mounted dial adjusts parallax from 50 m to infinity, eliminating focal shift and ensuring a crisp reticle image at all ranges.
-
Robust 34 mm Chassis – One‑piece aircraft‑grade aluminum tube finished in matte‑black Type II hard‑anodize; full O‑ring sealing and nitrogen purge for IPX7 waterproofing and fog‑proof reliability.
-
Versatile 5×–25× Magnification – Broad zoom range accommodates both rapid target acquisition and extended‑distance precision engagements.
Technical Specifications for Tangent Theta TT525P 5‑25×56 Riflescope - MOA‑ER Reticle - Black
|
Specification
|
Details
|
|
Manufacturer
|
Tangent Theta (Armament Technology, Canada)
|
|
Model / Part Number
|
TT525P – MOA‑ER / 800100‑0103
|
|
SKU / MPN
|
800100‑0103
|
|
UPC
|
6665955250029
|
|
Magnification Range
|
5 × – 25 ×
|
|
Objective Lens Diameter
|
56 mm
|
|
Tube Diameter
|
34 mm
|
|
Reticle
|
First‑Focal‑Plane MOA‑ER, illuminated (11 levels; 6 h auto‑off)
|
|
Field of View
|
4.3° @ 5× (7.6 m @ 100 m); 0.9° @ 25× (1.6 m @ 100 m)
|
|
Eye Relief
|
90 mm
|
|
Exit Pupil
|
11 mm @ 5×; 2.3 mm @ 25×
|
|
Diopter Range
|
–3 to +2.5
|
|
Elevation Total Adjustment
|
10 mrad (34.4 MOA)
|
|
Windage Total Adjustment
|
± 5 mrad (± 17.2 MOA)
|
|
Adjustment Resolution
|
0.1 mrad per click
|
|
Parallax Adjustment
|
Side focus, 50 m to ∞
|
|
Illumination Battery
|
1 × CR2032 3 V lithium
|
|
Length
|
425 mm (16.7 in)
|
|
Weight
|
1,150 g (40.6 oz)
|
|
Finish
|
Matte‑black Type II hard‑anodize
|
|
Waterproof / Fogproof
|
IPX7 (1 m submersion for 30 min); nitrogen‑purged
|
|
Warranty
|
Lifetime warranty
|
Included Accessories
-
Flip‑up lens covers
-
CR2032 battery for reticle illumination
-
Instruction manual & warranty card
