Tangent Theta TT525P 5-25x56 Riflescope - JTAC Reticle - Black
$5,870.00
Shipping calculated at checkout.

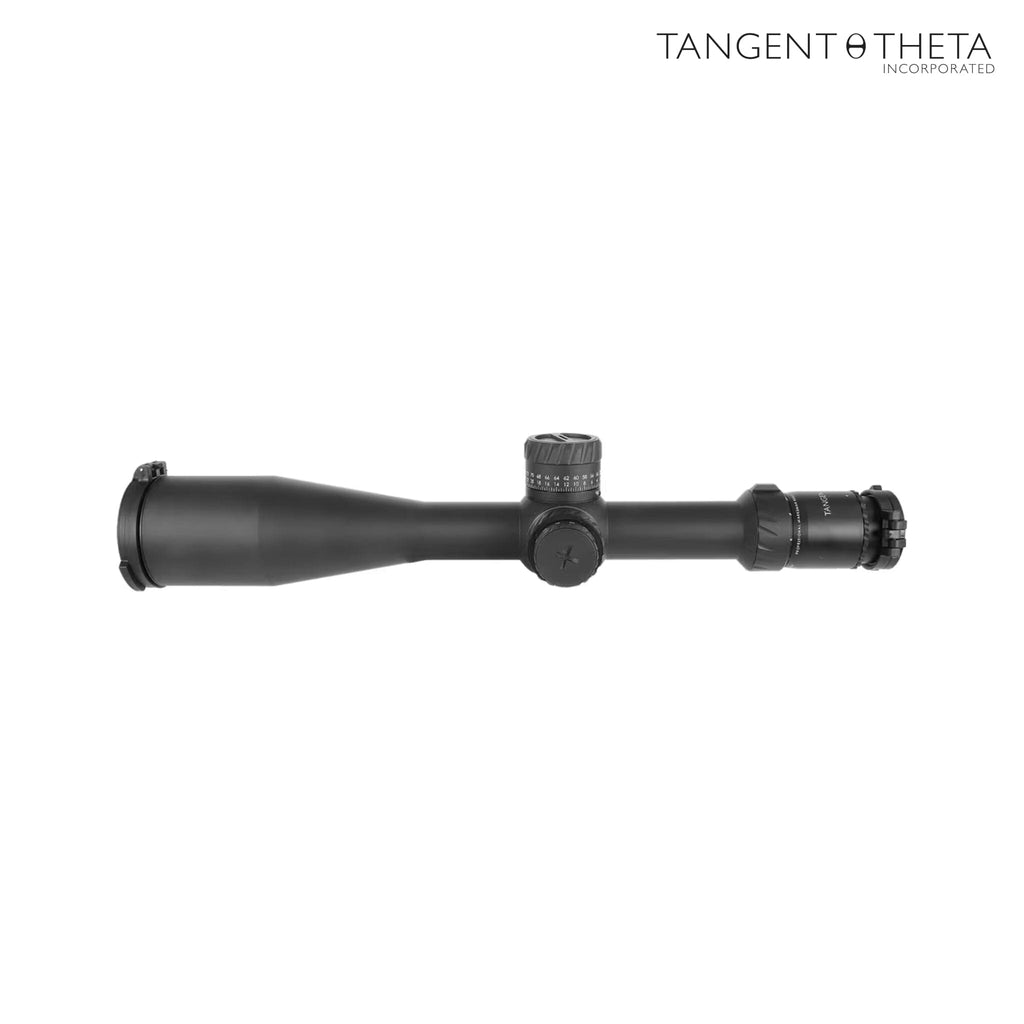

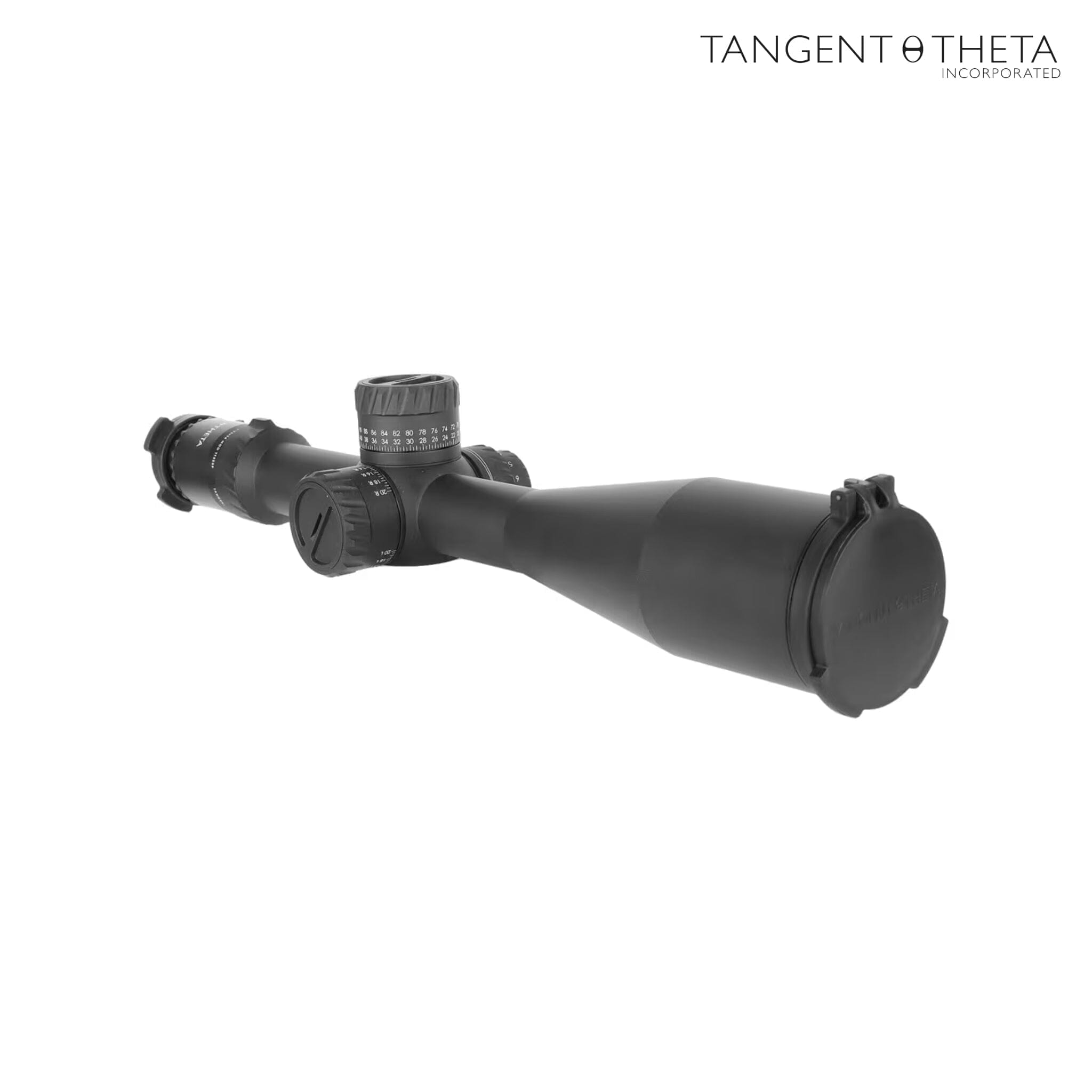

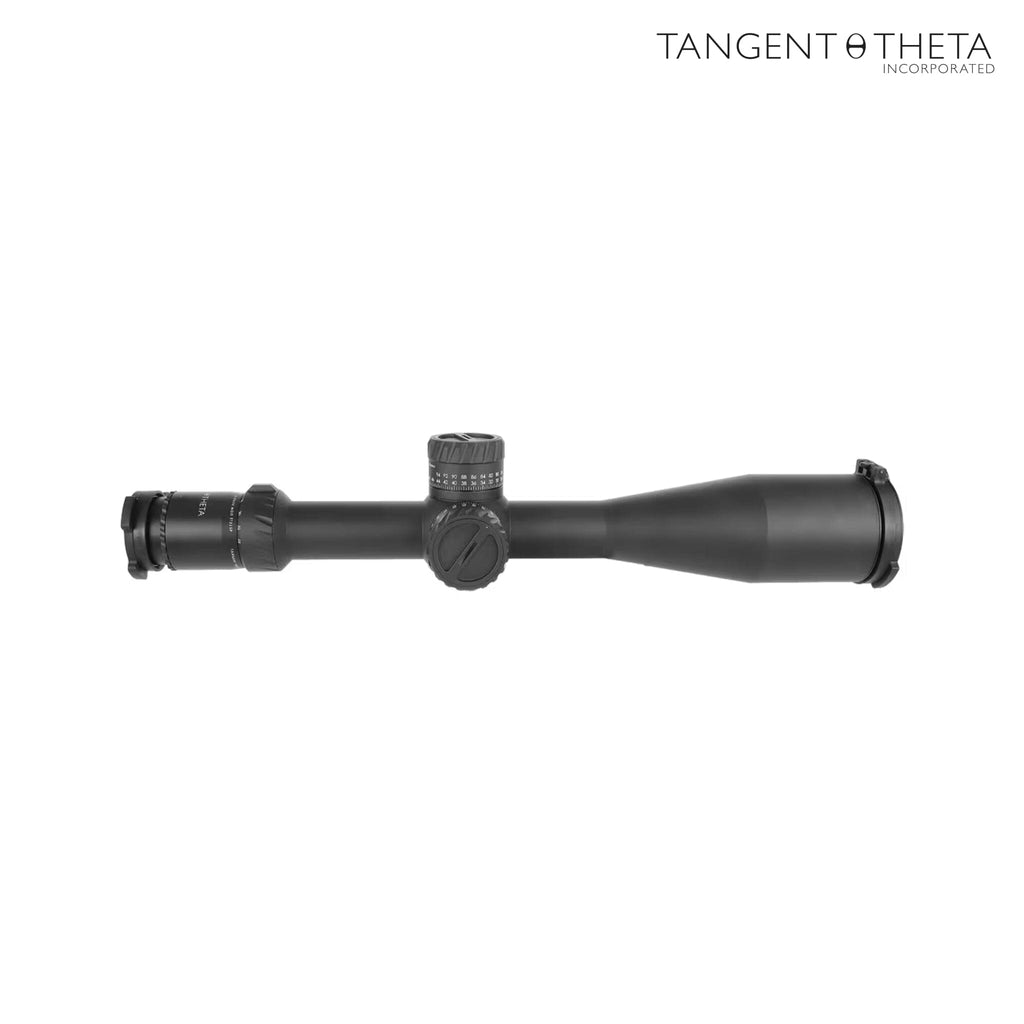

Tangent Theta TT525P 5‑25×56 Riflescope - JTAC Reticle - Black
Features

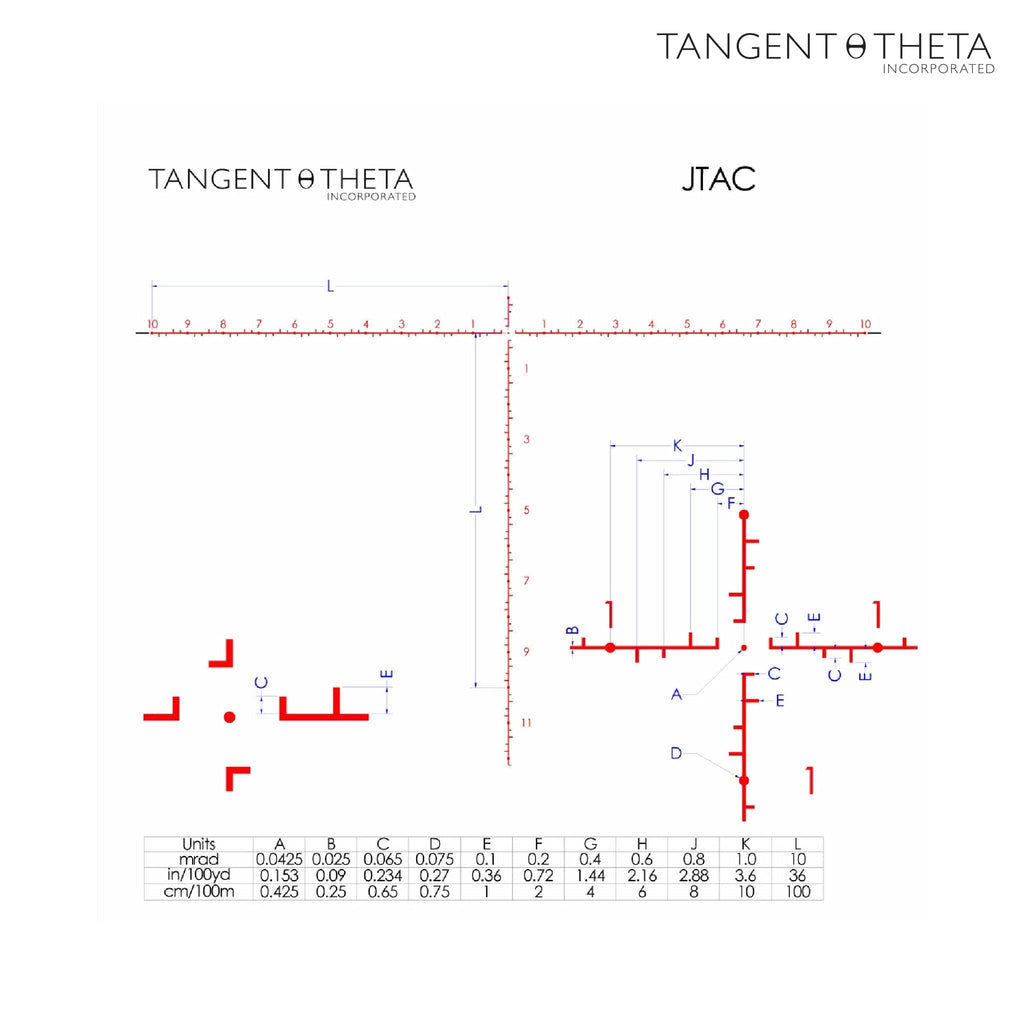

- JTAC™ First‑Focal‑Plane Reticle – Military‑grade JTAC reticle calibrated in MIL with integrated range‑finding stadia and hold‑over hashes, accurate at any magnification.
- Premium Low‑Light Optics – Fully multi‑coated, high‑definition glass paired with a 56 mm objective delivers exceptional light transmission, contrast, and edge‑to‑edge clarity in dawn/dusk conditions.

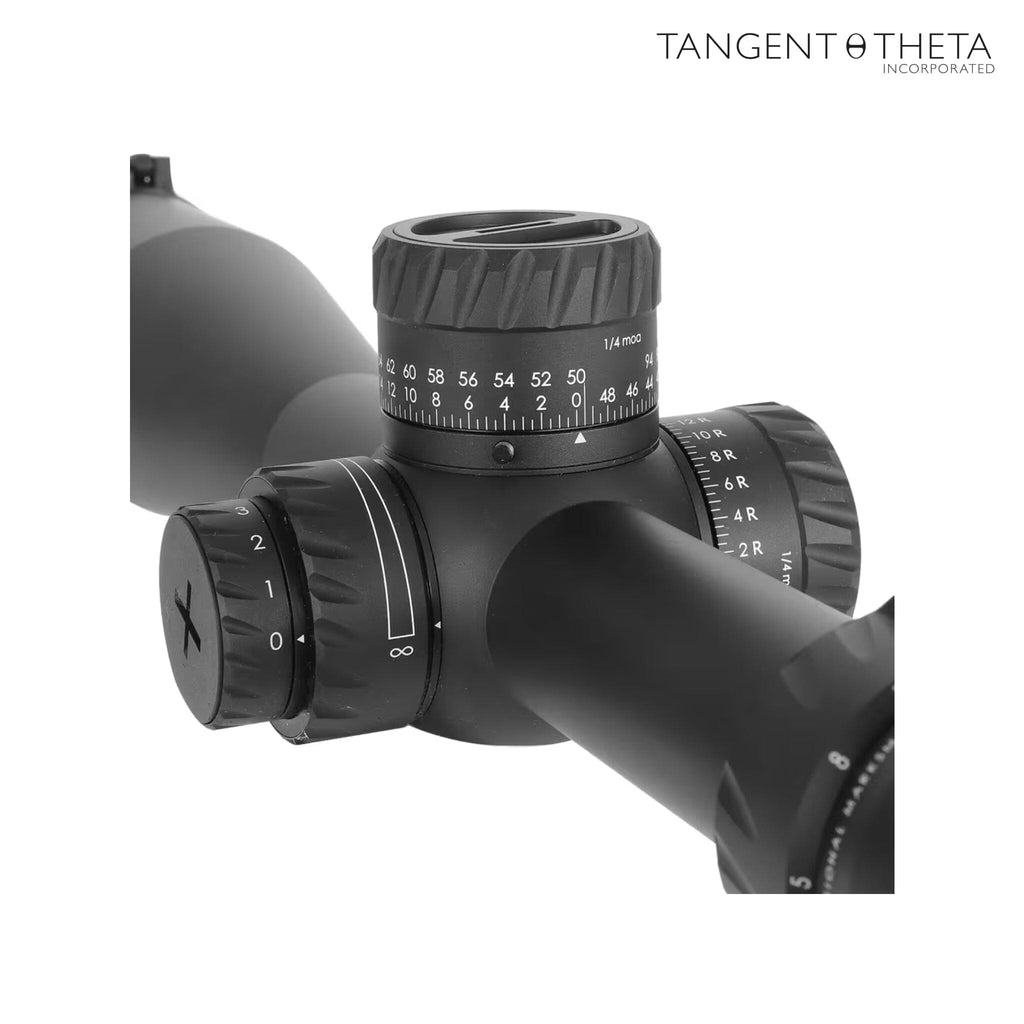

- Exposed Locking Turrets with Zero‑Stop – Machined elevation and windage turrets lock securely to prevent accidental adjustments; mechanical zero‑stop allows instant return to zero, and turrets can be re‑indexed without tools.
- Tool‑Less Re‑Indexing – Elevation turret may be lifted and rotated after sight‑in to restore zeroed markings without disassembly or tools.
- Side Parallax Focus – Side‑mounted dial adjusts parallax from 50 m to infinity, eliminating focal shift and ensuring a crisp reticle image at all ranges.
- Robust 34 mm Chassis – One‑piece aircraft‑grade aluminum tube in matte‑black Type II hard‑anodize; full O‑ring sealing and nitrogen purging for IPX7 waterproofing and fog‑proof reliability.
- Versatile 5×–25× Magnification – Wide zoom range suited to rapid target acquisition and long‑range precision engagements.
Technical Specifications for Tangent Theta TT525P 5‑25×56 Riflescope - JTAC Reticle - Black
|
Specification |
Details |
|
Manufacturer |
Tangent Theta (Armament Technology, Canada) |
|
Model / Part Number |
TT525P – JTAC / 800100‑0010 |
|
SKU / MPN |
800100‑0010 |
|
UPC |
666595531307 |
|
Magnification Range |
5 × – 25 × |
|
Objective Lens Diameter |
56 mm |
|
Tube Diameter |
34 mm |
|
Reticle |
First‑Focal‑Plane JTAC, illuminated (11 levels; 6 h auto‑off) |
|
Field of View |
4.3° @ 5× (7.6 m @ 100 m); 0.9° @ 25× (1.6 m @ 100 m) |
|
Eye Relief |
90 mm |
|
Exit Pupil |
11 mm @ 5×; 2.3 mm @ 25× |
|
Diopter Range |
–3 to +2.5 |
|
Elevation Total Adjustment |
10 mrad (34.4 MOA) |
|
Windage Total Adjustment |
± 5 mrad (± 17.2 MOA) |
|
Adjustment Resolution |
0.1 mrad per click |
|
Parallax Adjustment |
Side focus, 50 m to ∞ |
|
Length |
425 mm (16.7 in) |
|
Weight |
1,150 g (40.6 oz) |
|
Finish |
Matte‑black Type II hard‑anodize |
|
Waterproof / Fogproof |
IPX7 (1 m submersion for 30 min); nitrogen‑purged |
|
Warranty |
Lifetime warranty |
Included Accessories
- Flip‑up lens covers
- Instruction manual & warranty documentation
