Tangent Theta TT525P 5-25x56 Riflescope - GEN 3 XR Reticle - Coyote Brown
$6,102.00
Shipping calculated at checkout.
Tangent Theta TT525P 5 - 25×56 Riflescope - GEN 3 XR Reticle - Coyote Brown
Features

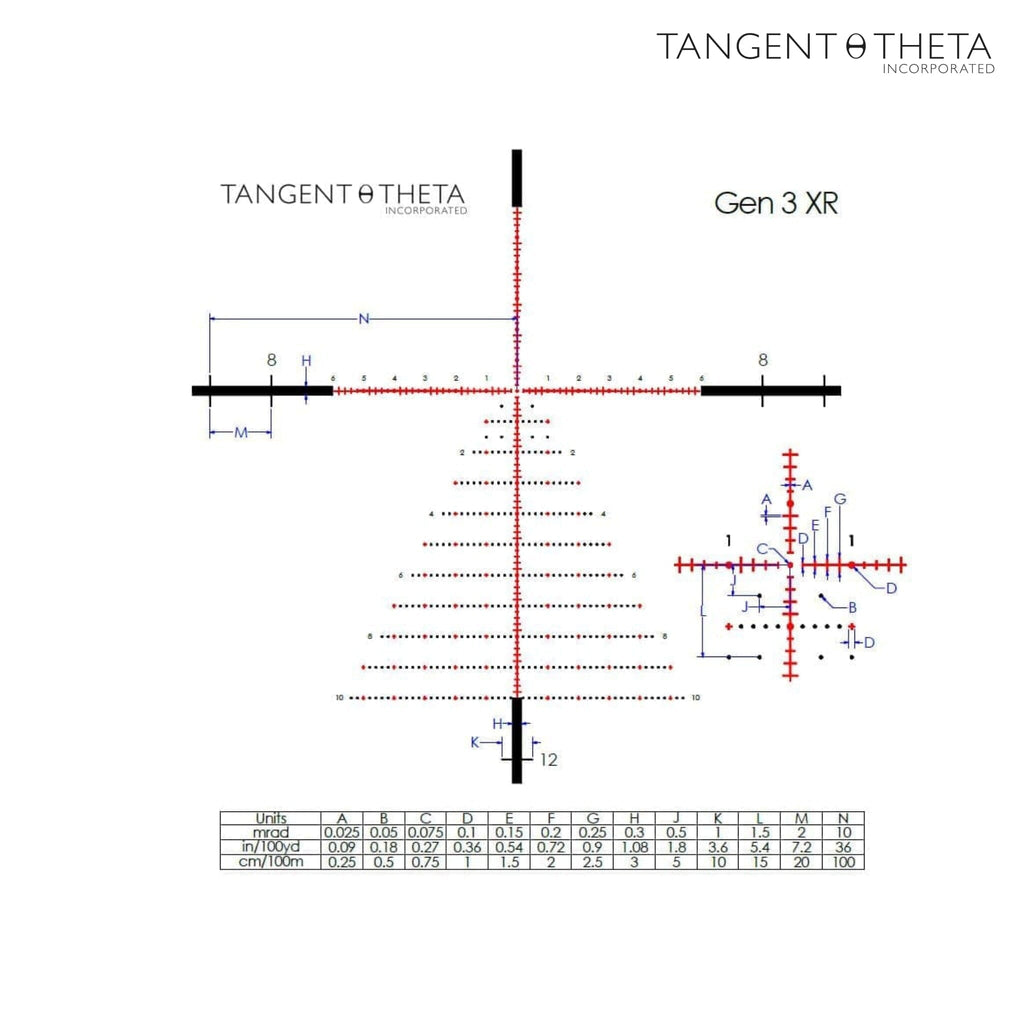

- Gen 3 XR Reticle – First‑focal‑plane XR Fine grid remains true at all magnifications for instant ranging and precise hold‑over, with 11 levels of red LED illumination and 6 h auto‑off.
- Premium Low‑Light Optics – Fully multi‑coated, high‑definition glass with a 56 mm objective delivers exceptional light transmission, contrast, and edge‑to‑edge clarity in any light.
- Exposed Locking Turrets & Zero‑Stop – Machined elevation and windage turrets lock to prevent accidental shifts; mechanical zero‑stop returns you instantly to zero and turrets are fully re‑indexable without tools.
- Tool‑Less Re‑Indexing – Lift and rotate the elevation turret after sight‑in to restore zeroed markings without disassembly or special tools.
- Side Parallax Focus – Dedicated side dial adjusts parallax from 50 m to infinity for consistent reticle clarity and elimination of focal shift.
- Rugged 34 mm Chassis – One‑piece aircraft‑grade aluminum tube in flat dark earth Type II hard‑anodized finish; O‑ring sealed and nitrogen‑purged for IPX7 waterproofing and fog‑proof reliability.
- Versatile Magnification – 5×–25× zoom range accommodates both quick target acquisition and extended‑distance precision engagements.
Technical Specifications for Tangent Theta TT525P 5 - 25×56 Riflescope - GEN 3 XR Reticle - Coyote Brown
|
Specification |
Details |
|
Manufacturer |
Tangent Theta (Armament Technology, Canada) |
|
Model / Part Number |
TT525P – GEN 3 XR / 800100‑0506 |
|
SKU / MPN |
800100‑0506 |
|
UPC |
666595531352 |
|
Magnification Range |
5 × – 25 × |
|
Objective Lens Diameter |
56 mm |
|
Tube Diameter |
34 mm |
|
Reticle |
First‑Focal‑Plane Gen 3 XR Fine, illuminated (11 levels; 6 h auto‑off) |
|
Field of View |
4.3° @ 5× (7.6 m @ 100 m); 0.9° @ 25× (1.6 m @ 100 m) |
|
Eye Relief |
90 mm |
|
Exit Pupil |
11 mm @ 5×; 2.3 mm @ 25× |
|
Diopter Range |
–3 to +2.5 |
|
Elevation Total Adjustment |
10 mrad (34.4 MOA) |
|
Windage Total Adjustment |
± 5 mrad (± 17.2 MOA) |
|
Click Value |
0.1 mrad per click |
|
Parallax Adjustment |
Side focus, 50 m to ∞ |
|
Illumination Power |
1 × CR2032 3 V lithium |
|
Length |
425 mm (16.7 in) |
|
Weight |
1,150 g (40.6 oz) |
|
Finish |
Coyote Brown Type II hard‑anodize |
|
Waterproof / Fogproof |
IPX7 (1 m submersion for 30 min); nitrogen‑purged |
|
Warranty |
Lifetime warranty |
Included Accessories
- Flip‑up lens covers
- CR2032 battery (installed)
- Instruction manual & warranty documentation
SEO Keywords
Tangent Theta TT525P Gen 3 XR, 5–25×56 mm riflescope, XR Fine reticle, tactical zero‑stop optic, side‑focus precision scope.
