Tangent Theta TT315M 3-15x50 Riflescope - GEN 3 XR Reticle
$4,671.00
Shipping calculated at checkout.
Tangent Theta TT315M 3-15x50 Riflescope - GEN 3 XR Reticle
Features
- Premium Low‑Light Optics – Fully multi‑coated high‑definition glass and a 50 mm objective deliver exceptional light transmission and edge‑to‑edge clarity in dawn/dusk conditions.

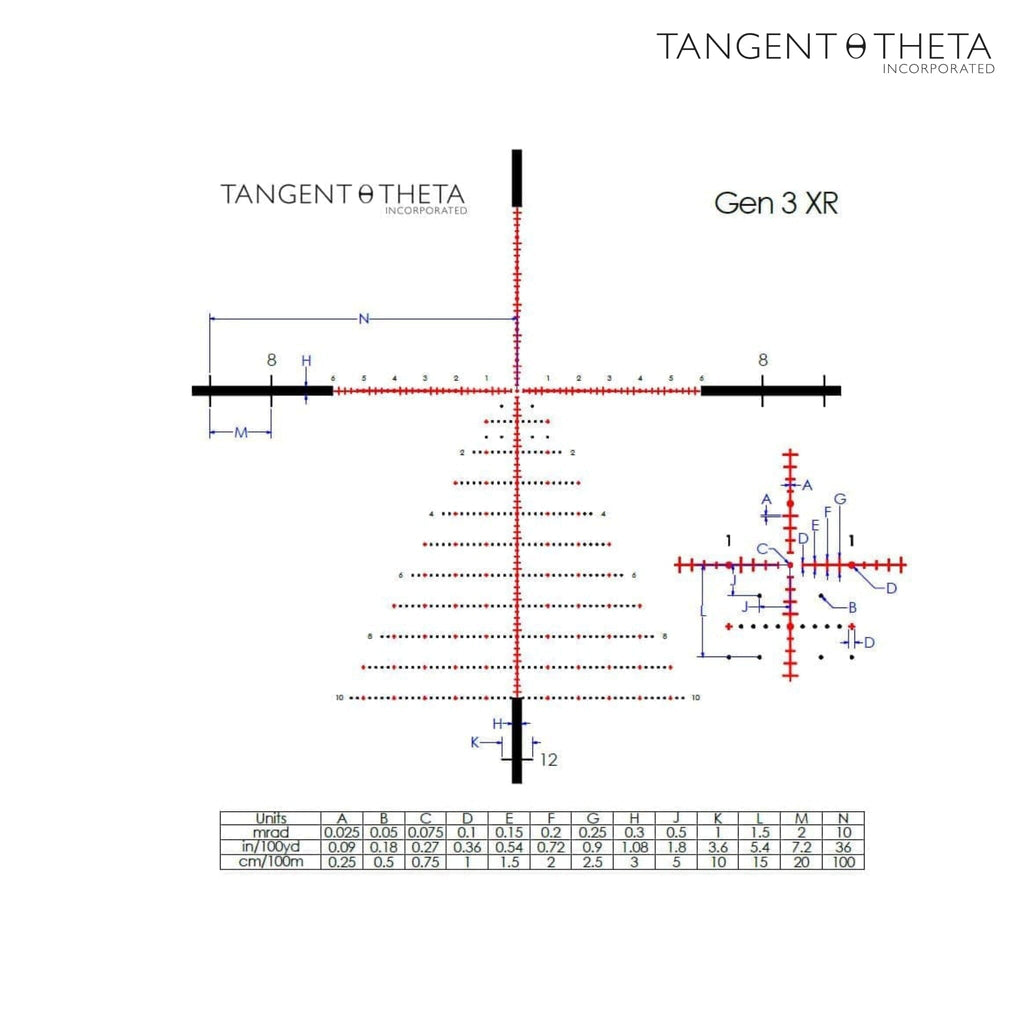

- First‑Focal‑Plane Gen 3 XR Reticle – True‑subtension XR reticle remains accurate at any magnification for rapid ranging and hold‑over; illuminated with 11 brightness levels, auto‑off after 6 hours.

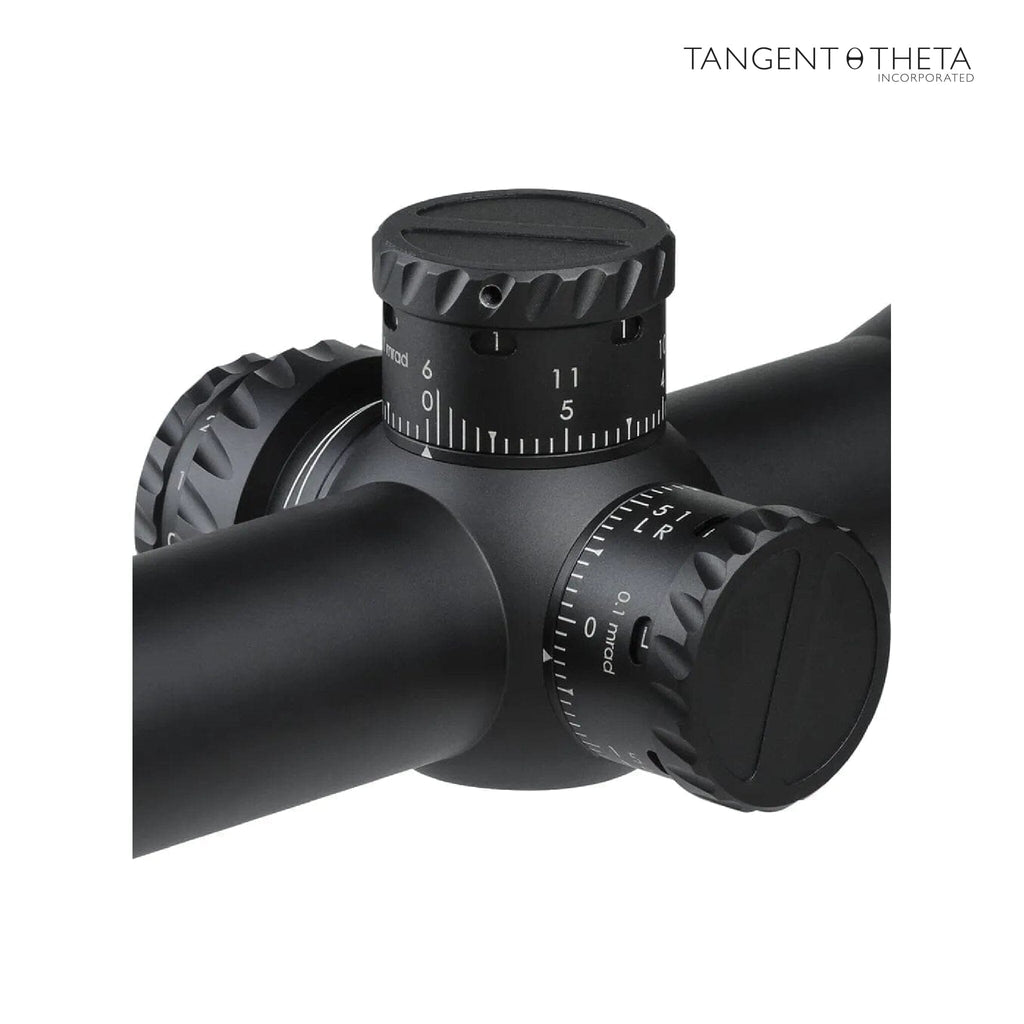

- Tactical Zero‑Stop Turrets – 30 mm exposed, lockable elevation and windage turrets with free‑spinning caps to prevent accidental drift; zero‑stop lets you return instantly to your zero, and turrets are re‑indexable without tools.
- Side Parallax / Focus – Side‑mounted focus knob adjustable from 50 m to infinity ensures a crisp reticle image and eliminates parallax error across all engagement distances.
- Rugged 30 mm Chassis – One‑piece aircraft‑grade aluminum tube with matte‑black Type II hard‑anodized finish, full O‑ring sealing, and nitrogen purging for IPX7 waterproof and fog‑proof performance.
- Versatile Magnification Range – 3×–15× zoom offers flexibility for close‑range acquisition to long‑range precision shots.
Technical Specifications for Tangent Theta TT315M 3-15x50 Riflescope - GEN 3 XR Reticle
|
Specification |
Details |
|
Manufacturer |
Tangent Theta (Armament Technology, Canada) |
|
Model / Part Number |
TT315M‑LRH / 800102‑0001 |
|
SKU |
800102‑0001 |
|
UPC |
666595531017 |
|
Reticle |
First‑Focal‑Plane Gen 3 XR, illuminated (11 levels; 6 h auto‑off) |
|
Magnification Range |
3 × to 15 × |
|
Objective Lens Diameter |
50 mm |
|
Tube Diameter |
30 mm |
|
Field of View |
7.3° @ 3× (12.8 m @ 100 m); 1.6° @ 15× (2.8 m @ 100 m) |
|
Eye Relief |
90 mm |
|
Exit Pupil |
11.5 mm @ 3×; 3.5 mm @ 15× |
|
Diopter Range |
–3 to +2.5 |
|
Elevation Total Adjustment |
18 mrad (60 MOA) |
|
Elevation Working Range |
12 mrad (40 MOA) |
|
Windage Total Adjustment |
± 12 mrad (± 40 MOA) |
|
Windage Working Range |
± 6 mrad (± 20 MOA) |
|
Adjustment Resolution |
0.1 mrad per click (¼ MOA) |
|
Parallax Adjustment |
Side focus, 50 m to ∞ |
|
Length |
351 mm (13.8 in) |
|
Weight |
786 g (27.7 oz) |
|
Finish |
Matte‑black Type II hard‑anodized |
|
Waterproof / Fogproof |
IPX7 (1 m submersion for 30 min); nitrogen‑purged |
|
Battery |
1 × CR2032 3 V lithium |
|
Zero‑Stop & Re‑Indexing |
Yes |
|
Warranty |
Lifetime warranty |
Included Accessories
- Flip‑up lens covers
- CR2032 battery (installed)
- Instruction manual & warranty card
