Tangent Theta TT315M 3-15x50 Riflescope - GEN 2 XR Reticle
Features
-
Premium Low‑Light Optics – Fully multi‑coated high‑definition glass with a large 50 mm objective delivers exceptional light transmission and contrast at dawn/dusk.
-
First‑Focal‑Plane Gen 2 XR Reticle – True‑subtension XR reticle remains accurate at all magnifications for rapid ranging and hold‑over; illuminated center for low‑light use.
-

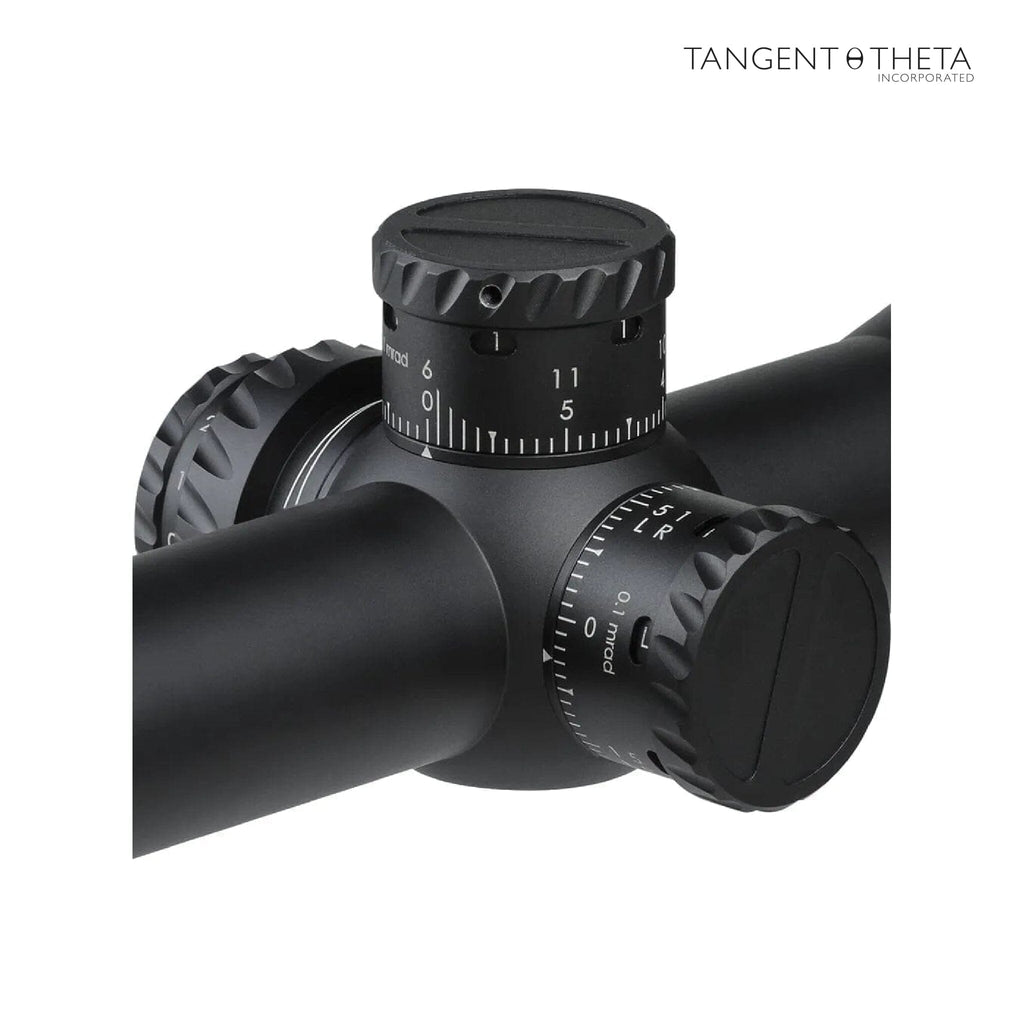

Non‑Translating Zero‑Stop Turrets – Exposed, lockable elevation and windage turrets feature a free‑spinning outer cap to prevent accidental drift; zero‑stop lets you return instantly to your zero.
-
Side Parallax Focus – Adjustable from 50 m to infinity via side dial to eliminate parallax error and maintain a crisp reticle image at any range.
-
Robust 30 mm Chassis – One‑piece aircraft‑grade aluminum tube with matte‑black Type II hard‑anodized finish; O‑ring sealed and nitrogen‑purged for IPX7 waterproofing and fogproof performance.
-
Wide Magnification Range – 3×–15× zoom provides versatility for close‑up work and extended‑distance precision shooting.
Technical Specifications for Tangent Theta TT315M 3-15x50 Riflescope - GEN 2 XR Reticle
|
Specification
|
Details
|
|
Manufacturer
|
Tangent Theta (Armament Technology, Canada)
|
|
Model / Part Number
|
TT315M‑LRH / 800102‑0001
|
|
SKU / MPN
|
800102‑0001
|
|
UPC
|
666595531017
|
|
Magnification Range
|
3 × to 15 ×
|
|
Objective Lens Diameter
|
50 mm
|
|
Tube Diameter
|
30 mm
|
|
Reticle
|
First‑Focal‑Plane Gen 2 XR, illuminated (11 brightness levels)
|
|
Field of View
|
7.3° @ 3× (12.8 m @ 100 m); 1.6° @ 15× (2.8 m @ 100 m)
|
|
Eye Relief
|
90 mm
|
|
Exit Pupil
|
11.5 mm @ 3×; 3.5 mm @ 15×
|
|
Diopter Range
|
–3 to +2.5
|
|
Elevation Total Adjustment
|
18 mrad (60 MOA)
|
|
Windage Total Adjustment
|
± 12 mrad (± 40 MOA)
|
|
Adjustment Resolution
|
0.1 mrad per click (¼ MOA)
|
|
Parallax Adjustment
|
Side focus, 50 m to ∞
|
|
Length
|
13.8 in (351 mm)
|
|
Weight
|
27.73 oz (786 g)
|
|
Finish
|
Matte‑black Type II hard‑anodized
|
|
Waterproof Rating
|
IPX7 (1 m submersion for 30 min)
|
|
Fogproof
|
Nitrogen‑purged
|
|
Warranty
|
Lifetime warranty
|
Included Accessories
-
Flip‑up lens covers
-
CR2032 battery for reticle illumination
-
Instruction manual & warranty card
