Steiner T6Xi 1-6x24mm FFP Rifle Scope KC-1 Reticle Rifle Scope Steiner Optics
1/4

Steiner T6Xi 1-6x24mm FFP Rifle Scope KC-1 Reticle

$1,699.99
Shipping calculated at checkout.
Payment methods
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
3 left

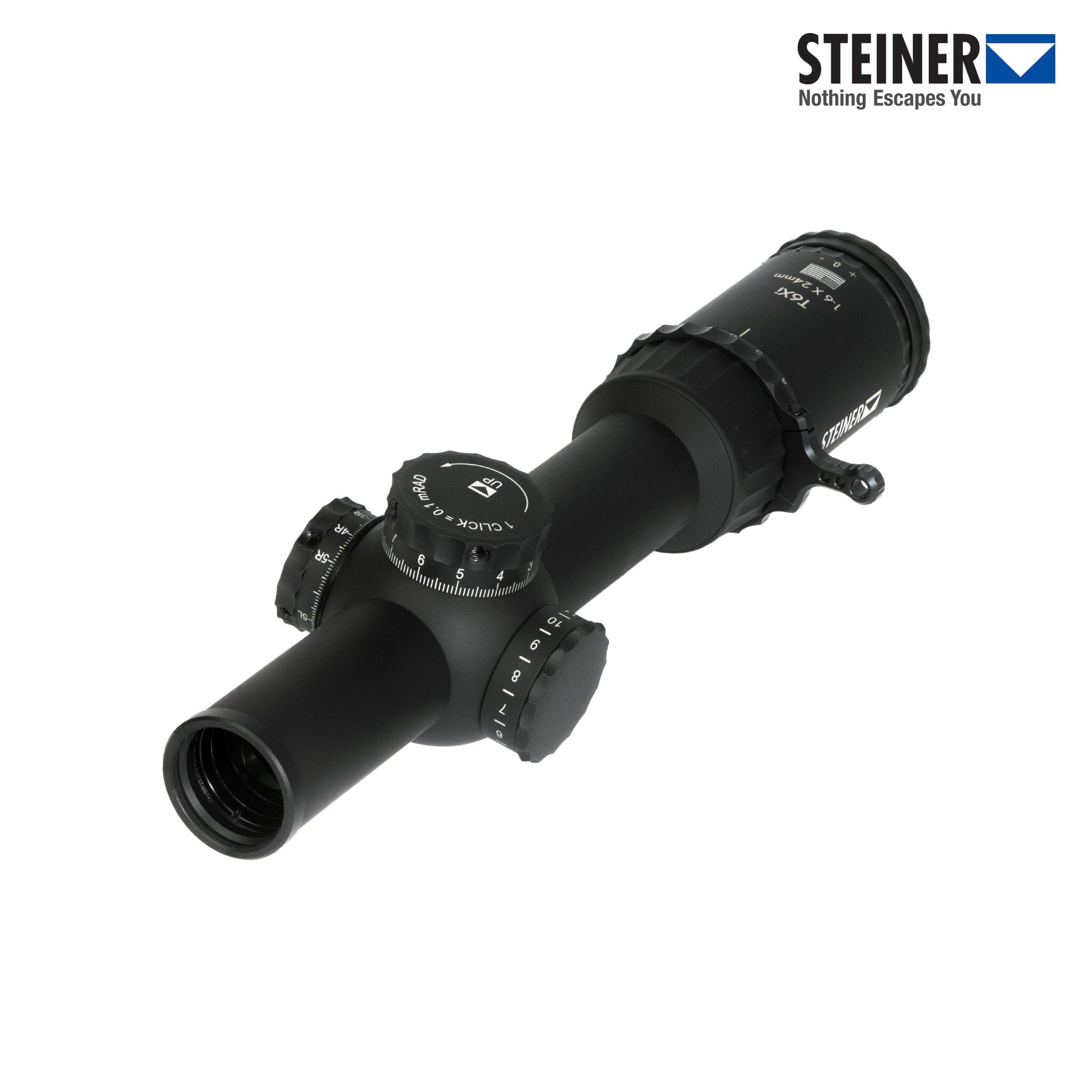

Steiner T6Xi 1–6×24mm FFP Rifle Scope KC-1 Reticle

(Model 5103)

Features

  • 1–6× Variable Magnification: Rapid throw-lever changes for close-quarters (1×) to mid-range precision (6×).

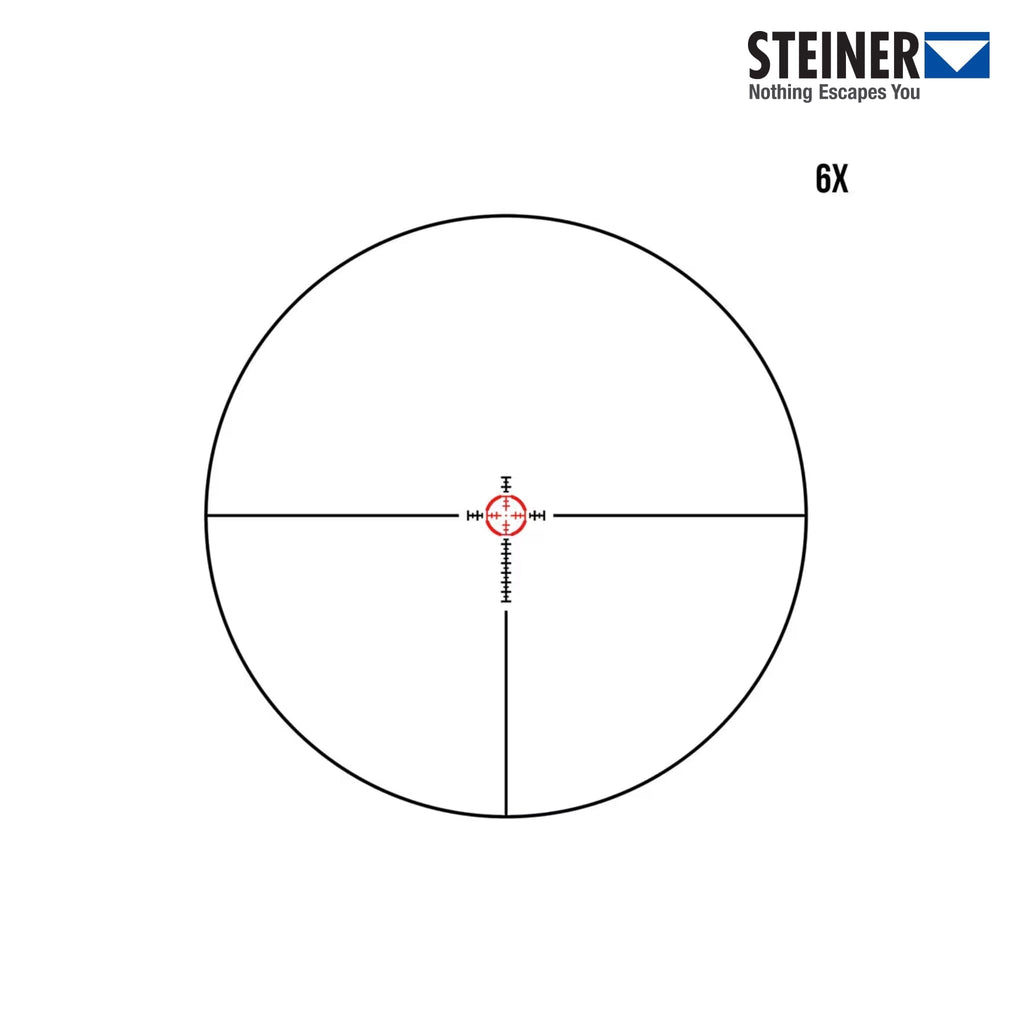

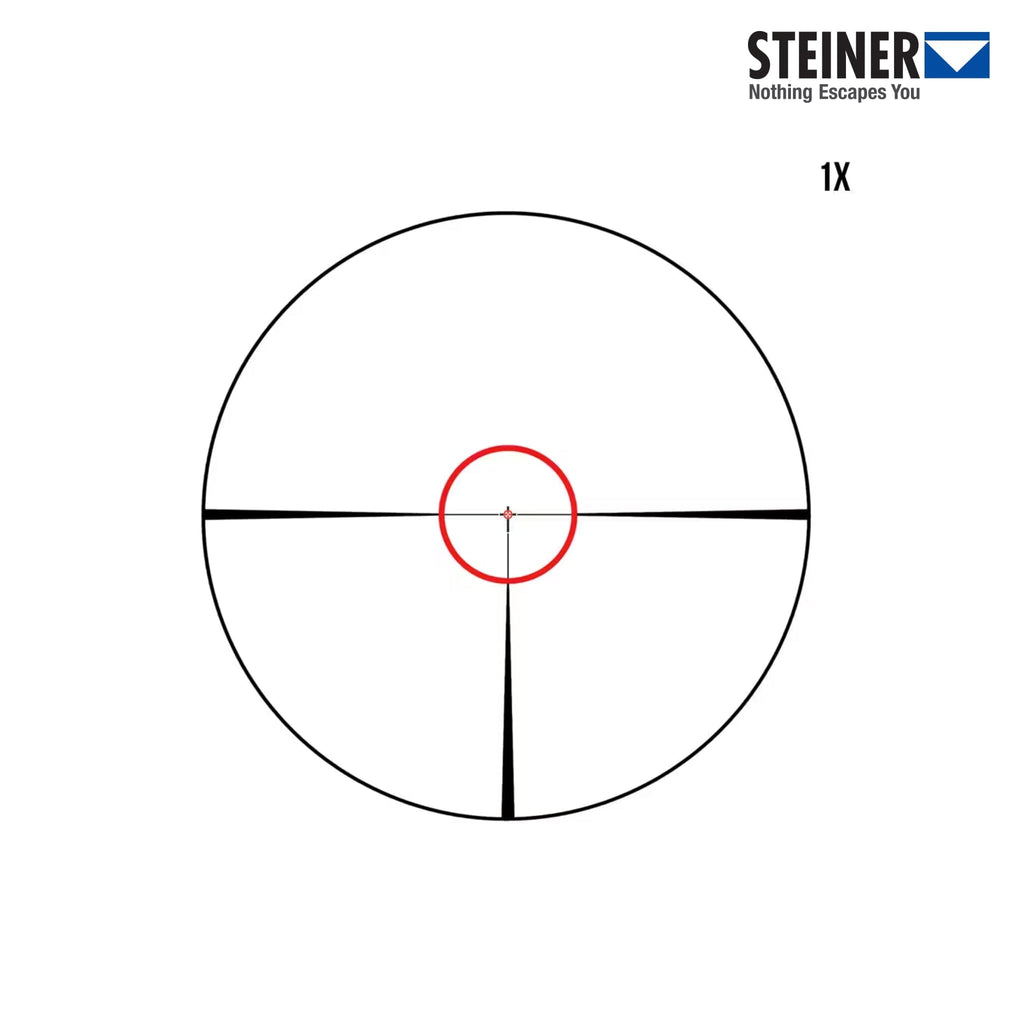

  • First Focal Plane KC-1 Reticle: Glass-etched “KC-1” pattern calibrated in milliradians for hold-over/hold-off at any magnification; illuminated via red LED with 11 brightness levels (7 daylight, 4 night-vision compatible).
  • Exposed & Capped Turrets: Choice of low-profile never-lost capped turrets or exposed turrets—both with 0.1 mrad click value and 30 mrad total windage/elevation travel.
  • High-Performance Optics: Ultra-low dispersion glass, fully multi-coated lenses and prisms deliver exceptional resolution, contrast and color fidelity.
  • Side Focus Parallax: Fixed at 100 yd for optimal image and reticle alignment without extra knobs.
  • Rugged Construction: 30 mm main tube machined from aircraft-grade aluminium; Type III hard-coat anodize; waterproof, fog-proof and shock-proof to withstand .50 BMG recoil.
  • Extended Eye Relief: 3.4″–3.9″ constant; parallax-free at all ranges when properly focused.
  • Made in USA & Lifetime Warranty

Technical Specifications for Steiner T6Xi 1–6×24mm FFP Rifle Scope KC-1 Reticle

Specification

Details

Model / MPN

5103

SKU

5103

UPC

000381851031

Country of Origin

USA

Magnification

1 × 6 ×

Objective Lens Diameter

24 mm

Main Tube Diameter

30 mm

Reticle

KC-1 MIL (FFP, glass-etched, LED-illuminated)

Illumination Settings

11 levels (7 daylight + 4 NV-compatible)

Exit Pupil

4.0 mm (6×)10.3 mm (1×)

Eye Relief

3.4″–3.9″ (86–99 mm)

Field of View @ 100 yd

19 ft (6×) 114 ft (1×)

Adjustment Click Value

0.1 mrad

Total Windage/Elevation Travel

±30 mrad each

Parallax

Fixed at 100 yd

Turret Options

Exposed or capped; never-lost capped design

Length

10.4″ (264 mm)

Weight

20 oz (567 g)

Finish / Housing Material

Aircraft-grade aluminum; matte-black anodize

Waterproof / Fog-Proof / Shock

Yes

Included Accessories

  • Throw-lever
  • Lens covers
  • CR2450 battery
  • User manual

SEO Keywords
Steiner T6Xi 1–6×24, KC-1 FFP illuminated reticle, 30 mm tactical scope, Steiner LPVO.
