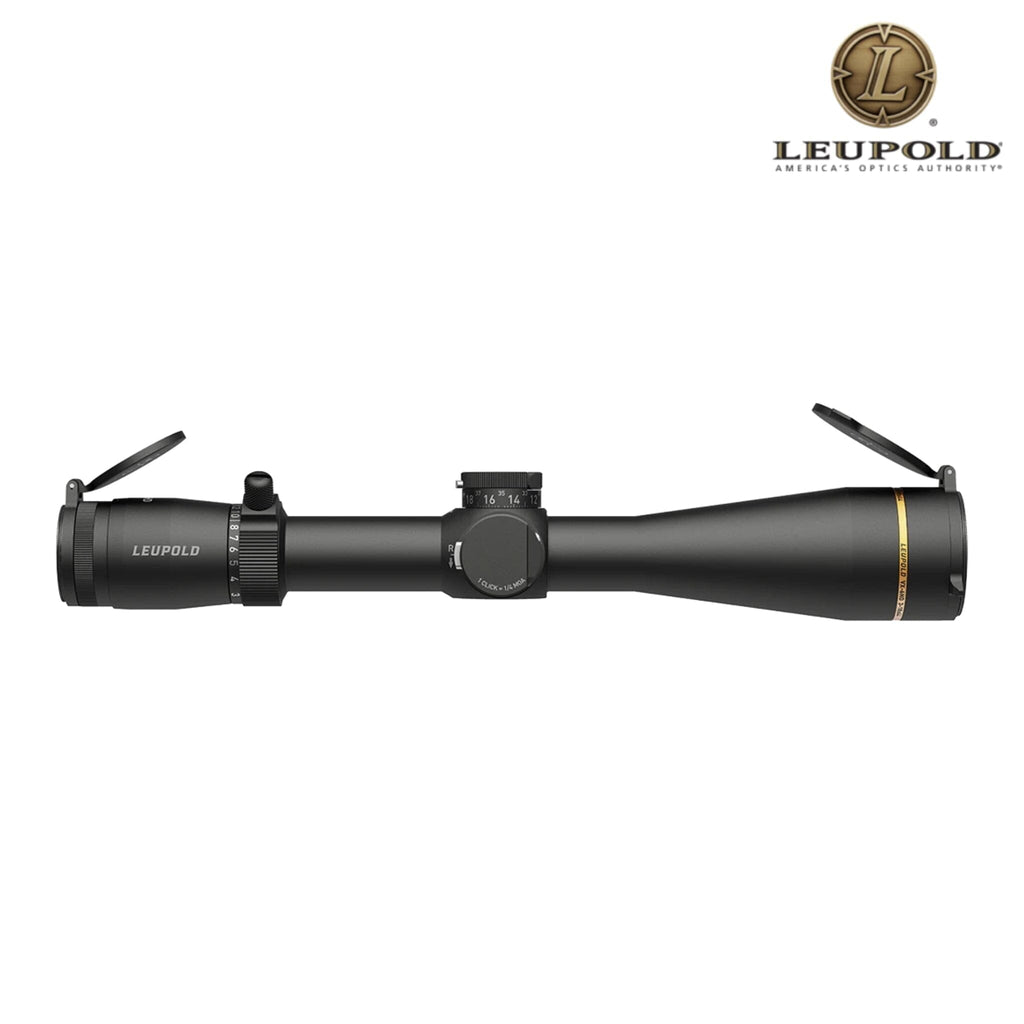

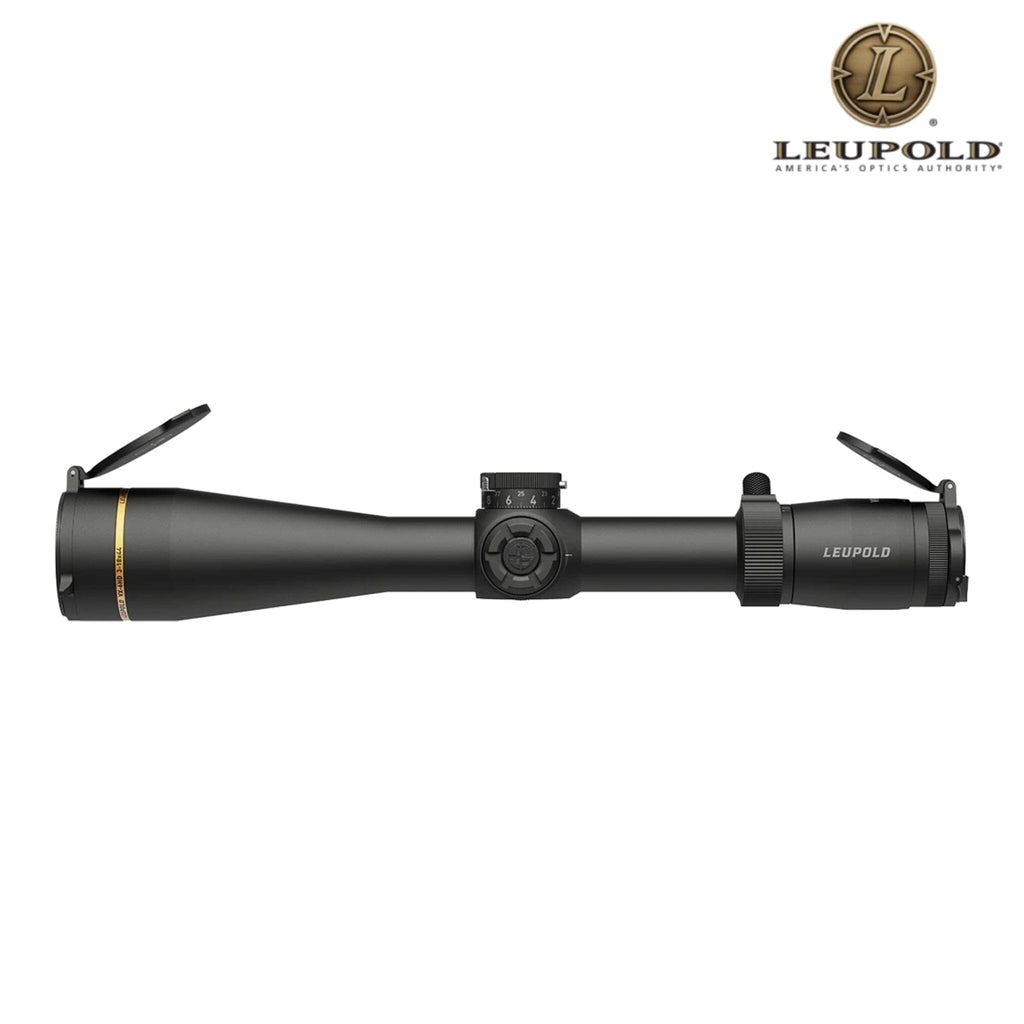

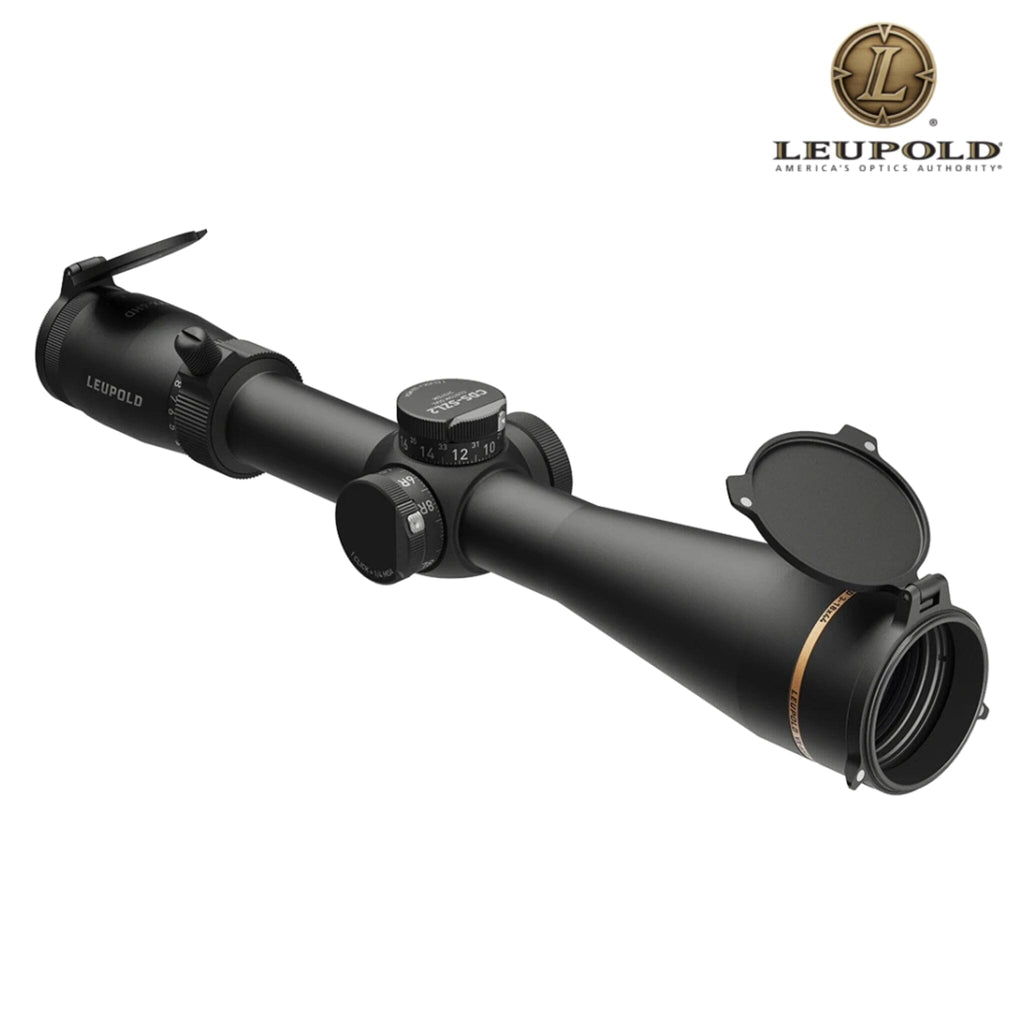

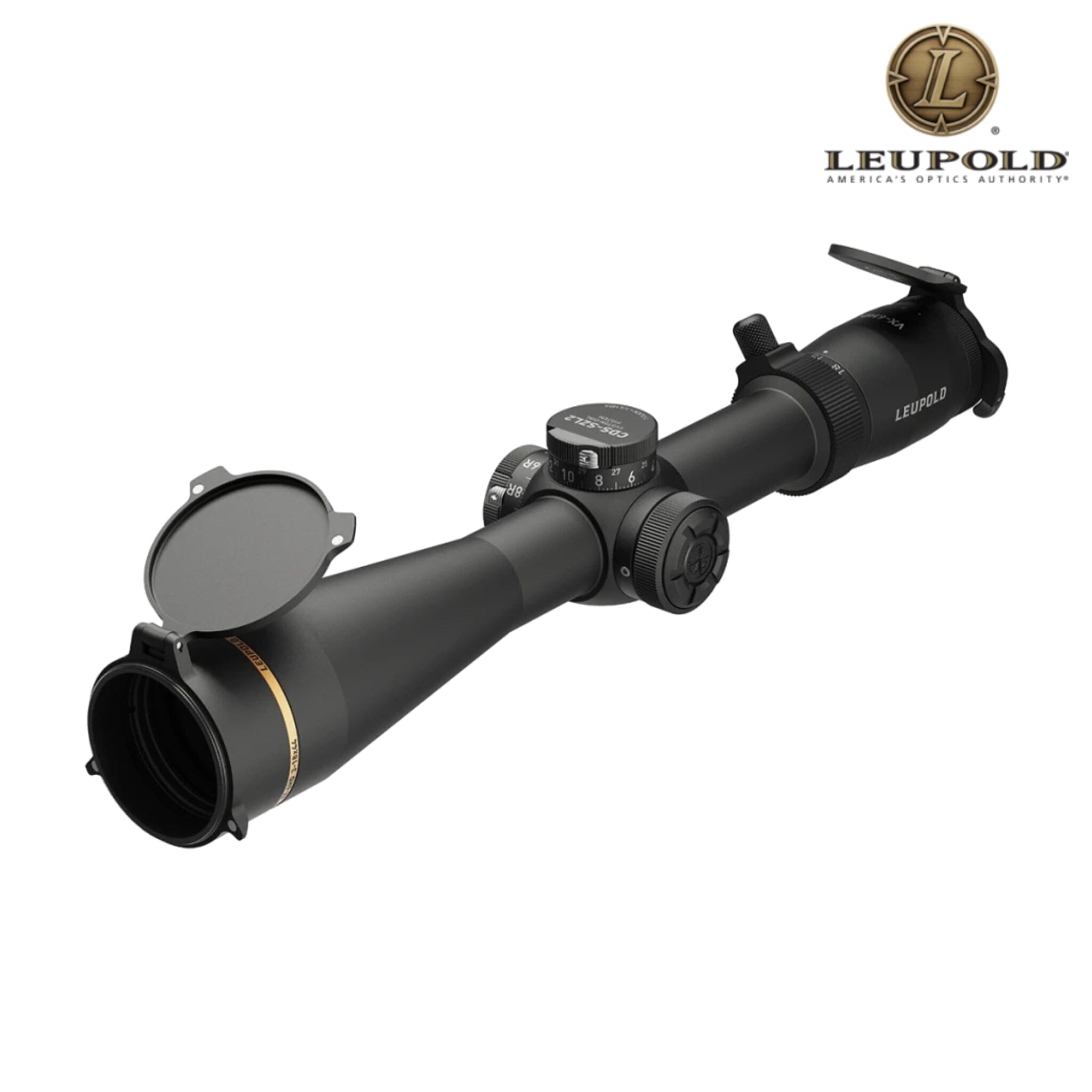

Leupold VX-6HD Gen 2 3–18×44 CDS-ZL2 Rifle Scope Side Focus Illuminated TMOA Reticle
(Model 184424)
Features
-
6:1 Zoom Ratio: Fast-throw reversible magnification lever for rapid transitions between 3× (wide field) and 18× (precision).
-
Professional-Grade Optics: Fully multi-coated, extra-low dispersion glass with Leupold’s Xtended Twilight® light-management system for exceptional brightness, resolution, and edge-to-edge clarity.
-
Guard-Ion® Hydrophobic Coating: Repels water, oil, dirt, and fingerprints for an unobstructed sight picture.
-

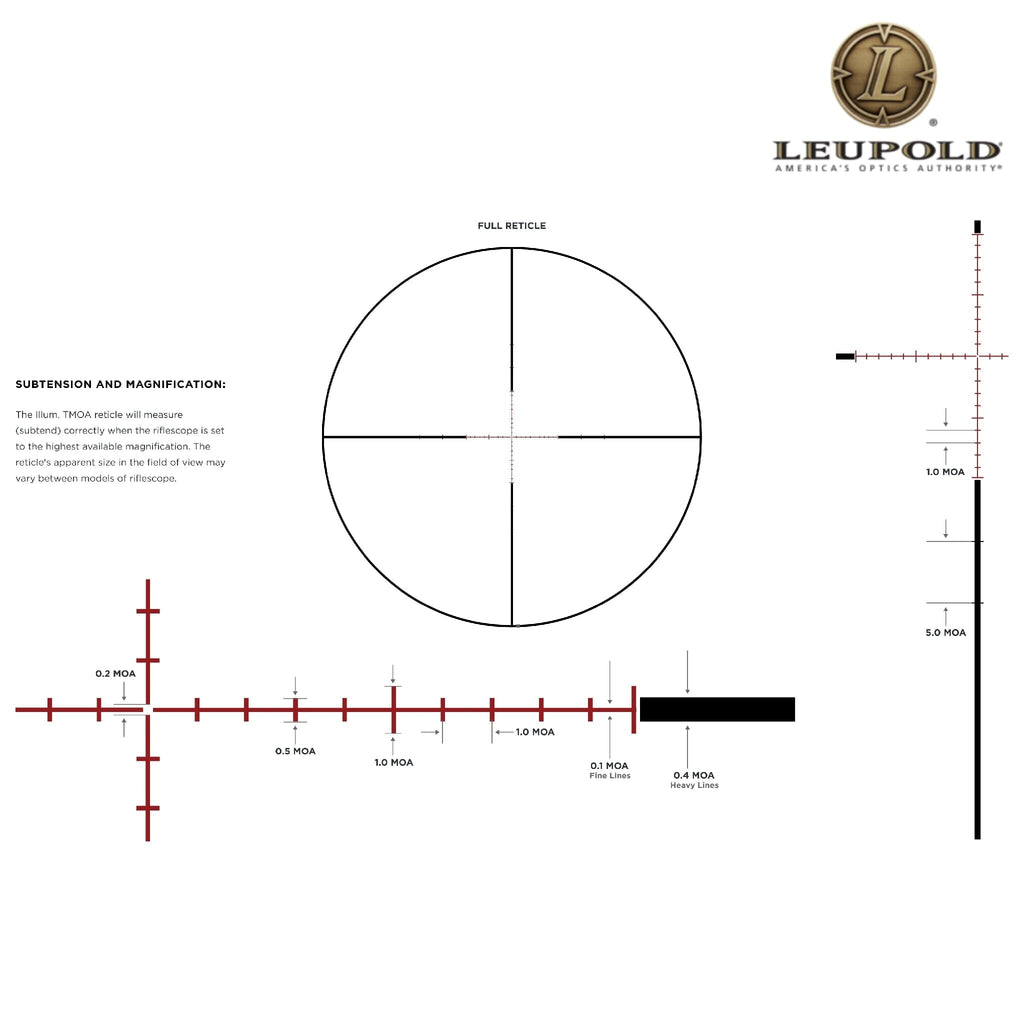

Illuminated TMOA Reticle (Second Focal Plane): Glass-etched TMOA hash marks in 1 MOA increments; red-LED illumination with seven daylight-bright and four NV-compatible intensity levels; Motion Sensor Technology™ auto-shutoff/re-activation.
-

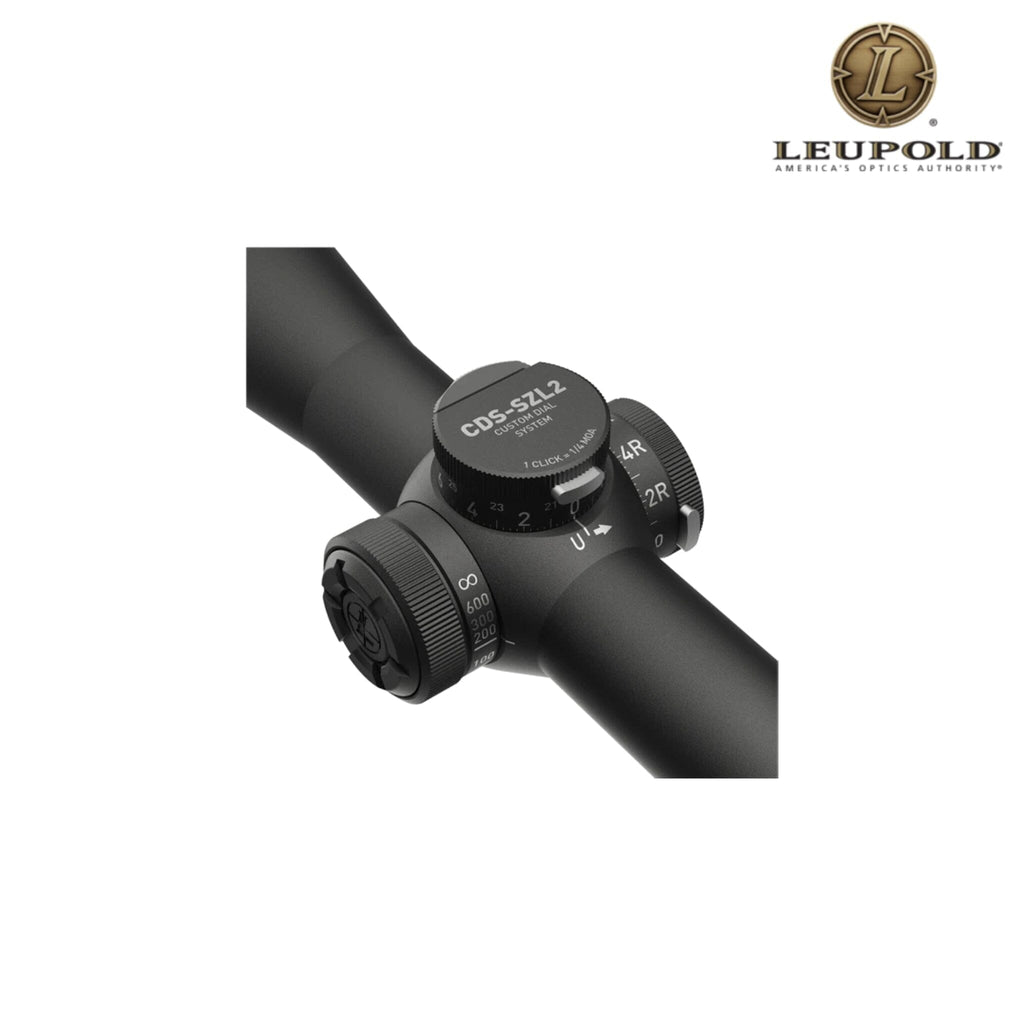

CDS-ZL2® ZeroLock® Elevation Dial: Push-button, lockable 2-revolution turret compatible with Custom Dial System®—lockable, resettable to zero, and repeatable under field conditions.
-
Side-Focus Parallax: Quick-set adjustment from 50 yd → ∞ for tack-sharp reticle alignment.
-
Fast-Focus Eyepiece & Ergonomic Turrets: Rapid eye-focus adjustment and low-profile windage turret designed for gloved operation.
-
Alumina® Flip-Back Lens Covers: Thread-on covers protect lenses from moisture and debris without adding bulk.
-
Rugged Construction: CNC-machined 30 mm main tube of 6061-T6 aluminum; matte-black hard-coat anodize; fully waterproof, fog-proof, and shock-proof; recoil-rated for the harshest environments.
-
Made in USA & Lifetime Guarantee
Technical Specifications for Leupold VX-6HD Gen 2 3–18×44 CDS-ZL2 Rifle Scope Side Focus Illuminated TMOA Reticle
|
Specification
|
Details
|
|
Model / MPN
|
184424
|
|
SKU
|
184424
|
|
UPC
|
030317038656
|
|
Country of Origin
|
USA
|
|
Tube Diameter
|
30 mm
|
|
Magnification Range
|
3 × ⇄ 18 ×
|
|
Objective Lens Diameter
|
44 mm
|
|
Reticle
|
TMOA (SFP, glass-etched, illuminated)
|
|
Illumination Settings
|
7 daylight-bright + 4 NV-compatible
|
|
Parallax Focus
|
Side focus, 50 yd → ∞
|
|
Eye Relief
|
3.7″ (94 mm) @ 3× ⇄ 3.8″ (97 mm) @ 18×
|
|
Field of View @ 100 yd
|
38.3 ft (low) ⇄ 6.4 ft (high)
|
|
Elevation Adjustment
|
¼ MOA per click; 85 MOA/rev; 170 MOA total; ZeroLock® resettable
|
|
Windage Adjustment
|
¼ MOA per click; 85 MOA/rev; 170 MOA total
|
|
Length
|
13.5″ (343 mm)
|
|
Weight
|
22.1 oz (627 g)
|
|
Finish
|
Matte-black hard-coat anodize
|
|
Waterproof / Fog-Proof
|
Yes
|
|
Shock-Proof
|
Yes
|
Included Accessories
-
Alumina® flip-back lens covers
-
Removable fast-throw magnification lever
-
Two Custom Dial System® dials with SpeedSet™ technology
-
CR2032 battery
-
Cleaning cloth & CDS adjustment tool
-
User manual
