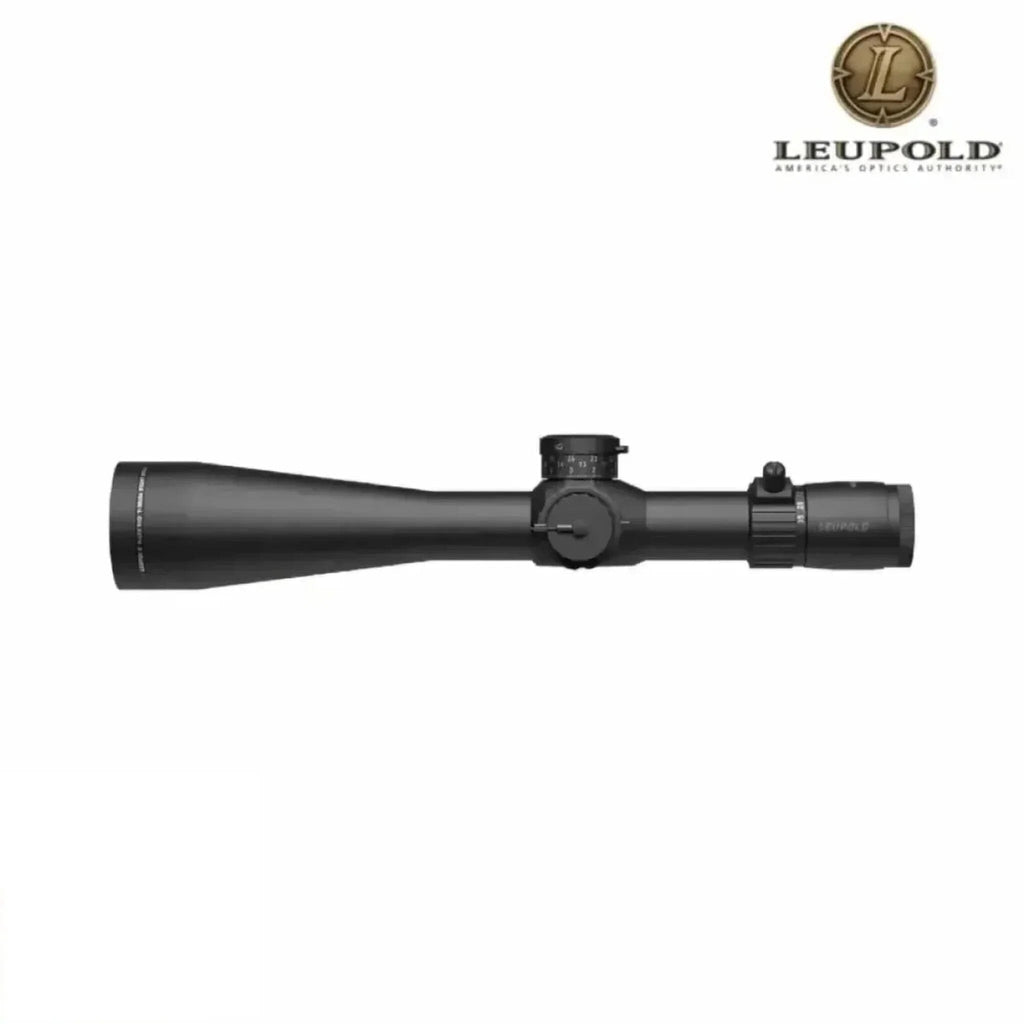

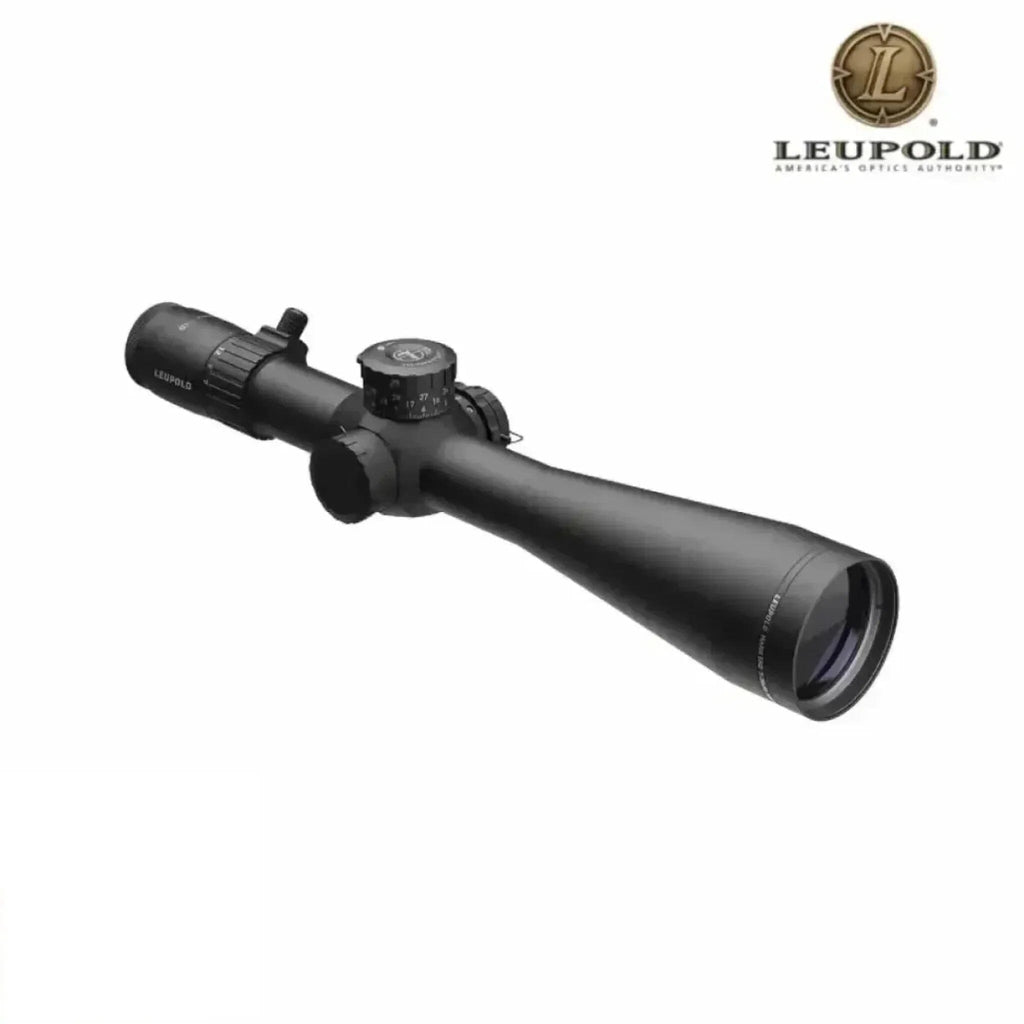

Name: Leupold MARK 5HD 7–35×56 Rifle Scope M5C3 FFP Illuminated TMR Reticle
Brand: Leupold
SKU: 176124
Availability: InStock

1/4

$2,999.99

Shipping calculated at checkout.

10 left

Leupold MARK 5HD 7–35×56 Rifle Scope M5C3 FFP Illuminated TMR Reticle

(Model 176124)

Features

5:1 Zoom Ratio: Low-profile reversible throw-lever for rapid transitions between 7× (wide-field) and 35× (long-range precision).

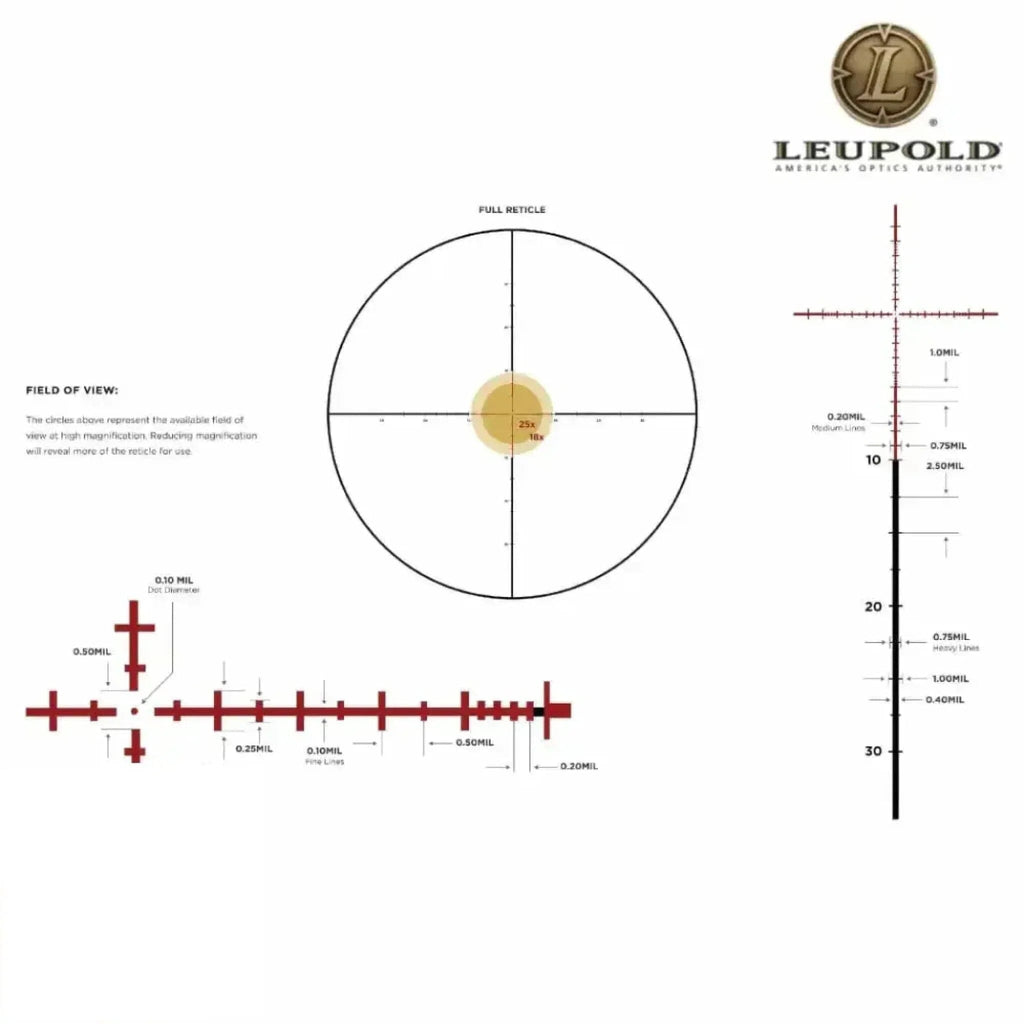

First-Focal-Plane Illuminated TMR™ Reticle: Glass-etched Tactical Milling Reticle in milliradians—true hold-over/hold-off at any magnification; red-LED illumination with seven daylight-bright and four night-vision-compatible settings; Motion Sensor Technology™ powers down after inactivity and instantly reactivates on movement.
M5C3 ZeroLock® Turret System:

Elevation: Exposed, lockable turret; 0.1 mrad per click; 10 mrad per revolution; 30 mrad total travel; positive ZeroStop™ for instant return to zero.
Windage: Low-profile capped turret; 0.1 mrad per click; 24 mrad total travel; visual and tactile revolution indicator under cap.

Precision Side Focus Parallax: Quick-set adjustment from 50 yd to ∞ for tack-sharp reticle alignment.
Professional-Grade Optics: Xtended Twilight® fully multi-coated lenses and extra-low dispersion glass for exceptional resolution, contrast, and edge-to-edge clarity.
Rugged Construction: CNC-machined 35 mm main tube of 6061-T6 aluminum; matte-black hard-coat anodize; IPX7 waterproof and fog-proof; nitrogen-purged; rated to withstand .50 BMG recoil.
Extended Eye Relief: 3.6″ (91 mm) constant across zoom range for comfortable, repeatable head positioning.
Lightweight Design: 33 oz (936 g)—only 3 oz more than the 5–25×56 model, avoiding a weight penalty for extra magnification.
Made in USA & Lifetime Guarantee

Technical Specifications for Leupold MARK 5HD 7–35×56 Rifle Scope M5C3 FFP Illuminated TMR Reticle

Specification	Details
Model / MPN	176124
SKU	176124-Leupold
UPC	030317020842
Country of Origin	USA
Magnification Range	7 × ⇄ 35 ×
Objective Lens Diameter	56 mm
Main Tube Diameter	35 mm
Reticle	Illuminated TMR™ (FFP, glass-etched)
Illumination Settings	7 daylight-bright + 4 NV-compatible
Battery Type & Life	CR2032; ~1,800 hr (low) / ~96 hr (high)
Elevation Adjustment	M5C3; 0.1 mrad/click; 10 mrad/rev; 30 mrad total; ZeroStop™
Windage Adjustment	0.1 mrad/click; 24 mrad total; capped turret
Parallax Focus	Side focus, 50 yd → ∞
Eye Relief	3.6″ (91 mm)
Field of View @ 100 yd	14.7 ft (low) ⇄ 3 ft (high)
Overall Length	15.7″ (398 mm)
Weight	33 oz (936 g)
Housing Material / Finish	6061-T6 aluminum; matte-black hard-coat anodize
Waterproof / Fog-Proof	Yes (IPX7)
Shock Resistance	Rated to withstand .50 BMG recoil
