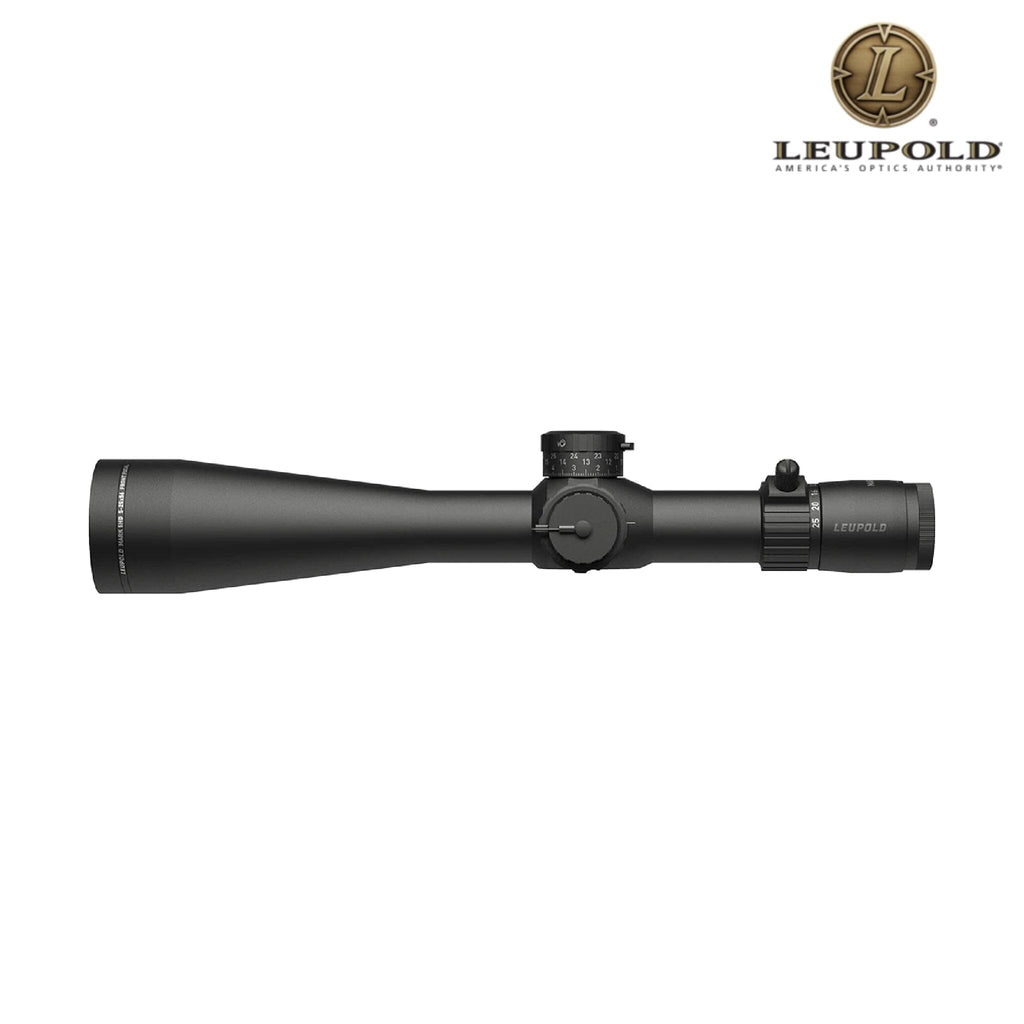

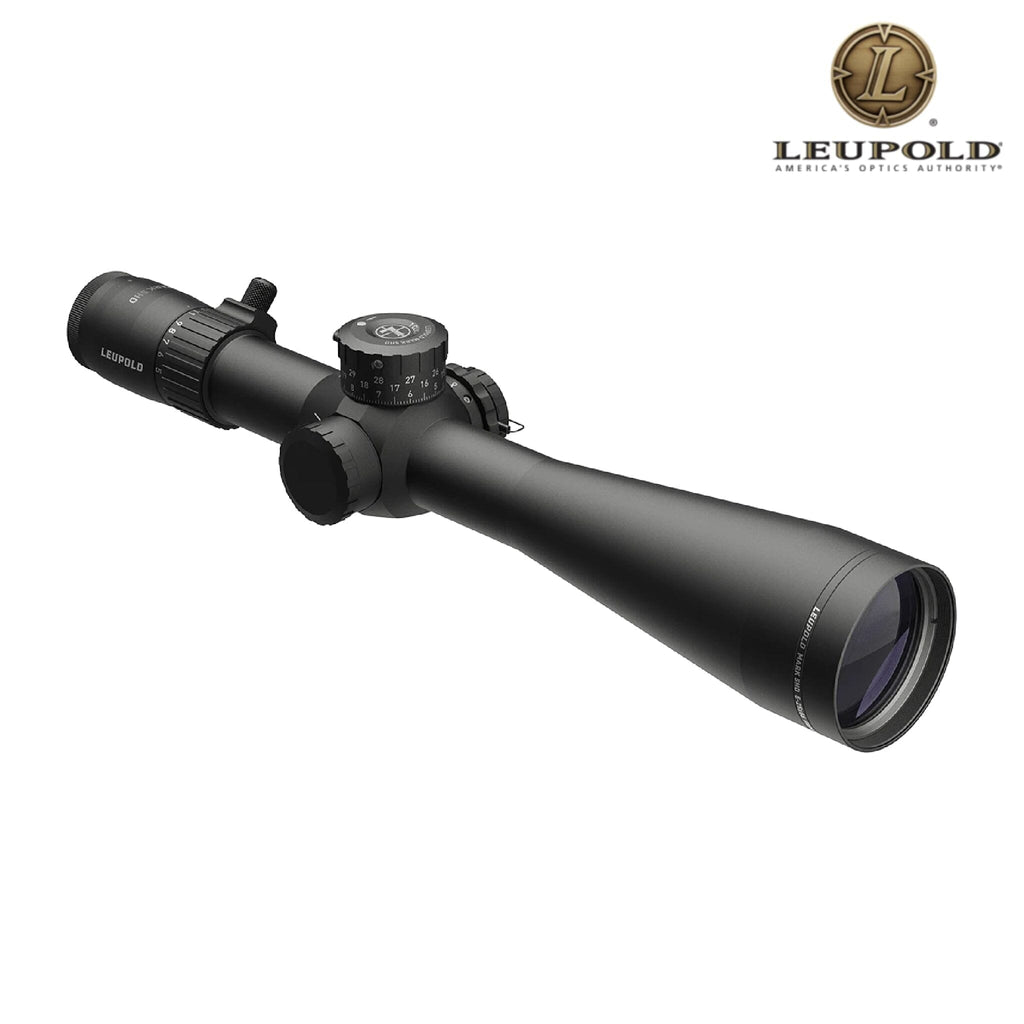

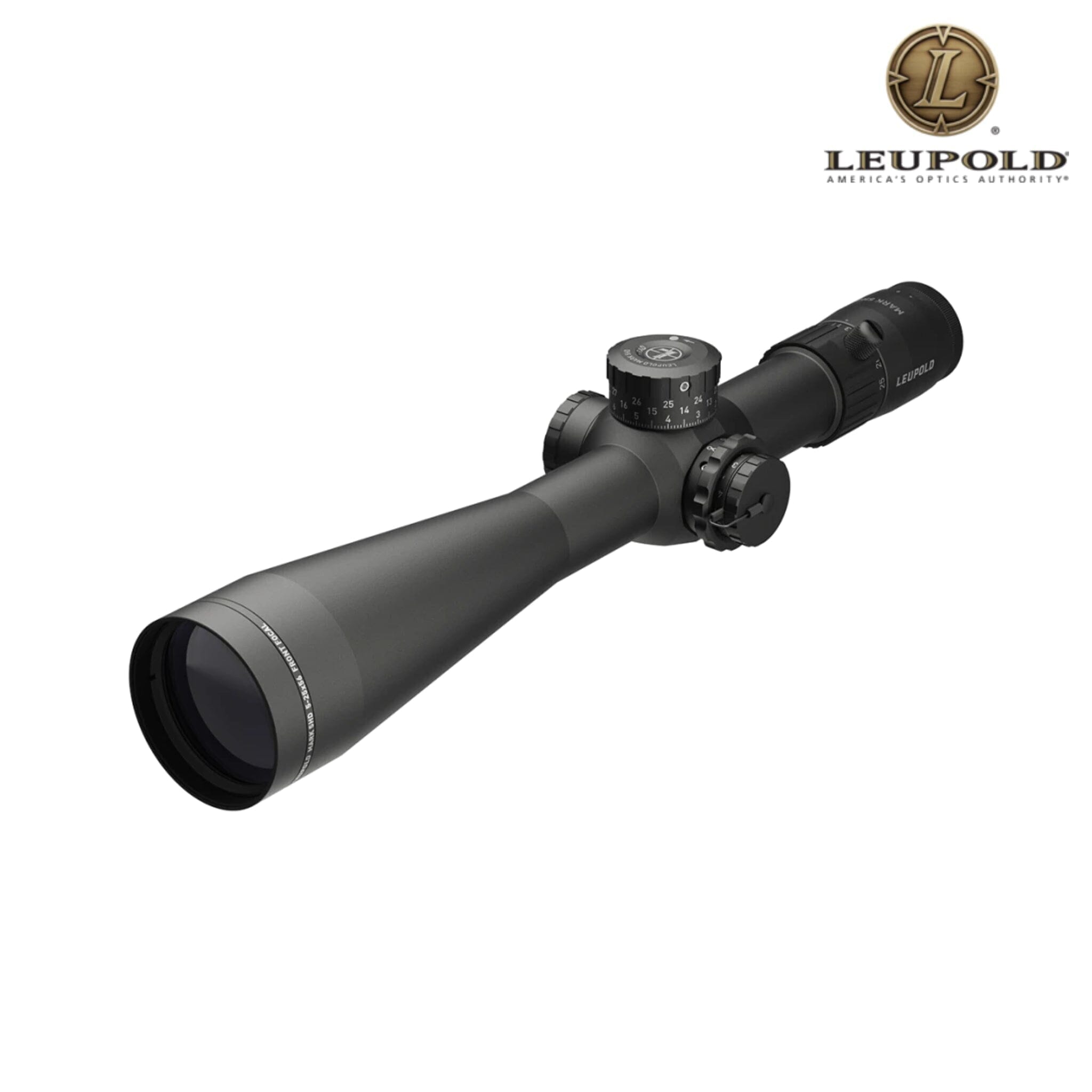

Name: Leupold MARK 5HD 5–25×56 Rifle Scope M5C3 FFP Illuminated TMR Reticle
Brand: Leupold
SKU: 171776
Availability: InStock

1/4

$2,699.99

Shipping calculated at checkout.

10 left

Leupold MARK 5HD 5–25×56 Rifle Scope M5C3 FFP Illuminated TMR Reticle

(Model 171776)

Features

5:1 Zoom Ratio: Versatile 5–25× magnification range for mid-range precision and long-range engagements.
First-Focal-Plane Illuminated TMR™ Reticle: Glass-etched Tactical Milling Reticle in milliradians provides true hold-over/hold-off at any magnification; red-LED illumination with seven daylight-bright and four night-vision-compatible settings; Motion Sensor Technology™ powers down after five minutes of inactivity and instantly reactivates on movement.
M5C3 ZeroLock® Turret System:

Elevation: Exposed turret; 0.1 mrad per click; 10.5 mrad per revolution; 35 mrad total travel; positive ZeroStop™ for instant, repeatable return to zero.
Windage: Low-profile capped turret; 0.1 mrad per click; 10 mrad per revolution; 17 mrad total travel.

Precision Side Focus Parallax: Quick-set adjustment from 50 yd to ∞ for tack-sharp reticle alignment.
Professional-Grade Optics: Xtended Twilight® fully multi-coated, extra-low dispersion lenses and prisms for exceptional resolution, contrast, and edge-to-edge clarity.
Rugged Construction: CNC-machined 35 mm main tube of 6061-T6 aluminum; matte-black hard-coat anodize; IPX7 waterproof, fog-proof, and nitrogen-purged; rated to withstand .50 BMG recoil.
Extended Eye Relief: 3.6″ (91 mm) at low magnification → 3.8″ (97 mm) at high magnification for comfortable, repeatable head positioning.
Lightweight Design: 30 oz (850 g) — up to 20 oz lighter than many comparable scopes.
Made in USA & Lifetime Guarantee

Technical Specifications for Leupold MARK 5HD 5–25×56 Rifle Scope M5C3 FFP Illuminated TMR Reticle

Specification	Details
Model / MPN	171776
SKU	LEU-171776
UPC	030317016395
Country of Origin	USA
Magnification Range	5 × ⇄ 25 ×
Objective Lens Diameter	56 mm
Main Tube Diameter	35 mm
Reticle	Illuminated TMR™ (FFP, glass-etched)
Illumination Settings	7 daylight-bright + 4 NV-compatible
Battery Type & Life	CR2032; ~1,800 hr (low) / ~96 hr (high)
Elevation Adjustment	0.1 mrad/click; 10.5 mrad/rev; 35 mrad total; ZeroStop™
Windage Adjustment	0.1 mrad/click; 10 mrad/rev; 17 mrad total
Parallax Focus	Side focus, 50 yd → ∞
Field of View @ 100 yd	20.4 ft (low) ⇄ 4.2 ft (high)
Eye Relief	3.6″ (low) ⇄ 3.8″ (high)
Overall Length	15.7″ (398 mm)
Weight	30 oz (850 g)
Housing Material / Finish	6061-T6 aluminum; matte-black hard-coat anodize
Waterproof / Fog-Proof	Yes (IPX7)
Shock Resistance	Rated to withstand .50 BMG recoil

Included Accessories
