Leupold MARK 5HD 5–25×56 Rifle Scope M5C3 FFP Illuminated PR1-MIL Reticle
(Model 180609)
Features
-
5:1 Zoom Ratio: High-speed throw-lever for instant changes between 5× (wide field) and 25× (long-range precision).
-

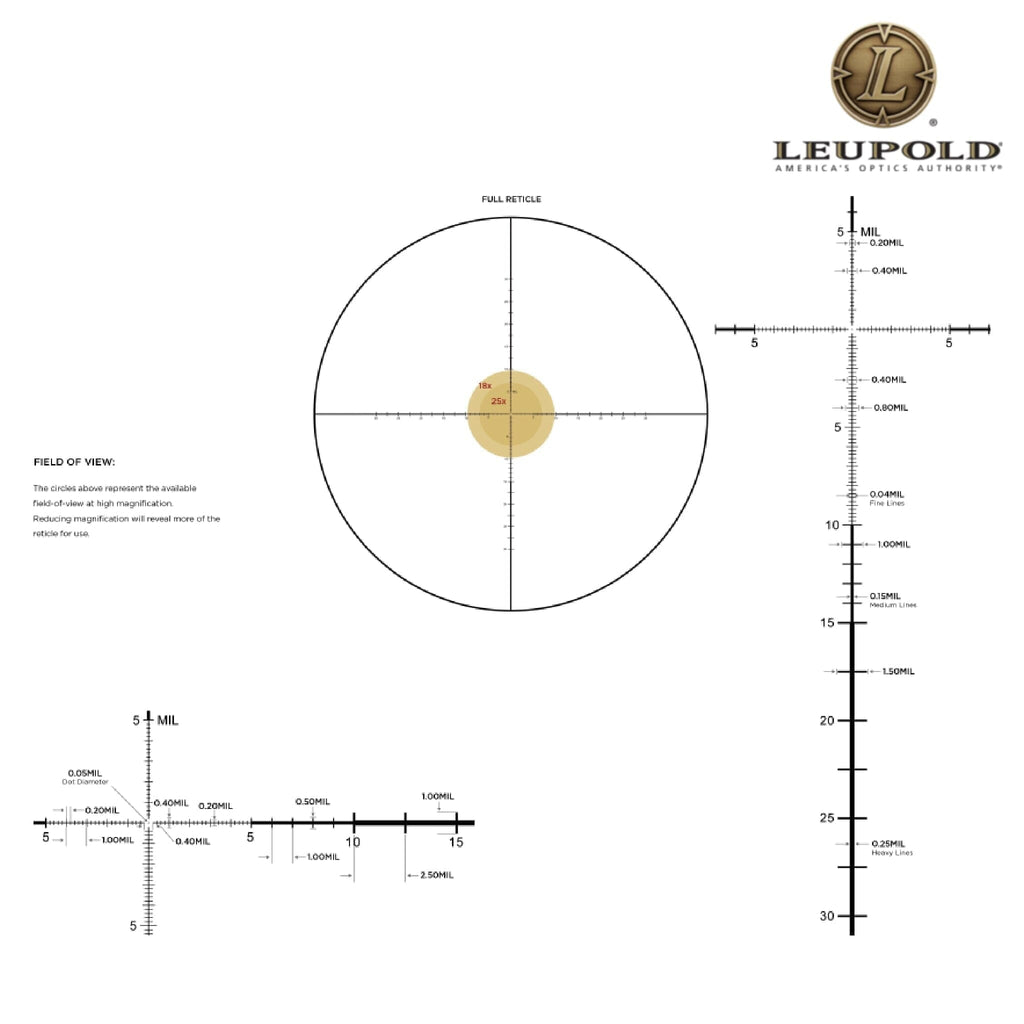

First-Focal-Plane Illuminated PR1-MIL™ Reticle: Glass-etched milliradian grid with true subtensions at any magnification; red-LED illumination offering seven daylight-bright and four night-vision-compatible settings; Motion Sensor Technology™ powers down after inactivity and instantly reactivates on movement.
-
M5C3 ZeroLock® Turret System:
-
Elevation: Exposed, lockable turret; 0.1 MIL per click; 11.7 MIL per revolution; 35 MIL total travel; positive ZeroStop™ for instant, repeatable return to zero.
-
Windage: Low-profile capped turret; 0.1 MIL per click; 17 MIL total travel; visual and tactile revolution indicator under cap.
-
Precision Side Focus Parallax: Quick-set from 50 yd to ∞ for razor-sharp reticle alignment.
-
Professional-Grade Optics: Xtended Twilight® fully multi-coated, extra-low dispersion lenses and prisms for exceptional resolution, contrast, and edge-to-edge clarity.
-
Rugged Construction: CNC-machined 35 mm main tube of 6061-T6 aluminum; matte-black hard-coat anodize; IPX7 waterproof and fog-proof; nitrogen-purged; rated to withstand .50 BMG recoil.
-
Extended Eye Relief: 3.6″ (91 mm) at low magnification → 3.8″ (97 mm) at high magnification for comfortable, repeatable head positioning.
-
Lightweight Design: 30 oz (850 g) for easy carry without compromising durability.
-
Made in USA & Lifetime Guarantee
Technical Specifications for Leupold MARK 5HD 5–25×56 Rifle Scope M5C3 FFP Illuminated PR1-MIL Reticle
|
Specification
|
Details
|
|
Model / MPN
|
180609
|
|
SKU
|
LEU-180609
|
|
UPC
|
030317028381
|
|
Country of Origin
|
USA
|
|
Magnification Range
|
5 × ⇄ 25 ×
|
|
Objective Lens Diameter
|
56 mm
|
|
Main Tube Diameter
|
35 mm
|
|
Reticle
|
Illuminated PR1-MIL™ (FFP, glass-etched)
|
|
Illumination Settings
|
7 daylight-bright + 4 NV-compatible
|
|
Battery Type & Life
|
CR2032; approx. 1,800 hr (low) / 96 hr (high)
|
|
Elevation Adjustment
|
M5C3; 0.1 MIL/click; 11.7 MIL/rev; 35 MIL total; ZeroStop™
|
|
Windage Adjustment
|
0.1 MIL/click; 17 MIL total; capped turret
|
|
Parallax Focus
|
Side focus, 50 yd → ∞
|
|
Eye Relief
|
3.6″ (91 mm) ⇄ 3.8″ (97 mm)
|
|
Field of View @ 100 yd
|
20.4 ft (low) ⇄ 4.2 ft (high)
|
|
Overall Length
|
15.67″ (398 mm)
|
|
Weight
|
30 oz (850 g)
|
|
Housing Material / Finish
|
6061-T6 aluminum; matte-black hard-coat anodize
|
|
Waterproof / Fog-Proof
|
Yes (IPX7)
|
|
Shock Resistance
|
Rated to withstand .50 BMG recoil
|
Included Accessories
-
High-speed reversible throw-lever
-
Fast-focus eyepiece
-
Flip-up lens covers
-
Lens shade
-
Lens cloth & turret adjustment wrench
-
CR2032 battery
-
User manual
