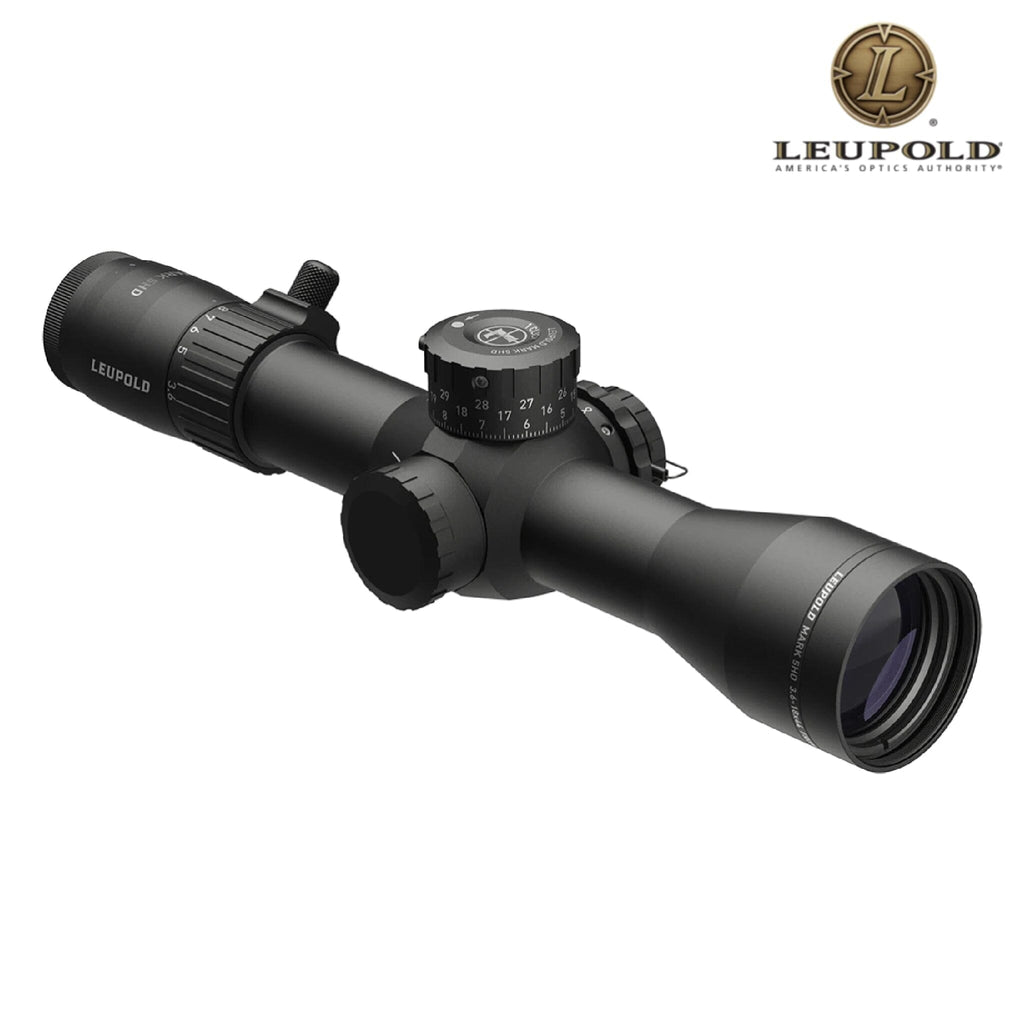

Leupold MARK 5HD 3.6–18×44 Rifle Scope M5C3 FFP Illuminated Tremor 3 Reticle
(Model 176811)
Features
-
5:1 Zoom Ratio: Low‐profile throw-lever for rapid transitions between 3.6× (wide-field) and 18× (precision).
-

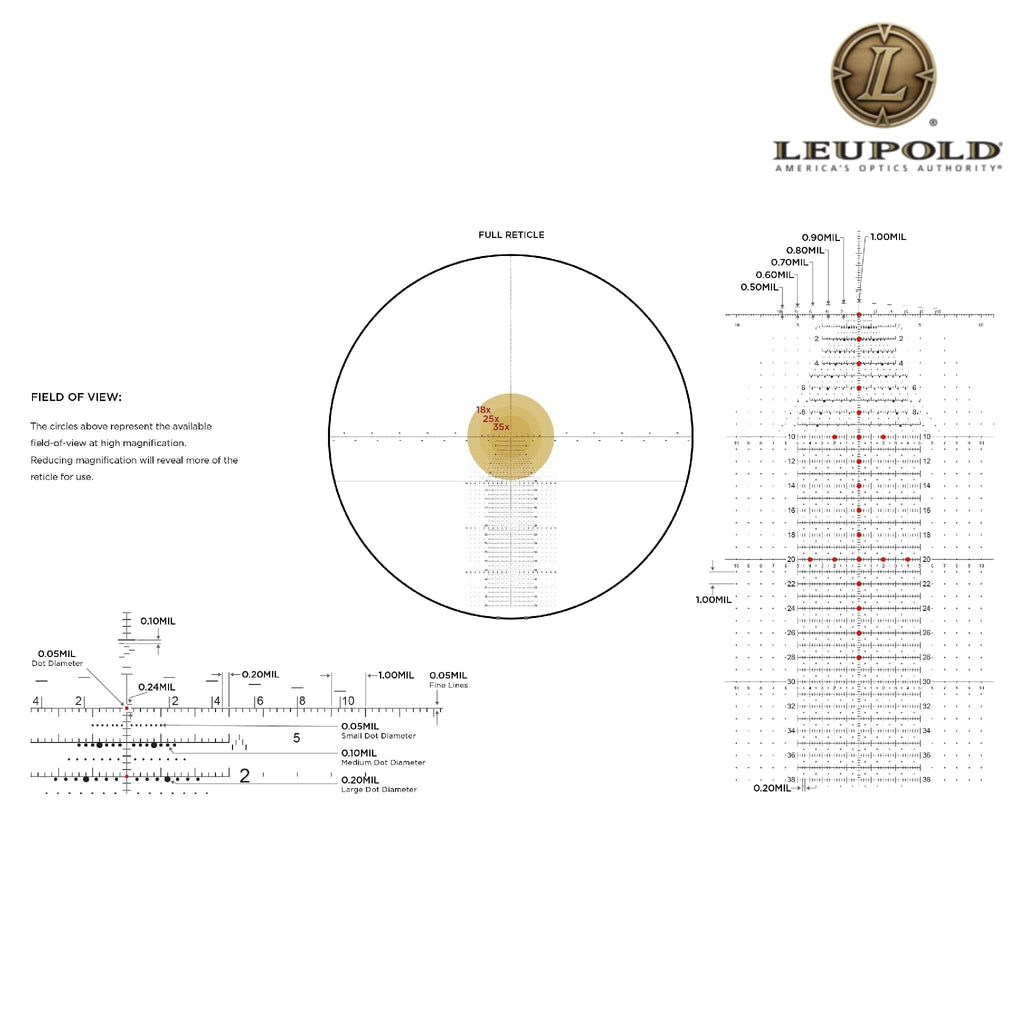

First-Focal-Plane Illuminated Tremor 3 Reticle: Glass-etched milliradian-based Tremor 3 reticle with ranging tree and floating center dot; true hold-over/hold-off at any magnification; red-LED illumination offering seven daylight-bright and four NV-compatible settings; Motion Sensor Technology™ powers down after inactivity and instantly reactivates on movement.
-

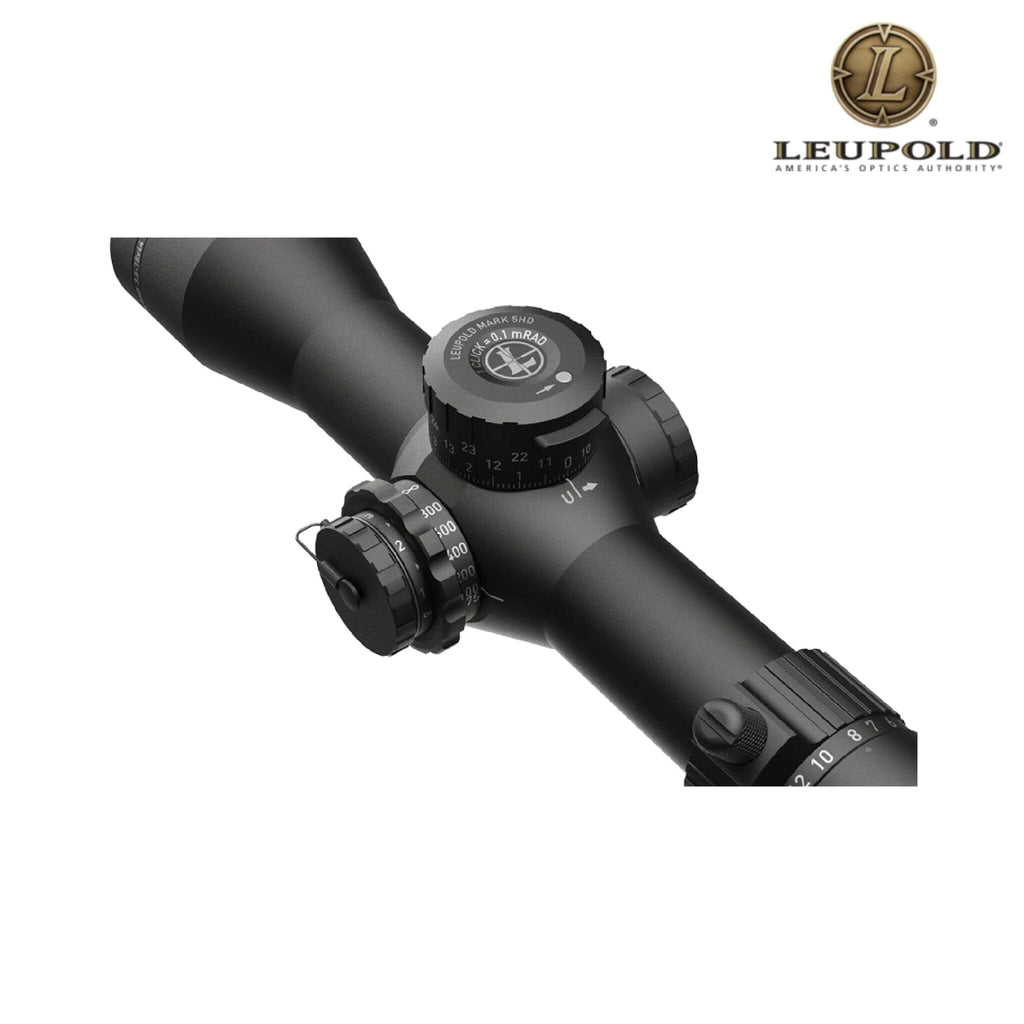

M5C3 ZeroLock® Turret System:
-
Elevation: Exposed turret; 0.1 mrad per click; 10 mrad per revolution; 30 mrad total travel; positive ZeroStop™ for instant, repeatable return to zero.
-
Windage: Low-profile capped turret; 0.1 mrad per click; 24 mrad total travel.
-
Side Focus Parallax: Quick-set adjustment from 50 yd to ∞ for tack-sharp reticle alignment.
-
Professional-Grade Optics: Extra-low dispersion glass with fully multi-coated lenses and prisms (Xtended Twilight® system) for exceptional resolution, contrast, and edge-to-edge clarity.
-
Rugged Construction: CNC-machined 35 mm main tube of 6061-T6 aluminum with matte-black hard-coat anodize; IPX7 waterproof; nitrogen-purged; rated to withstand .50 BMG recoil.
-
Extended Eye Relief: 3.54″ (90 mm) – 3.82″ (97 mm) constant across zoom range for comfortable head positioning.
-
Lightweight & Compact: Up to 20 oz lighter than competing scopes in its class.
-
Made in USA & Full Lifetime Guarantee
Technical Specifications for Leupold MARK 5HD 3.6–18×44 Rifle Scope M5C3 FFP Illuminated Tremor 3 Reticle
Specification
|
Details
|
Model / MPN
|
176811
|
SKU
|
LEU-176811
|
UPC
|
030317021627
|
Country of Origin
|
USA
|
Magnification Range
|
3.6 × ⇄ 18 ×
|
Objective Lens Diameter
|
44 mm
|
Main Tube Diameter
|
35 mm
|
Reticle
|
Illuminated Tremor 3 (FFP, glass-etched)
|
Illumination Settings
|
7 daylight-bright + 4 NV-compatible
|
Battery Type & Life
|
CR2032; ~1,800 hr (low) / ~96 hr (high)
|
Elevation Adjustment
|
M5C3; 0.1 mrad/click; 10 mrad/rev; 30 mrad total; ZeroStop™
|
Windage Adjustment
|
0.1 mrad/click; 24 mrad total; capped turret
|
Parallax Focus
|
Side focus, 50 yd → ∞
|
Eye Relief
|
3.54″ (90 mm) ⇄ 3.82″ (97 mm)
|
Field of View @ 100 yd
|
28.4 ft (low) ⇄ 5.8 ft (high)
|
Overall Length
|
12.06″ (306 mm)
|
Weight
|
26 oz (737 g)
|
Housing Material / Finish
|
6061-T6 aluminum; matte-black hard-coat anodize
|
Waterproof / Fog-Proof
|
Yes (IPX7)
|
Shock Resistance
|
Rated to withstand .50 BMG recoil
|
Included Accessories
-
Removable throw-lever
-
ZeroLock® windage cap
-
Flip-up lens covers
-
CR2032 battery
-
User manual
