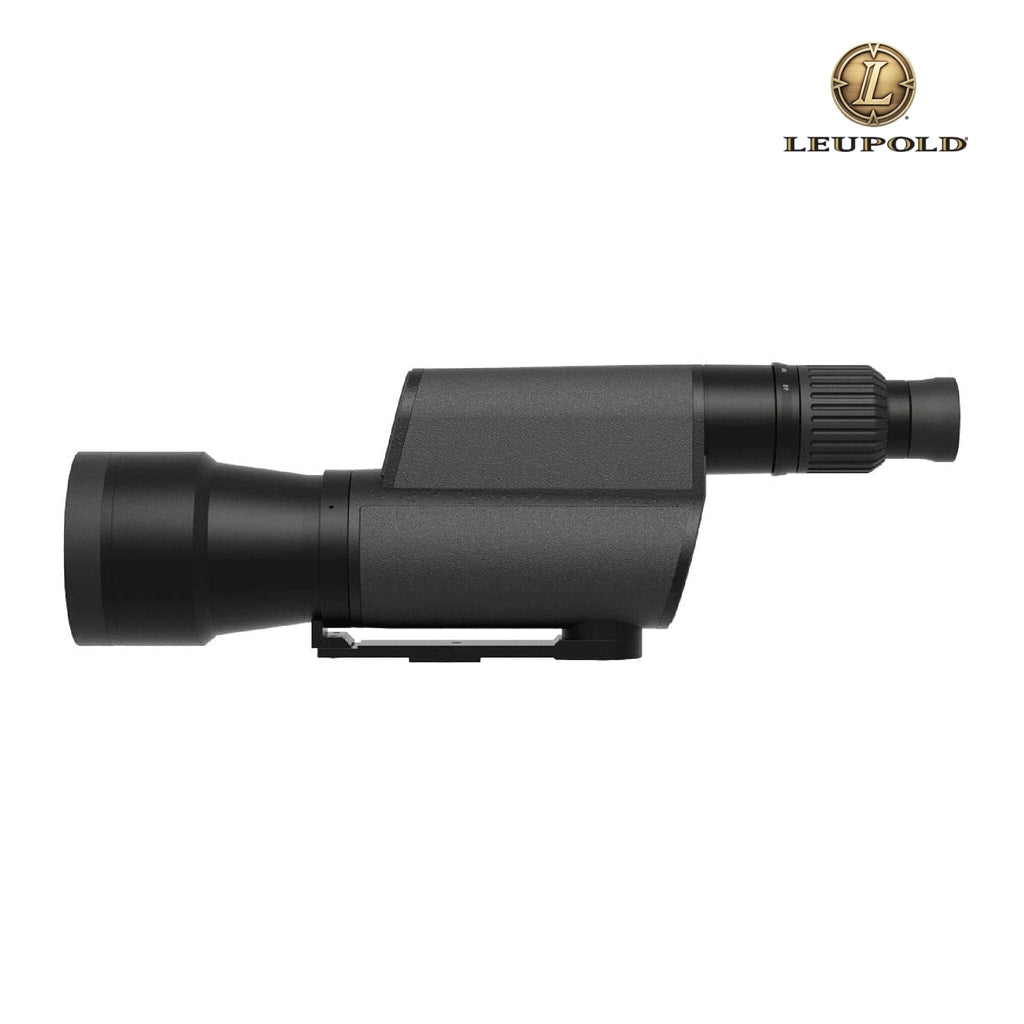

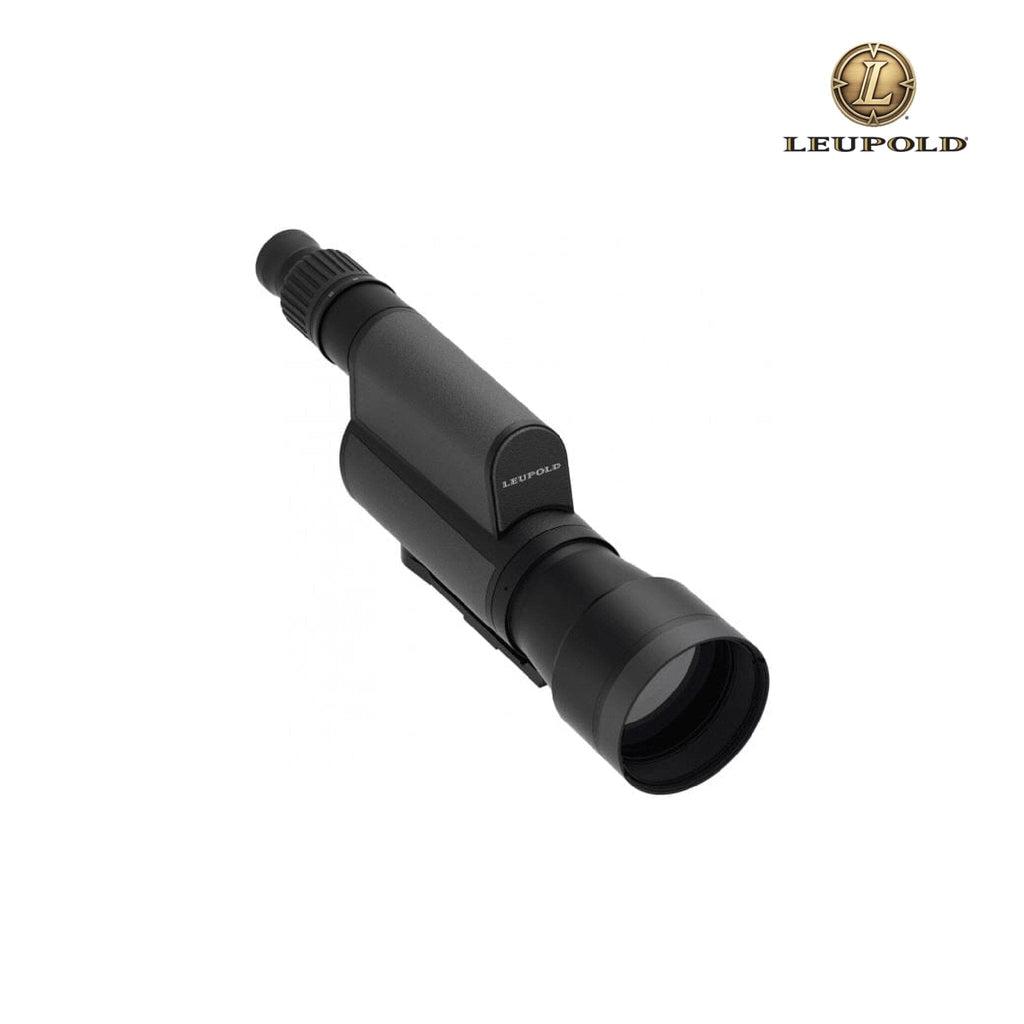

Leupold MARK 4 20–60×80 Tactical Spotting Scope TMR Reticle
Features
-
Xtended Twilight® Lens System: Advanced lens and prism coatings maximize light transmission for exceptional low-light performance.
-
DiamondCoat® 2: Ion-assist abrasion-resistant lens coatings shed dirt and scratches for long-term durability.
-
Folded Light-Path Design: Internal prism relay delivers full optical performance in a more compact chassis.
-

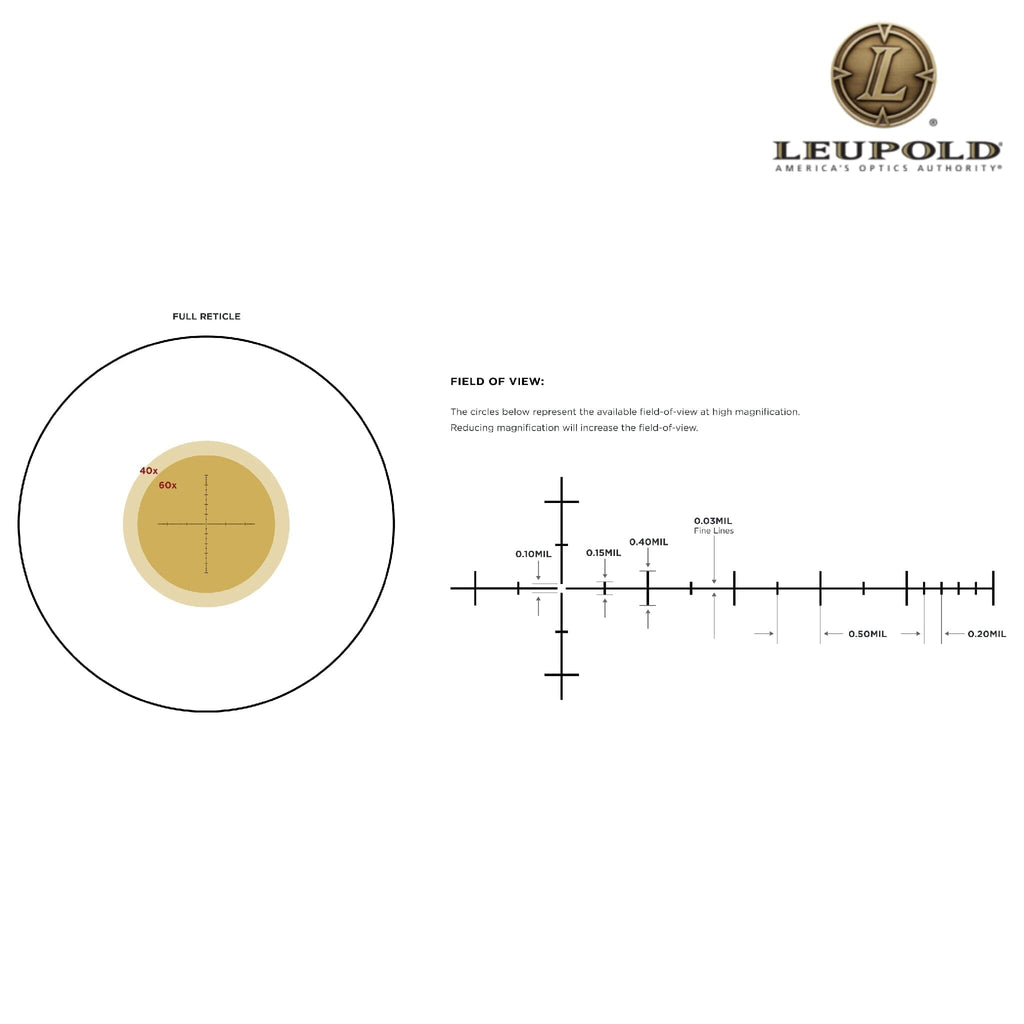

TMR® Reticle: First-focal-plane MIL-rad reticle calibrated for range estimation and wind holds at all magnifications.
-
Rugged, Waterproof Construction: Magnesium-alloy housing with armor-coat finish; 100 % waterproof and fog-proof to IPX7 standards; engineered to survive shocks, blows, drops, and impacts.
-
Tripod-Ready: Standard ¼-20 socket (rotatable) for secure mounting on any spotting-scope tripod.
Technical Specifications for Leupold MARK 4 20–60×80 Tactical Spotting Scope TMR Reticle
Specification
|
Details
|
Model / MPN
|
110826
|
SKU
|
110826
|
UPC
|
0030317108267
|
Magnification
|
20 × ⇄ 60 ×
|
Objective Lens Diameter
|
80 mm
|
Exit Pupil
|
4.0 mm (20 ×) ⇄ 1.3 mm (60 ×)
|
Field of View @ 1 000 yd
|
121 ft (20 ×) ⇄ 42 ft (60 ×)
|
Angular FOV
|
2.3° (20 ×) ⇄ 0.7° (60 ×)
|
Eye Relief
|
30 mm
|
Close Focus Distance
|
20 ft (6 m)
|
Interpupillary Adjustment
|
56–75 mm
|
Reticle Position
|
First Focal Plane
|
Reticle Type
|
TMR® (MIL-rad)
|
Optical Coatings
|
DiamondCoat 2; fully multi-coated lenses & prisms
|
Chassis Material / Finish
|
Magnesium alloy; armor-coat (matte black)
|
Tripod Mount
|
¼-20 socket; rotatable
|
Waterproof / Fogproof
|
Yes (IPX7)
|
Length
|
15.5″ (394 mm)
|
Weight
|
61.8 oz (1 752 g)
|
Included Accessories
-

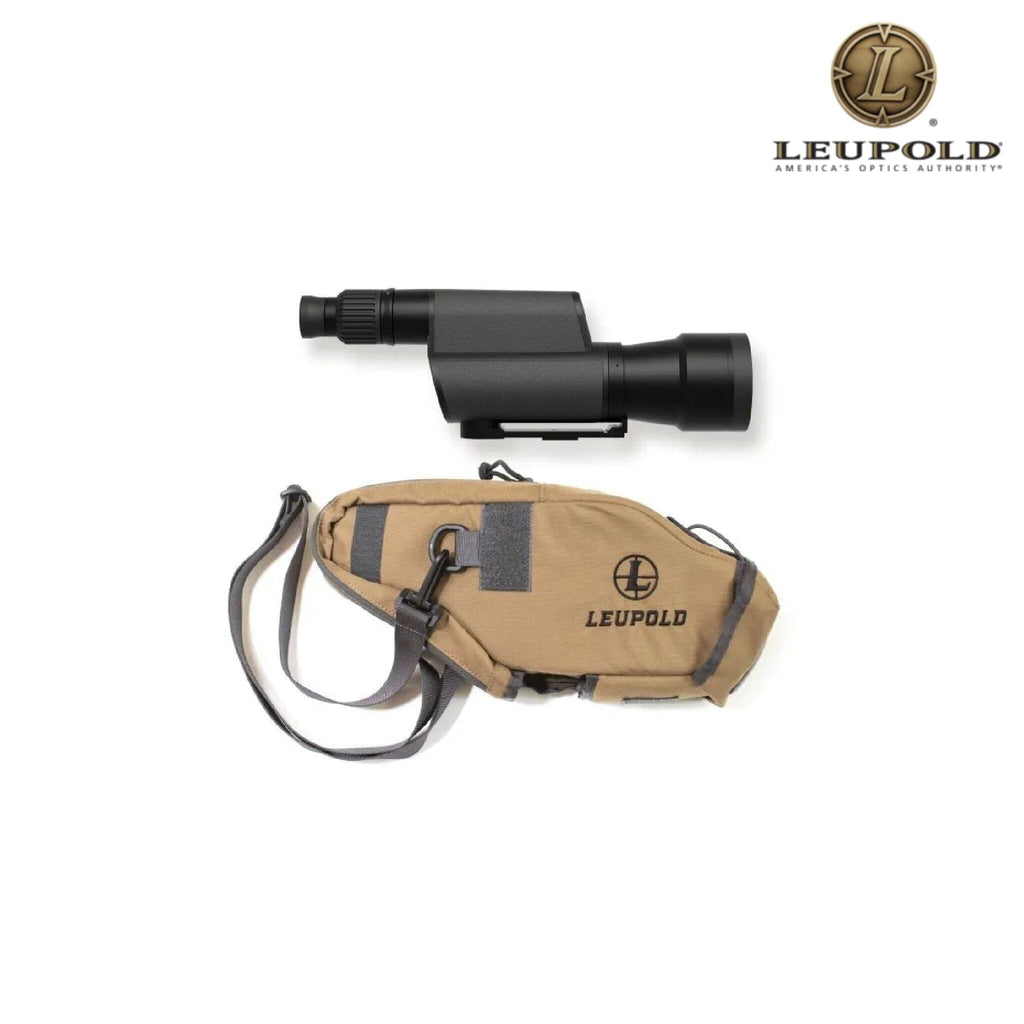

Stay-On™ protective case
-
Microfiber lens cloth
-
User manual
