Leupold MARK 4 12–40×60 Tactical Spotting Scope TMR Reticle
Features
-
Xtended Twilight® Lens System: Advanced glass and coatings maximize light transmission for exceptional low-light performance.
-
DiamondCoat® 2: Ion-assist coating delivers superior abrasion resistance and easier cleaning.
-
Folded Light-Path Design: Internal prism relay provides a compact chassis without sacrificing optical performance.
-

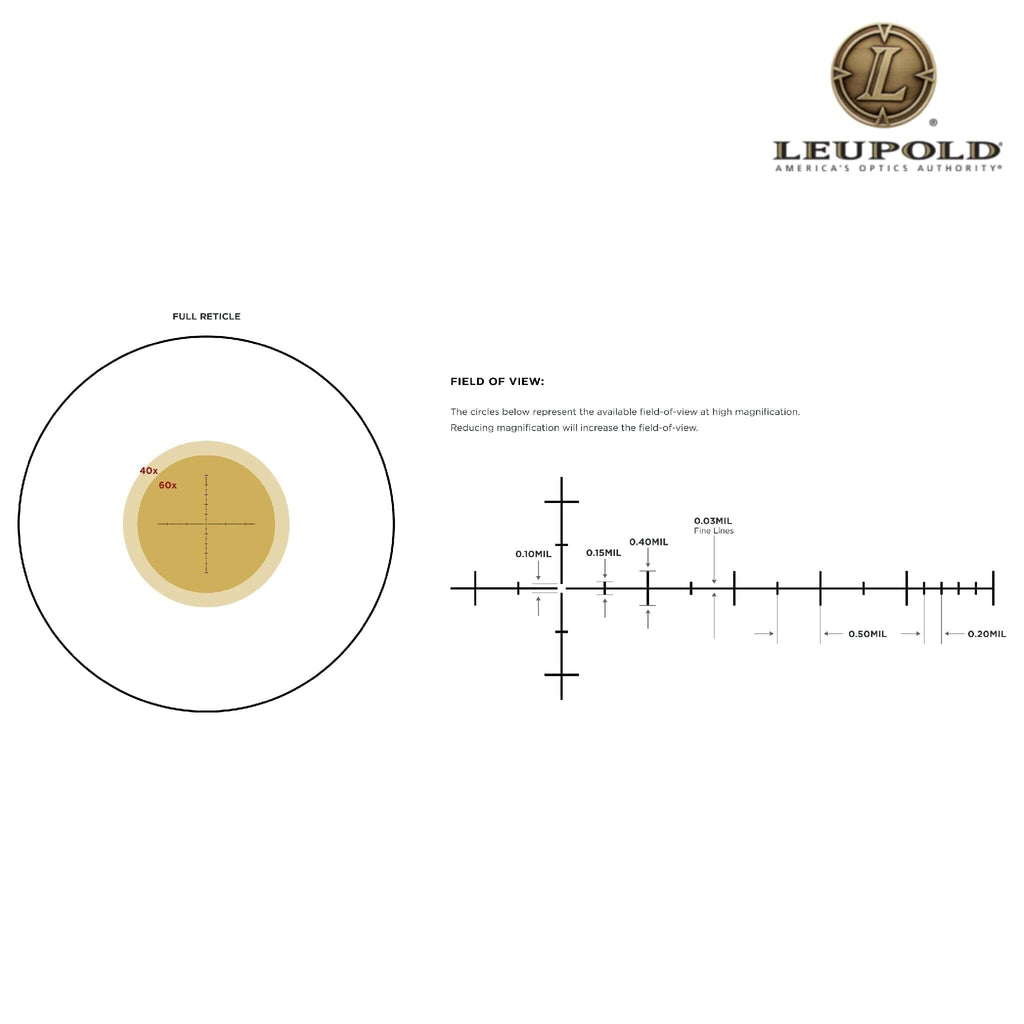

TMR® (Tactical Milling Reticle): First-focal-plane MIL-rad reticle calibrated for range estimation and wind holds in any conditions.
-
Rugged Construction: Magnesium-alloy housing with armor-coated finish; engineered to survive shocks, blows, drops, and impacts.
-
100% Waterproof & Fogproof: O-ring sealed and nitrogen-purged to IPX7 standards for use in all environments.
-
Tripod-Ready: Standard ¼-20 socket for secure mounting on spotting-scope tripods.
Technical Specifications for Leupold MARK 4 12–40×60 Tactical Spotting Scope TMR Reticle
Specification
|
Details
|
Model / MPN
|
60040
|
SKU
|
60040
|
UPC
|
030317600402
|
Magnification
|
12 × ⇄ 40 ×
|
Objective Lens Diameter
|
60 mm
|
Exit Pupil (12×)
|
4.8 mm
|
Exit Pupil (40×)
|
1.5 mm
|
Linear FOV @ 1 000 yd
|
168 ft (12×) ⇄ 52 ft (40×)
|
Angular FOV (12×)
|
3.2°
|
Angular FOV (40×)
|
1.0°
|
Eye Relief
|
30 mm
|
Close Focus Distance
|
36 ft (11 m)
|
Interpupillary Adjustment
|
56 – 75 mm
|
Reticle Position
|
First Focal Plane
|
Reticle Type
|
TMR® (MIL-rad)
|
Coatings
|
DiamondCoat 2; fully multi-coated lenses & prisms
|
Chassis Material / Finish
|
Magnesium alloy; armor-coated (matte black)
|
Tripod Mount
|
¼-20 socket
|
Waterproof / Fogproof
|
Yes (IPX7)
|
Length
|
12.4″ (315 mm)
|
Weight
|
37 oz (1 050 g)
|
Included Accessories
-

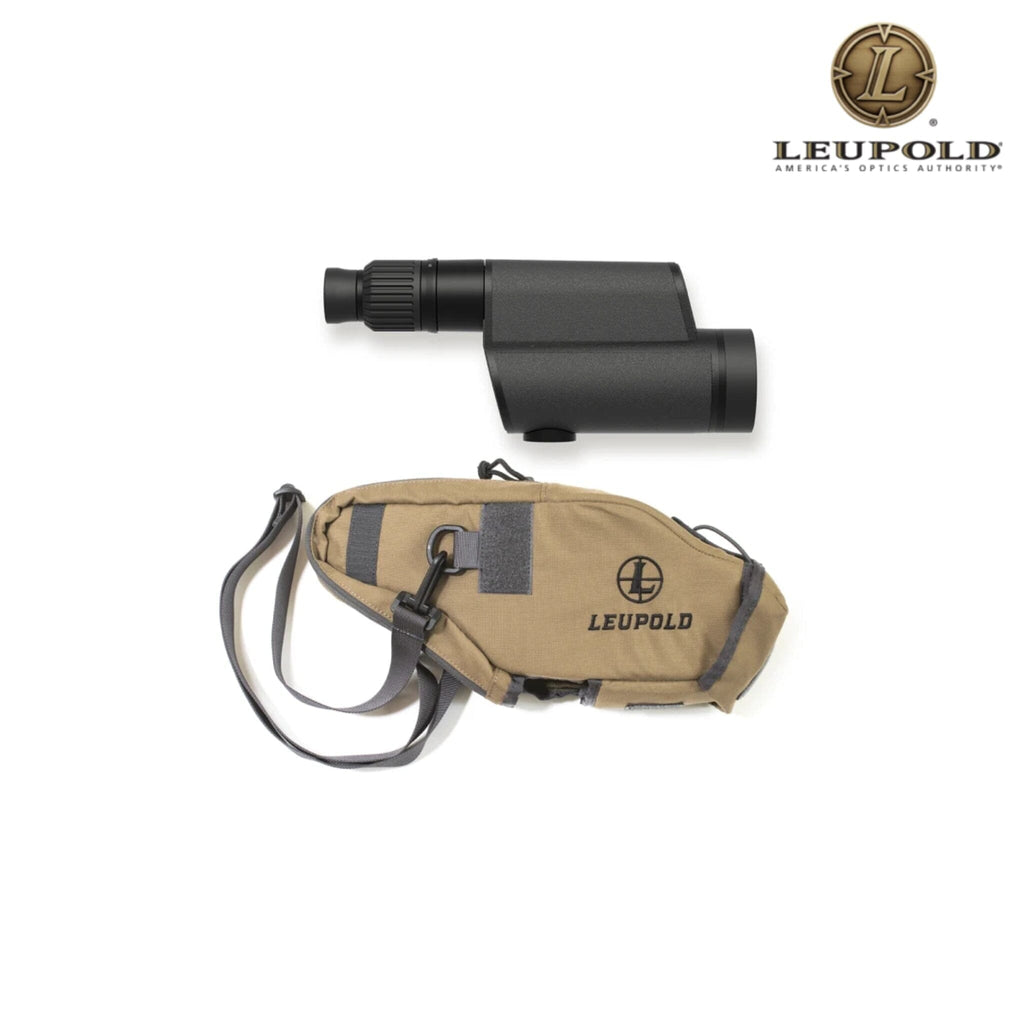

Stay-On protective case
-
Microfiber lens cloth
-
User manual
