Leupold MARK 4 12–40×60 Tactical Spotting Scope Inverted H-32 Reticle
Features
-
Xtended Twilight® Lens System: Advanced lens and prism coatings for maximum light transmission in low-light conditions.
-
DiamondCoat® 2: Ion-assist coating for superior abrasion resistance and easy cleaning.
-
Folded Light-Path Design: Internal prism relay delivers full performance in a shorter, more rugged chassis.
-

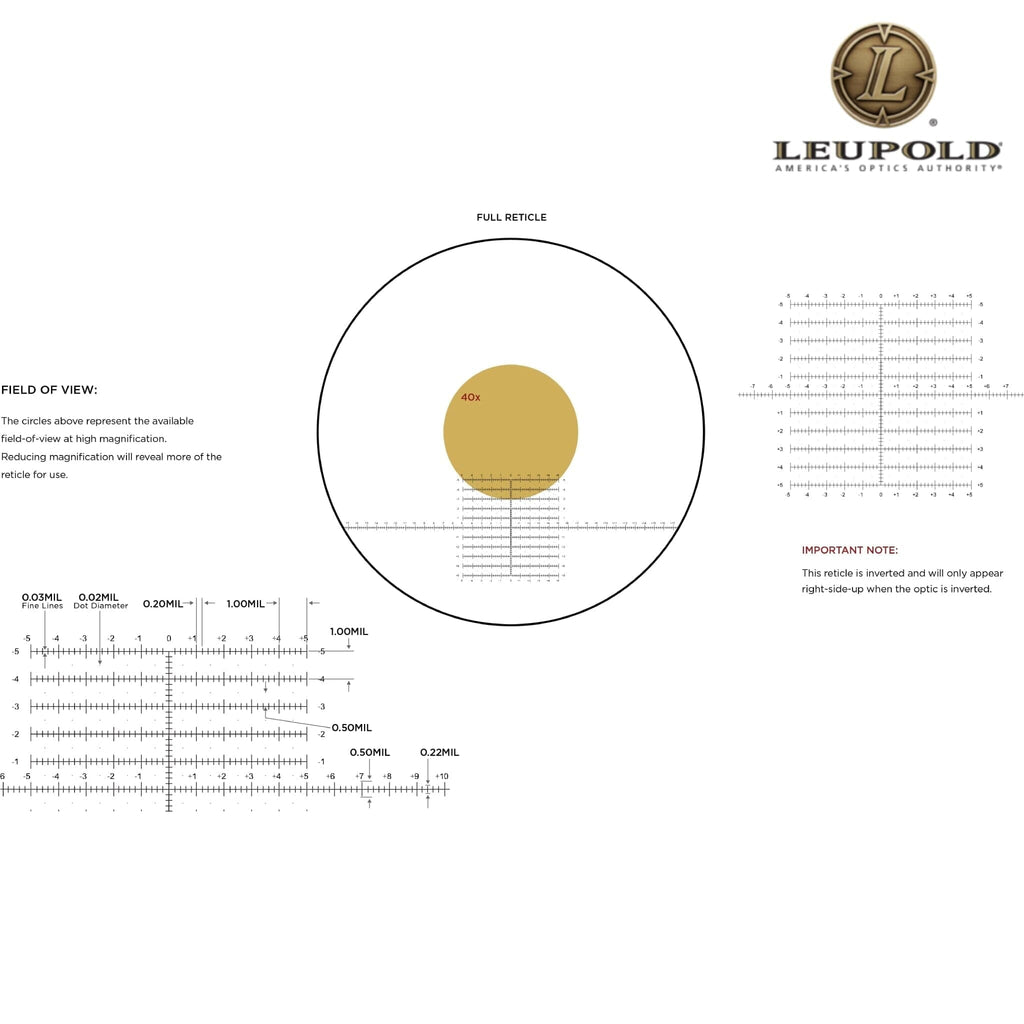

Inverted H-32® Reticle: First-focal-plane Horus™ reticle inverted for intuitive hold-over and wind-hold corrections in MIL-radians.
-
Rugged, Waterproof Construction: Magnesium-alloy body with armor-coated finish; 100% waterproof and fog-proof to IPX7 standards; engineered to survive shocks, drops, and impacts.
-
Tripod-Ready: Standard ¼-20 socket for secure mounting on any tactical or spotting-scope tripod.
Technical Specifications for Leupold MARK 4 12–40×60 Tactical Spotting Scope Inverted H-32 Reticle
Specification
|
Details
|
Model / MPN
|
110183
|
SKU
|
110183
|
UPC
|
(Not published by manufacturer)
|
Magnification
|
12 × ⇄ 40 ×
|
Objective Lens Diameter
|
60 mm
|
Exit Pupil
|
4.8 mm (12×) ⇄ 1.5 mm (40×)
|
Field of View @ 1 000 yd
|
168 ft (12×) ⇄ 52 ft (40×)
|
Angular FOV
|
3.2° (12×) ⇄ 1.0° (40×)
|
Eye Relief
|
30 mm
|
Close Focus Distance
|
36 ft (11 m)
|
Interpupillary Distance
|
56–75 mm
|
Reticle Position
|
First Focal Plane
|
Reticle Type
|
Inverted H-32® (MIL-rad)
|
Coatings
|
DiamondCoat 2; fully multi-coated lenses & prisms
|
Chassis Material / Finish
|
Magnesium alloy; armor-coated (matte black)
|
Tripod Mount
|
¼-20 socket
|
Waterproof / Fogproof
|
Yes (IPX7)
|
Length
|
12.4″ (315 mm)
|
Weight
|
37 oz (1 050 g)
|
Included Accessories
-

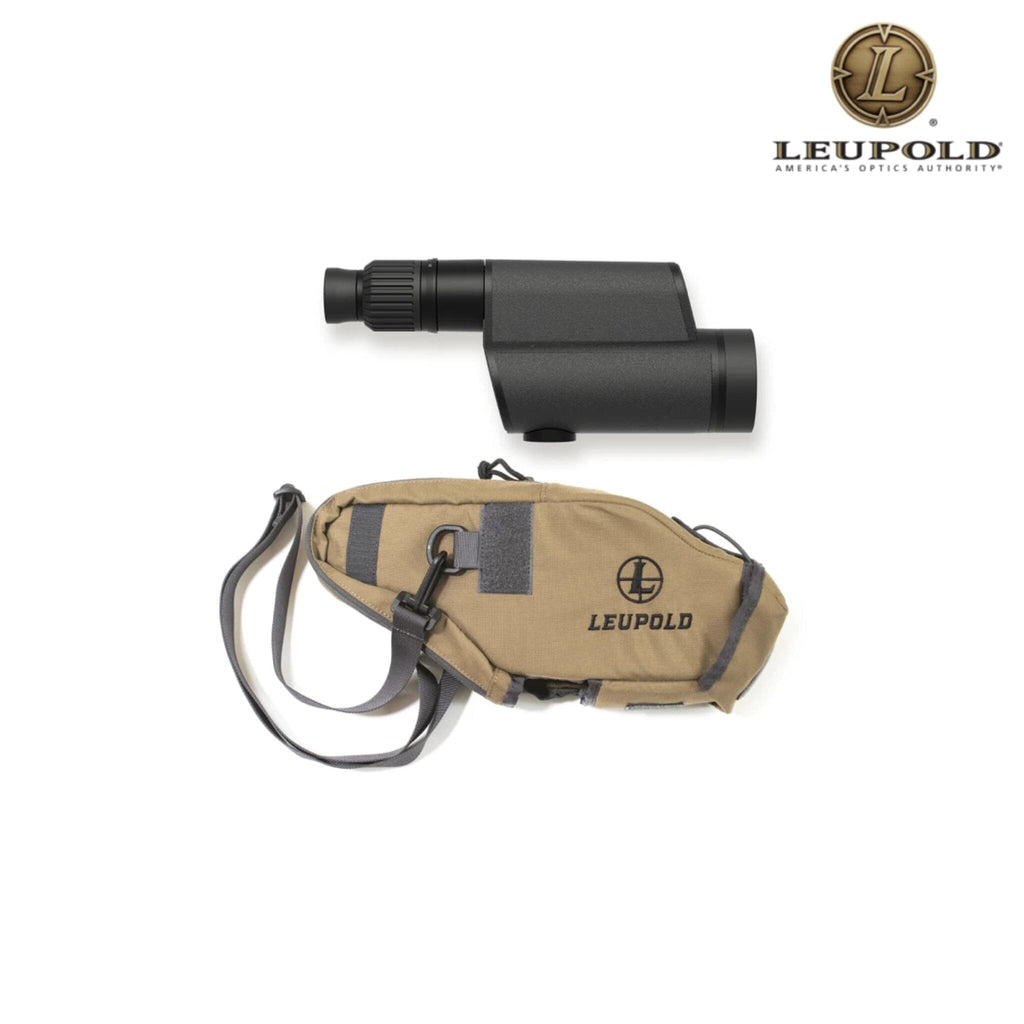

Stay-On™ protective case
-
Microfiber lens cloth
-
User manual
