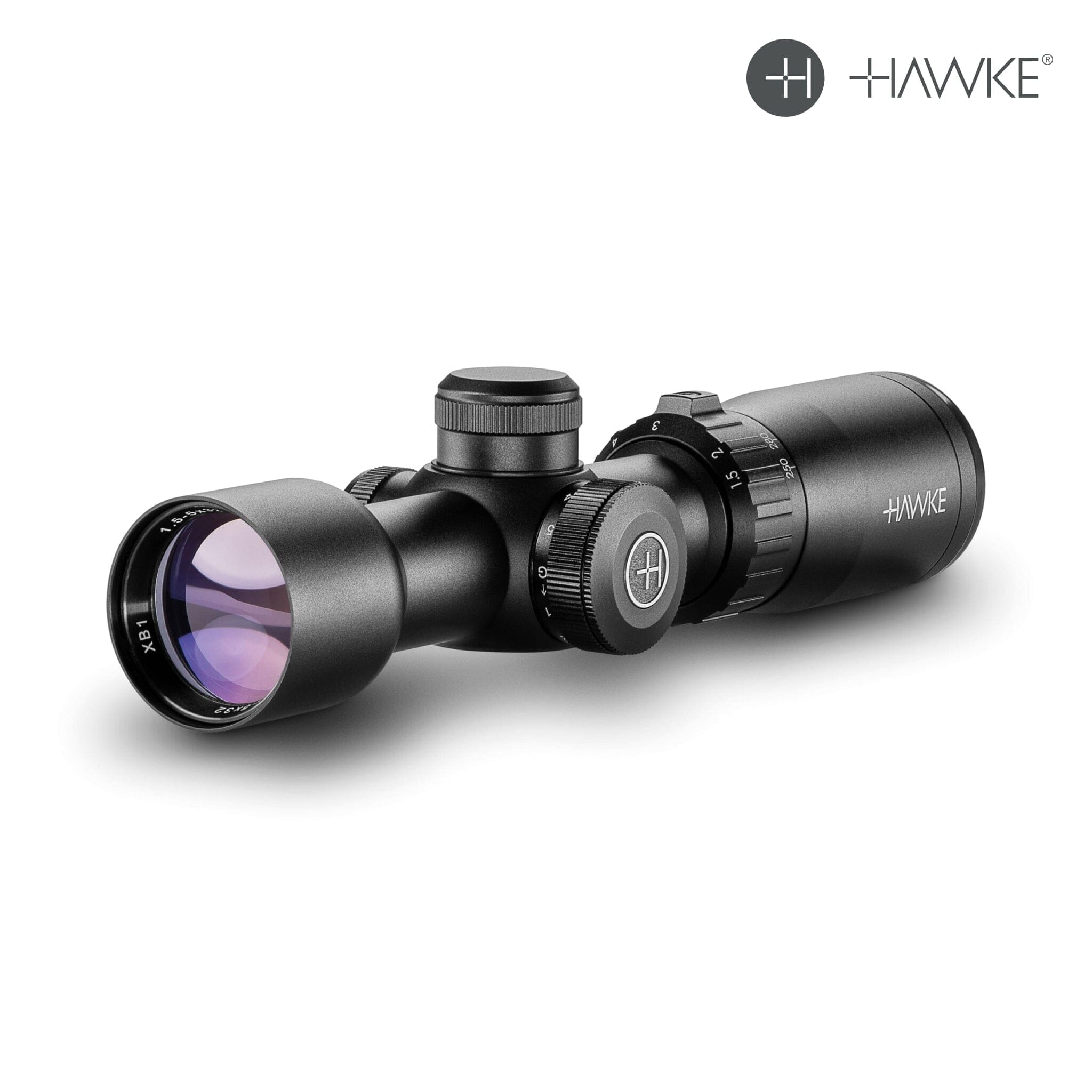

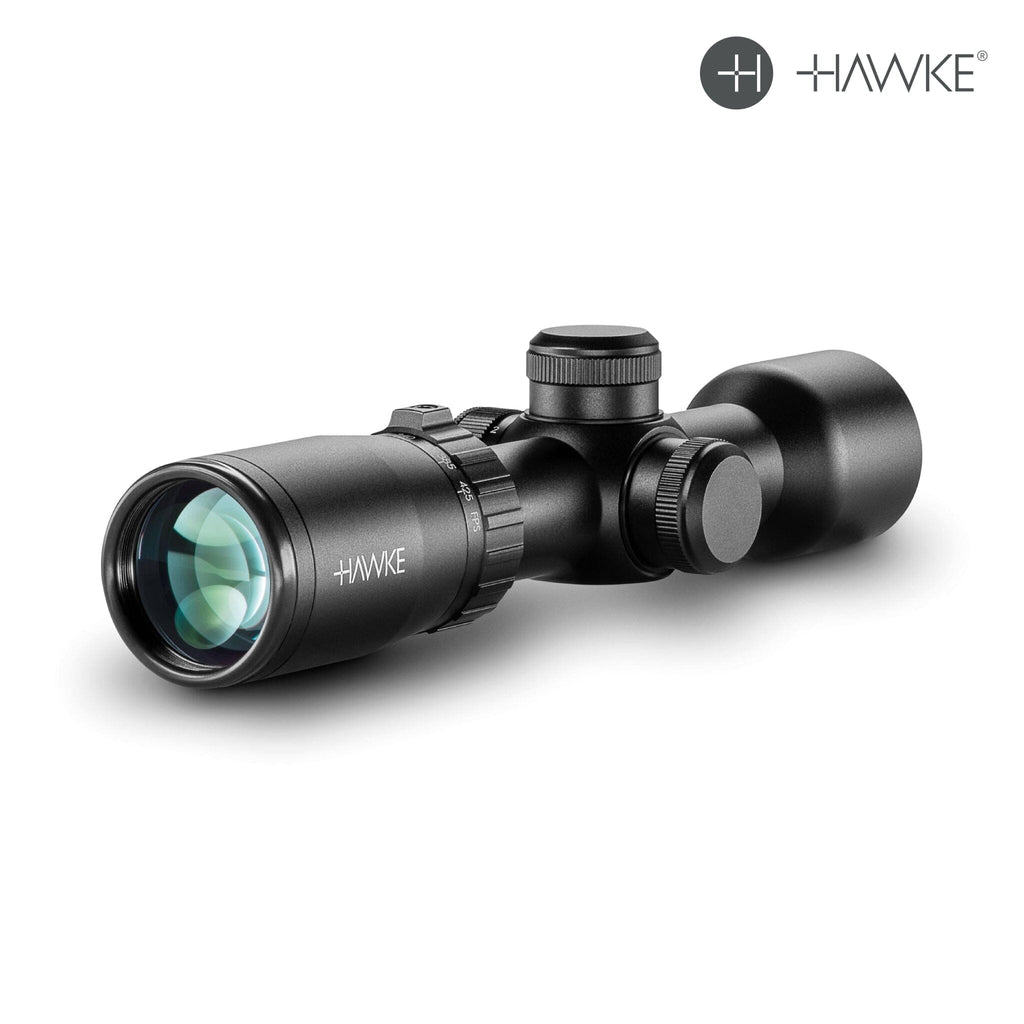

Hawke XB1 1.5-5x32 Crossbow Scope SR Reticle
Hawke XB1 1.5–5×32 Crossbow Scope SR Reticle
Features

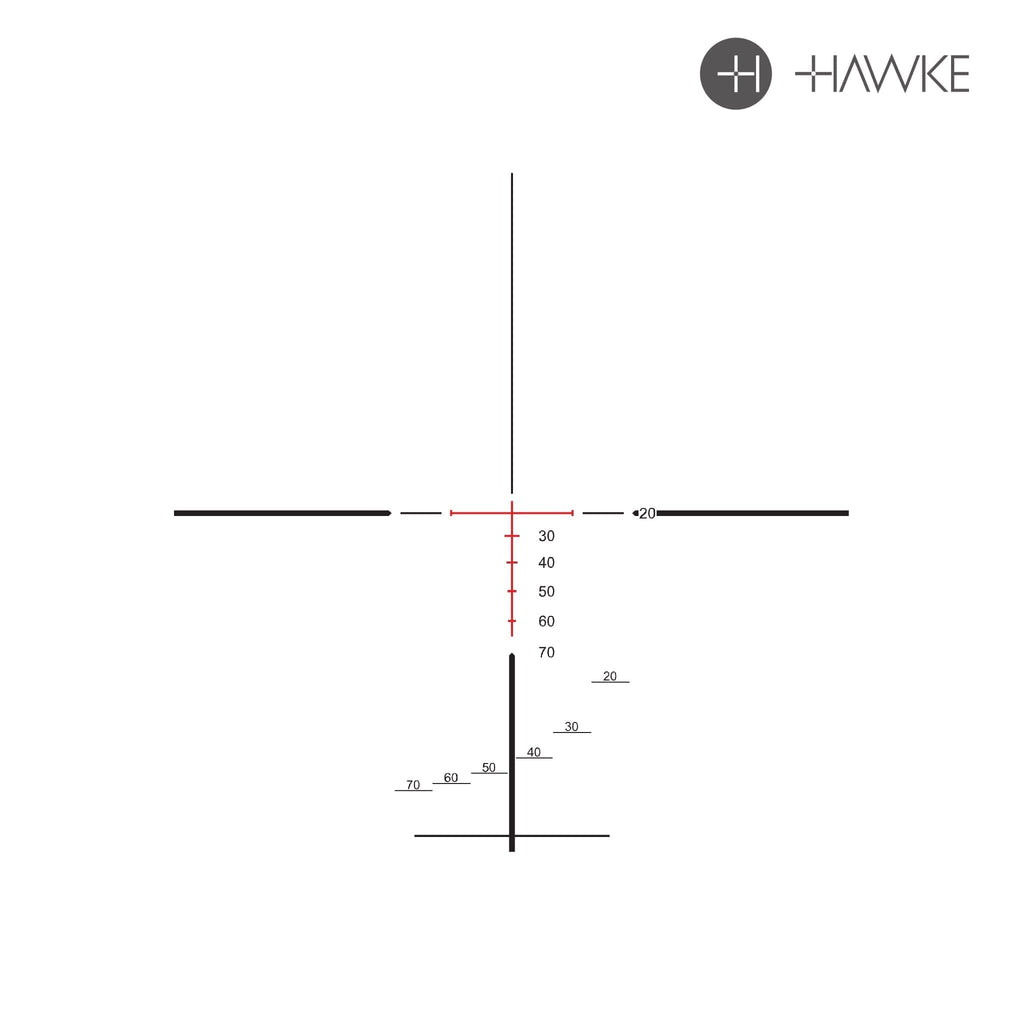

- XB1 SR Ballistic Reticle: Glass-etched “SR” reticle calibrated for 340 fps crossbow bolts with 10 yd increments from 20 yd to 70 yd; Vari-Speed ring lets you match bolt speed (250–425 fps) for unsurpassed accuracy.
- Dual-Color Illumination: Red/green illumination with five brightness levels per color via a saddle-mounted rheostat for low-light and bright-light conditions.
- Robust 1″ Mono-Tube Chassis: Forged aluminum, nitrogen-purged and O-ring sealed; waterproof, shock- and fog-proof; all-caliber rated for rugged use.
- Fully Multi-Coated Optics: 11-layer anti-reflective coatings maximize light transmission, contrast, and clarity.
- Fixed Parallax at 50 yd: Optimized focus for typical crossbow engagement distances.
- Low-Profile ½ MOA Turrets: Resettable, fingertip-adjustable turrets with protective caps; 120 MOA total windage/elevation travel.
- High-Torque Zoom Ring & Fast-Focus Eyebell: Textured zoom ring and quick-focus diopter for rapid setup and a razor-sharp sight picture.
Technical Specifications for Hawke XB1 1.5–5×32 Crossbow Scope SR Reticle
Specification |
Details |
Model / MPN |
XB1 1.5–5×32 SR (12221) |
SKU |
12221 |
UPC |
5054492122219 |
Magnification Range |
1.5–5× |
Objective Lens Diameter |
32 mm |
Tube Diameter |
1″ (25.4 mm) |
Reticle |
XB1 SR multi-line (red/green) |
Illumination Levels |
5 red + 5 green |
Parallax / Focus |
Fixed at 50 yd |
Field of View @ 100 yd |
33.3 ft (10.2 m) |
Eye Relief |
102 mm (4″) |
Exit Pupil |
21.3–6.4 mm |
Adjustment Graduation |
½ MOA per click |
Total Windage/Elevation |
±120 MOA |
Length |
216 mm (8.5″) |
Weight |
311 g (11 oz) |
Optical Coatings |
11-layer fully multi-coated |
Chassis Material / Finish |
Forged aluminum, matte-black anodized |
Sealing |
Nitrogen-purged; waterproof, shock- & fog-proof |
Warranty |
Hawke No-Fault Lifetime Warranty |
Included Accessories
- Medium aluminum rings (installed)
- Flip-up lens covers
- Cleaning cloth
- Instruction manual
