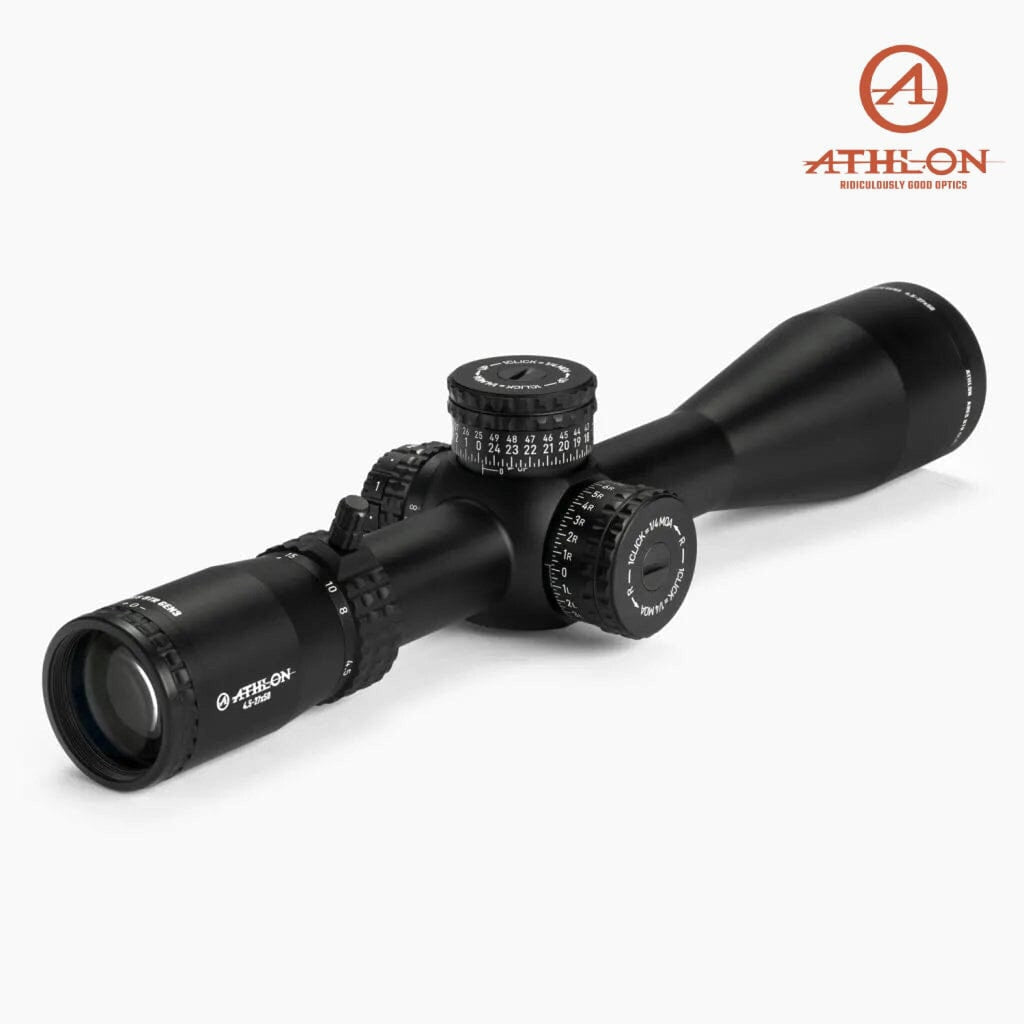

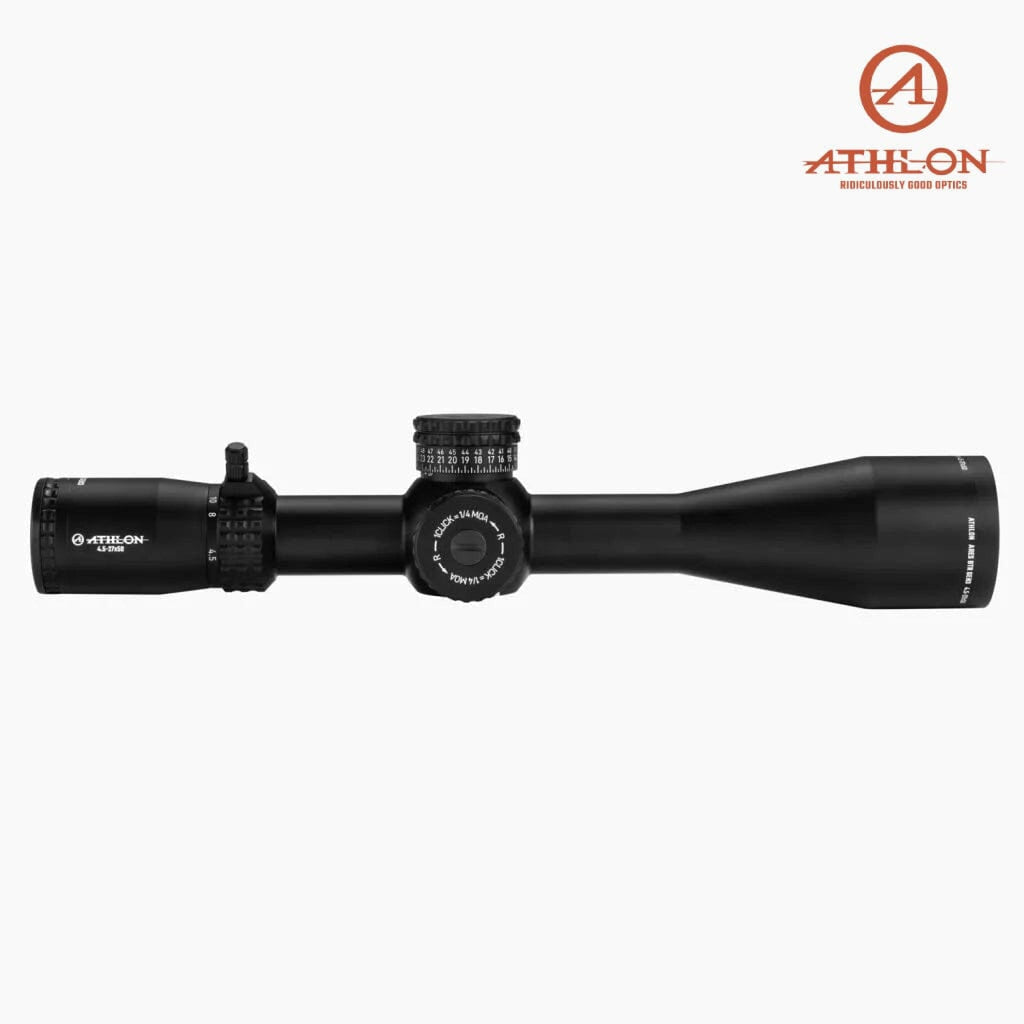

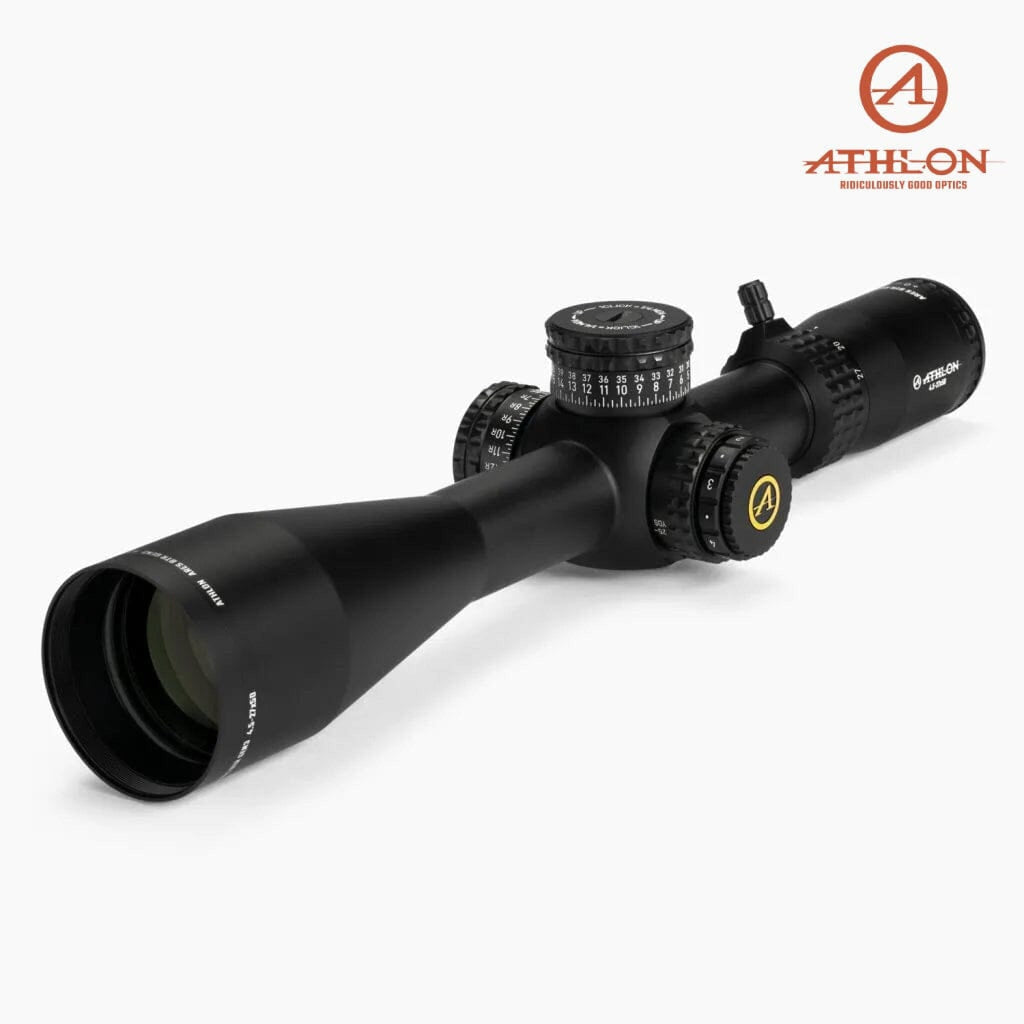

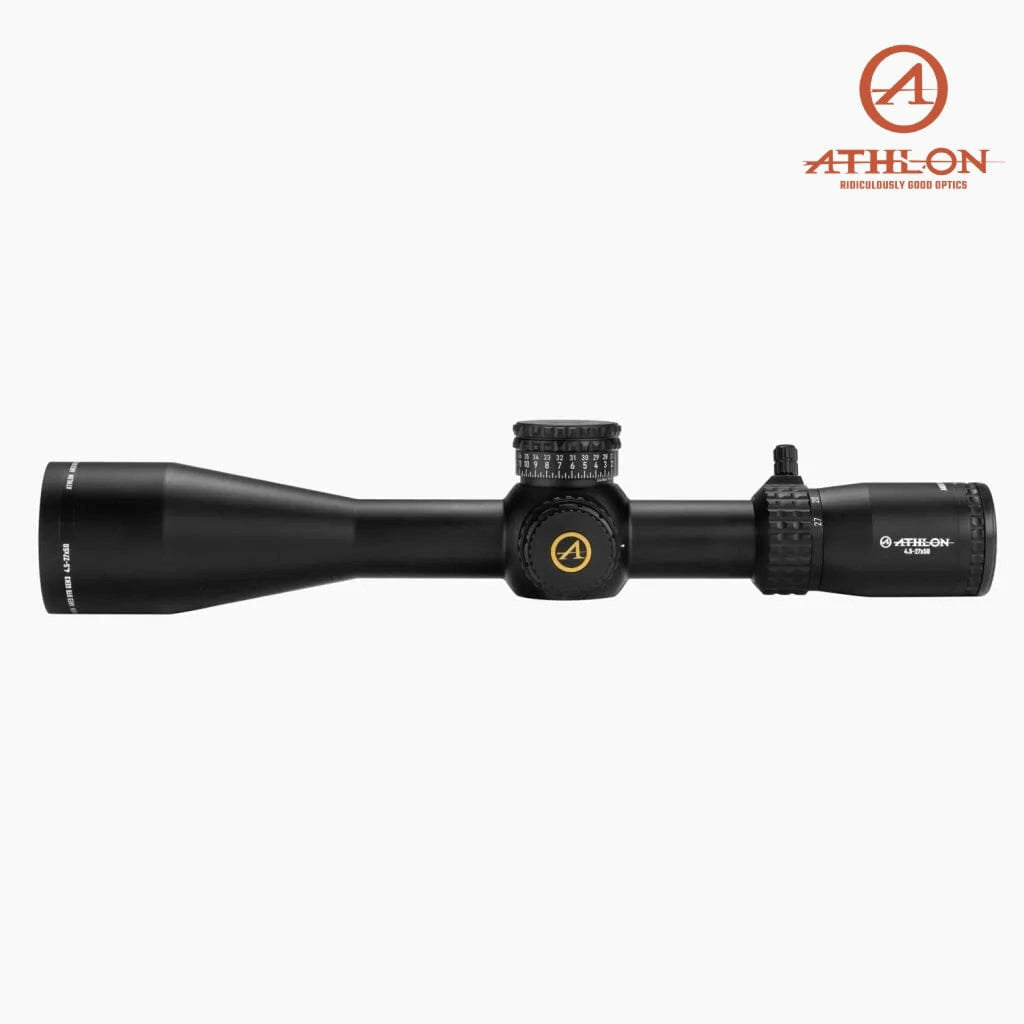

Athlon Ares BTR GEN 3 HD 4.5–27×50 Rifle Scope APLR13 FFP IR MOA Reticle
Features
-
4.5–27× Variable Magnification: Low-profile throw lever for fast transitions between wide-field (4.5×) and extreme-range (27×) engagements.
-

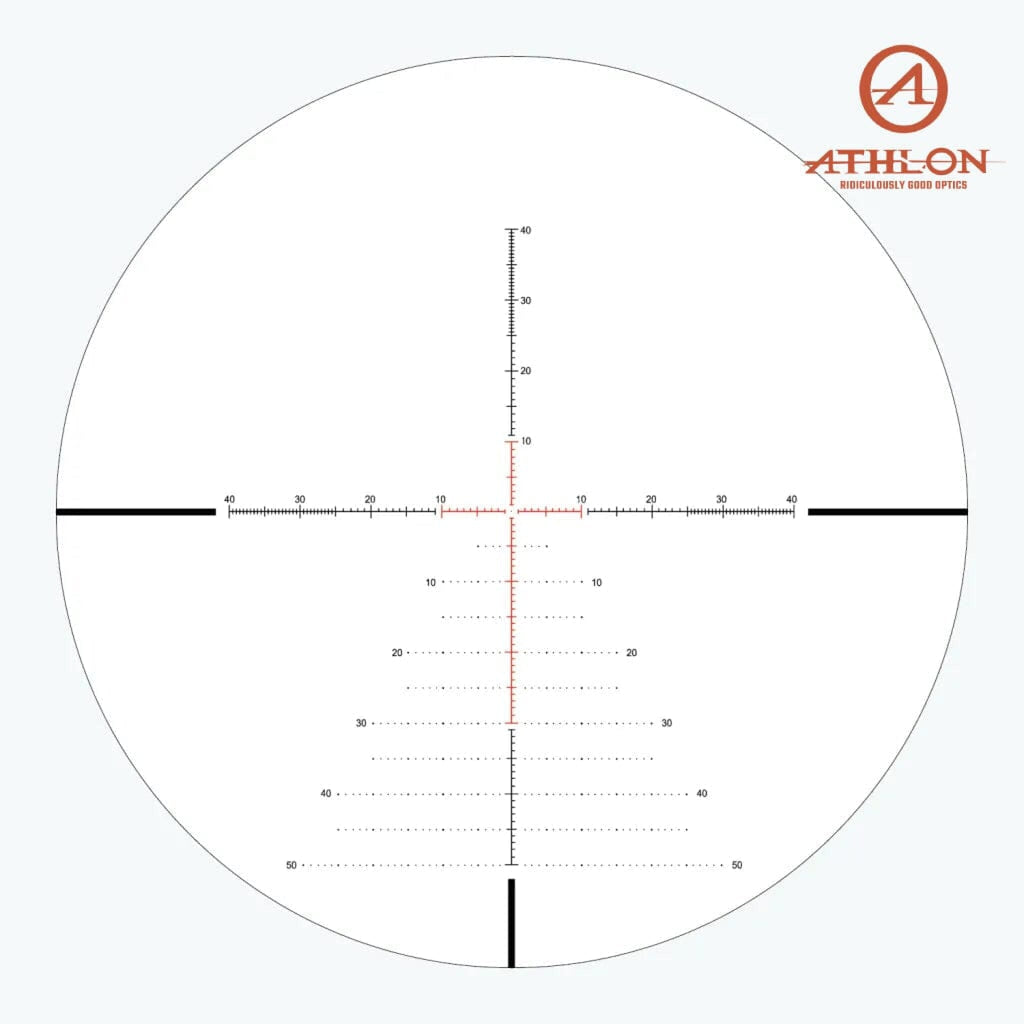

First Focal Plane APLR13 IR MOA Reticle: True-subtension MOA hash marks at all powers; 10-level red-LED electroluminescent illumination for day/night use.
-
HD Optics & Fully Multi-Coated Lenses: Extra-low dispersion elements and broadband coatings on every air-to-glass surface maximize light transmission and edge-to-edge clarity.
-
Exposed Zero-Stop Turrets: 0.1 mil per click; 20 mil per revolution on elevation with positive zero-stop; 10 mil per revolution on windage.
-
Side Focus Parallax: Quick-set knob from 10 yd to ∞ for a tack-sharp reticle at any distance.
-
Extended Eye Relief & Fast-Focus Eyepiece: 3.5″–3.8″ constant eye relief across the zoom range; rapid ocular focus.
-
Rugged Construction: 30 mm one-piece 6061-T6 aluminum tube; matte-black hard-coat anodize; nitrogen-purged; argon-filled; recoil-rated for all standard calibers.
-
Weatherproof: IPX7 waterproof to 1 m for 30 min; fog-proof.
-
Lifetime Warranty: Fully transferable, no-fault coverage.
Technical Specifications for Athlon Ares BTR GEN 3 HD 4.5–27×50 Rifle Scope APLR13 FFP IR MOA Reticle
Specification
|
Details
|
Manufacturer
|
Athlon Optics
|
Model / MPN
|
212016
|
SKU
|
212016-Athlon
|
UPC
|
813869023598
|
Magnification Range
|
4.5 × ⇄ 27 ×
|
Objective Lens Diameter
|
50 mm
|
Tube Diameter
|
30 mm
|
Reticle
|
APLR13 (FFP, illuminated IR MOA)
|
Illumination Settings
|
10-level red-LED EL
|
Elevation Click Value
|
0.1 mil per click
|
Elevation Travel
|
20 mil per rev; positive zero-stop
|
Windage Click Value
|
0.1 mil per click
|
Windage Travel
|
10 mil per rev
|
Parallax Focus
|
Side-focus, 10 yd → ∞
|
Eye Relief
|
3.5″ → 3.8″ (89 → 97 mm)
|
Field of View @ 100 yd
|
22.7 ft → 3.8 ft
|
Exit Pupil
|
11.1 mm → 1.9 mm
|
Overall Length
|
15.3″ (388 mm)
|
Weight
|
27.3 oz (774 g)
|
Finish
|
Matte-black hard-coat anodize
|
Waterproof / Fog-Proof
|
Yes (IPX7)
|
Shock-Proof
|
Yes (all standard calibers)
|
Included Accessories
-
Low-profile throw lever
-
Flip-cap lens covers (objective & ocular)
-
Scope sunshade
-
Lens cleaning cloth & LensPen® tool
-
Allen wrenches (turret & lever)
-
User manual & lifetime warranty card
