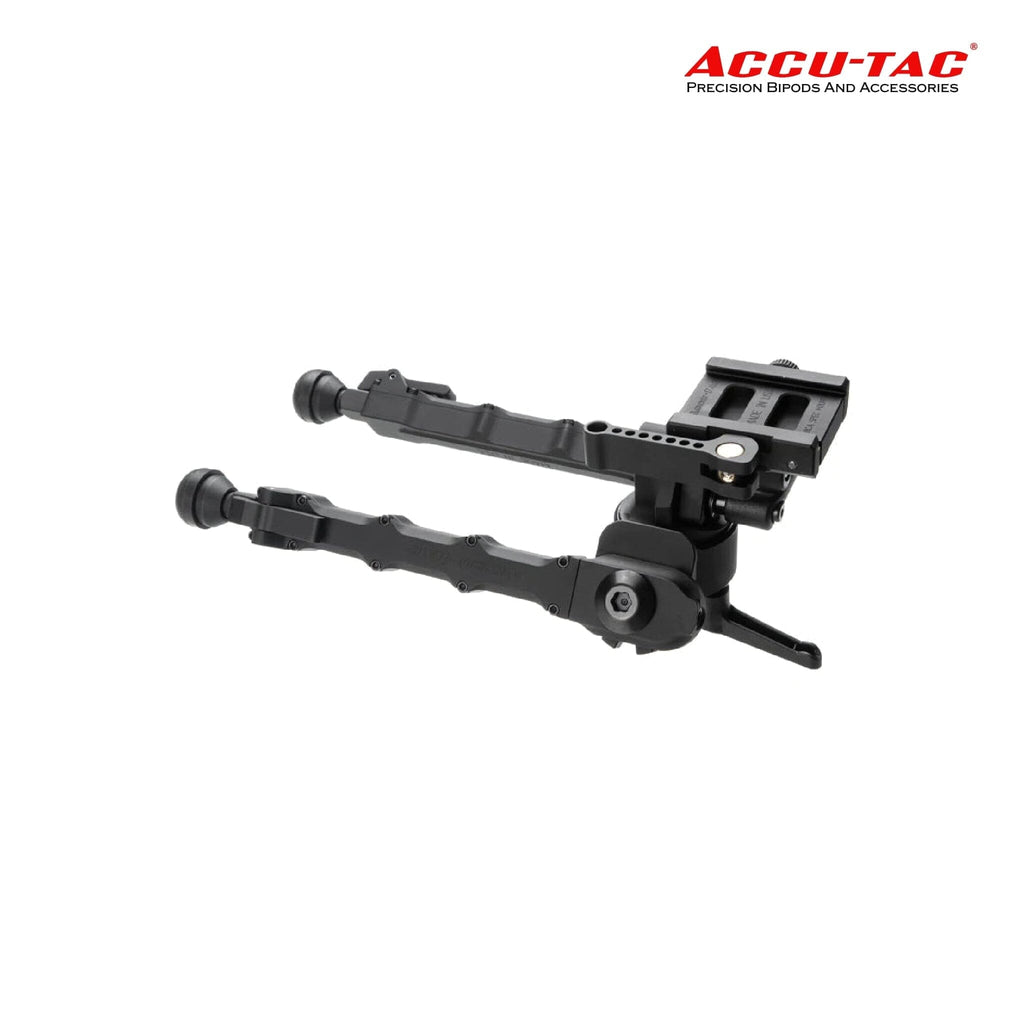

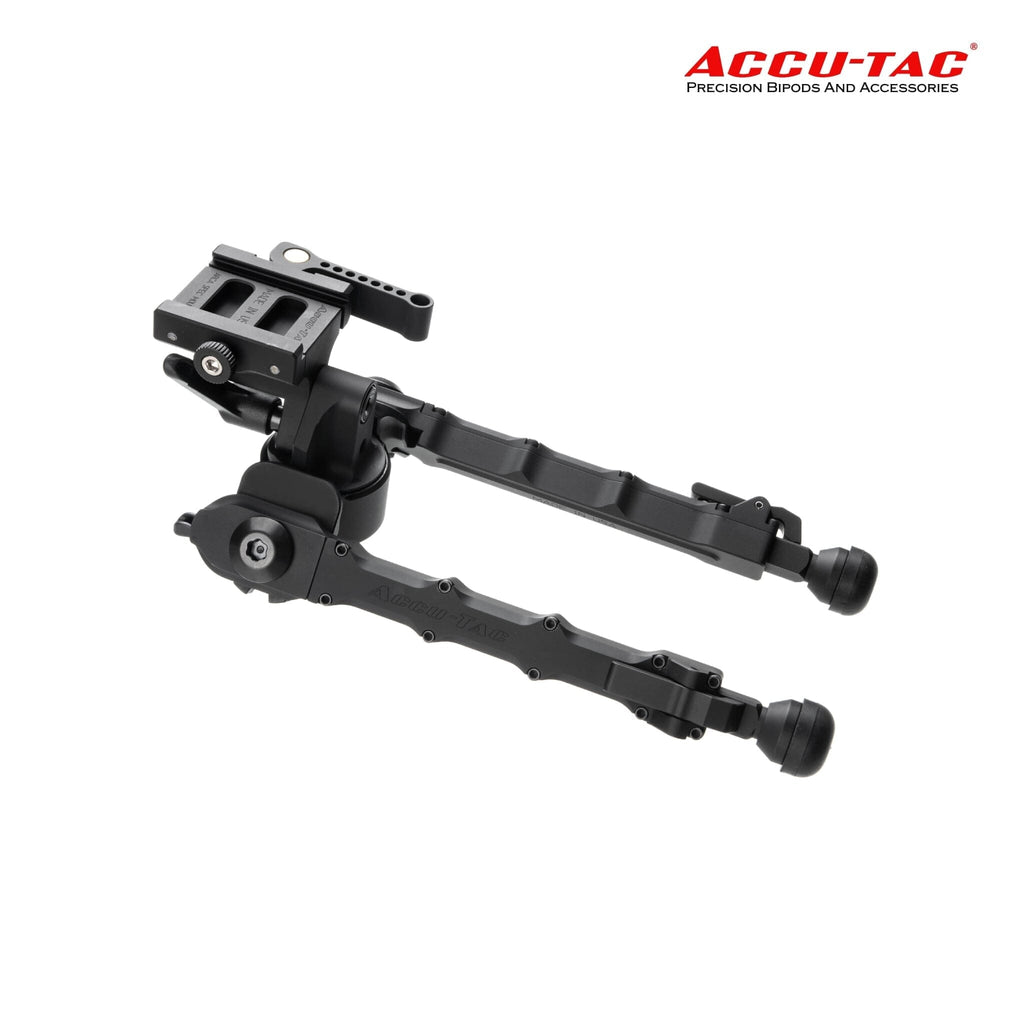

Accu-Tac PC-5 Arca-Spec QD Bipod - Black
Features
-
Pan-&-Cant F-Class Design: Independent pan (±10°) and cant (±15°) control via sealed roller bearings for ultra-smooth horizontal and lateral alignment.
-
Arca-Spec Quick-Detach Mount: Tool-free Arca-Swiss clamp installs/removes in seconds and maintains zero through repeated use.
-
Nine Height Positions & Four Leg Angles: Legs deploy at 0°, 45°, 90°, or folded; nine locking notches span 7.25″–11.75″ (184.2–298.5 mm) at 90°, and 7.25″–11.75″ lengths apply similarly at 45° for versatile setups.
-
Wide-Base Footprint: Stance ranges 10.0″–12.5″ (254–317.5 mm) at 90° for rock-solid support; 10.0″ (254 mm) minimum at 45°.
-
CNC-Machined 6061-T6 Aluminum: Billet-machined body with high-strength steel hardware for extreme rigidity.
-
Mil-Spec Hard-Anodize Finish: Type III flat-black coating resists corrosion, abrasion, and the elements.
-
Made in USA: Precision engineered and manufactured domestically for uncompromising quality.
Technical Specifications for Accu-Tac PC-5 Arca-Spec QD Bipod - Black
|
Specification
|
Details
|
|
Model / MPN
|
PCASQD-0500
|
|
SKU
|
PCASQD-0500
|
|
UPC
|
858520006459
|
|
Mount Interface
|
Arca-Swiss quick-detach clamp
|
|
Materials
|
6061-T6 aluminum; high-strength steel
|
|
Leg Angles
|
0° / 45° / 90° / folded
|
|
Height (45° legs)
|
7.25″ / 184.2 mm
|
|
Height (90° legs)
|
9.0″–11.75″ / 228.6–298.5 mm
|
|
Stance (45° legs)
|
10.0″ / 254 mm
|
|
Stance (90° legs)
|
10.0″–12.5″ / 254–317.5 mm
|
|
Closed Width
|
4.25″ / 108 mm
|
|
Closed Length
|
9.0″ / 228.6 mm
|
|
Weight
|
29.76 oz / 843 g
|
|
Finish
|
Type III hard-anodize (flat black)
|
|
Warranty
|
Accu-Tac Limited Warranty
|
Included Accessories
-
Pan-lock lever
-
Cant-lock lever
-
Allen key for clamp adjustment
-
User manual
