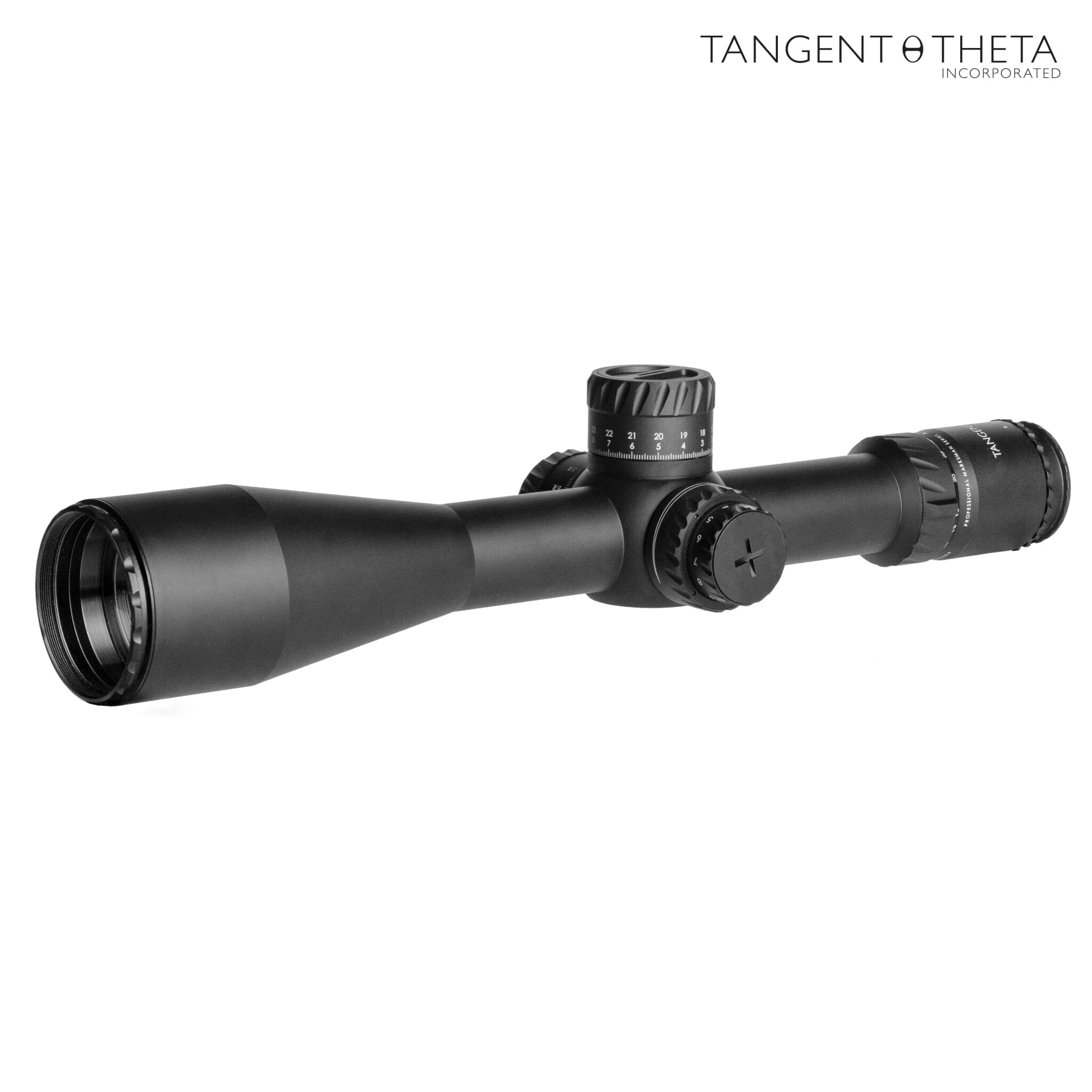

Tangent Theta TT735P 7-35x56 Riflescope - GEN 3 XR Fine Reticle
$6,369.00
Shipping calculated at checkout.
Tangent Theta TT735P 7-35×56 Riflescope - GEN 3 XR Fine Reticle
Features
- Premium Low‑Light Optics – Fully multi‑coated, high‑definition glass with a large 56 mm objective lens delivers outstanding light transmission, color fidelity, and edge‑to‑edge clarity in dawn/dusk conditions.
- First‑Focal‑Plane Gen 3 XR Fine Reticle – True‑subtension XR Fine grid remains accurate at any magnification for instant ranging and precise hold‑over; red LED illumination with 11 brightness levels and 6 h auto‑off.
- Exposed Locking Turrets with Zero‑Stop – Machined elevation and windage turrets lock securely to prevent accidental shifts; mechanical zero‑stop permits instant return to zero, and turrets are fully re‑indexable without tools.
- Tool‑Less Re‑Indexing – After sight‑in, the elevation turret can be re‑indexed without tools, preserving your exact point‑of‑aim through repeated engagements.
- Side Parallax Focus – Side‑mounted focus dial adjusts parallax from 50 m to infinity, eliminating focal shift and ensuring a crisp reticle image at all ranges.
- Rugged 36 mm Chassis – One‑piece aircraft‑grade aluminum tube finished in matte‑black Type II hard‑anodize; full O‑ring sealing and nitrogen purge for IPX7 waterproofing and fog‑proof reliability.
Technical Specifications for Tangent Theta TT735P 7-35×56 Riflescope - GEN 3 XR Fine Reticle
|
Specification |
Details |
|
Manufacturer |
Tangent Theta (Armament Technology, Canada) |
|
Model / Part Number |
TT735P‑XR‑G3 / 800106‑0011 |
|
SKU / MPN |
800106‑0011 |
|
UPC |
666595531499 |
|
Magnification Range |
7 × – 35 × |
|
Objective Lens Diameter |
56 mm |
|
Tube Diameter |
36 mm |
|
Reticle |
First‑Focal‑Plane Gen 3 XR Fine, illuminated (11 levels; 6 h auto‑off) |
|
Field of View |
3.1° @ 7× (5.41 m @ 100 m); 0.62° @ 35× (1.08 m @ 100 m) |
|
Eye Relief |
90 mm |
|
Exit Pupil |
8 mm @ 7×; 1.6 mm @ 35× |
|
Diopter Range |
–3 to +2.5 |
|
Elevation Total Adjustment |
14 mrad (48.1 MOA) |
|
Windage Total Adjustment |
± 7 mrad (± 24.1 MOA) |
|
Adjustment Resolution |
0.1 mrad per click |
|
Parallax Adjustment |
Side focus, 50 m to ∞ |
|
Illumination Battery |
1 × CR2032 3 V lithium |
|
Length |
405 mm (15.9 in) |
|
Weight |
1,230 g (43.4 oz) |
|
Finish |
Matte‑black Type II hard‑anodize |
|
Waterproof / Fogproof |
IPX7 (1 m submersion for 30 min); nitrogen‑purged |
|
Warranty |
Lifetime warranty |
Included Accessories
- Flip‑up lens covers
- CR2032 battery (installed)
- Instruction manual & warranty card
