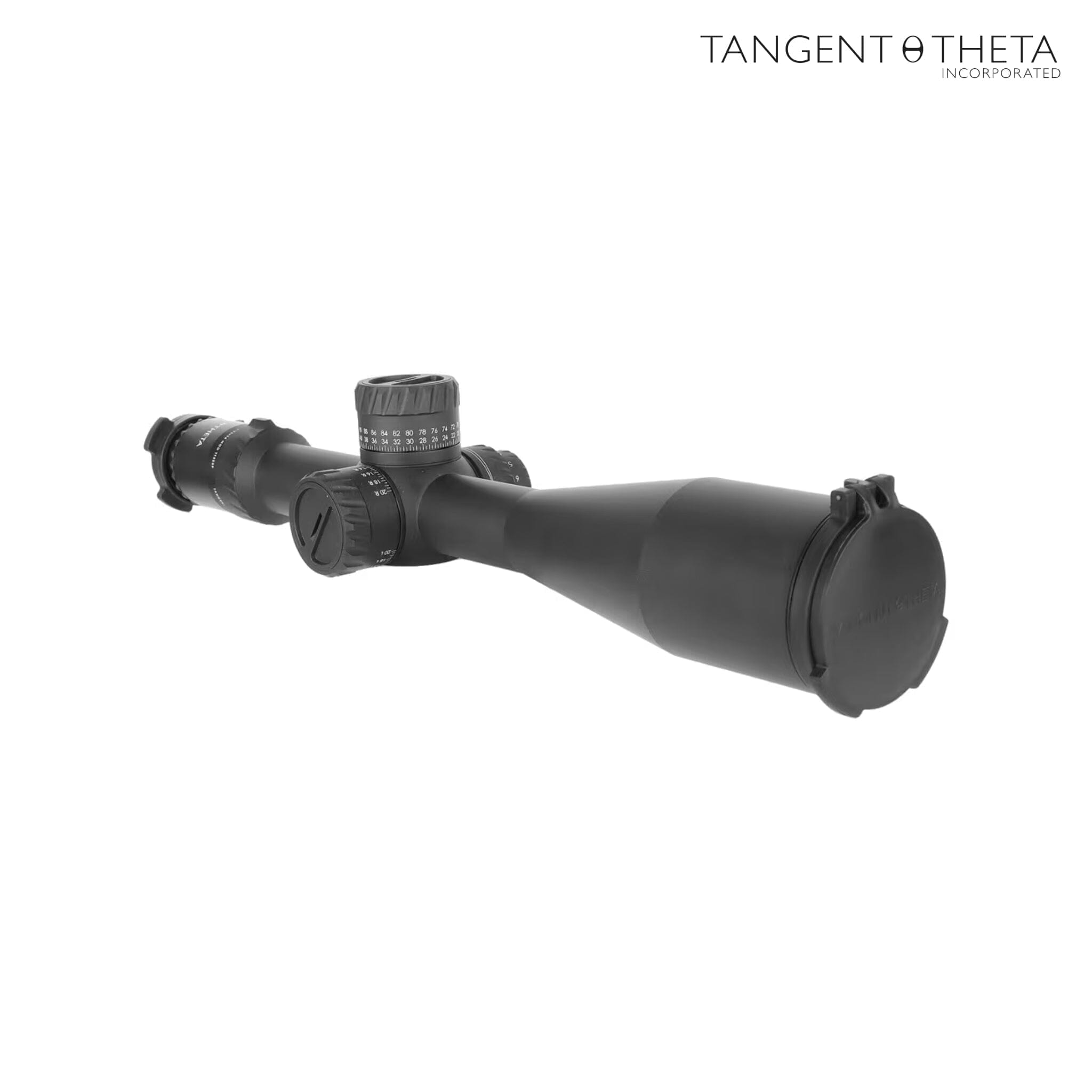

Tangent Theta TT525P 5-25x56 Riflescope - GEN 3 XR Reticle - Black
$5,870.00
Shipping calculated at checkout.
Tangent Theta TT525P 5 -25×56 Riflescope - GEN 3 XR Reticle - Black
Features
- First‑Focal‑Plane Gen 3 XR Reticle – True‑subtension XR grid remains accurate at every magnification for instant ranging and precise hold‑over; 11 levels of red LED illumination with 6 h auto‑off.
- Premium Low‑Light Optics – Fully multi‑coated high‑definition glass and a 56 mm objective deliver exceptional light transmission, contrast, and sharp edge‑to‑edge clarity in any conditions.
- Exposed Locking Turrets & Zero‑Stop – Machined elevation and windage turrets lock securely to prevent accidental drift; built‑in zero‑stop returns you instantly to zero, and turrets re‑index without tools.
- Tool‑Less Re‑Indexing – After sight‑in, simply lift and rotate the elevation turret to restore zeroed markings without disassembly or special tools.
- Side Parallax Focus – Side‑mounted dial adjusts parallax from 50 m to infinity, eliminating focal shift and ensuring crisp reticle clarity at all ranges.
- Robust 34 mm Chassis – One‑piece aircraft‑grade aluminum tube finished in matte‑black Type II hard‑anodize; full O‑ring sealing and nitrogen purge for IPX7 waterproofing and fog‑proof reliability.
- Versatile 5× – 25× Magnification – Broad zoom range suits both rapid target acquisition and extended‑distance precision engagements.
Technical Specifications for Tangent Theta TT525P 5 -25×56 Riflescope - GEN 3 XR Reticle - Black
|
Specification |
Details |
|
Manufacturer |
Tangent Theta (Armament Technology, Canada) |
|
Model / Part Number |
TT525P – GEN 3 XR / 800100‑0006 |
|
SKU / MPN |
800100‑0006 |
|
UPC |
666595531222 |
|
Magnification Range |
5 × – 25 × |
|
Objective Lens Diameter |
56 mm |
|
Tube Diameter |
34 mm |
|
Reticle |
First‑Focal‑Plane Gen 3 XR, illuminated (11 levels; 6 h auto‑off) |
|
Field of View |
4.3° @ 5× (7.6 m @ 100 m); 0.9° @ 25× (1.6 m @ 100 m) |
|
Eye Relief |
90 mm |
|
Exit Pupil |
11 mm @ 5×; 2.3 mm @ 25× |
|
Diopter Range |
–3 to +2.5 |
|
Elevation Total Adjustment |
10 mrad (34.4 MOA) |
|
Windage Total Adjustment |
± 5 mrad (± 17.2 MOA) |
|
Click Value |
0.1 mrad per click |
|
Parallax Adjustment |
Side focus, 50 m to ∞ |
|
Illumination Power |
1 × CR2032 3 V lithium |
|
Length |
425 mm (16.7 in) |
|
Weight |
1,150 g (40.6 oz) |
|
Finish |
Matte‑black Type II hard‑anodize |
|
Waterproof / Fogproof |
IPX7 (1 m submersion for 30 min); nitrogen‑purged |
|
Warranty |
Lifetime warranty |
Included Accessories
- Flip‑up lens covers
- CR2032 battery (installed)
- Instruction manual & warranty documentation
