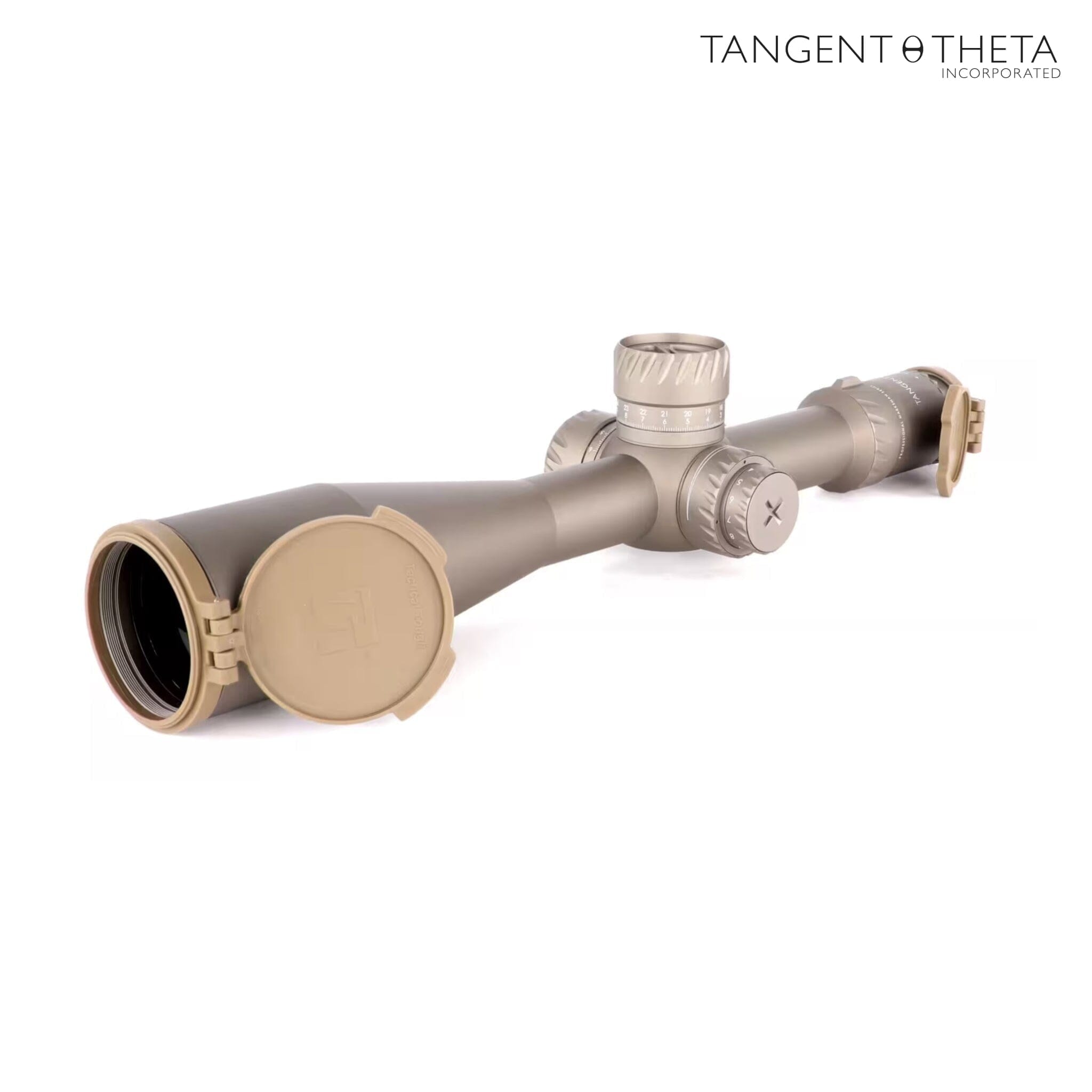

Tangent Theta TT525P 5-25x56 Riflescope AIF Turrets - GEN 2 XR Reticle - Coyote Brown
Tangent Theta TT525P 5‑25×56 Riflescope AIF Turrets - GEN 2 XR Reticle - Coyote Brown
Features
- First‑Focal‑Plane GEN 2 XR Reticle – True‑subtension XR grid remains accurate at all magnifications for rapid ranging and precise hold‑over corrections; red LED illumination with 11 brightness levels and a 6 h auto‑off.
- Auto‑Isolating Feature (AIF) Turrets – Proprietary locking‑turret system where a freely spinning outer sleeve protects your zero by isolating the adjustment cap until deliberately pulled up to engage—preventing accidental shifts on impact or snag.
- Premium Low‑Light Optics – Fully multi‑coated, high‑definition glass mated to a 56 mm objective delivers outstanding light transmission, contrast, and edge‑to‑edge clarity in dawn/dusk conditions.
- Tool‑Less Re‑Indexing & Zero‑Stop – Elevation and windage turrets feature a mechanical zero‑stop for instant return to zero; lift and rotate the elevation turret after sight‑in to restore zeroed markings without tools.
- Side Parallax Focus – Side‑mounted dial adjusts parallax from 50 m to infinity, eliminating focal shift and ensuring a crisp reticle image at all distances.
- Rugged 34 mm Chassis – One‑piece aircraft‑grade aluminum tube in flat dark earth Type II hard‑anodized finish; O‑ring sealed and nitrogen‑purged for IPX7 waterproofing and fog‑proof reliability.
- Versatile 5×–25× Magnification – Broad zoom range supports both rapid target acquisition and long‑range precision engagements.
Technical Specifications for Tangent Theta TT525P 5‑25×56 Riflescope AIF Turrets - GEN 2 XR Reticle - Coyote Brown
Specification |
Details |
Manufacturer |
Tangent Theta (Armament Technology, Canada) |
Model / Part Number |
TT525P‑AIF / 800100‑0601 |
SKU / MPN |
800100‑0601 |
UPC |
666595531383 |
Reticle |
First‑Focal‑Plane GEN 2 XR, illuminated (11 levels; 6 h auto‑off) |
Magnification Range |
5 × – 25 × |
Objective Lens Diameter |
56 mm |
Tube Diameter |
34 mm |
Field of View |
4.3° @ 5× (7.6 m @ 100 m); 0.9° @ 25× (1.6 m @ 100 m) |
Eye Relief |
90 mm |
Exit Pupil |
11 mm @ 5×; 2.3 mm @ 25× |
Diopter Range |
–3 to +2.5 |
Elevation Total Adjustment |
10 mrad (34.4 MOA) |
Windage Total Adjustment |
± 5 mrad (± 17.2 MOA) |
Click Value |
0.1 mrad per click |
Parallax Adjustment |
Side focus, 50 m to ∞ |
Illumination Power |
1 × CR2032 3 V lithium |
Length |
425 mm (16.7 in) |
Weight |
1,150 g (40.6 oz) |
Finish |
Flat Dark Earth Type II hard‑anodize |
Waterproof / Fogproof |
IPX7 (1 m submersion for 30 min); nitrogen‑purged |
Warranty |
Lifetime warranty |
Included Accessories
- Flip‑up lens covers
- CR2032 battery (installed)
- Instruction manual & warranty documentation
