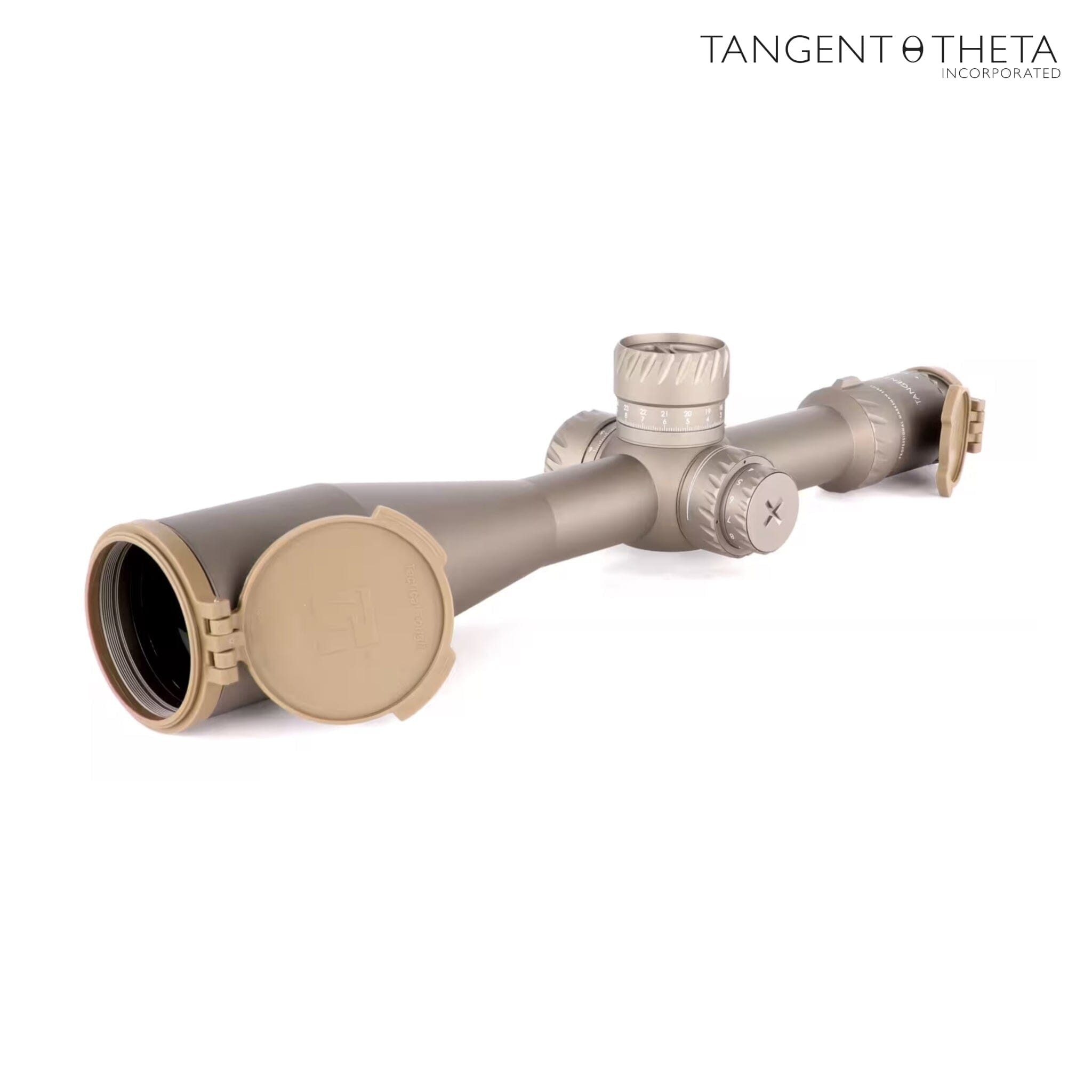

Tangent Theta TT525P 5-25x56 Riflescope AIF Turret - GEN 3 XR Fine Reticle - Coyote Brown
$6,457.00
Shipping calculated at checkout.
Tangent Theta TT525P 5-25x56 Riflescope AIF Turret - GEN 3 XR Fine Reticle - Coyote Brown
Features
- Extreme‑Range Precision Optics – Fully multi‑coated, premium glass paired with a 56 mm objective ensures exceptional light transmission, contrast, and edge‑to‑edge clarity in all lighting conditions.
- First‑Focal‑Plane Gen 3 XR Fine Reticle – True‑subtension XR Fine grid remains accurate at any magnification for instant ranging and precise hold‑over; red LED illumination with 11 brightness levels and 6 h auto‑off.
- AIF Turrets with Zero‑Stop & Re‑Indexing – Exposed, lockable elevation and windage turrets deliver crisp 0.1 mrad clicks; pull‑to‑unlock for tool‑free re‑zero and mechanical zero‑stop for instant return to zero.
- Robust Field‑Ready Chassis – One‑piece 34 mm aircraft‑grade aluminum body in coyote brown Type II hard‑anodize; O‑ring sealed and nitrogen‑purged for IPX7 waterproofing and fog‑proof reliability.
- Side Parallax Focus – Side‑mounted dial adjusts parallax from 50 m to infinity, eliminating focal shift and ensuring a crisp reticle image at all ranges.
- Wide 5×–25× Magnification – Versatile zoom range for both rapid target acquisition and long‑range precision engagements.
Technical Specifications for Tangent Theta TT525P 5-25x56 Riflescope AIF Turret - GEN 3 XR Fine Reticle - Coyote Brown
|
Specification |
Details |
|
Manufacturer |
Tangent Theta (Armament Technology, Canada) |
|
Model / Part Number |
TT525P‑AIF |
|
SKU / MPN |
800100‑0611 |
|
UPC |
666595531468 |
|
Magnification Range |
5 × – 25 × |
|
Objective Lens Diameter |
56 mm |
|
Tube Diameter |
34 mm |
|
Reticle |
First‑Focal‑Plane Gen 3 XR Fine, illuminated (11 levels; 6 h auto‑off) |
|
Field of View |
4.3° @ 5× (7.6 m @ 100 m); 0.9° @ 25× (1.6 m @ 100 m) |
|
Eye Relief |
90 mm |
|
Exit Pupil |
11 mm @ 5×; 2.3 mm @ 25× |
|
Diopter Range |
–3 to +2.5 |
|
Elevation Total Adjustment |
10 mrad (34.4 MOA) |
|
Windage Total Adjustment |
± 5 mrad (± 17.2 MOA) |
|
Adjustment Resolution |
0.1 mrad per click |
|
Parallax Adjustment |
Side focus, 50 m to ∞ |
|
Illumination Battery |
1 × CR2032 3 V lithium |
|
Length |
425 mm (16.7 in) |
|
Weight |
1,150 g (40.6 oz) |
|
Finish |
Coyote Brown Type II hard‑anodized |
|
Waterproof / Fogproof |
IPX7 (1 m submersion for 30 min); nitrogen‑purged |
|
Warranty |
Lifetime warranty |
Included Accessories
- Coyote Brown flip‑up lens covers
- CR2032 battery (installed)
- Torx re‑zero tool
- Instruction manual & warranty documentation
